QUESTYLE M15I Portable DAC Headphone Amplifier

The Questyle M15i is a DAC headphone amplifier featuring an ES9281AC DAC chip with integrated class G headphone amplifier, enabling it to support sampling rates up to PCM 32bit 768kHz and native DSD up to DSD512. This DAC chip is coupled with two CMA (Current mode amplification) circuits, i.e. transistors that extend frequency response and reduce distortion (> 0.0003% ) at the M15i's output.

No customer reviews yet, login to write a review.

By buying this product you get 25 loyalty points


Reference : 19563
New product

259,00 €tax incl.

215,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 22-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Questyle M15i Portable DAC Headphone Amplifier ES9281AC 32bit 768kHz DSD512

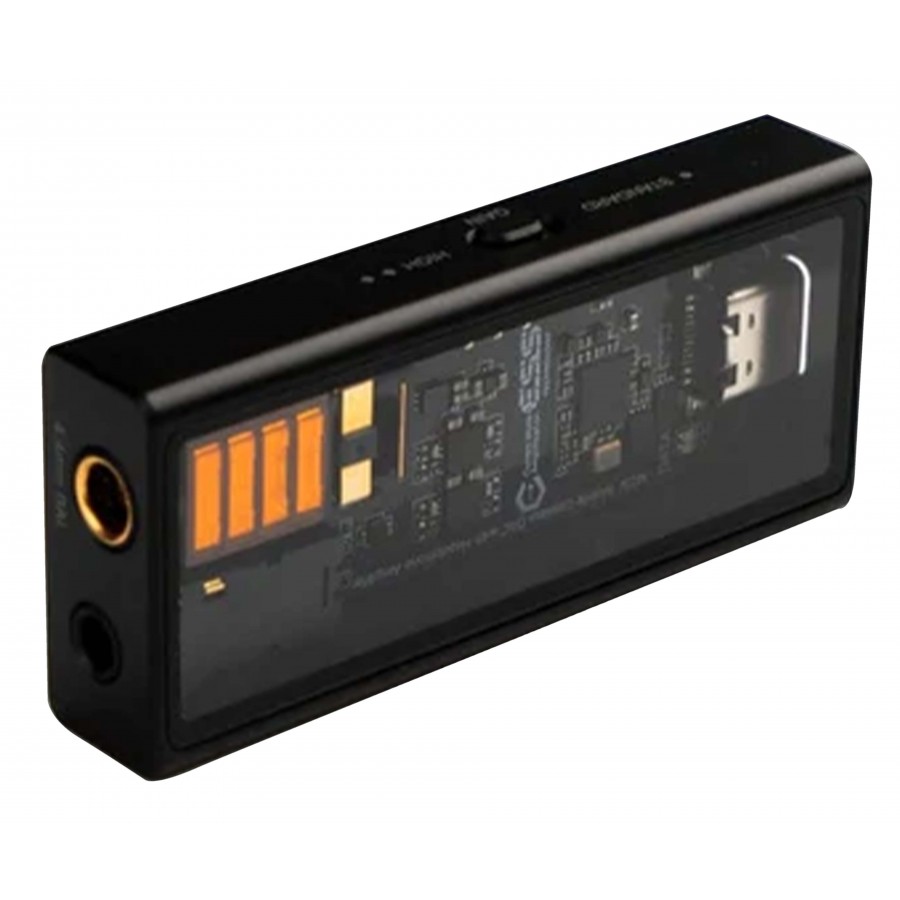

QUESTYLE M15i picture

The Questyle M15i is a DAC / headphone amplifier featuring an ES9281AC DAC chip with integrated class G headphone amplifier, enabling it to support sampling rates up to PCM 32bit 768kHz and native DSD up to DSD512. This DAC chip is coupled with two CMA (Current Mode Amplification) circuits, i.e. transistors that extend frequency response and reduce distortion (< 0.0003% ) at the M15i's output. Unlike its little brother, the M12i, the M15i has a USB-C input, as well as two headphone outputs: a 3.5mm stereo jack (TRRS) and a balanced 4.4mm headphone jack. Its output power can reach over 2vrms on its balanced output, enabling it to drive a large number of headphones and IEMs available on the market. In addition to the high-end look with transparent glass, a manual gain control is now available on one of the M15i's sides. Coupled with a smartphone, tablet or computer, this little DAC/headphone amplifier is an ideal ally for enjoying your music library or streaming services.

The Lightning cable is not supplied, but is available as an accessory.

QUESTYLE M15i compatibility

Questyle M15i: DAC ES9281AC

The ES9281AC DAC chip is a DAC chip that benefits from a QUAD DAC™ HyperStream® II architecture enabling the M15i to support sampling rates up to PCM 32bit 768kHz and native DSD up to DSD512.

ES9281AC DAC chip
QUESTYLE M15i circuit diagram

Questyle M15i: dual CMA amplification

The Questyle M15i benefits from no less than 2 CMA SIP modules, enabling it to deliver clear, powerful sound while maintaining a distortion rate of less than 0.0003%. The result is a detailed sound output from the M15i, with a power output of :

  • Jack 3.5mm : 11.97mW @ 300Ω (Vout Max = 1.895Vrms , THD+N 0.003%)
  • Jack 4.4mm : 22.60mW @ 300Ω (Vout Max = 2.624Vrms , THD+N 0.003%)

Questyle M15i: high level of compatibility

Thanks to its gain control and balanced 3.5mm jack and 4.4mm jack headphone outputs, the M15i is able to adapt to a wide range of headphones and IEMs on the market. It is also fully compatible with iOS devices, Android version 5.1 and higher, driverless Windows 10 (version 18.3 and higher) and macOS environments.

Picture of the outputs and gain control of the QUESTYLE M15i

Questyle M15i: LED indication

The M15i features 2 LEDs to indicate the current sampling rate, and two LEDs to indicate the gain level. One LED indicates a sampling rate below 48kHz (PCM), while 2 LEDs indicate a sampling rate above 48kHz (PCM-DSD). For gain, one LED means a low gain level and 2 LEDs a high gain level.

Photo of QUESTYLE M15i LEDs

Questyle M15i overview

QUESTYLE M15i overview
1CNC-machined aluminum body
2USB-C input
3Sampling rate indicator LED
4LED for gain level indication
5ES9281AC DAC chip
6Gain level adjustment
7CMA SIP amplification module
8TOREX power management module
93.5mm jack output
10Balanced 4.4mm jack output

Technical characteristics

Specifications
Product typeDAC / Headphone amplifier
DAC chipES9281AC
Amplification circuitCMA
InputUSB-C
Output1x 3.5mm headphone output
1x Balanced 4.4mm headphone jack output
Supported sample rates32bit 768kHz et DSD512
Output powerJack 3.5mm : 11.97mW @ 300Ω (Vout Max = 1.895Vrms , THD+N 0.003%)
Jack 4.4mm 11.97mW @ 300Ω (Vout Max = 2.624Vrms , THD+N 0.003%)
Frequency response±0.1dB(20Hz - 20kHz)
±2dB(20Hz - 80kHz)
THD+N0.0003%
General
Dimensions61.9 x 27.9 x 12mm
ColorBlack
Package1x Questyle M15i
1x USB-C to USB-C cable
1x USB-C to USB-A
QUESTYLE M15i measurements

Data sheet
InputUSB
OutputJack 4.4mm
OutputJack 3.5mm
DAC / ADC ChipES9281AC
Max sampling rate768kHz
Max sampling rateDSD512
ColorBlack
ClassN/A
NetworkingNo
Remote ControlNo
