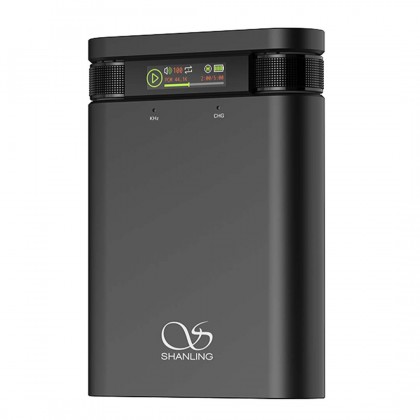

SHANLING H2 Portable DAC Headphone Amplifier Black
By buying this product you get 16 loyalty points
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] DAYTON AUDIO EX32VBDS-4 IMS Speaker Driver Exciter 40W 4 Ohm Ø32mm](https://www.audiophonics.fr/65646-thumb_default/dayton-audio-ex32vbds-4.jpg)
![[GRADE A] DAYTON AUDIO SPA500DSP Amp module Class-D Subwoofer 500W with DSP](https://www.audiophonics.fr/65595-thumb_default/dayton-audio-spa500dsp-amp-module-class-d-subwoofer-500w-with-dsp.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
SHANLING H2 Portable DAC CS43198 Headphone Amplifier Bluetooth 5.0 XMOS 32bit 384kHz DSD256 Black
With the Shanling H2, the Shanling brand unveils a compact, versatile device that performs the functions of portable DAC and headphone amplifier with integrated player. It features high-quality components such as a Cirrus Logic CS43198 DAC chip, a second-generation XMOS XU-216 USB interface, an Ingenic X1000 processor and SG-Micro 8262-2 OPAs. These components enable it to achieve an output power of up to 680mW @32 Ohm and support high-resolution streams up to PCM 32bit 384kHz and native DSD up to DSD256. The H2 also features Bluetooth 5.0 functionality and a micro SD slot, as well as an integrated player for an enhanced user experience. The Shanling H2 charges via its USB-C port, and its battery provides up to 10.5 hours of autonomy.
Shanling H2: CS43198 DAC chip and XMOS XU-216 USB interface
The CS43198 DAC chip and XMOS XU-216 USB interface enable the H2 to decode high-resolution streams up to PCM 384kHz and native DSD up to DSD256. This makes the H2 the ideal companion to a smartphone or computer for pure, detailed sound reproduction.
Shanling H2: SG-Micro 8262 OPAs
The H2 uses two SG-Micro 8262 OPAs for its balanced 4.4mm jack output, combined with Elna Silmic II capacitors. It is compatible with most headphones and earphones on the market, thanks to its 3.5mm jack output with an output power of 180mW @ 32 ohm and its balanced 4.4mm jack output with an output power of 680mW @ 32 ohm.
Shanling H2: a micro SD slot
The H2's micro HD slot lets you enjoy lossless high-definition audio files up to PCM 192kHz and DSD128. The micro HD slot accepts cards up to 2 TO in capacity. You can access your files via the Eddict Player application, available on IOS and Android.
Shanling H2: a 2100mAh battery
Despite its extremely compact size, the H2 benefits from a 2100mAh battery, giving it an autonomy of 12.5h on its 3.5mm jack output or 10.5h on its 4.4mm balanced output. In addition, the H2's charging circuit is independent of the USB DAC input, with two separate USB-C connectors.
Shanling H2: Bluetooth 5.0
The Shanling H2 can be transformed into a high-quality Bluetooth DAC/headphone amplifier. It supports the high-resolution Bluetooth codecs LDAC (Android) and AAC (IOS).
Shanling H2: LED indicators
The H2's LED indicators show the sampling rate currently being played back according to the following color code:
- Blue : 44.1/48kHz
- Yellow : 88.2/96/176.4/192kHz
- Purple : 352/384kHz
- Green : DSD64/DSD128/DSD256
Technical characteristics
| Specifications | |
|---|---|
| Product type | Portable DAC / Headphone amplifier |
| DAC chip | CSCS43198 |
| USB interface | XMOS XU-216 |
| OPA | 2x SG-Micro 8262 |
| Inputs | 1x USB-C 1x Slot micro-SD (2To) Bluetooth 5.0 |
| Outputs | 1x 3.5mm jack 1x 4.4mm jack |
| Supported sample rates | PCM 32bit 384kHz and native DSD up to DSD256 |
| Supported Bluetooth codecs | SBC / AAC / LDAC |
| Micro-SD audio formats | DSD (".ISO", ".DSF", ".DFF") DST not supported ISO DXD, APE, FLAC, WAV, AIFF, DTS, MP3, WMA, AAC, OGG, ALAC, MP2, M4A, AC3, M3U, M3U8, OPUS |
| Sampling rates supported via SD slot | PCM 24bit 192kHz, native DSD DSD64, DSD128 D2P |
| Digital filters | 4 built-in filters |
| 3.5MM JACK OUTPUT MEASURES | |
|---|---|
| Output power | Low gain 90mW @ 32 ohm (1.7V @32 ohm) High gain 180mW @ 32 ohm (2.4V @32 ohm) |
| Frequency response | 20Hz-40kHz (-0.5dB) |
| THD+N | 0.0007% @ 32 Ohm |
| Dynamic range | 123dB @ 32 Ohm (A-weighted High gain) |
| Channel separation | 80dB @ 32 Ohm |
| SNR | 123dB @ 32 Ohm (A-weighted High gain) |
| Output impedance | 0.4 ohm |
| BALANCED 4.4MM JACK OUTPUT MEASURES | |
|---|---|
| Output power | Low gain 340mW @ 32 ohm (3.3V @32 ohm) High gain 680mW @ 32 ohm (4.65V @32 ohm) |
| Frequency response | 20Hz-40kHz (-0.5dB) |
| THD+N | 0.0008% @ 32 Ohm (A-Weighted 1V Low gain) 0.0007% @ 32 Ohm (A-Weighted 2V High gaint) |
| Dynamic range | 125dB @ 32 Ohm (A-weighted Gain haut) |
| Channel separation | 111dB @ 32 Ohm |
| SNR | 125dB @ 32 Ohm (A-weighted High gain) |
| Output impedance | 0.8 ohm |
| General | |
|---|---|
| Dimensions | 71.5 x 100 x 21.5mm |
| Color | Black |
| Weight | 185g |
| Package | 1x Portable DAC headphone amplifier Shanling H2 1x USB-C to USB-C cable 1x USB-A to USB-C cable |
| Input | Bluetooth |
| Input | USB |
| Input | Micro SD |
| Output | Jack 3.5mm |
| Output | Jack 4.4mm |
| DAC / ADC Chip | CS43198 |
| Max sampling rate | DSD256 |
| Max sampling rate | 384kHz |
| Color | Black |
| Class | N/A |
| Networking | No |
| Remote Control | No |
