SHANLING UA6 Portable Balanced DAC Silver

With the UA6, Shanling offers a balanced portable DAC that lets you enjoy a high-resolution stream in all circumstances at a contained price. The UA6 uses four Cirrus Logic CS43131 DAC chips to support PCM up to 32bit 768kHz and native DSD up to DSD512. The UA6 offers two headphone outputs, one balanced and one single-ended, for respective output powers of 360mW and 110mW at 32Ω.

No customer reviews yet, login to write a review.

By buying this product you get 18 loyalty points


Reference : 19954
New product

189,00 €tax incl.

157,50 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Shanling UA6 Portable Balanced DAC USB-C 4xCS43131 32bit 768kHz DSD512 Silver

Shanling UA6 : Front and back views

With the UA6, Shanling offers a balanced portable DAC that lets you enjoy a high-resolution stream in all circumstances at a contained price. The UA6 uses four Cirrus Logic CS43131 DAC chips to support PCM up to 32bit 768kHz and native DSD up to DSD512. The UA6 offers two headphone outputs, one balanced and one single-ended, for respective output powers of 360mW and 110mW at 32Ω.

Shanling UA6 : A practical interface

The Shanling UA6 portable DAC has 3 buttons for adjusting the volume and play/pause of your audio tracks. Its aluminium body houses a 1.3-inch colour screen that lets you navigate the settings menu and display information about the track currently playing.

Shanling UA6 : silver and black models
Shanling UA6 : DAC chips

Shanling UA6 : Four DAC chips

The heart of the UA6 is based on 4 Cirrus Logic CS43131 DAC chips, enabling it to support PCM up to 32bit 768kHz and native DSD up to DSD512, while maintaining an incredibly low harmonic distortion level of 0.00025%.

Shanling UA6 : Dual headphone output

The UA6 offers two headphone outputs: a balanced 4.4mm jack output offering 360mW output power at 32Ω and a single-ended 3.5mm jack output offering 110mW output power at 32Ω that can also be used as a coaxial SPDIF output.

Shanling UA6 : Jack outputs and respective output power
Shanling UA6 : 220mAh battery

Shanling UA6 : Battery powered

The UA6 features a 220 mAh battery combined with an all-new hybrid system that allows the DAC to adjust the energy drawn from the smartphone in real time, ensuring highly efficient operation and stable audio performance. Furthermore, the UA6 features a battery buffer system so that it is compatible with phones with limited USB output power, such as iPhone and Samsung devices.

Shanling UA6 : Low voltage drop regulator

To ensure the most crystal-clear sound reproduction possible, the UA6 is fitted with a low voltage drop regulator, giving an exceptional signal-to-noise ratio of 132dB.

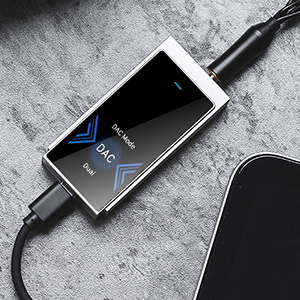

Shanling UA6 : In use
Shanling UA6 : UAC 1.0 mode

Shanling UA6 : UAC 1.0

To ensure broad compatibility, including with games consoles, the UA6 offers the option of activating a UAC 1.0 mode, so you can enjoy it in every possible situation.

Shanling UA6 : Eddict player

To control the UA6's many options, such as gain level, digital filters and channel balance, you can download the Eddict Player application available on Android. Note that the application is also available on iOS, although Apple's limitations prevent any modification of the DAC's parameters.

Shanling UA6 : Eddict Player App

Technical characteristics

Specifications
Product typePortable DAC
DAC chip4x CS43131
Input1x USB-C
Output1x Single-ended jack 3.5 mm
1x Balanced jack 4.4mm
Supported sample ratesPCM up to 32bit 768kHz
DSD natif up to DSD512
Battery capacity220mAh
Digital filters5 options
Sampling rate LED indicatorBlue : 32kHz / 44.1kHz / 48kHz
Green : 64kHz / 88.2kHz / 96kHz
Yellow : 128kHz / 176.4kHz / 192kHz
Pink : 352.8kHz / 384kHz / 705.6kHz
White : DSD64 / DSD128 / DSD256 / DSD512
3.5MM JACK OUTPUT MEASUREMENT
Low gain1V @ 32Ω (31mW @ 32Ω)
High gain1.9V @ 32Ω (112mW @ 32Ω)
Frequency response20Hz-40kHz (-0.5dB)
Total harmonic distortion more noise (THD+N)0.00025%
Dynamic range128dB
Channel separation68dB
Signal-to-noise ratio (SNR)127dB
Output impedance0.6Ω
4.4MM JACK OUTPUT MEASUREMENT
Low gain1.8V @ 32Ω (101mW @ 32Ω)
High gain3.4V @ 32Ω (361mW @ 32Ω)
Frequency response20Hz-40kHz (-0.5dB)
Total harmonic distortion more noise (THD+N)0.0006%
Dynamic range133dB
Channel separation129dB
Signal-to-noise ratio (SNR)132dB
Output impedance1.2Ω
General
Dimensions68 x33.5 x 13.6mm
Weight35g
ColorSilver
Package1x Shanling UA6
1x USB-C to USB-C cable
1x USB-A to USB-C adapter

Data sheet
InputUSB
OutputJack 4.4mm
OutputJack 3.5mm
DAC / ADC ChipCS43131
Max sampling rate768kHz
Max sampling rateDSD512
ColorSilver
NetworkingNo
Remote ControlNo
