SHANLING UA MINI DAC Headphone Amplifier Adapter

New
The Shanling UA Mini DAC / headphone amplifier adapter lets you enjoy high-resolution files from a smartphone. It incorporates a Cirrus Logic CS43131 DAC chip, a Savitech SA9312 USB interface and an SGM8262 OPA, enabling it to support sampling rates up to PCM 32Bit 384kHz and DSD256, while delivering power up to 205mW into 32Ω.

No customer reviews yet, login to write a review.

By buying this product you get 3 loyalty points


Yes, notify me when available !
Reference : 20633
New product

34,90 €tax incl.

29,08 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Shanling UA MINI DAC Headphone Amplifier Adapter USB-C to Jack 3.5mm Female 32bit 384kHz DSD256

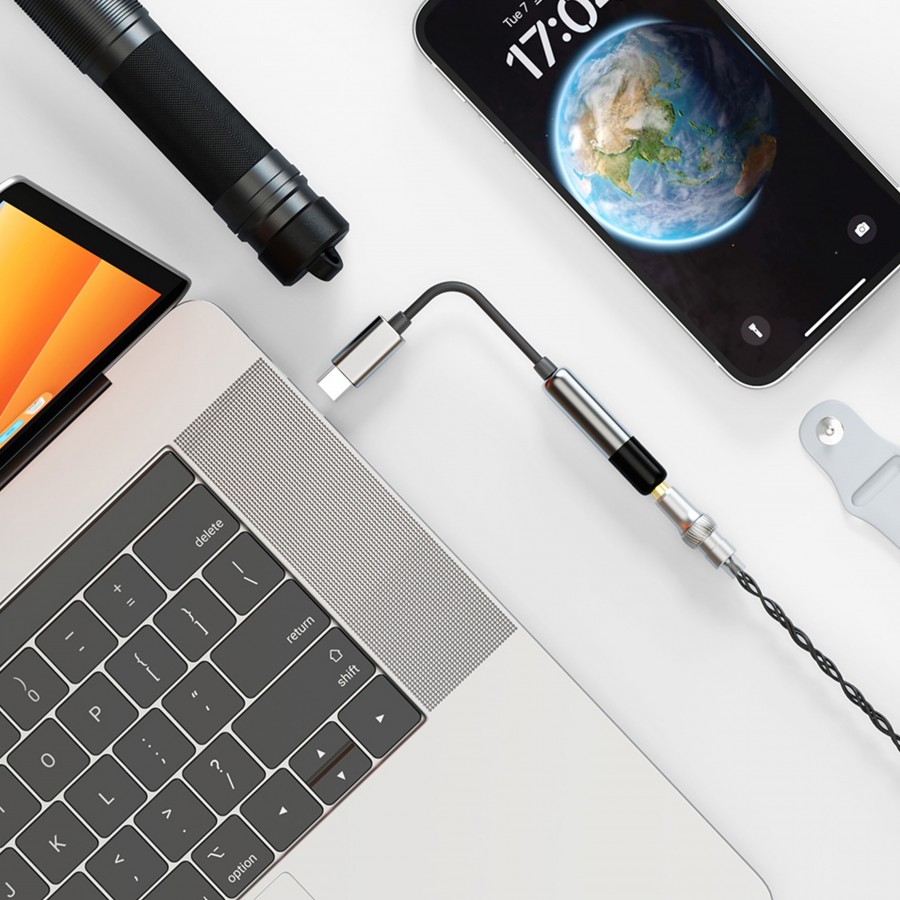

SHANLING UA MINI picture

The Shanling UA Mini DAC / headphone amplifier adapter lets you enjoy high-resolution files from a smartphone. It incorporates a Cirrus Logic CS43131 DAC chip, a Savitech SA9312 USB interface and an SGM8262 OPA, enabling it to support sampling rates up to PCM 32Bit 384kHz and DSD256, while delivering power up to 205mW into 32Ω (THD+N < 1%). This chipset offers good performance for noise-free sound reproduction and ultra-low distortion of just 0.0004% into 32Ω. Furthermore, the UA Mini is compatible with many operating systems for “plug and play” use. The 3.5mm jack output connector also features an LED indication of the current sampling rate:

  • Blue : 44.1kHz-48kHz
  • Green : 88.2kHz-96kHz
  • Yellow : 176.4kHz-192kHz
  • Purple : 352.8kHz-384kHz
  • White : DSD64/DSD128/DSD256
Les points fort du Shanling UA Mini
Les caractéristiques du Shanling UA Mini

Technical characteristics

Specifications
Product typeDAC adapter / Headphone amplifier
DAC chipCS43131
Headphone amplifier OPASGM8262
USB interfaceSavitech 9312
InputUSB-C male
Output3.5mm jack female
Supported sample ratesPCM up to 32bit 384kHz
DSD up to DSD256
Output power2x 205mW @ 32Ω (THD+N < 1%)
2x 260mW @ 16Ω (THD+N < 1%)
SNR126dB @ 32Ω
DNR126dB @ 32Ω
THD+N0.0004% (-3dB @ 32Ω)
Noise floor1.4uV (A-WT)
Frequency response20Hz-20kHz ±2dB
Output impedance0.5Ω
Compatible OSAndoid, iOS, Windows, MAC OS
Cable conductor material Cuivre plaqué argent
General
Dimensions42 x 10mm (main body) / 128mm (total length with cable)
Weight8.4g
Package1x Shanling UA Mini

Data sheet
InputUSB
OutputJack 3.5mm
DAC / ADC ChipCS43131
Max sampling rate384kHz
Max sampling rateDSD256
ColorGray
ColorBlack
NetworkingNo
Remote ControlNo
