Portable DAC USB-C ES9218P 384kHz DSD256

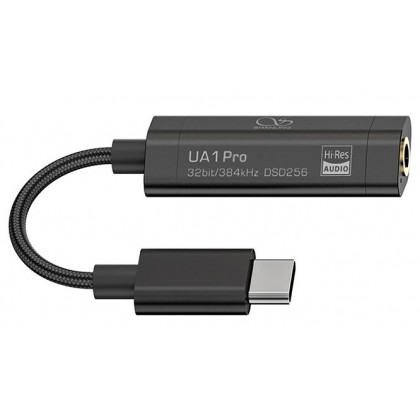

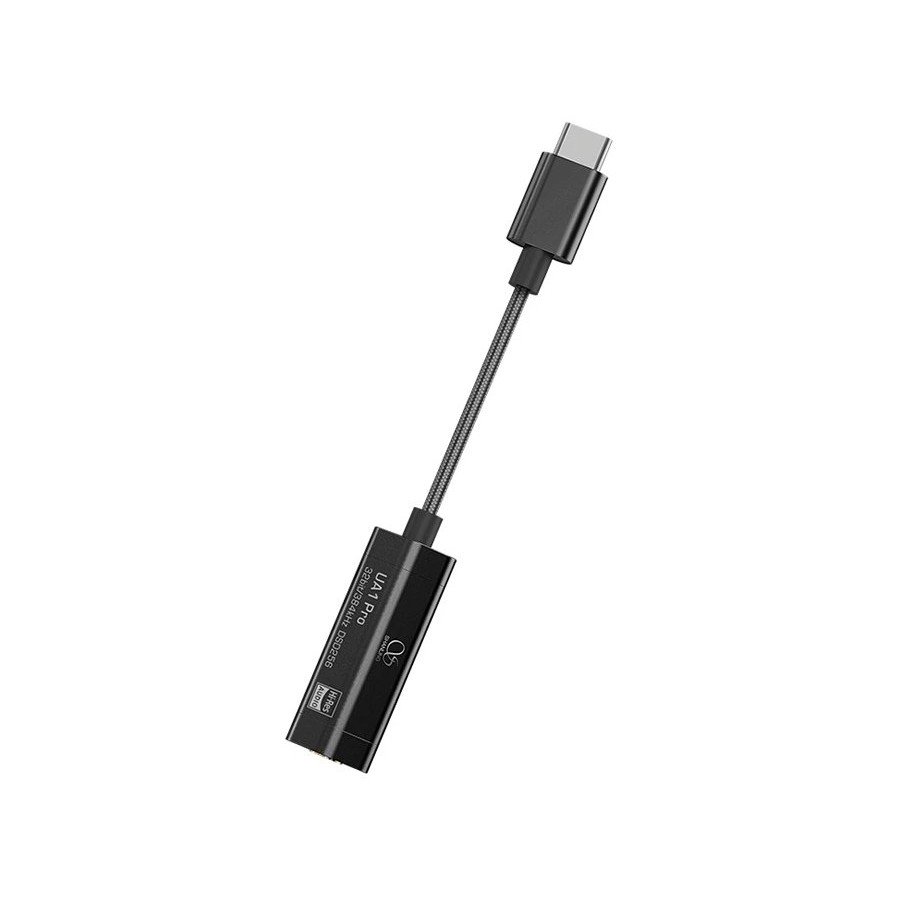

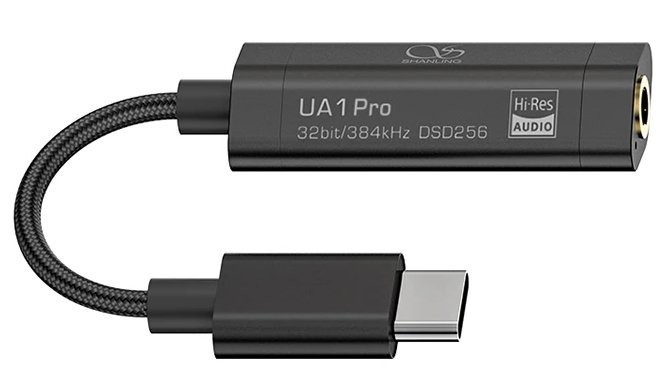

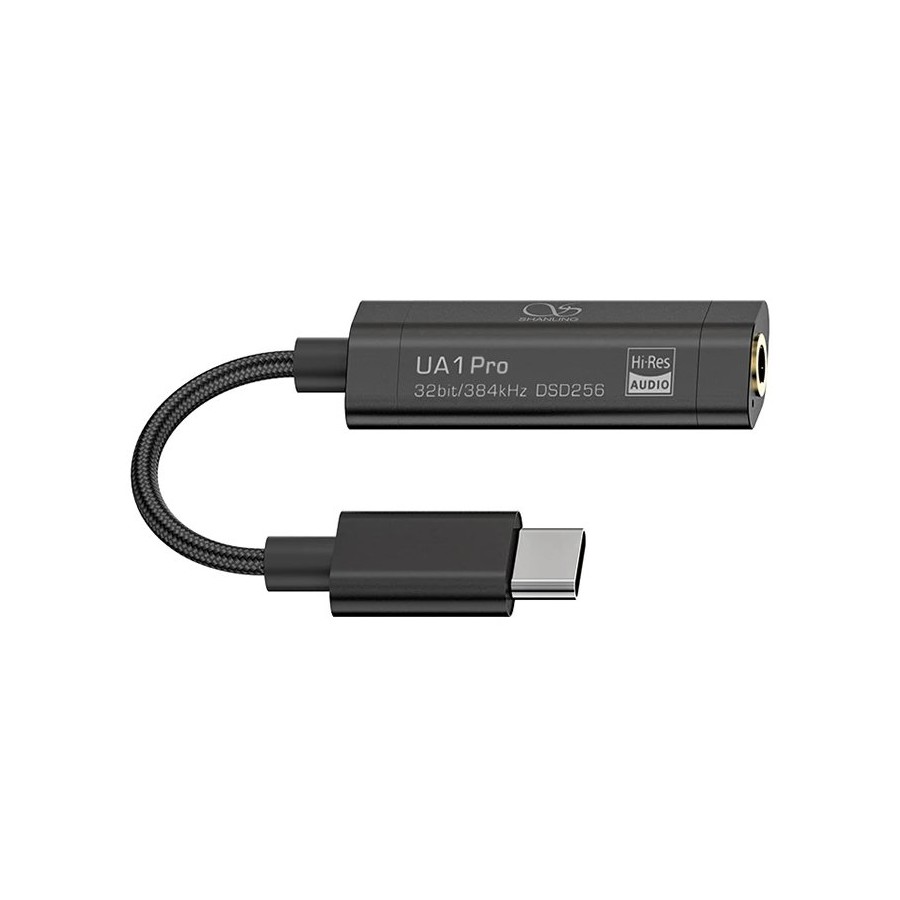

Whether you are using a latest generation smartphone that lacks an analog audio output (compatible directly with your headphones / headphones) or you simply want to improve the very average audio output of a standard consumer phone, the Shanling UA1 pro is a transportable and affordable solution for playing your high resolution audio files anywhere without carrying more than necessary.

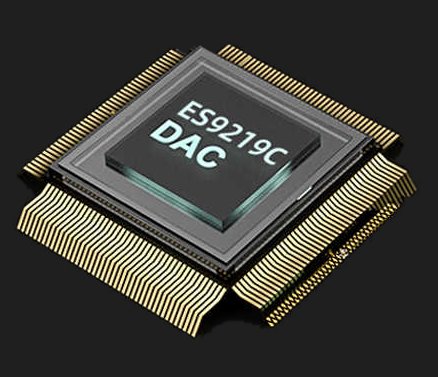

Although very compact, the Shanling UA 1 Pro embeds a high-quality audio circuit built around an ESS ES9219C chip. This famous component for High Fidelity applications incorporates both digital to analog conversion capabilities as well as headphone amplification capabilities. This second version hence offers better performance in terms of harmonic distortion.
On the DAC side, the UA1 is capable of playing high resolution audio files up to 384kHz / 32bit and even DSD files up to DSD256. The output stage is for its part capable of developing up to 80mW of power at 32 Ohm with a minimal noise level, which represents an incomparable performance gain in comparison with the traditional audio outputs of general public portable multimedia devices.

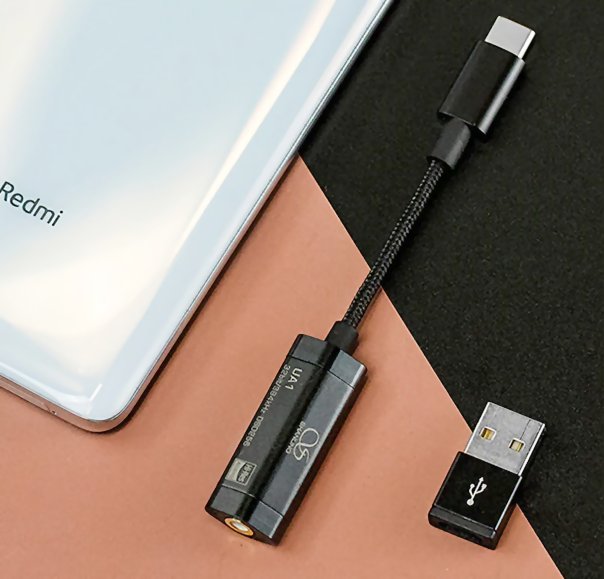

The UA1Pro portable headphone converter and headphone amplifier from Shanling comes with a USB-C female to USB-A male adapter. The latter will be particularly useful for using all the qualities and audio capabilities of the UA 1 pro with a laptop or even a PC without a satisfactory sound card (relying only on the limited audio capabilities of the motherboard).
Completely optimized for mobile use, the circuit is designed to maximize the power available for the amplified output while limiting the load on the battery of the source device. This is a suitable solution for extended listening sessions, even on devices with limited battery.

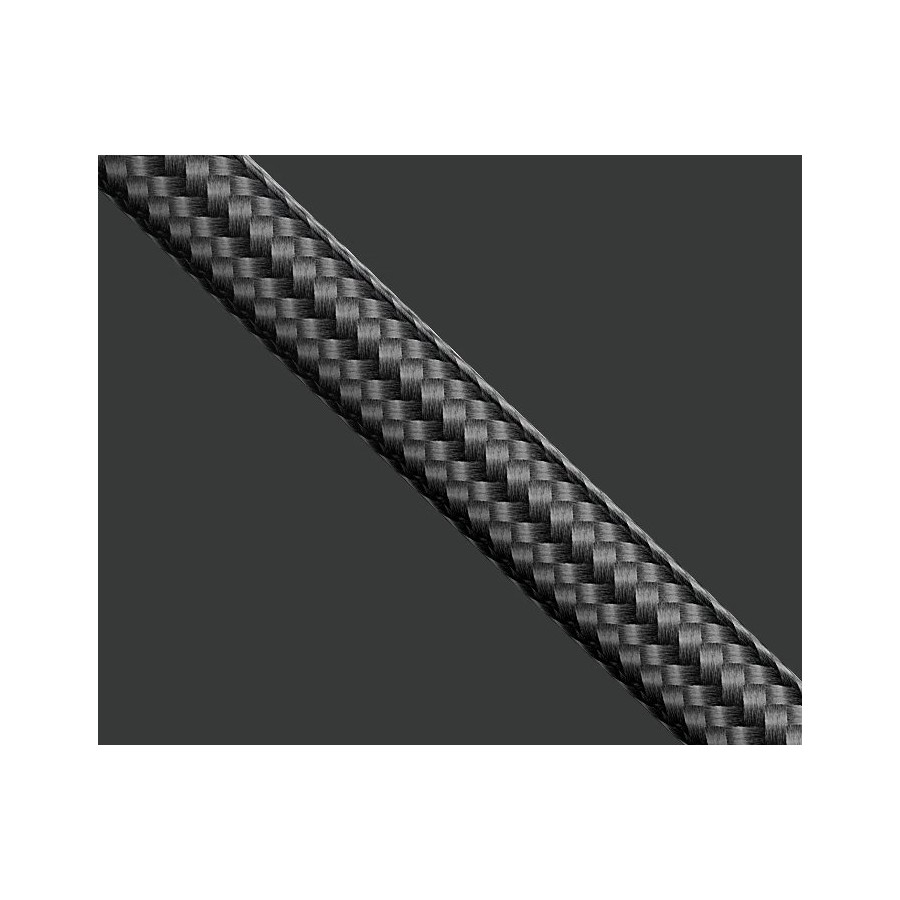

The integrated cable has high purity & high section copper conductors ensuring excellent conductivity for your audio streams. It is securely protected by a robust sheath and has cotton / silver shield specially designed to limit the capture of high-frequency waves, such as those specifically present near a smartphone.
| Specifications | |||
|---|---|---|---|
| Type | Portable DAc | ||
| Inputs | 1x USB-C | ||
| Outputs | 1x Jack Stereo 3.5mm single ended | ||
| Output power | 80mW @ 32Ω (1.6V) | ||
| Frequency response | 20Hz - 50kHz (-0.5dB) | ||
| THD+N | 0.0006% @32Ω (A) | ||
| Dynamics | 119 dB @32Ω (A) | ||
| SNR | 119dB @32Ω (A) | ||
| Crosstalk | 77dB @32Ω | ||
| Output mpedance | ≤0.5Ω | ||
| Dimensions | 39x15x9 mm (corps) 77mm (cable) | ||
| Weight | 8.3g | ||
| Package COntents | |
|---|---|
| UA1 Pro | x1 |
| USB-C Female to USB-A mâle adapter | x1 |
| Manual | x1 |
| Input | USB |
| Output | Jack 3.5mm |
| DAC / ADC Chip | ES9219C |
| Max sampling rate | 384kHz |
| Max sampling rate | DSD256 |
| Color | Black |
| Networking | No |
| Remote Control | No |
