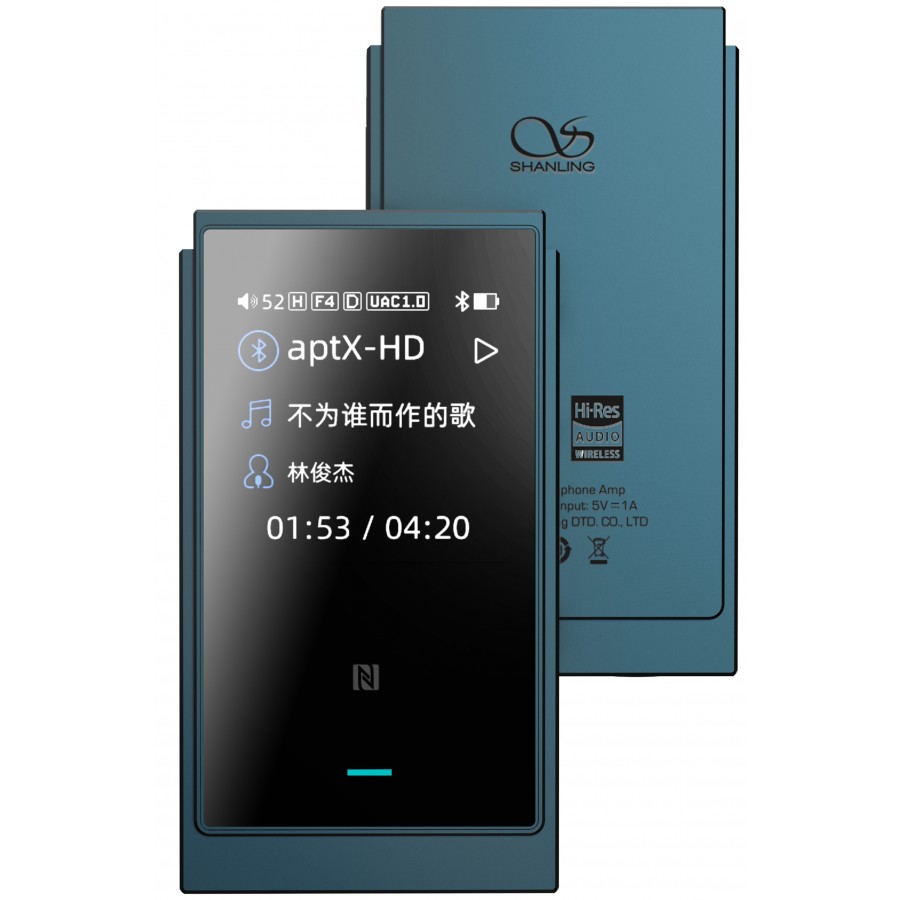

Shanling UP6 Portable DAC Headphone Amplifier 2xES9060Q Bluetooth 5.2 32bit 768kHz DSD512 Blue
With the UP6, Shanling presents a portable balanced headphone DAC and amplifier based on two ESS ES9069Q chips and two SGM8262 OPAs to offer conversion up to PCM 32bit 768kHz and DSD512 and an output power of 195mW at 32Ω single-ended and 626mW at 32Ω balanced.
Shanling UP6: ESS ES9069Q Dual DAC
In order to offer the best possible listening experience, the UP6's digital/analogue conversion stage is based on a pair of ESS ES9060Q DAC chips. These top-of-the-range DACs process signals up to a sampling rate of 32bit 768kHz in PCM and DSD512. Furthermore, the ESS chips have a -120dB harmonic distortion and an impressive dynamic range of 130dB, ensuring that even the most complex musical compositions are accurately converted.
Shanling UP6: SGM8262 dual amplification chip
To accompany the UP6's excellent converter stage, it incorporates two SGM262 OPAs, delivering an output power of 195mW at 32Ω single-ended and 626mW at 32Ω balanced. This more than impressive power output means that the UP6 can easily drive even the most power-hungry headphones and earphones.
Shanling UP6: Qualcomm QCC5125 Bluetooth chip
To provide the best possible connectivity, the UP6 is equipped with a Qualcomm QCC5125 Bluetooth chip supporting LDAC, aptX HD, aptX Adaptive, apt-X LL, aptx, AAC and SBC protocols.
Shanling UP6: Interface USB XMOS XU316
To ensure that it can be connected via USB while taking full advantage of the capabilities of the ESS DAC chips, the UP6 incorporates an XMOS XU316 interface, which when coupled with two KDS crystal oscillators, supports a signal up to 32bit 768kHz PCM and DSD512.
Shanling UP6: A wide range of functions
The UP6 incorporates a host of different functions to suit every situation. For example, you'll find :
- A mono DAC mode when used in Single-ended mode, allowing battery backup.
- A car mode enabling it to switch on and off at the same time as your car.
- A UAC 1.0 mode for compatibility with older devices such as games consoles.
- An integrated SiSonic microphone with noise cancellation for clean phone calls.
- Simple pairing thanks to NFC support.
Shanling UP6: Eddict player application
To control the many features of the UP6, such as managing Bluetooth codecs, customising the equalisation or updating the firmware, you can download the Eddict Player app, available on Android and iOS.
Shanling UP6: 950mAh battery
To ensure trouble-free use on the move, the UP6 has a 950mAh battery, enabling it to be used for up to 6.5 hours without interruption.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Portable DAC Mobile headphone amplifier |
| Input | 1x USB-C |
| Outputs | 1x Single-ended Jack 3.5mm 1x Balanced Jack 4.4mm |
| DAC chips | 2x ES9069Q |
| Supported sampling rates | PCM up to 32bit 768kHz DSD up to DSD512 |
| Amplification chips | 2x SGM8262 |
| USB interface | XMOS XU316 |
| Bluetooth module | 1x QCC5125 |
| Bluetooth Version | 5.2 |
| Bluetooth Codecs | LDAC, aptX HD, aptX Adaptive, apt-X LL, aptx, AAC, SBC |
| Battery capacity | 950mAh |
| Autonomy | Single-ended: 6.5h Balanced: 4.5h |
| Time to recharge | 2h |
| Recommended charger | 5V DC / 500mA |
| Single-ended 3.5 mm Jack output | |
|---|---|
| Power output (Mono DAC mode) | Low gain: 45mW @ 32Ω High gain: 180mW @ 32Ω |
| Output power (Dual DAC mode) | Low gain: 48mW @ 32Ω High gain: 195mW @ 32Ω |
| Frequency response | 20Hz-40kHz (-0.5dB) |
| Total harmonic distorsion more noise (THD+N) | 0.0008% |
| Dynamic range | 123dB |
| Channel separation | 75dB |
| Signal-to-noise ratio (SNR) | 124dB |
| Background noise | 115dB |
| Output impedance | < 1Ω |
| Balanced 4.4 mm Jack output | |
|---|---|
| Power output | Low gain: 155mW @ 32Ω High gain: 626mW @ 32Ω |
| Frequency response | 20Hz-40kHz (-0.5dB) |
| Total harmonic distorsion more noise (THD+N) | 0.0008% |
| Dynamic range | 128dB |
| Channel separation | 75dB |
| Signal-to-noise ratio (SNR) | 128dB |
| Background noise | 119dB |
| Output impedance | 1.2Ω |
| General | |
|---|---|
| Dimensions | 70 x 39 x 14mm |
| Weight | 51g |
| Color | Blue |
| Package | 1x Shanling UP6 1x USB-A to USB-C cable 1x USB-C to USB-C cable 1x USB-A to USB-C adapter |
| Input | Bluetooth |
| Input | USB |
| Output | Jack 3.5mm |
| Output | Jack 4.4mm |
| DAC / ADC Chip | ES9060Q |
| Max sampling rate | 768kHz |
| Max sampling rate | DSD512 |
| Color | Blue |
| Class | N/A |
| Networking | No |
| Remote Control | No |
