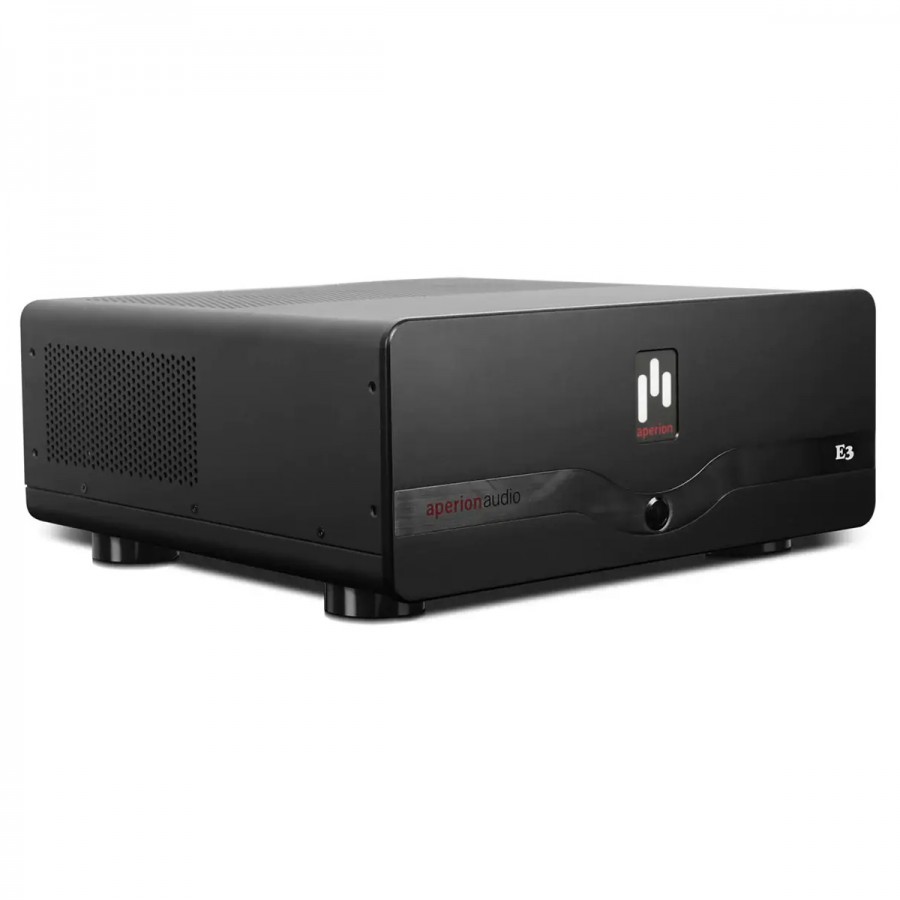

The Aperion Energy 3, a 3-channel Class AB power amplifier, delivers considerable power and dynamics to your audio installation. Designed to excel even in extreme sound conditions, the Energy 3 provides a solid base for your HiFi or home cinema system, particularly for powering the front channels.
Using a separate amplifier allows your speakers to reveal their full potential. With a power rating of no less than 170W into 8Ω or 250W into 4Ω (all channels driven), the Energy 3 will respond effectively to your system requirements. What's more, with balanced XLR and single-ended RCA inputs for its 3 channels, the amplifier has no trouble adapting to any preamplifier.
The carefully designed power supply stage, with its high-performance toroidal transformer and numerous high-capacity audio capacitors, ensures maximum response to transients. The result is incredible dynamism for lively, punchy sound reproduction. The amplifier's THD+N of less than 0.015% guarantees a wide, fluid soundstage.
The Energy 3 also benefits from efficient cooling, with its amplifier circuits equipped with large heatsinks for optimum heat dissipation. It is also equipped with the brand's Soft Turn-On technology, enabling the amplifier to be switched on gradually and safely.
The rear of the device also features a 12V trigger input and output in Jack 3.5mm format to automate the switching on and off of your audio system.
Finally, the Aperion Energy 3 amplifier is as powerful as it is flexible, designed to deliver high sound quality at any volume level, but also to be easy to use and install.
3-channel Class AB power amplifier
The Energy 3 is a three-channel power supply ideal for powering the main front channels of a 5.1, 7.1 or Dolby Atmos / DTS:X home cinema system.
High-quality aluminium enclosure
In addition to its exceptional performance, the Aperion Energy 3 boasts a stylish design and a robust aluminium chassis.
Trigger
The amplifier has a 12V trigger input and output on a Jack 3.5mm. So you can chain several devices together to automate the switching on and off of your audio system.
LED indicator
The front panel of the Energy 3 displays a white LED indicator, which lights up at the same time as the amplifier. This indicator dims after 30 seconds to limit visual pollution.
Protection circuits
The Energy 3 has a complete, effective protection circuit, particularly against overheating, undervoltage and overvoltage.
Grande puissance, dynamique élevée
The Aperion Energy 3 is capable of delivering significant power to your system while delivering clear, accurate sound. Its high dynamic range ensures excellent transient response and perfect sound articulation.

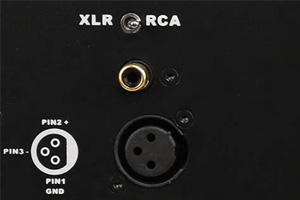

XLR and RCA inputs
With its RCA and XLR inputs, the Energy 3 can be connected to your preamplifier single-ended or balanced.
Silent cooling
Large heat sinks allow the amplifier to dissipate heat efficiently and quietly.
A large toroidal transformer
Incorporating a large low-noise crosstalk toroidal transformer, the Aperion Energy 3's power supply stage provides a clean electrical signal to the device's various circuits.
High current capacitors
The amplifier's power supply also uses high-current capacitors to promote rapid transient response for excellent sonic responsiveness.
1 | Input selectors |
2 | Single-ended RCA inputs |
3 | Balanced XLR inputs |
4 | Speaker outputs |
5 | 12V trigger input / output |
6 | 6A 230V / 12A 120V Fuse |
7 | Power button |
8 | Power input |
Technical characteristics
Specifications | |
---|---|
Product type | Power amplifier |
Amplification type | Class AB |
Channels | 3 |
Output power | 180W RMS @ 8Ω, 1 channel driven 300W @ 4Ω, 1 channel driven 170W @ 8Ω, all channels driven 252W @ 4Ω, all channels driven |
Inputs | 3* Single-ended RCA 3* Balanced XLR |
Outputs | Speaker terminals |
SNR | RCA: 96dB XLR: 108dB |
THD+N | ≤ 0.015% (@ max output, 1kHz) |
Frequency response (±1dB) | 10Hz - 35kHz |
Input sensitivity | 1.3V @ max rated power, 8Ω |
Load impedance | 4-16Ω |
Input impedance | 50kΩ |
Trigger | 5-24V |
General | |
---|---|
Supply voltage | 110-220VAC |
Max consumption | 1210W |
Standby consumption | < 0.5W |
Dimensions (L*P*H) | 437*432*188 |
Weight | 20kg |
Color | Black |
Package | 1* Aperion Audio Energy 3 1* Power cable |
Input | XLR |
Input | RCA |
Output | Speaker terminal |
Color | Black |
Channel | 3 |
Class | Class A / AB |
Amplifier chip | Transistors |
Power (W) | 250.0 |
Remote Control | No |
