AUDIOPHONICS AP300-S2503E Power Amplifier 3E AUDIO 260-2-29A PFFB

The Audiophonics AP300-S2503E is a stereo power amplifier featuring a 3e Audio PFFB amplifier module. This enables it to develop 2x250W of power under 4Ω while delivering exceptional sound quality, combining precision and dynamics. All components are assembled - in a magnificent, sturdy aluminum case with acrylic front panel - by hand in our workshop in France.

Average votes for this product
5.0 / 5

By buying this product you get 49 loyalty points


Reference : 18567
New product

499,00 €tax incl.

415,83 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product


More info

Audiophonics AP300-S2503E Amplificateur de puissance Class D stéréo 3e Audio 2x250W 4Ω

Audiophonics AP300-S2503E : Main view

The Audiophonics AP300-S2503E is a stereo power amplifier featuring a 3e Audio PFFB amplifier module. This enables it to develop 2x250W of power under 4Ω while delivering exceptional sound quality, combining precision and dynamics. All components are assembled - in a magnificent, sturdy aluminum case with acrylic front panel - by hand in our workshop in France.

Audiophonics AP300-S2503E : Points clés

Audiophonics AP300-S2503E : 3e Audio PFFB Amplifier Module

The heart of the Audiophonics AP300-S2503E is its 3E AUDIO 260-2-29A PFFB amplifier module. This amplifier is based on a meticulous Class D architecture, enabling it to develop a comfortable 2x250W of power under 4Ω. Power that goes hand in hand with sound reproduction of great precision and richness. To achieve this, the module uses an advanced feedback design (Post Filter Feedback) as well as a proprietary error correction system (PurePath™ Ultra-HD). The latter enables it to achieve an extremely low level of distortion across the entire frequency band, enhancing its sound quality.

Audiophonics AP300-S2503E : 3e Audio PFFB amplification board
Audiophonics AP300-S2503E : Mornsun LOF550-20B48 power supply module

Audiophonics AP300-S2503E : Mornsun LOF550-20B48 Power Supply Module

The power supply stage of the AP300-S2503E incorporates a Mornsun LOF550-20B48 switching power supply module. This uses high-quality components to deliver a clean, stable electrical signal to the amplifier module, an essential step in ensuring transparent, accurate sound reproduction.

Audiophonics AP300-S2503E : Simple, effective connectivity

The Audiophonics AP300-S2503E is equipped with simple, effective connectors. Its rear panel features a single balanced XLR input. Output is via speaker terminals that accept bare cables, forks and bananas. Finally, a 3.5mm jack is also provided for the device's 5-12V trigger, enabling automatic switching on and off of the various devices in your audio system.

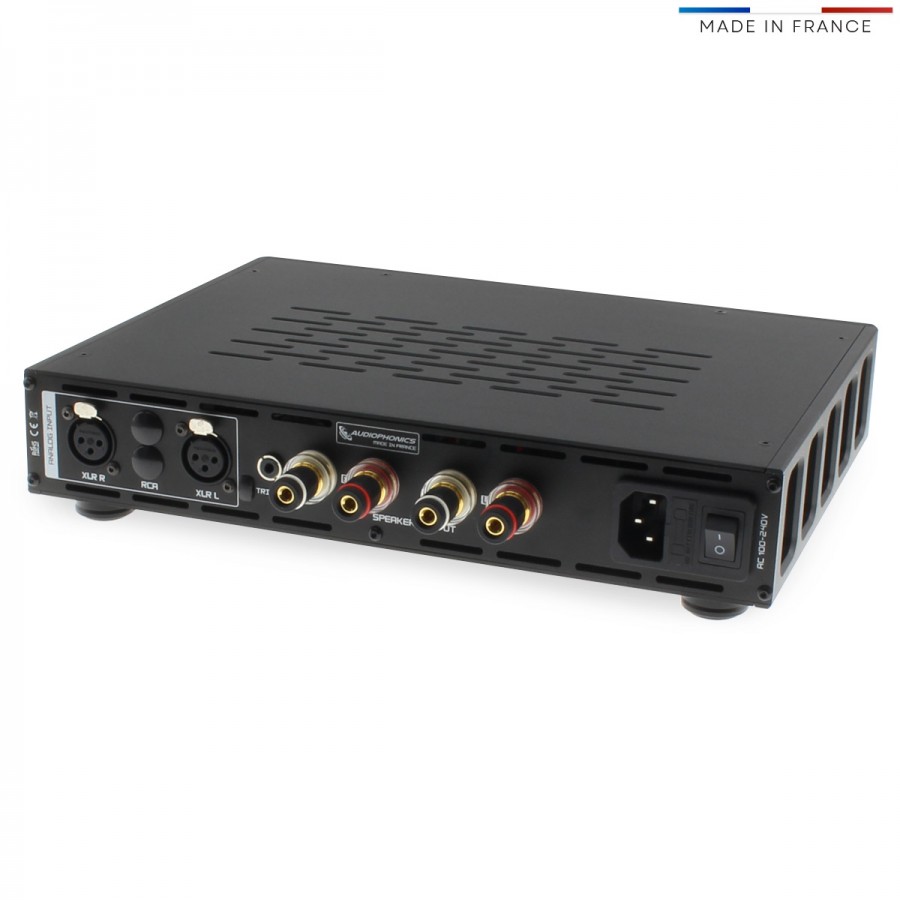

Audiophonics AP300-S2503E : Rear panel and connectors diagram
1Entrée symétrique XLR
2Trigger
3Sortie enceinte canal droit
4Sortie enceinte canal gauche
5Connecteur d'alimentation
6Fusible
7Bouton de mise sous tension

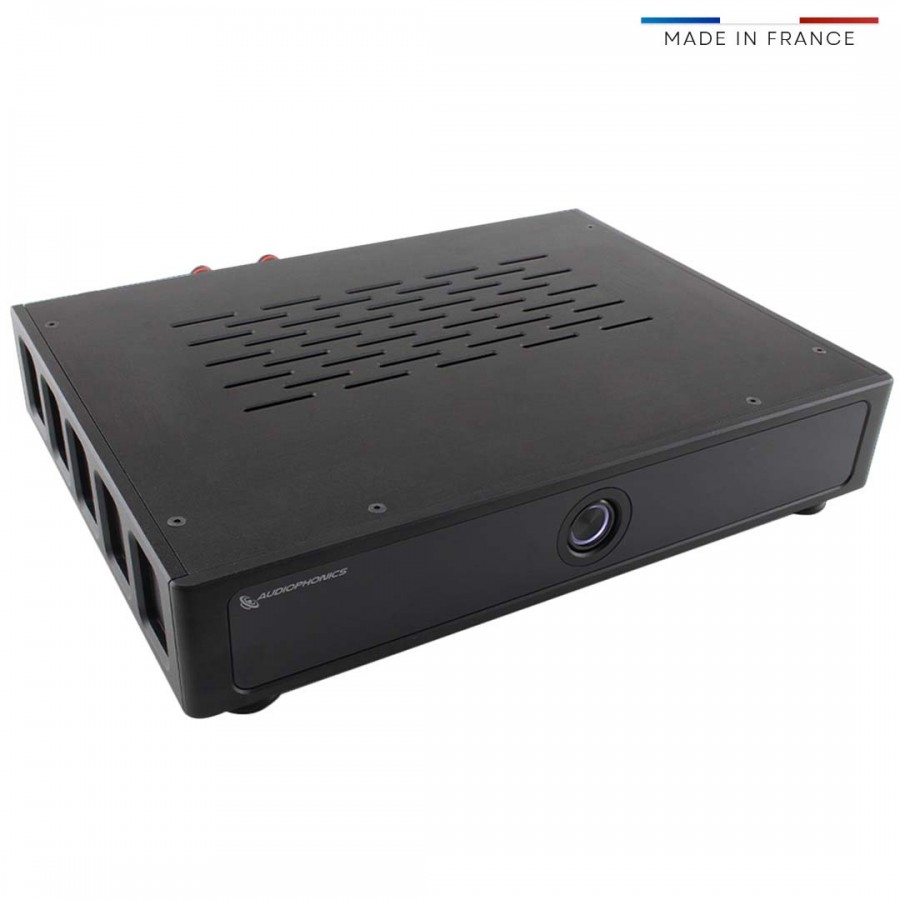

Audiophonics AP300-S2503E : Robust chassis & modern design

The Audiophonics AP300-S2503E components are housed in a beautiful black aluminum case with acrylic front panel. Recessed side panels and various holes on, under and behind the unit ensure efficient heat dissipation. Compact, the AP300-S2503E will slip effortlessly into your audio system or TV cabinet, for example.

Technical characteristics

Specifications
Product typePower amplifier
Amplification typeClass D
Number of channelsStereo (2)
Output power2x250W @ 4Ω, 1% THD+N
2x180W @ 6Ω, 1% THD+N
2x150W @ 8Ω, 1% THD+N
Input1x Balanced stereo XLR
OutputsSpeaker terminals
Trigger5-12V
THD+N0.0007% @ 4Ω, 1kHz, 5W
Output noise18µV
Dynamic range125dB
Frequency response20Hz - 20kHz ±0.5dB
Nominal gain20.5dB
Input impedance20kΩ
Output impedance10mΩ
General
Supply voltage230VAC / 110VAC (auto switch)
Total dimensions (WxDxH)300 x 248 x 62mm
Weight2.35kg
ColorBlack
Housing materialBody: Aluminum
Front panel: Acrylic
Package1x Audiophonics AP300-S5003E
1x Power cable

Data sheet
InputXLR
OutputSpeaker terminal
ColorBlack
Channel2 (Stereo)
ClassClass D / T
Amplifier chipTPA3255
Power (W)250.0
Remote ControlNo
