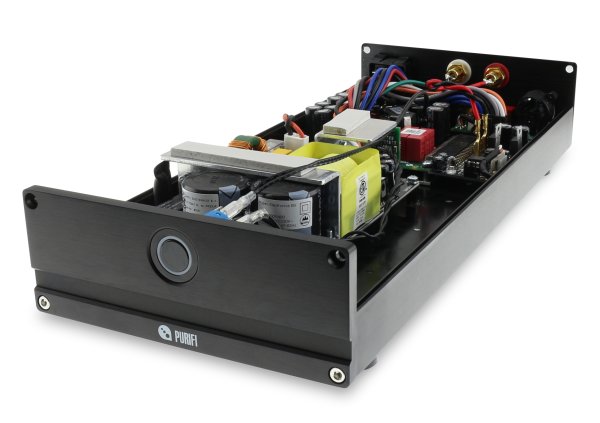

AUDIOPHONICS MPA-M400ET Power Amplifier Class D Mono Purifi 1ET400A 1x400W 4 Ohm

Module PURIFI 1ET400A

The amplification circuit uses its own PURIFI 1ET400A module. This high performance Class D amplifier circuits offers a very comfortable power of 200W (@ 8Ω) while making the most of Class D amplifiers high efficiency rating.

The 1ET400A module has a >75dB high gain loop over the entire frequency band, providing high performance across the whole spectrum and surpassing any amplifier regardless of its class.

Thanks to hyper-low intermodulation distorsion (IMD) the MPA-M400ET achieves incredible precision over the whole spectrum, unmatched by audio amplifiers of any technology or operating class.

THD remains extremely low at any frequency and any power level right until clipping. This translates into a total lack of sonic signature, and an ability to reproduce any type of music without preference for genre or production style.

Power Module Hypex HYPEX SMPS600N400

SMPS600N400 switching power supply is a model with very high maximum output power of 600 Watts. It has been specifically designed and developed by Hypex to provide 2 x 65V voltage required for operation of the most demanding amplifier modules.
This low noise high quality Power supply, meets every energy needs of the amplification modules. Furthermore, the amplifier modules themselves have an excellent ability to reject power supply noise. The MPA-M400ET has lowest sensitivity to the variations of your electrical network liable to cause parasitic noise.

Audiophonics Interface Card

The amplifier module Purifi is driven by a controller module of our design.

A Texas Instrument LM4562 OPA per channel is used, these are very low distortion AOPs offering the greatest transparency with a very low THD. They are mounted on socket allowing their replacement if necessary

To suit all uses we opted for 3 gain settings, adjustable by jumper on the interface card :

Gain of + 7.2dB, for a total of 20dB (default) - Maximum power reached with a signal of ~ 4.2V RMS

Gain of + 12.5dB, for a total of 25.3dB - Maximum power reached with a signal of ~ 2.2V RMS

Bypass: in this case the signal passes directly from the inputs to the modules, allowing the lowest possible gain of 12.8dB. This mode can be interesting when using a powerful preamplifier, capable of driving a load of 2 to 4kOhm and reaching a voltage of ~ 10V RMS

Connectivity

Designed for easy integration, the MPA-M400ET has a balanced mono (XLR) and unbalanced mono (RCA) input. A bipolar selector make it easy to change the input source and even allow independent channel control when paired to another MPA.

Output side, BP-209 terminal blocks Ø5.5mm acrylic / 24K gold insulated terminal blocks ensure an excellent connection with the speakers and supporting bare cables (5.4mm), banana plugs and spades.

Specifications
Type	Power Amplifier
Output power (max)	8Ω @1%THD : 227W 4Ω @1%THD : 425W 2Ω @1%THD : 450W
THD+N	PO=1W, f=1kHz 0.0007 % PO=10W, f=1kHz 0.00026 % PO=100W, f=1kHz 0.00015 % PO=1W, f=20-20kHz 0.0007 % PO=10W, f=20-20kHz 0.00029 % PO=100W, f=20-20kHz 0.00017 %
IMD (CCIF)	PO=1W, f=18kHz+19kHz 0.00025 % PO=10W, f=18kHz+19kHz 0.00022 % PO=100W, f=18kHz+19kHz 0.00027 %
IMD (DIM)	PO=1W, DIM30 0.002 % PO=10W, DIM30 0.002 % PO=100W, DIM30 0.002 %
Idle noise	A-weighted 11.5 µV
Dynamic range	A-weighted 4Ω 131 dB
SNR	A-weighted 4Ω 131 dB
Frequency response	RL= 8Ω, f= 20-20kHz ±0.01 dB RL= 4Ω, f= 20-20kHz ±0.01 dB RL= 2Ω, f= 20-20kHz ±0.01 dB
Output impedance	1kHz, Iout=1A 0.07 mΩ 20-20kHz, Iout=1A <0.65 mΩ
Input impedance	RCA: 47kΩ / XLR: 94kΩ Bypass: 2.2kΩ / 4.4 kΩ
Power supply	AC 110 / 230V (Automatic detection of the input voltage)
Dimensions	141 x 357 x 65mm
Weight	1.8 kg
Power cable	Included

Specifications

Type

Power Amplifier

Output power (max)

8Ω @1%THD : 227W
4Ω @1%THD : 425W
2Ω @1%THD : 450W

THD+N

PO=1W, f=1kHz 0.0007 %
PO=10W, f=1kHz 0.00026 %
PO=100W, f=1kHz 0.00015 %
PO=1W, f=20-20kHz 0.0007 %
PO=10W, f=20-20kHz 0.00029 %
PO=100W, f=20-20kHz 0.00017 %

IMD (CCIF)

PO=1W, f=18kHz+19kHz 0.00025 %
PO=10W, f=18kHz+19kHz 0.00022 %
PO=100W, f=18kHz+19kHz 0.00027 %

IMD (DIM)

PO=1W, DIM30 0.002 %
PO=10W, DIM30 0.002 %
PO=100W, DIM30 0.002 %

Idle noise

A-weighted 11.5 µV

Dynamic range

A-weighted 4Ω 131 dB

SNR

A-weighted 4Ω 131 dB

Frequency response

RL= 8Ω, f= 20-20kHz ±0.01 dB
RL= 4Ω, f= 20-20kHz ±0.01 dB
RL= 2Ω, f= 20-20kHz ±0.01 dB

Output impedance

1kHz, Iout=1A 0.07 mΩ
20-20kHz, Iout=1A <0.65 mΩ

Input impedance

RCA: 47kΩ / XLR: 94kΩ
Bypass: 2.2kΩ / 4.4 kΩ

Power supply

AC 110 / 230V (Automatic detection of the input voltage)

Dimensions

141 x 357 x 65mm

Weight

1.8 kg

Power cable

Included

Input	XLR
Input	RCA
Output	Speaker terminal
Color	Black
Channel	2 (Stereo)
Class	Class D / T
Amplifier chip	Hypex Ncore
Power (W)	400.0
