This product has been replaced by the Tonewinner AD-1PA+.

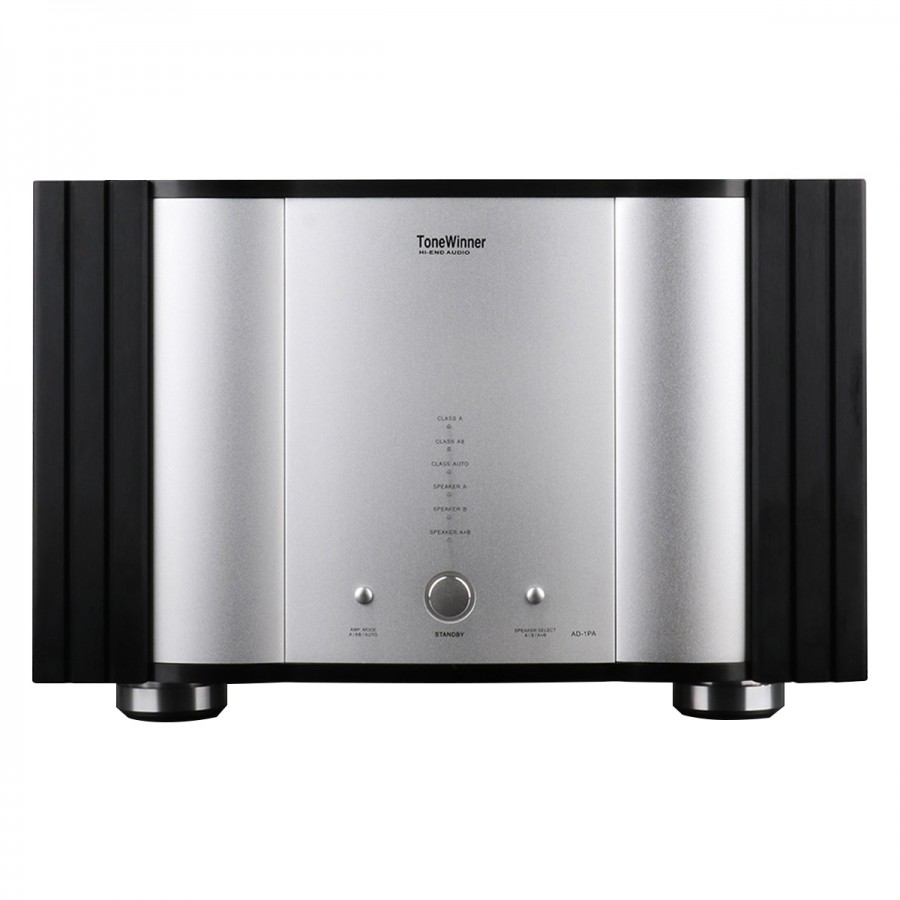

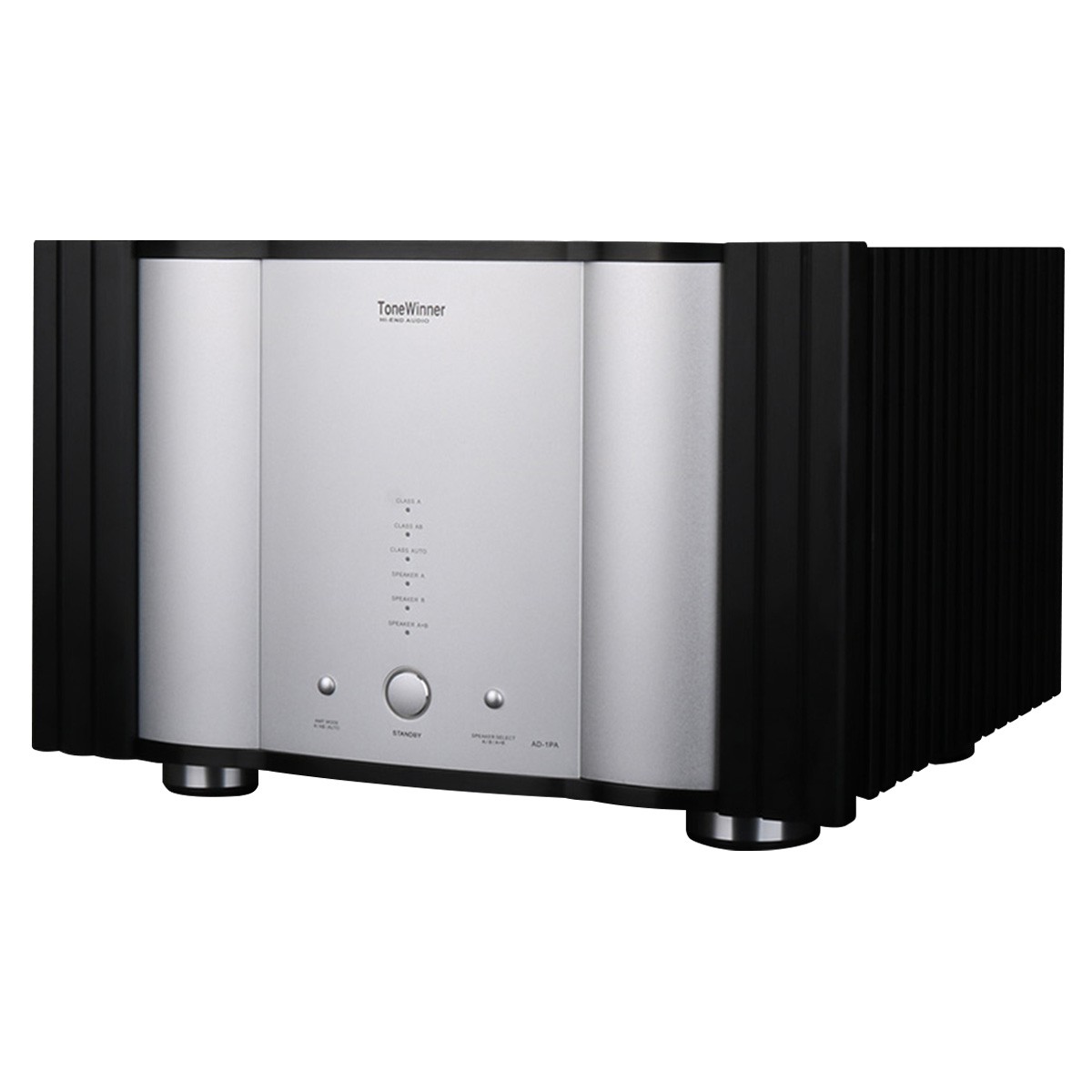

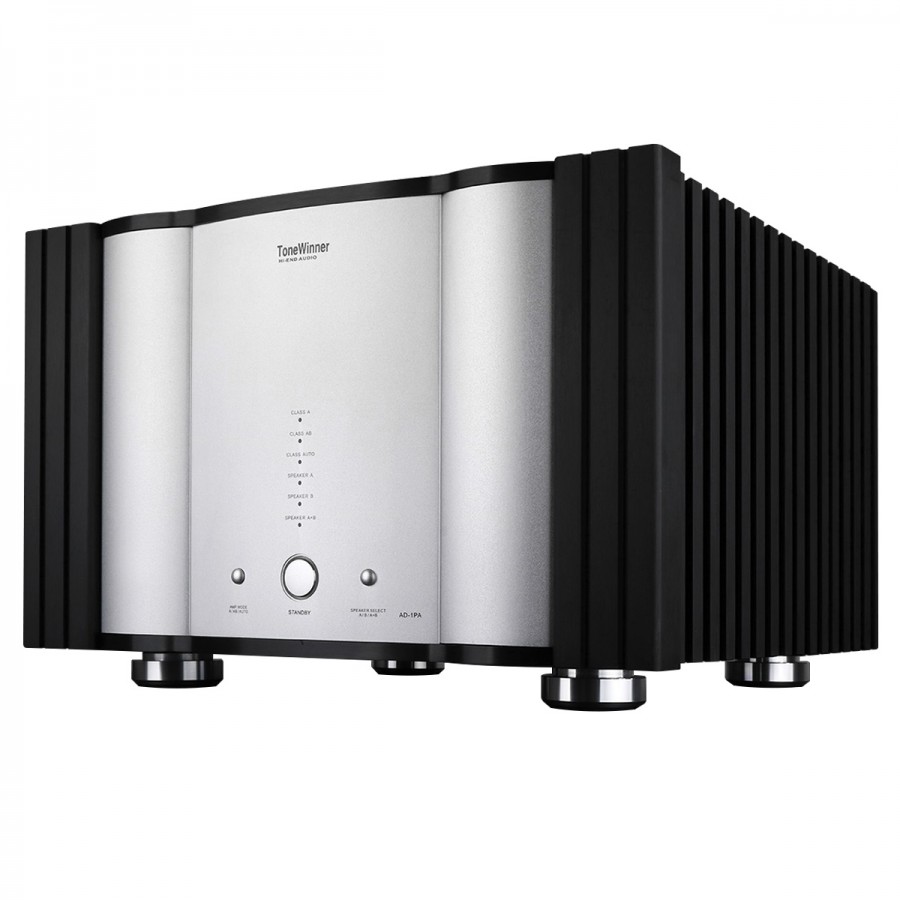

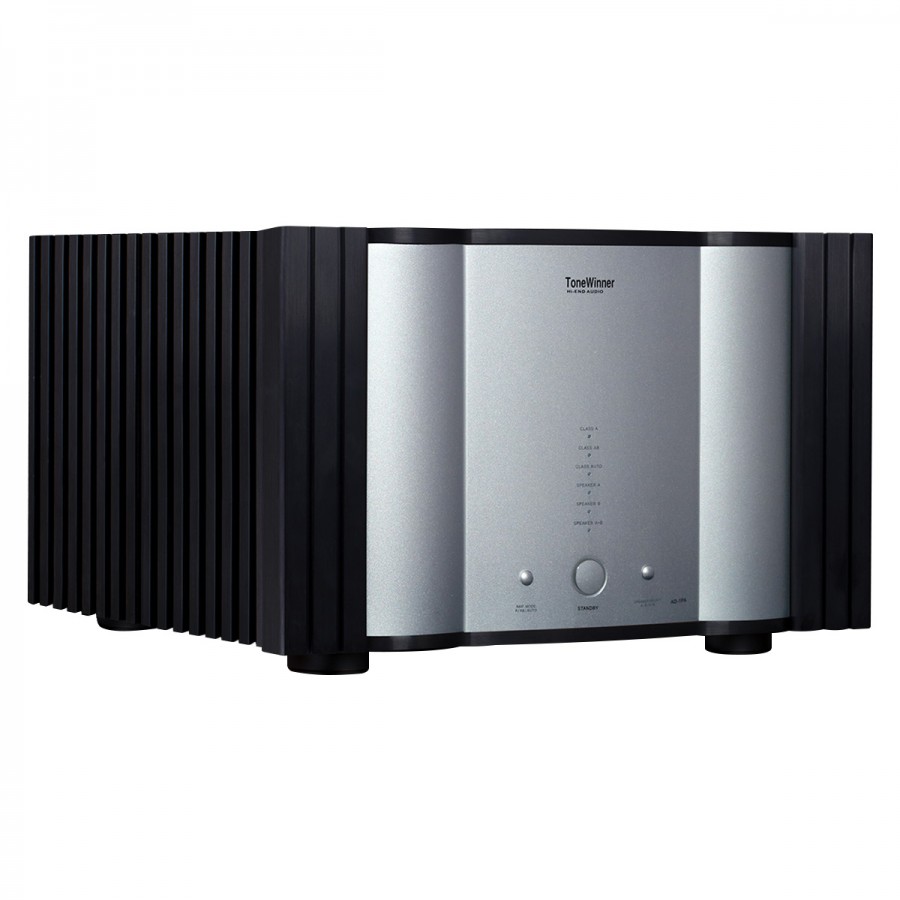

Tonewinner AD-1PA
Power Amplifier Stereo Class A 2x300W 8Ω
Powerful Class A stereo power amplifier, the Tonewinner AD-1PA benefits from a high quality balanced architecture that allows it to develop significant power while ensuring a dynamic and precise sound reproduction. Its careful and intelligent integration, proof of the attention paid by the brand to their product, results in a powerful and musical device, respecting the audio signal to reveal every detail.
A Class A amplifier as powerful as it is efficient
The amplifier stage of the Tonewinner AD-1PA embeds 8 pairs of high power transistors TTC5200 and TTA1943 within a Class A. These allow the amplifier to deliver a consequent power of 300W RMS per channel under 8Ω.
Class A/AB switch

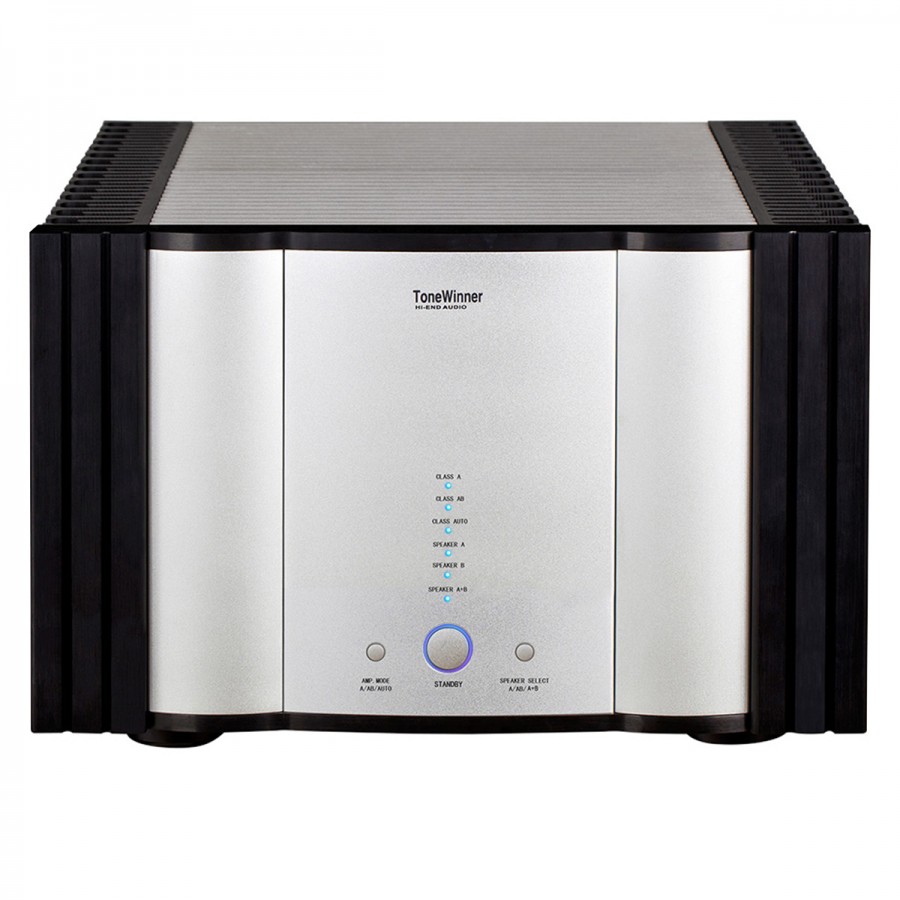

The Tonewinner AD-1PA has three operating modes: Class A, Class AB or Auto. A switch allows you to select the most suitable mode according to your needs and your installation. The Auto mode automatically switches from Class A to Class AB when the temperature of the unit reaches a certain limit and switches back to Class A if the temperature drops.
Bi-wiring possibility

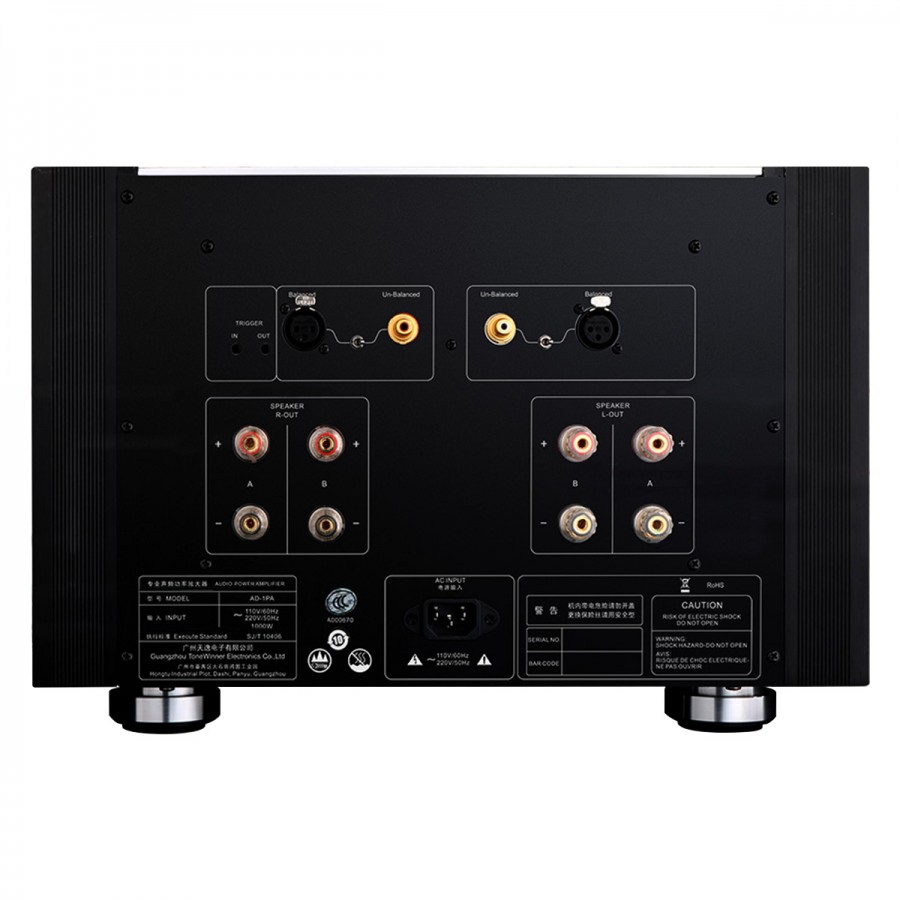

With its dual speaker terminals, the Tonewinner AD-1PA offers the possibility of bi-wiring. This method of connecting to speakers can offer an improvement in sound quality by reducing the magnetic interactions of the cables.
A large power supply

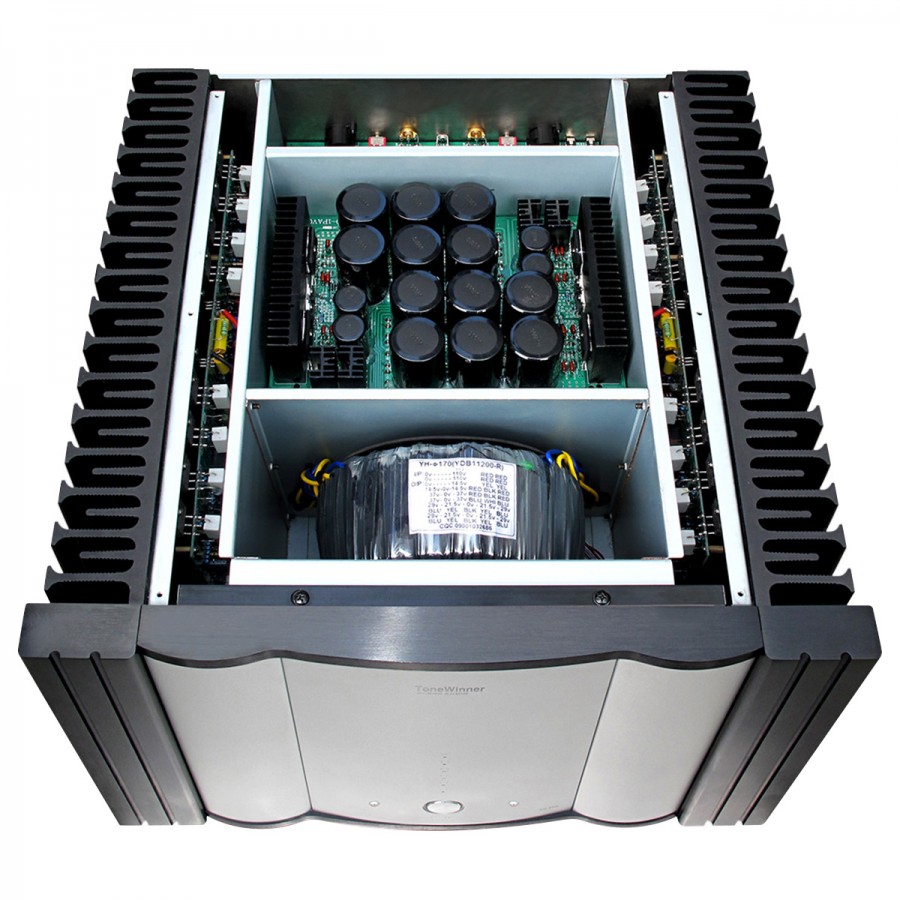

In order to deliver such a power, the Tonewinner AD-1PA is equipped with a large power supply, including a high performance toroidal transformer of no less than 1200W. 16 large filter capacitors with a total capacity of 180,000µF ensure a clean and stable electrical signal. In addition, the left and right channels are independently power supplied.
Perfect isolation
The internal design of the AD-1PA has been thought to physically separate the different sections of the device and thus ensure a very good isolation. This design effectively limits interference and noise.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power amplifier |
| Channels | Stereo (2) |
| Amplification type | Class A Class AB |
| Inputs | 1* Single-ended stereo RCA 1* Balanced stereo XLR |
| Outputs | Speaker terminals |
| Trigger | Input and output |
| Output power | 300W RMS/channel @ 8Ω, 20Hz-20kHz, THD < 0.1%, two driven channels 500W RMS/channel @ 4Ω, 20Hz-20kHz, THD < 0.1%, one driven channel 320W RMS/channel @ 8Ω, THD < 0.1%, one driven channel |
| Pure class A output power | 100W @ 8Ω |
| Impedance | 8Ω |
| Channel separation | ≥ 80dB |
| Bias selection | Class A Class AB Auto |
| Speaker output mode | A B A+B |
| Frequency response | 10Hz-100kHz (+1/-3dB) |
| THD+N | < 0.008% @ 1kHz |
| SNR | ≥ 108dB (A-weighted) |
| Recommended minimum load impedance (per channel) | 2Ω |
| Damping factor | > 200 @ 8Ω |
| Input sensitivity | 1.6V @ rated power, 8Ω |
| Gain | 29.5dB ±1dB |
| Geenral | |
|---|---|
| Supply voltage | 110-240V AC 50/60Hz |
| Dimensions | 444*294*449 |
| Net weight | 43.4kg |
| Housing material | Aluminum |
| Color | Black and silver |
| Package | 1* Tonewinner AD-1PA 1* Power cable |
| Input | RCA |
| Input | XLR |
| Output | Speaker terminal |
| Color | Black |
| Color | Silver |
| Channel | 2 (Stereo) |
| Class | Class A / AB |
| Amplifier chip | Transistors |
| Power (W) | 300.0 |
