TOPPING B200 Power Amplifier Black
By buying this product you get 59 loyalty points
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Topping B200 Mono Discrete Power Amplifier 200W 4 ohm Black
The Topping B200 power amplifier is a mono amplifier based on a discrete-component NFCA amplifier circuit. This enables it to achieve a considerable power level while maintaining excellent performance metrics. Indeed, the B200 is capable of delivering up to 200W of power (THD=1%) at both 4 ohms and 8 ohms. It boasts a dynamic range of 145dB and an extremely low level of distortion. Interface-wise, it's straight to the point, with three balanced XLR/6.35mm jack combo inputs (accepts both XLR and 3.5mm jack connectors) and a speaker terminal output. A two-level gain control adjusts the output. The whole unit is housed in an attractive, solid aluminum case.
Topping B200: new discrete NFCA amplifier circuit
The new NFCA amplifier module enables the B200 to develop 200W of power at 4 ohms load and 8 ohms load. All with very low distortion (<0.000075%) and an extended dynamic range of 145dB.
Topping B200: 12V trigger and gain control
The B200 features a 12V trigger that automatically switches on when your Hi-Fi system is switched on. In addition, a two-level gain control allows the B200 to adapt to different configurations and speakers: low gain 11.6dB and high gain 22.0dB.

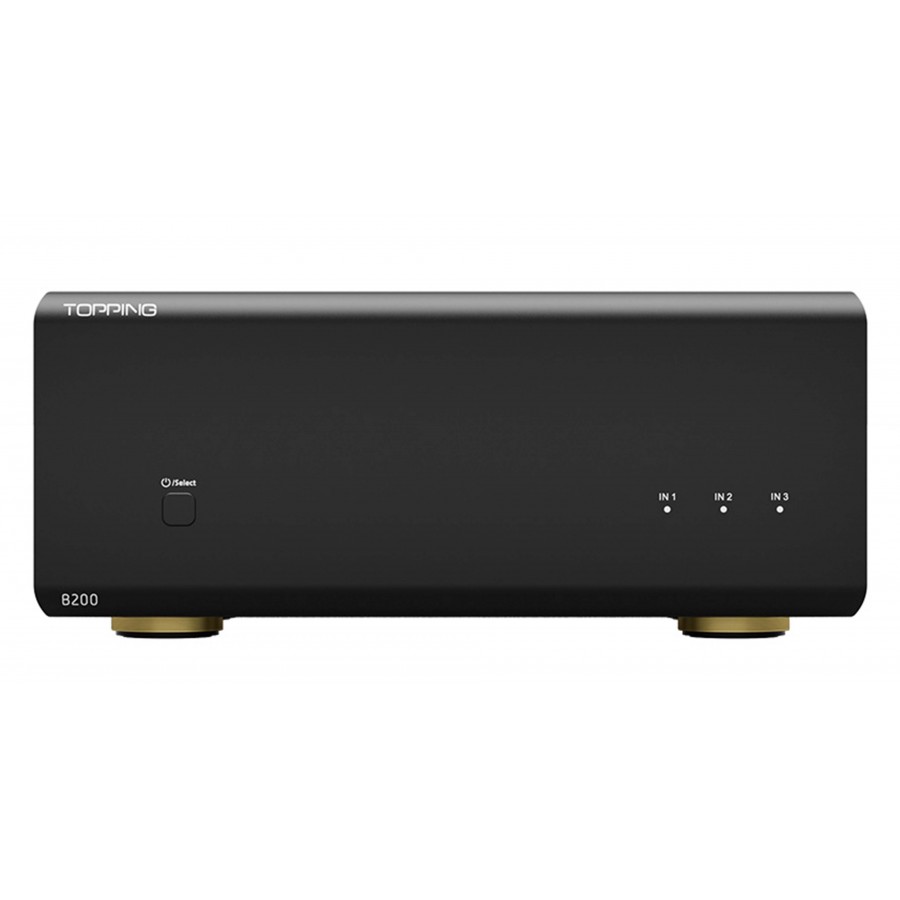

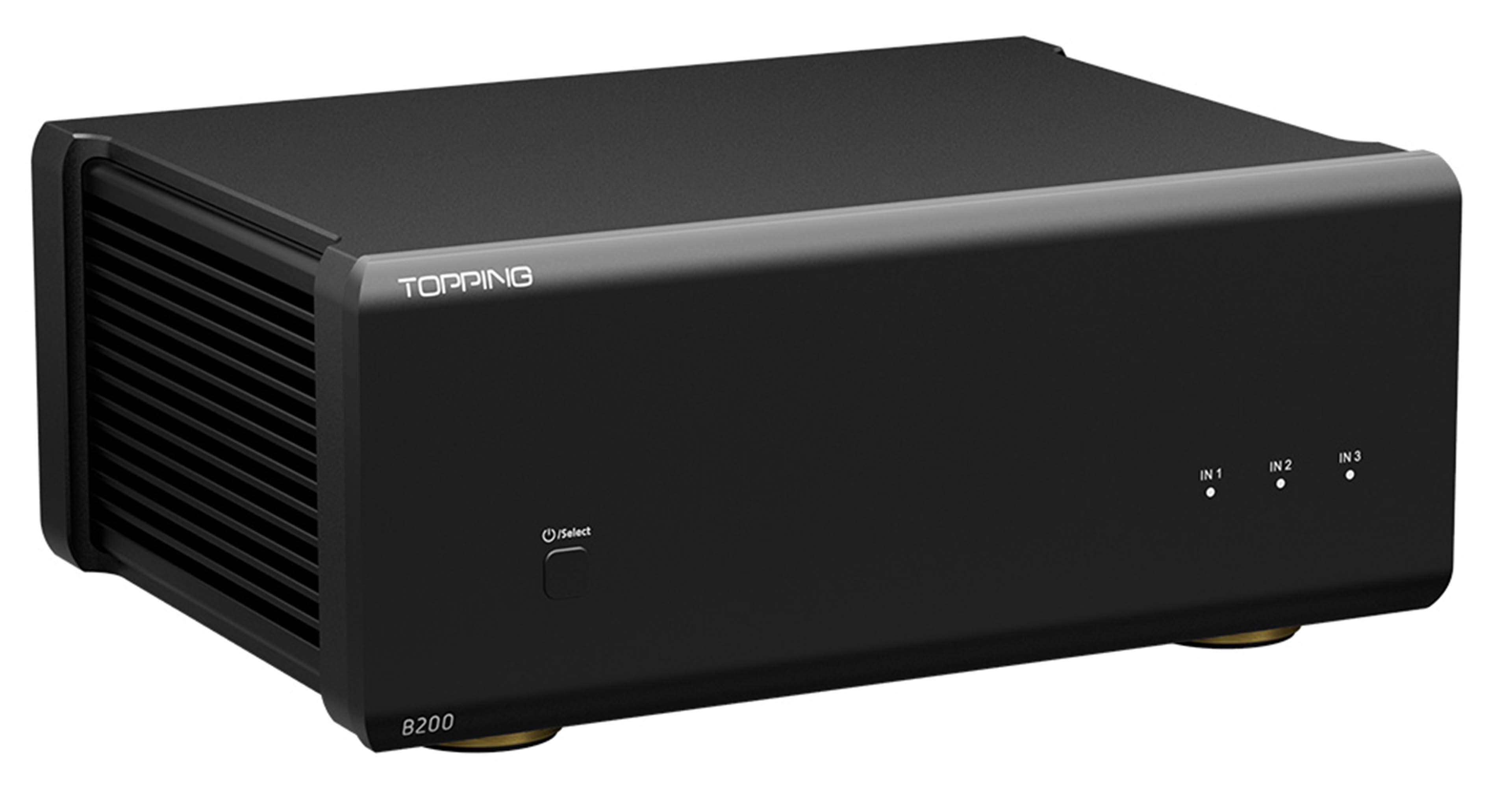

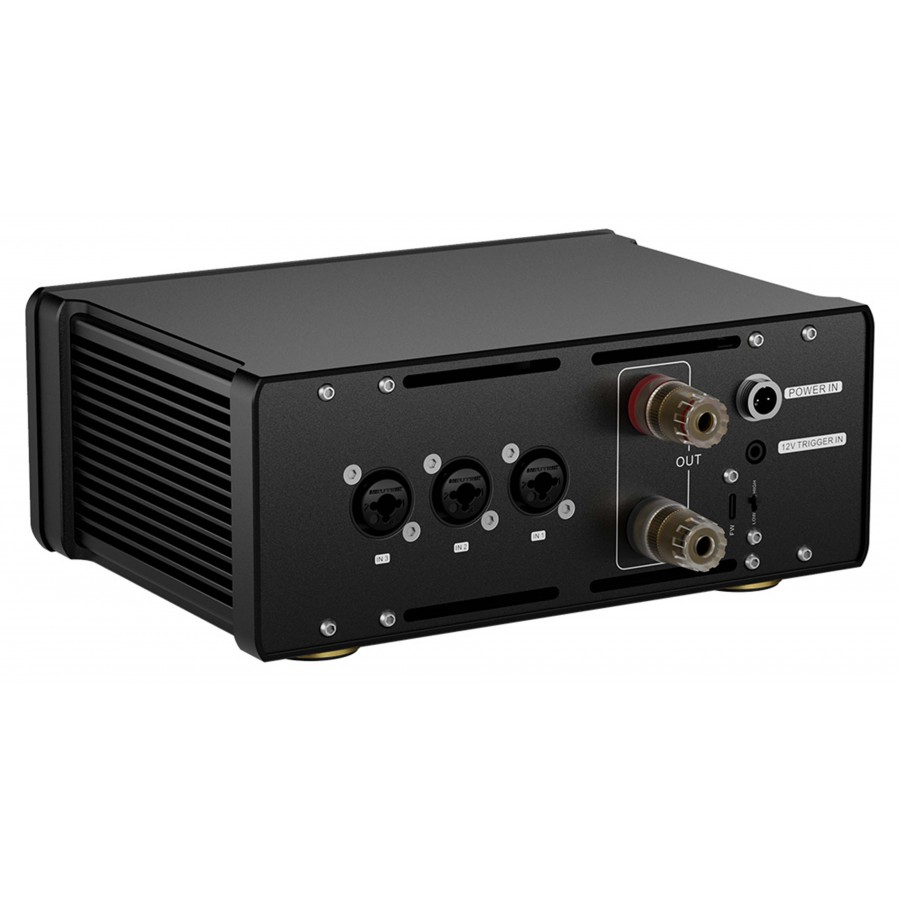

Topping B200 overview
| 1 | ON/OFF button and source selector |
| 2 | Input source indicator LED |
| 3 | 3x Balanced XLR/Jack6.35mm input |
| 4 | Speaker terminal output |
| 5 | Firmware update port |
| 6 | Gain adjustment |
| 7 | Power connector |
| 8 | Trigger In 12V |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power amplifier |
| Amplification | NFCA amplifier circuit with discrete components |
| Channels | Mono |
| Inputs | 3x Balanced XLR/Jack6.35mm combo input |
| Output | Speaker terminal block |
| THD (@1kHz, A-wt) | <0.00008% @ 4Ω 5W <0.000075% @ 8Ω 5W |
| THD (@20-20kHz, 90kBW) | <0.0005% @ 4Ω 5W <0.0004% @ 8Ω 5W |
| SNR (A-wt) | 145dB |
| DYnamic range (@1kHz, A-wt) | 145dB |
| Frequency response | 20Hz-40kHz (+/-2dB) 20Hz-100kHz (+/-0.4dB) |
| Output level | 80Vpp @ 4Ω 110Vpp @ 8Ω |
| Measured noise level AP (A-wt) | <2.3uvrms G=L <3.9uvrms G=H |
| Input sensitivity | <12.5uvrms G=L <3.9uvrms G=H |
| Gain | 11.6dB @ G=L 22.0dB @ G=H |
| Output impedance | <5mΩ |
| Output impedance | 10KΩ |
| Output power | 200W @4Ω THD+N<1% 240W @8Ω THD+N<10% 200W @8Ω THD+N<1% |
| Minimum load impedance | 4Ω |
| General | |
|---|---|
| Color | Black |
| Dimensions | 22x 18.5 x 9.2mm |
| Package | 1x Topping B200 power amplifier 1x Mains adapter 64V 4A (3 poles GX connector) |
| Input | XLR |
| Input | Jack 6.35mm |
| Output | Speaker terminal |
| Color | Black |
| Channel | 1 (Mono) |
| Class | N/A |
| Amplifier chip | NFCA |
| Power (W) | 200.0 |
| Remote Control | No |
