AUDIOPHONICS Filter Wire Sector SCHAFFNER FN9222B CS-321B 3A

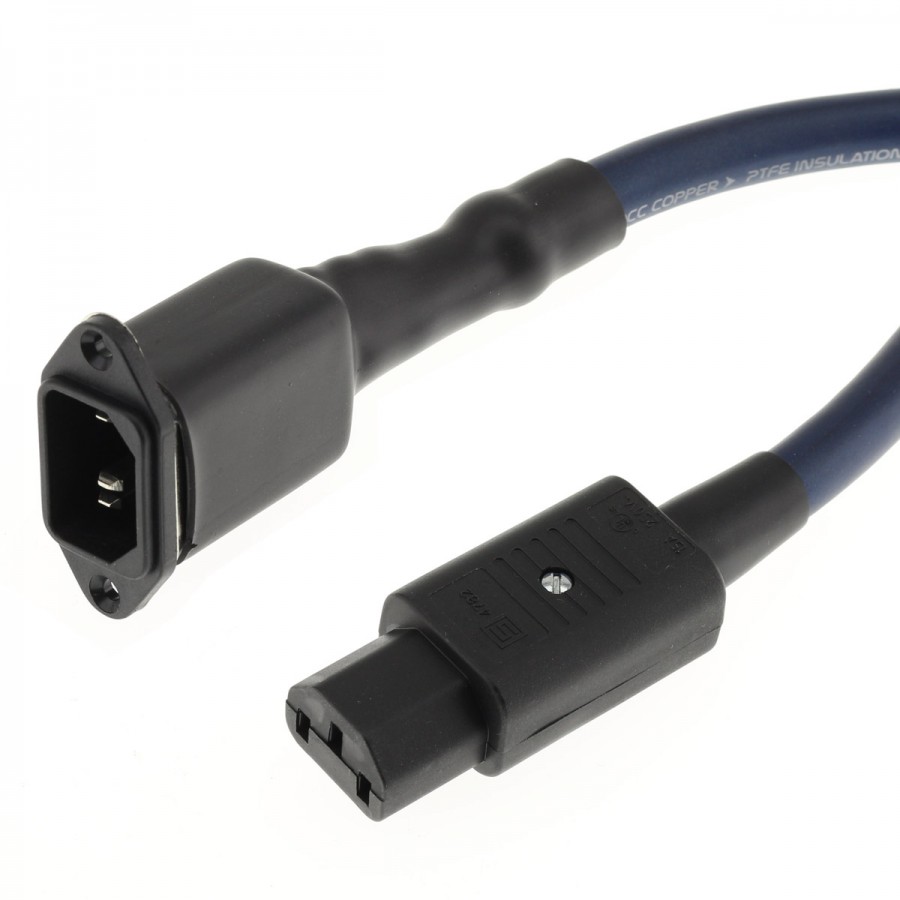

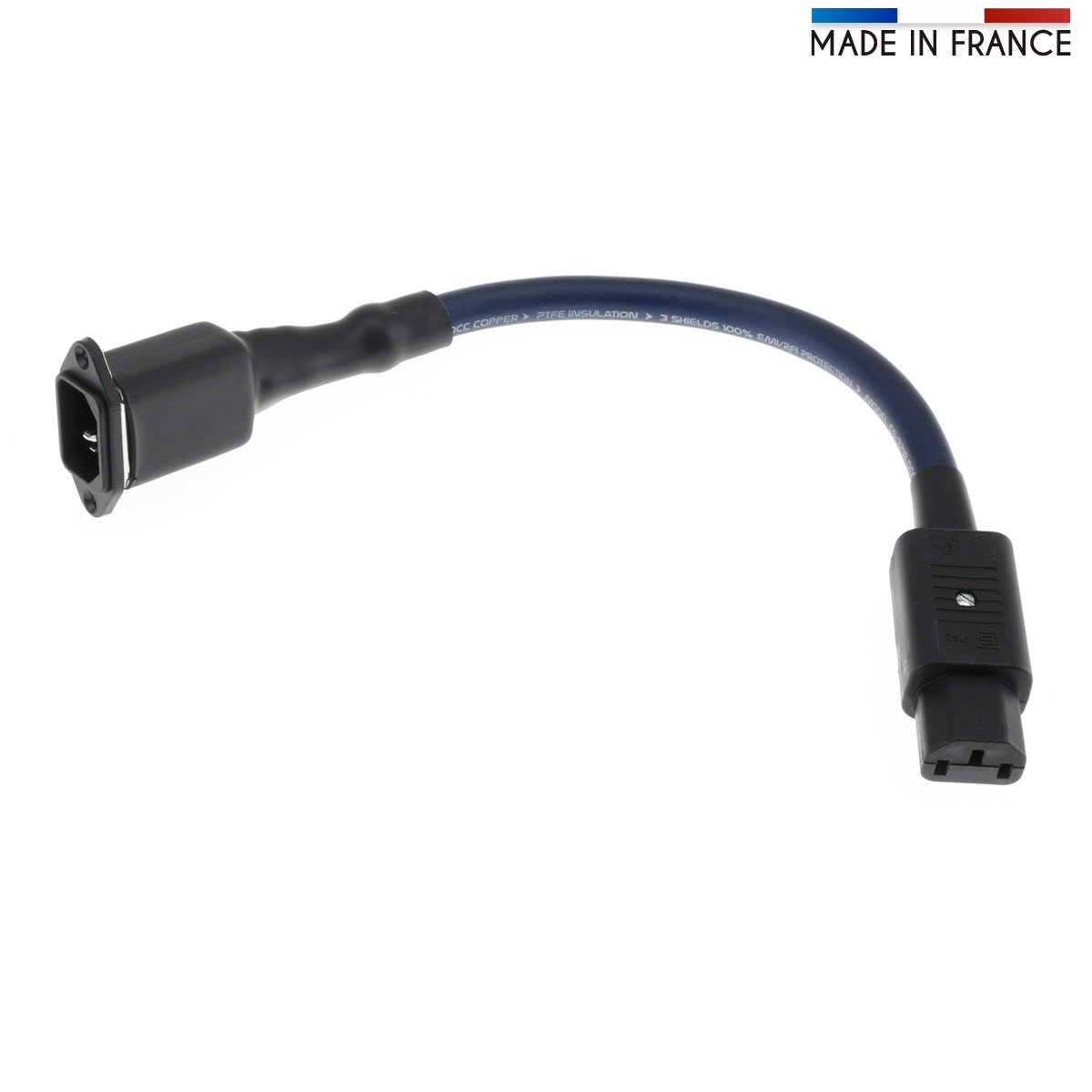

This mains filter is composed of a SCHAFFNER FN9222B, an Elecaudio CS-321B cable and an IEC connector. <sp"font-style: normal; font-size: normal;"This accessory allows you to clear the power supply of your device from EMI interference and to have a clean voltage

• SCHAFFNER FN9222B IEC Anti-Parasites / EMI 230V Sector Filter

The reference for high performance mains filter: the model FN9222BManufacturerSchaffnerand designed to filter disturbances when the capacitors prove insufficient. <sp"font-style: normal; font-size: normal;"Dramatic effectiveness against electromagnetic interference (EMI) propagated by radiation or conduction./ Span>

Product in accordance with IEC 950 standard, approved UL, CSA, TÜV, SEMKO, NEMKO and FIMKO, and meeting the requirements of Overvoltage category II (IEC664) .

Specifications:

• Operating Voltage: 250V Max 50 / 60Hz
• 3A
• Leakage Current: 2μA
• Operating Frequency: Up to 400Hz
• Capacity: 0.1μF x2
• Self: 12.0 mH x 2
• Resistance: 1MΩ
• Operating Temperature Range: -25 ° C to + 85 ° C
• Certifications: UL, CSA, TÜV, SEMKO, NEMKO & FIMKO
• Weight: 40g
• Recessed dimensions: 28x20.5mm

A: 48mm

B: 22.5mm

C: 40mm

D: 38.4mm

F:

5.5mmH:3.3mmJ:13.3mmS:90 °

• ELECAUDIO CS-321B OCC - Mains cable OCC Teflon insulation 3x2.50mm²

Power cable with very thin insulated FEP strands for more details and good flexibility.

Features:/ Strong>

• Phase and Neutral Conductors: 1x26x0.12mm OCC + 6x38x0.10 OFC = 2.5mm²
• Earth conductor: 1x26x0.12mm OFC + 6x38x0.10 OFC = 2.5mm²
• Isolateion Teflon conductors (FEP)
• Cotton padding
• Mylar Shielding
• Shielding Drain: 26x0.16mm
• OFC shielding braid
• PVC Insulation
• External Diameter: 10mm
• Bending radius: ~ 8cm

Length 30 cm

Length 30 cm
