IAN CANADA SHIELDPI PRO Multifunction Board EMI Shielding / Power Supply Filter for Raspberry Pi
Ian Canada's ShieldPi Pro MKII is not only a universal EMI shielding module for Raspberry Pi, but also a high performance power supply filter, ON/OFF control button and GPIO extender/multiplier. The IR remote control function can also be implemented if the module is used with a MonitorPi (sold separately).
By buying this product you get 6 loyalty points
Reference : 17613
New product
Cette référence a été remplacée par la nouvelle version : IAN CANADA SHIELDPI PRO MKIII.

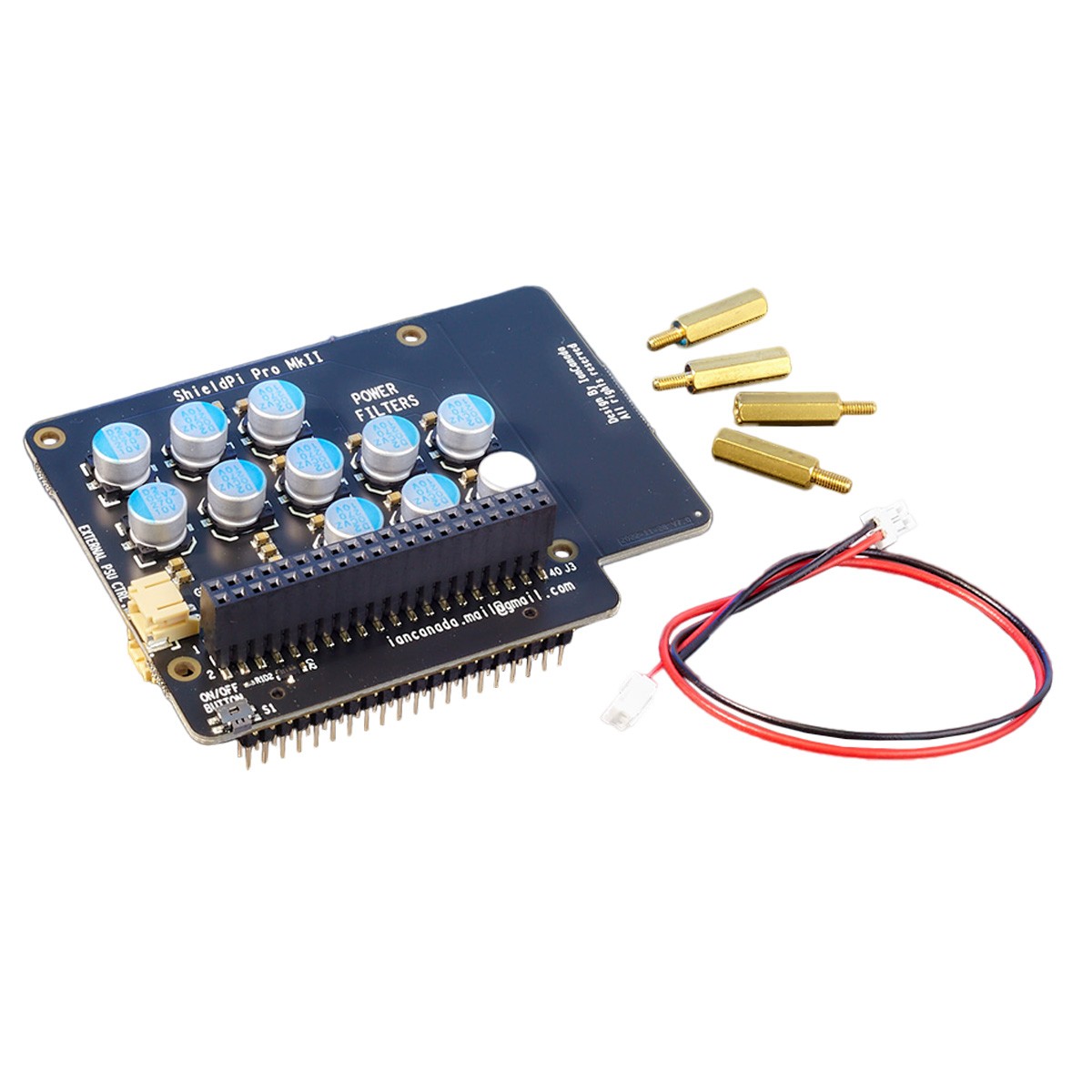

Ian Canada ShieldPi Pro MKII
Multifunction Board EMI Shielding / Power Supply Filter for Raspberry Pi
Ian Canada's ShieldPi Pro MKII is not only a universal EMI shielding module for Raspberry Pi, but also a high performance power supply filter, ON/OFF control button and GPIO extender/multiplier. The IR remote control function can also be implemented if the module is used with a MonitorPi (sold separately).
The ShieldPi Pro card is suitable for all Raspberry Pi applications to reduce both EMI and power supply noise. Installation is extremely simple using the GPIO connector.
Key features:
- Single point zero current grounding shield plate to eliminate EMI noise from the Raspberry Pi.
- 5V power supply filter networks with high bandwidth and very low ESR, covering a wide frequency range.
ESR : 2mΩ @ 200kHz, 0.3mΩ @ 2MHz, 1mΩ @ 20MHz, 4mΩ @ 200MHz - 40 pins GPIO extension.
- 40 pins GPIO multiplier (AUX GPIO).
- Has an ON/OFF button for Raspberry Pi and a connector for external button.
- Possibility to implement the IR remote control function of the Raspberry Pi when integrated with MonitorPi (sold separately).
- Reduces both EMI and power supply noise.
- Improves the performance of Raspberry Pi based systems.
ShieldPI MKII new features
- Full size shield HAT that can cover the whole Raspberry Pi PCB area
- Better EMI suspension performance will be expected
- High profile GPIO connector makes it possible to work with RPi that is equipped with a heatsink
- ON/OFF button moved to the front edge of PCB to make it easier to operate
Technical characteristics
| Specifications | |
|---|---|
| Product type | EMI shielding and power supply filter board for Raspberry Pi |
| Input | GPIO |
| Output | GPIO |
