AUDIOPHONICS PGAVOL - volume control module 4 Inputs PGA2310

No customer reviews yet, login to write a review.

By buying this product you get 6 loyalty points


Reference : 5805
New product

62,00 €tax incl.

51,67 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

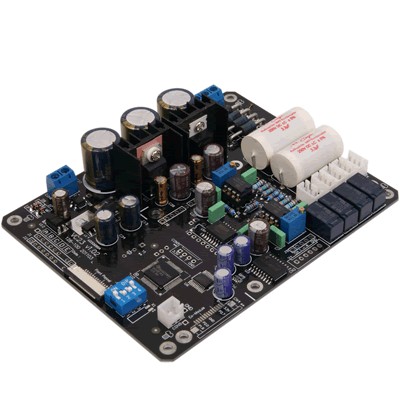

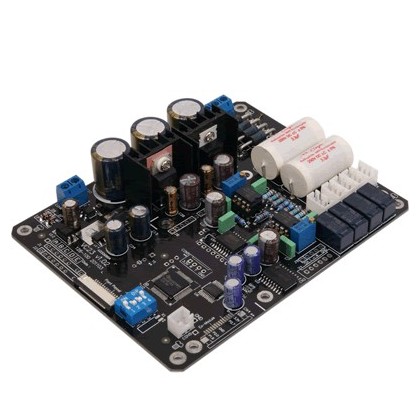

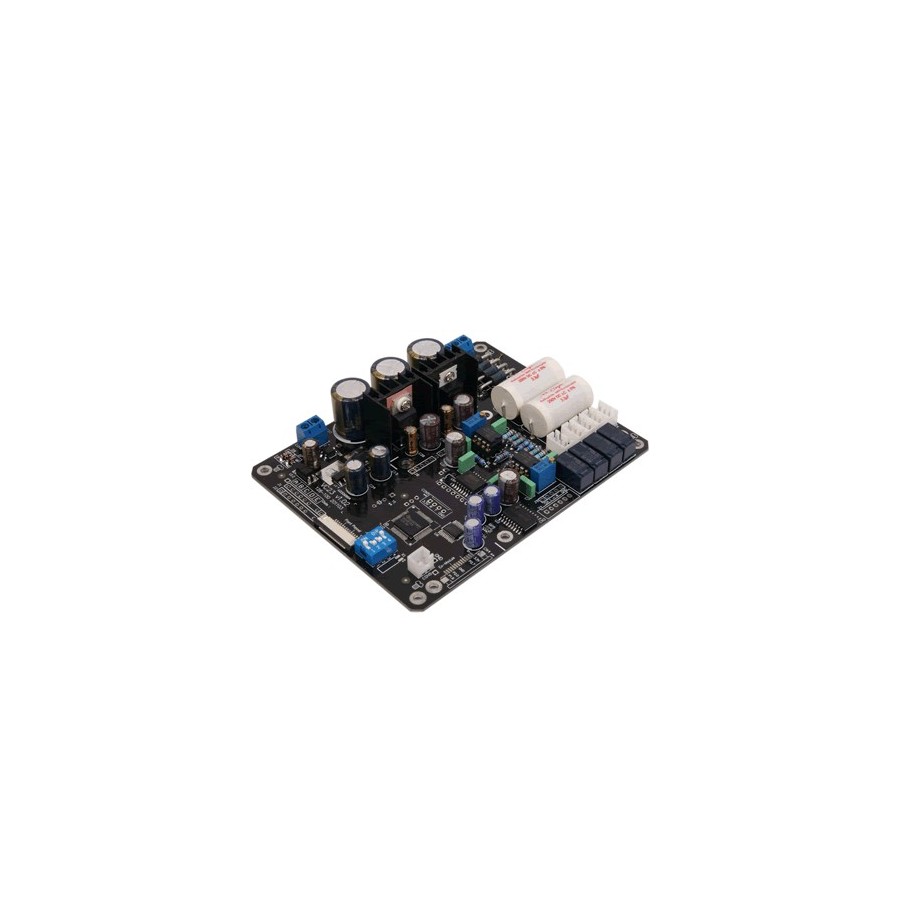

AUDIOPHONICS PGAVOL - Volume Controller 4 Inputs PGA2310

This kit incorporating a source selector and a volume controller is a solid foundation for the development of your DIY projects.

Delivered with its remote control, it is able to learn to use one of your own remote control in order to fit in your existing elements.

ThisPGAVOL module, which can be used as a preamplifier, can also be used to control the triggering of a useful SOFTSTART module as part of an integration into an advanced amplifier project.

- Se4-channel input.
- Display 3x7 rotary encoders and sequences on a separate card.
- Rotary encoder used for volume control and input selection ON (short press) / Standby (press and hold).
- Infrared remote control.
- Memory of the settings (see function of sw1).
- Function Programmable remotely (see function of SW3).
- Display intensity control (4 levels).
- Configuration via DIP switch (SW)
-AOP on supports (easy change)

An extension of the bandwidth in the bass is possible by increasing the value of the input capacitors to 4.7μF


Configuration:
-SW1 (on): Automatically saves the configuration (Volume level, channel ...) when the power is turned off.
-SW1 (off): Reset at each startage.
-SW2 (on): Display always on
-SW2 (off): The display turns off after 5 seconds without action
-SW3 (on): in remote learning mode (allows you to control the module with another remote control)
000-ON / OFF operating sequence
111-MUTE
222-Volume less
333-Volume plus
444-Channel less
555-Canal plus
666-End of learning (Switch off the SW3 disconnect the module, restart the modifications are effective)
-SW4 (on) -mplified active
-SW4 (off) -no preamp (+ 0db)




Features:br>-PGA2310 Volume Control (-87dB to +40 dB)
-MSP430 MCU
-Food :2 x 12V + 1 x 9V (Toric 4183)
-Integrated 4-channel stereo
-Display 3x7 segments red (intensity adjustable with the F3 key)
-Rotary encoder
- Infrared Remote Control

Dimensions:

-Main module: 130x100x23 mm
-Girl card (display): 100x20x12 mm
- Tablecloth: 14.8cm

Example of realization based on a box GX-183

https://www.audiophonics.fr/photos/PGA_VOL_1.jpg

https://www.audiophonics.fr/images2/5805/5805_PGAVOL_7.jpg

https://www.audiophonics.fr/images2/5805/5805_PGAVOL_1.jpg

https://www.audiophonics.fr/images2/5805/5805_PGAVOL_5.jpg

https://www.audiophonics.fr/images2/5805/5805_PGAVOL_3.jpg

https://www.audiophonics.fr/images2/5805/5805_PGAVOL_4.jpg

Connections provided in the KIT

https://www.audiophonics.fr/images2/5805/5805_PGAVOL_8.jpg

https://www.audiophonics.fr/images2/5805/5805_PGAVOL_9.jpg
