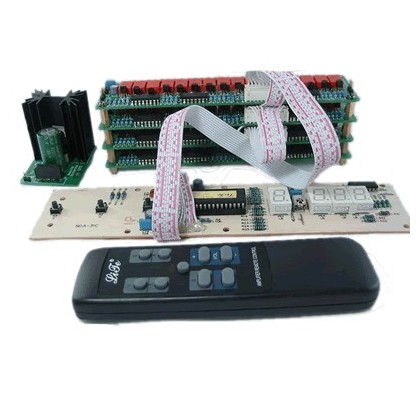

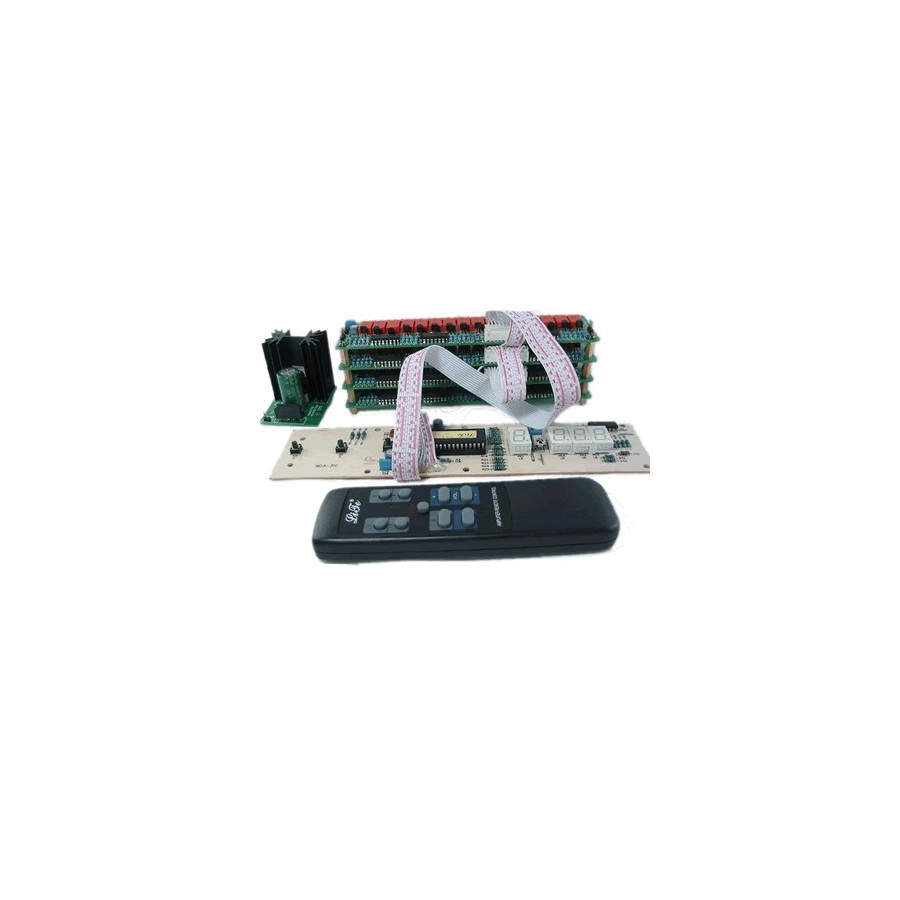

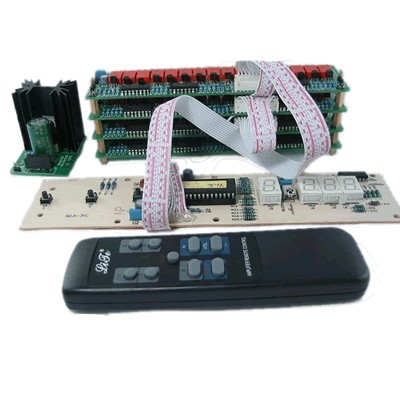

LITE V03 - "Symmetrical" Switch volume control module

LITE V03 - "Symmetrical" Switch Volume Controller

Relay-Based Stereo Volume Controller

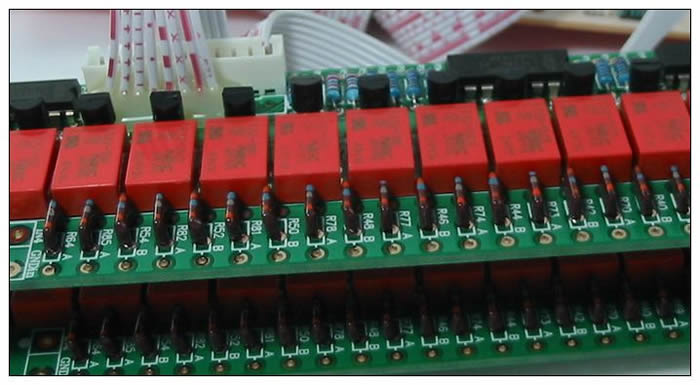

This volume controller uses relays to switch resistors, in the manner of a rotary selector.
This allows a completely passive volume attenuation without components that can cause distortion or staining.

• From 0dB to -99dB in 1dB steps
• Size cards volume: 180mm X 45mm (X4)
• Control card size: 230mm X 52mm (X1)
• Source selection 4 inputs
• Symmetric signal only

  Simply requires a 15-30VA transformer of 9 or 12VAC
  Supplied with spacers and remote control.



Wiring Diagram (PDF)

Technical drawing (PDF)
