Preamplifier module with volume / bass control NE5532 DIP8

This preamplifier module with volume and bass control (frequency range 50Hz-150Hz) has two DIP 8 supports to change the AOP (operational amplifier) ​​as it sees fit. It requires only a small transformer from 15 VA 230 V AC to 12 V on a secondary to operate.

It will allow to use any stereo signal in input and to leave it in mono to attack a monophonic amplifier and therefore a single speaker. It is recommended for DIY design of subwoofer for example.

You can change the OP NE 5532 amps byOP2134to get a warmer, analog sound.

Characteristics :

• AOP Texas Instruments NE5532 on DIP 8 supports (interchangeable)
• 2 Potentiometers 50K Ohm (one for volume, second for bass correction)
• Requires 15V VAC for power supply
• Dimensions: 103x90x28mm
• Weight: 66g
• Wiring not supplied

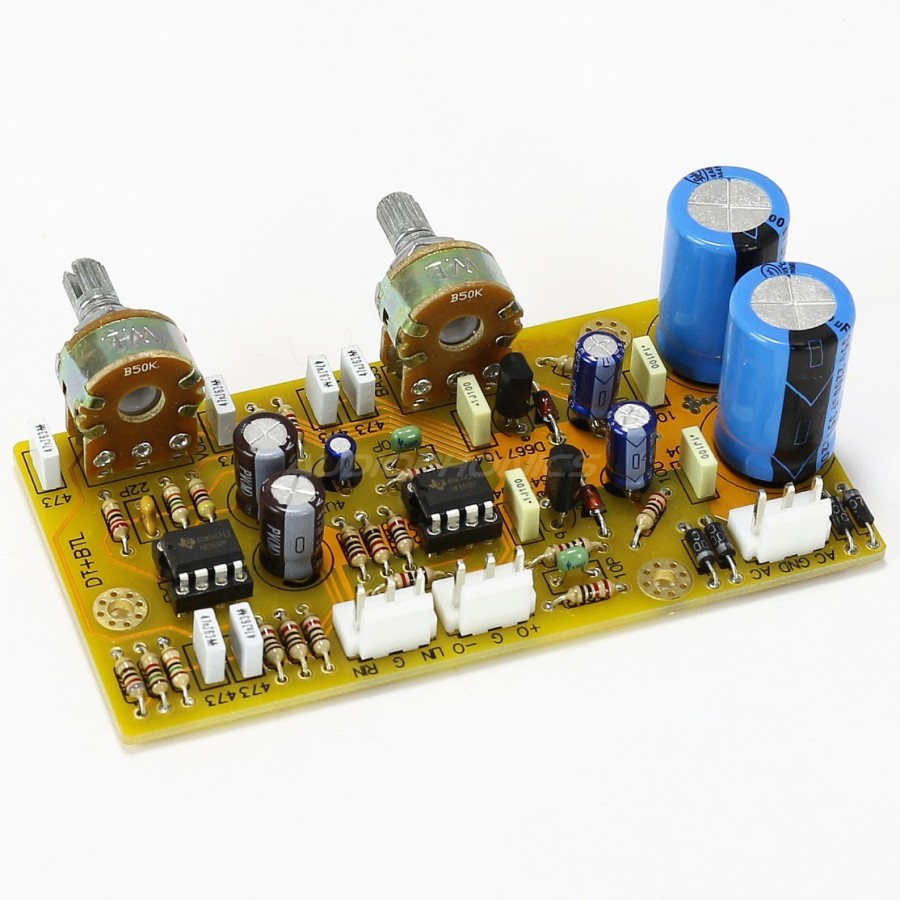

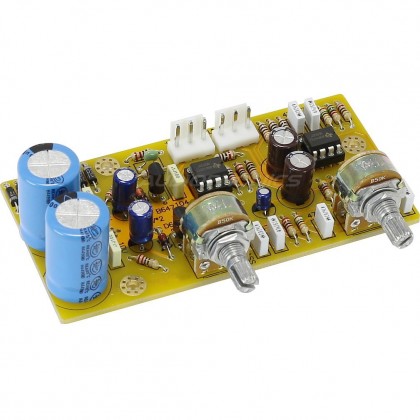

[Img-21675-left-thickbox_default]

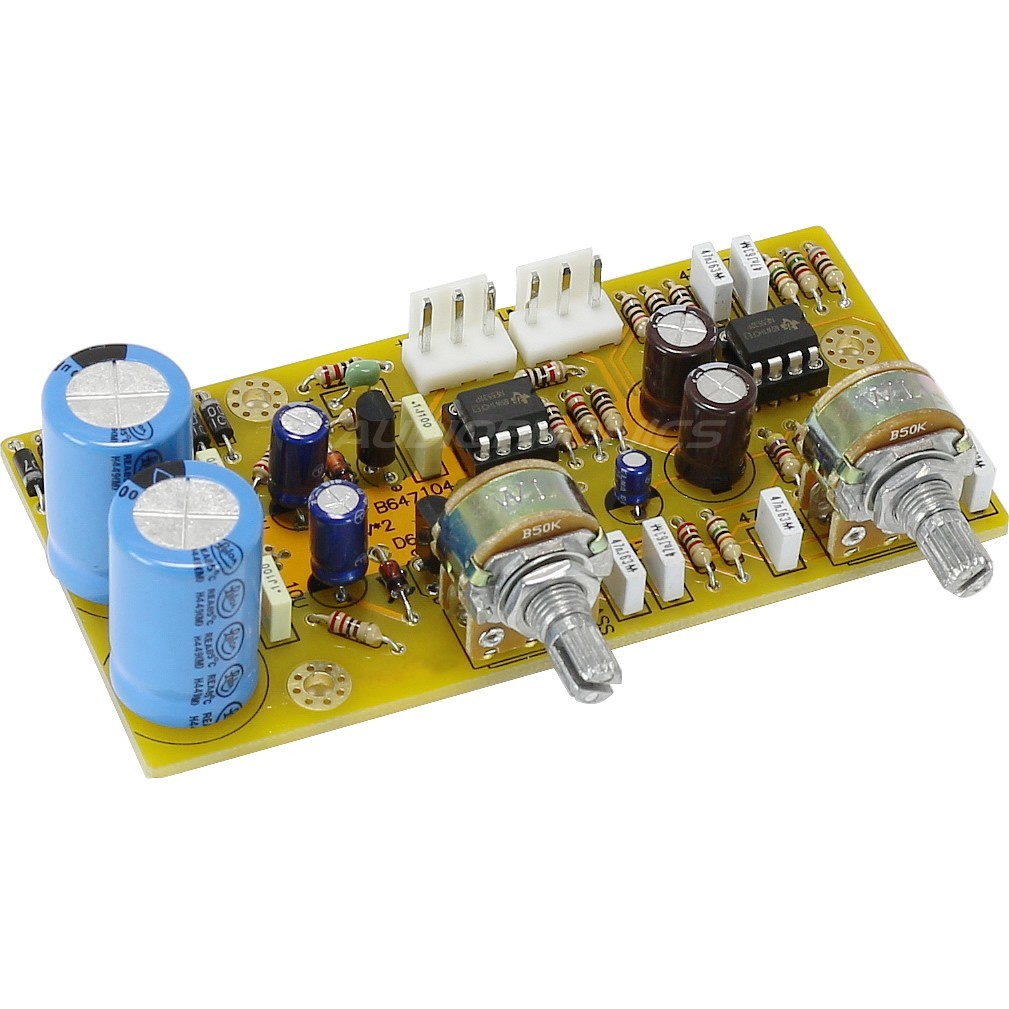

[Img-21677-left-thickbox_default]

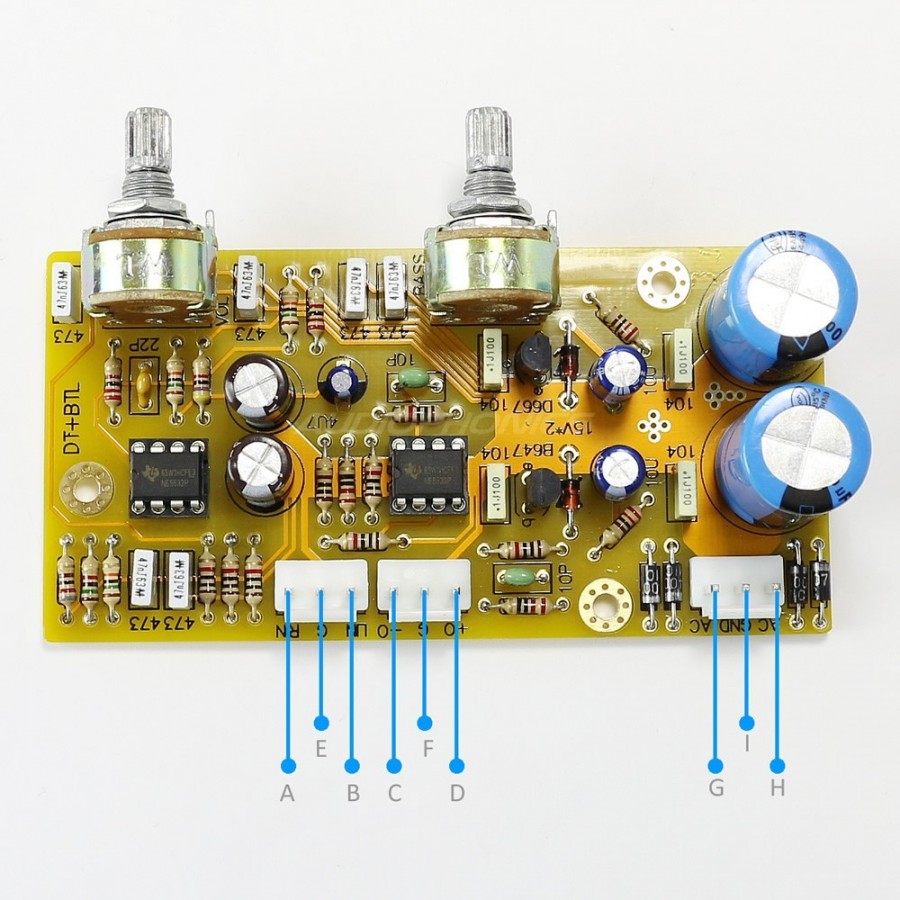

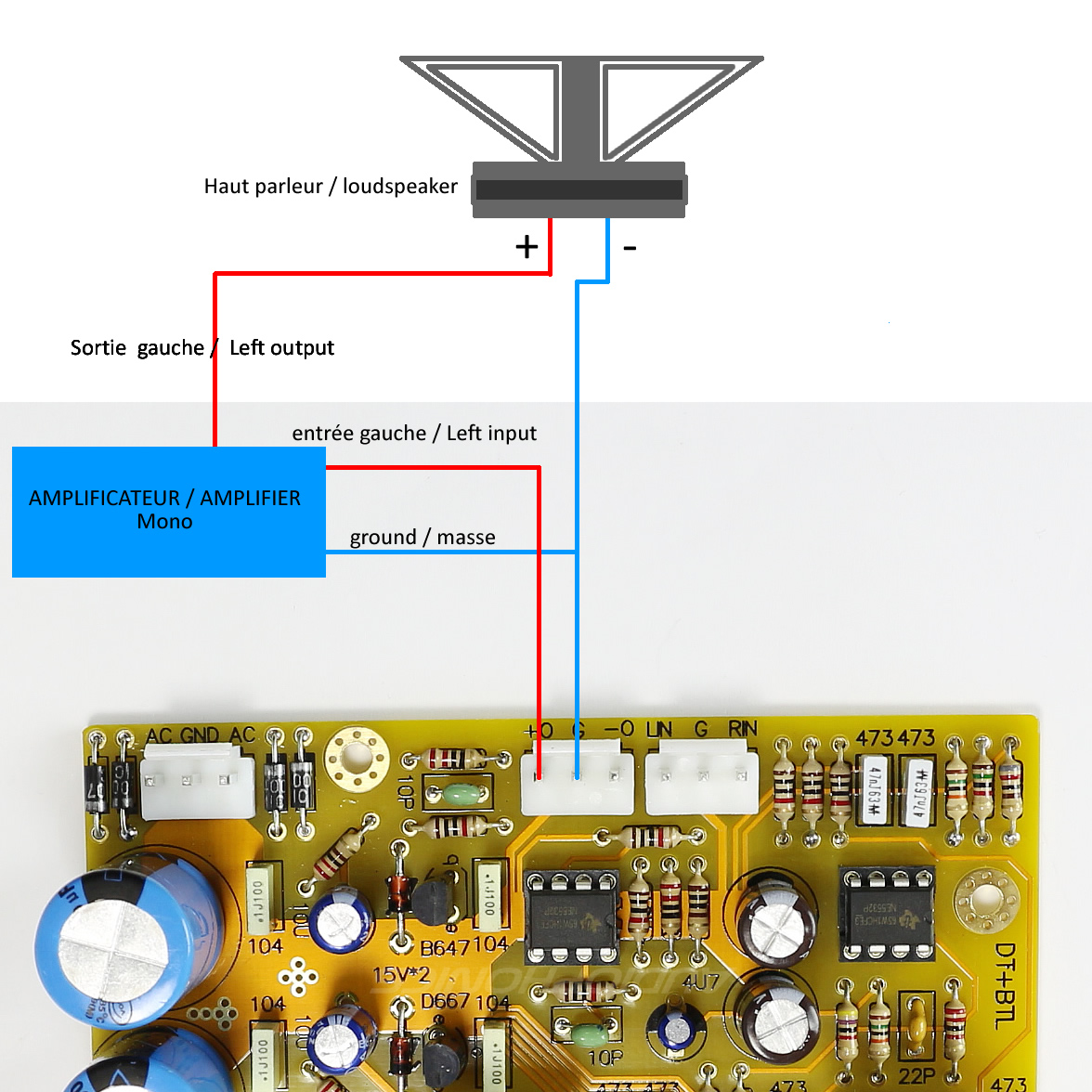

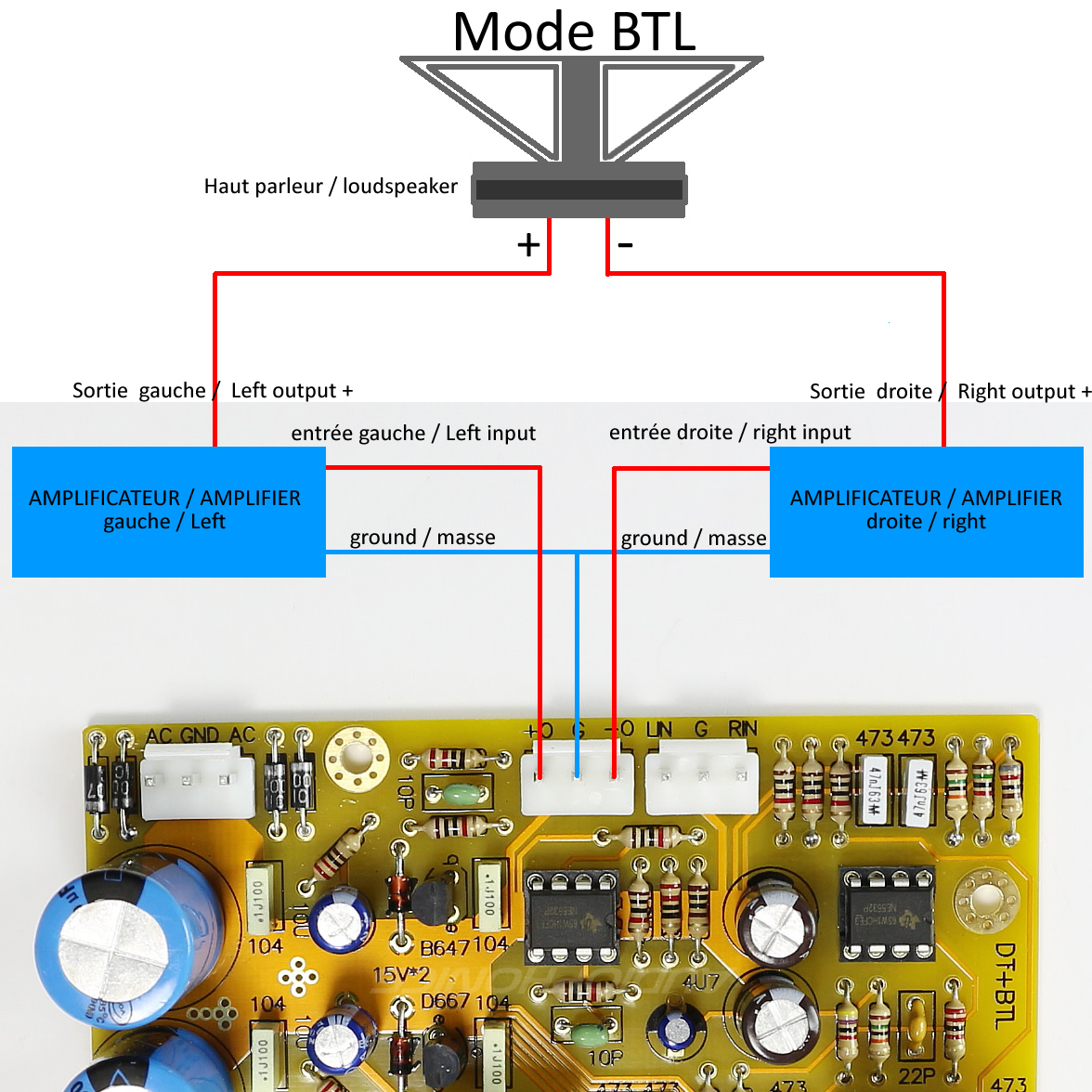

• A: Straight line input (RN)
• B: Left line input (LN)
• E: Ground GND
• C: Variable line output -
• D: Line output goesriable +
• F: Ground GND
• G: Input: VAC 15V
• H: Input: VAC 15V
• I: mass GND
