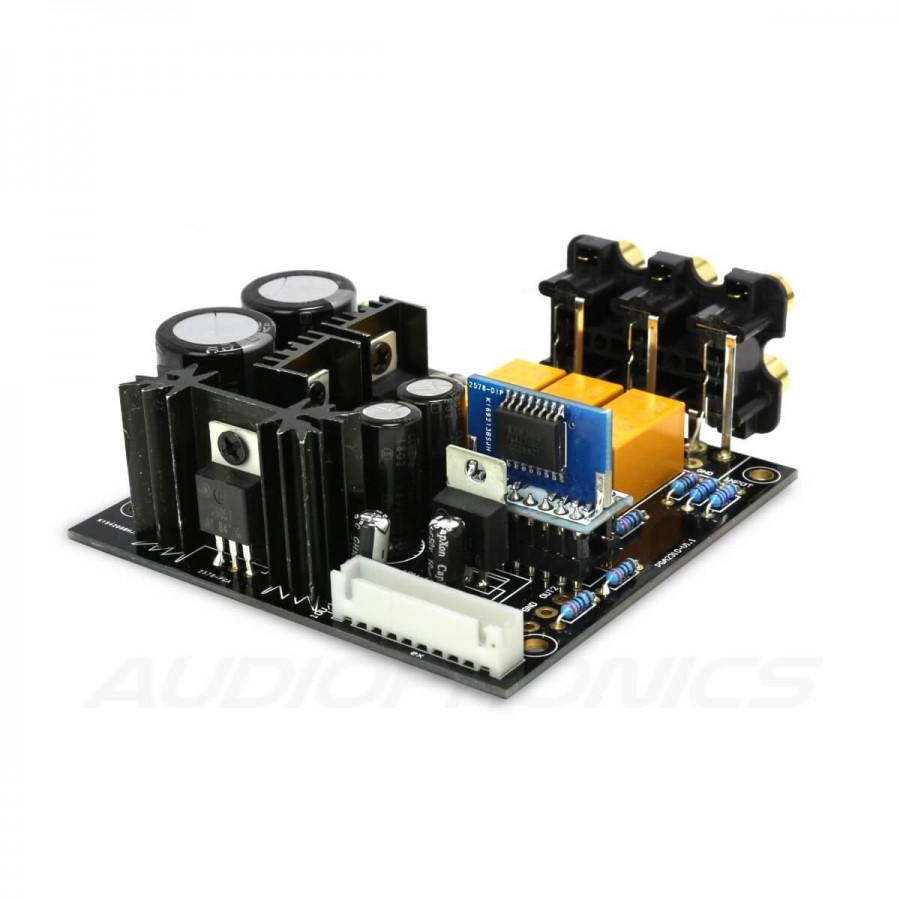

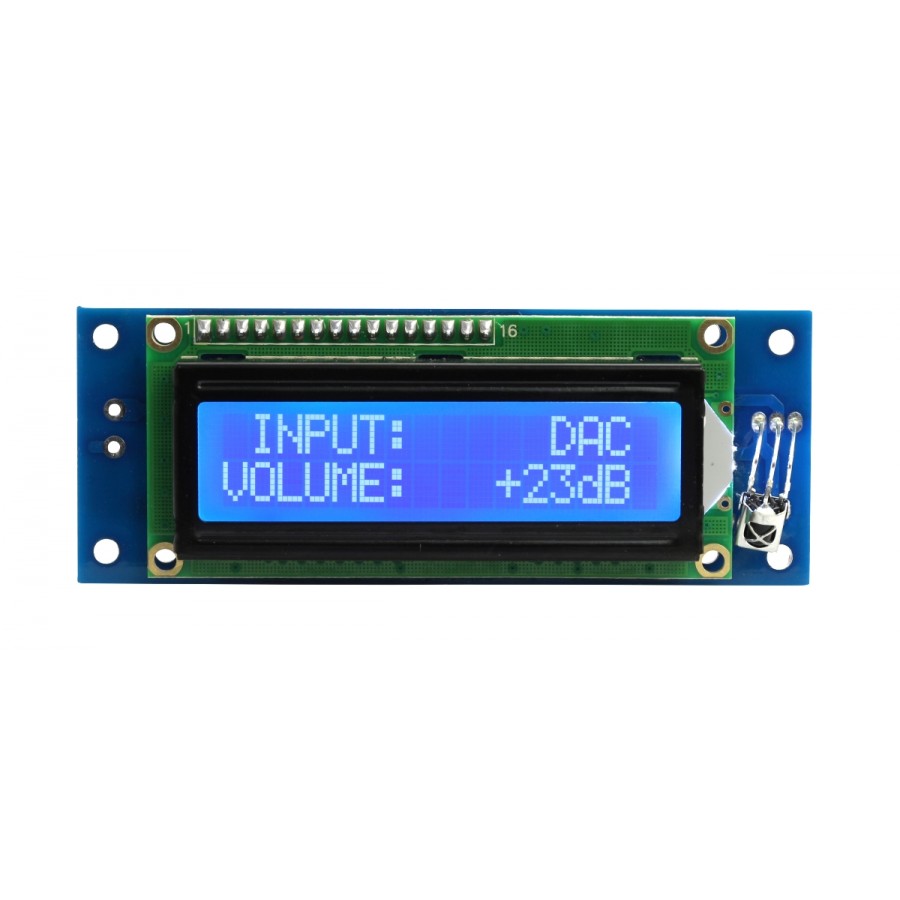

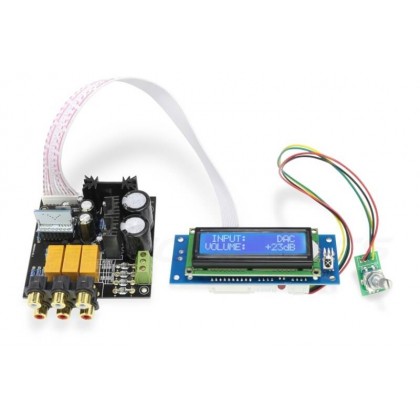

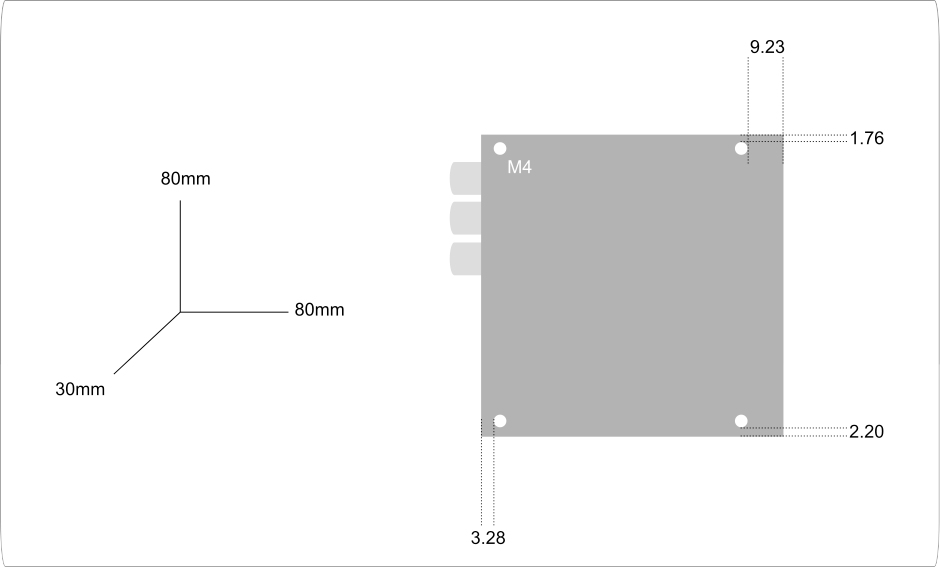

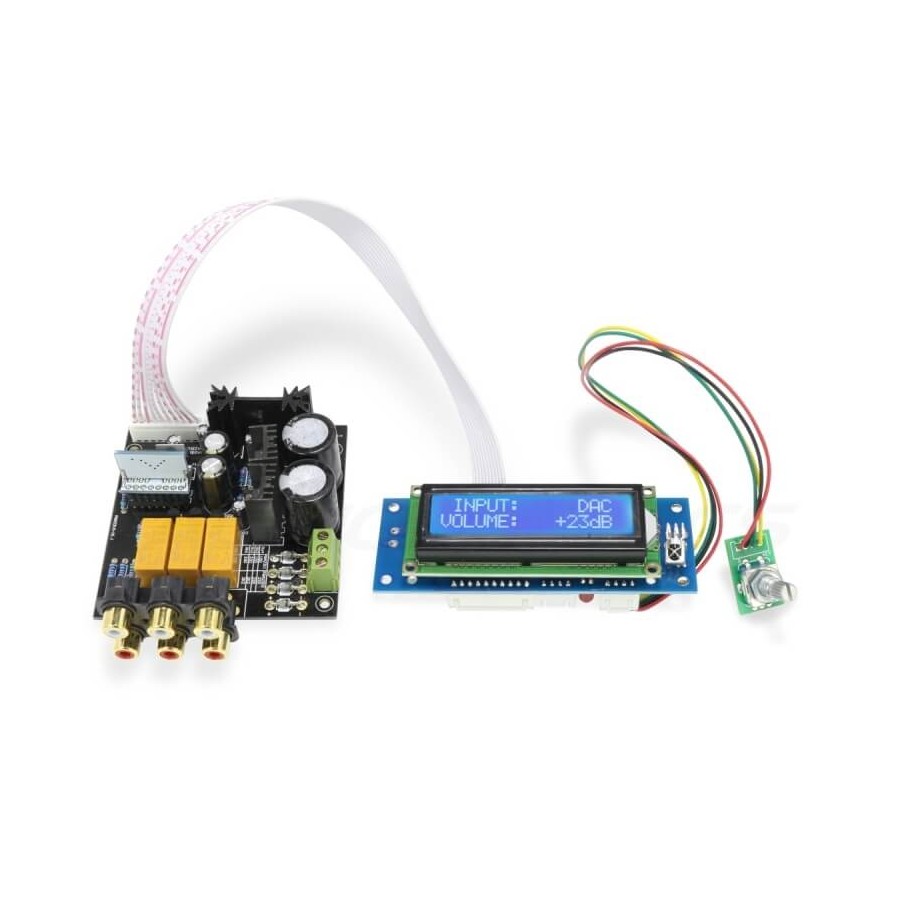

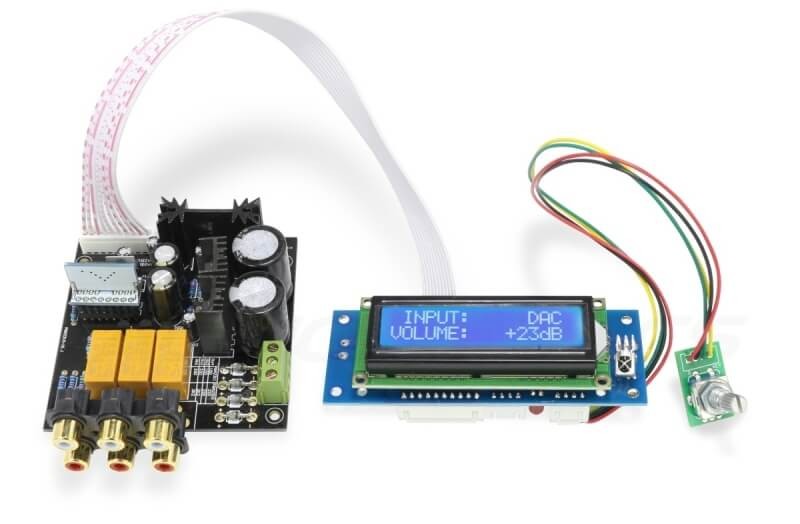

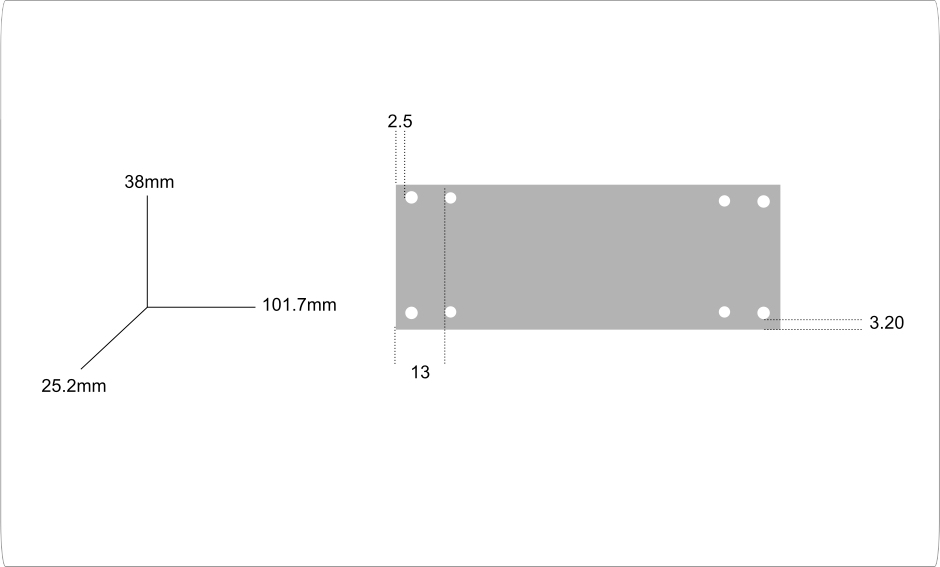

This module combines a volume control & source selection function. It is divided into two cards: a board dedicated to connectors and power supply & board dedicated to screen and controls. It has a OLED display which indicated volume and source status.

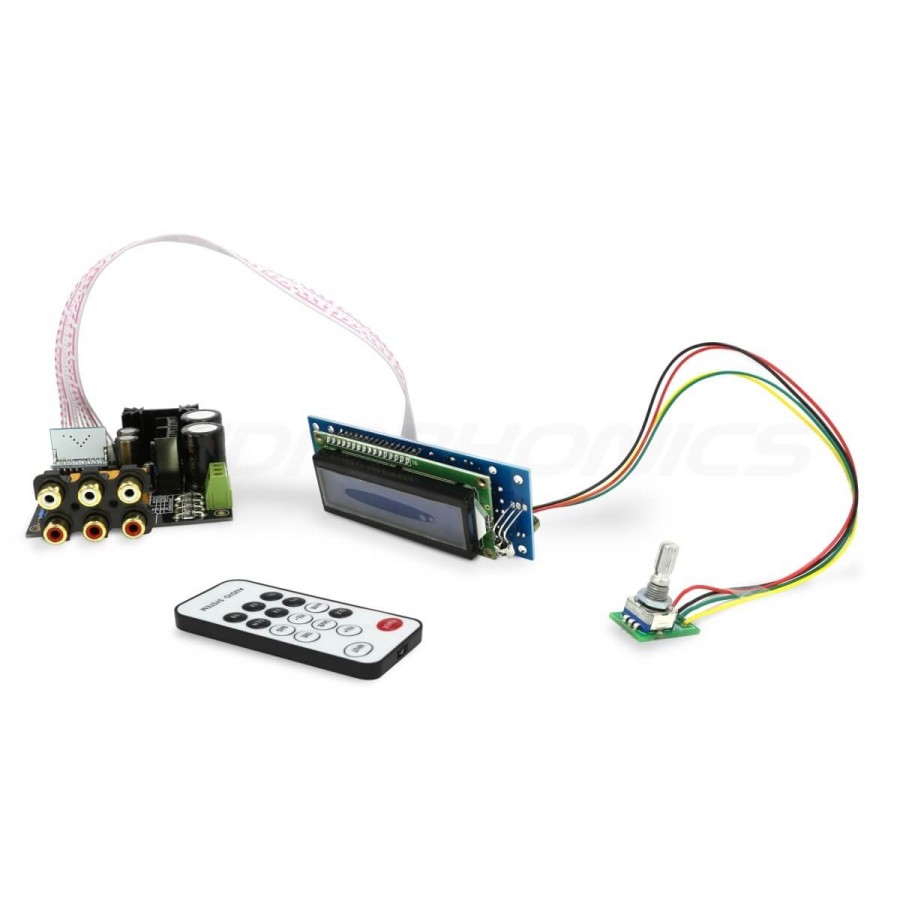

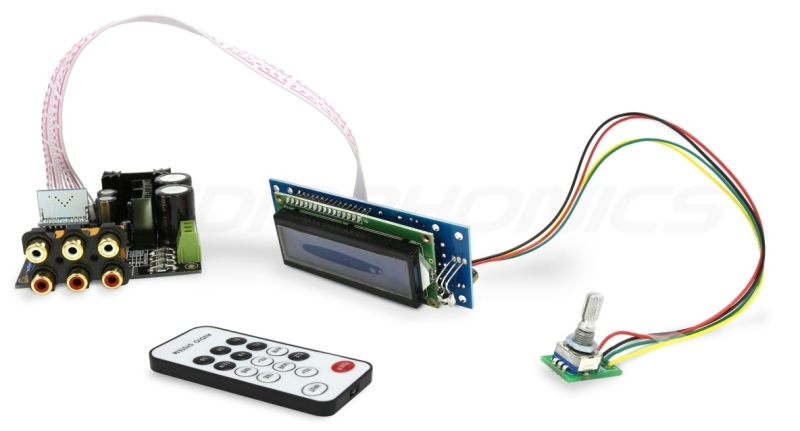

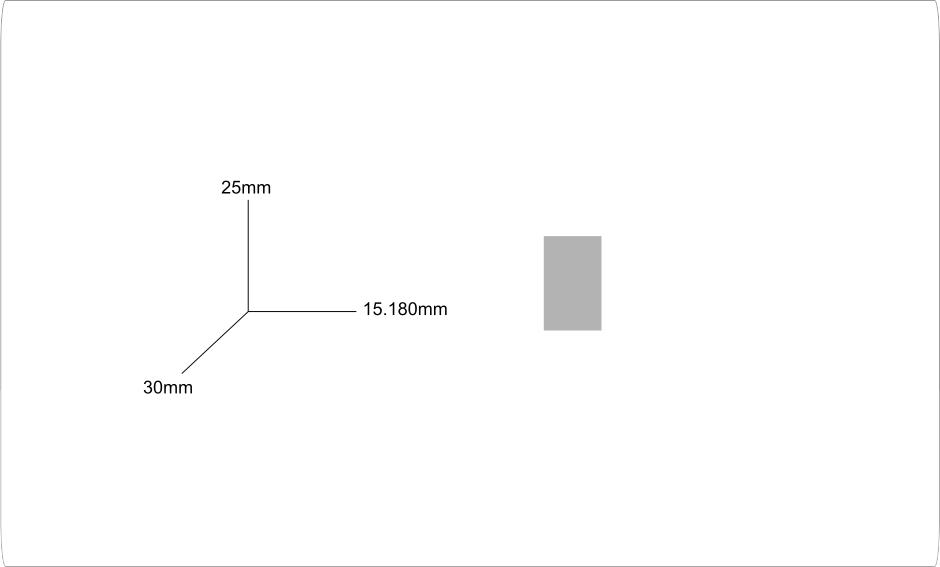

Each PCB is connected via a XH cable (provided) thus allowing easy integration even hard-to-access environments. Same thing is true for the rotary encoder (also supplied), which can be set anywhere thanks to a long wire cable.

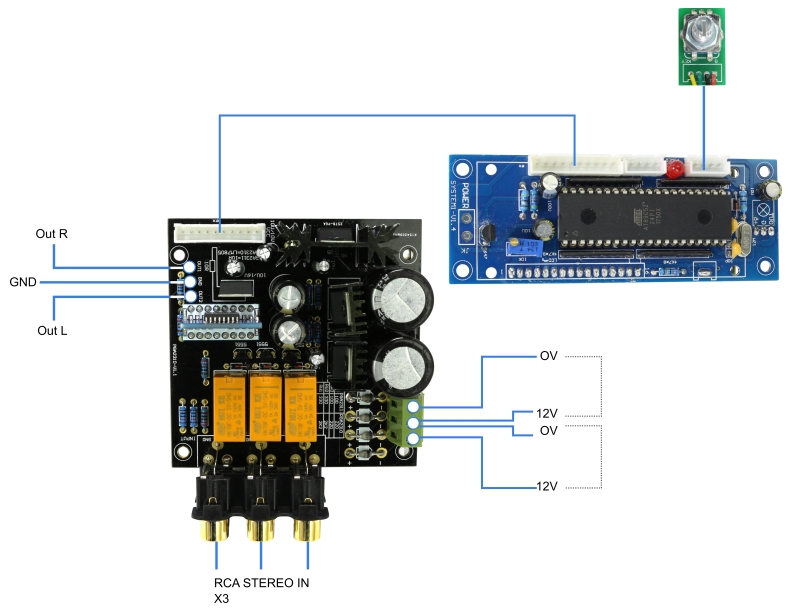

The module is equipped with its own linear regulated power supply. Simply connect it to a toroidal transformer ranging from 2x12VAC to 2x16VAC and the module is already operational.

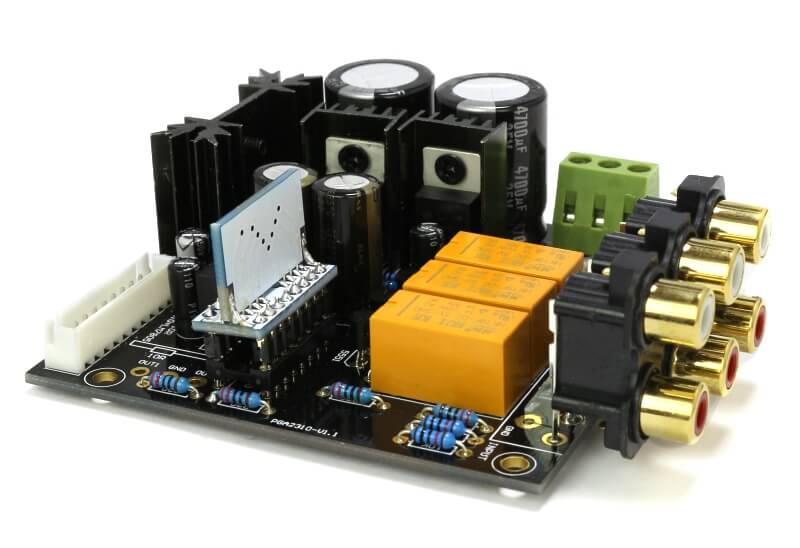

The source selector has three input stereo RCA. The transition from one source to another works with relay to prevent thumps and protect sensitive devices.

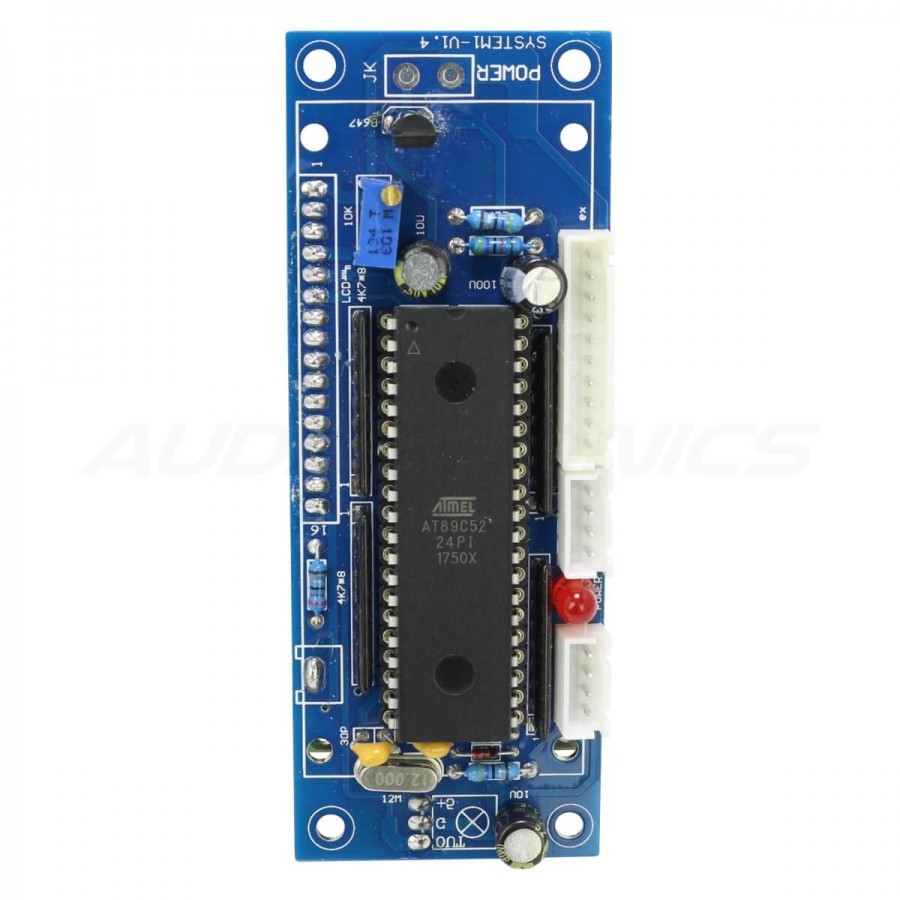

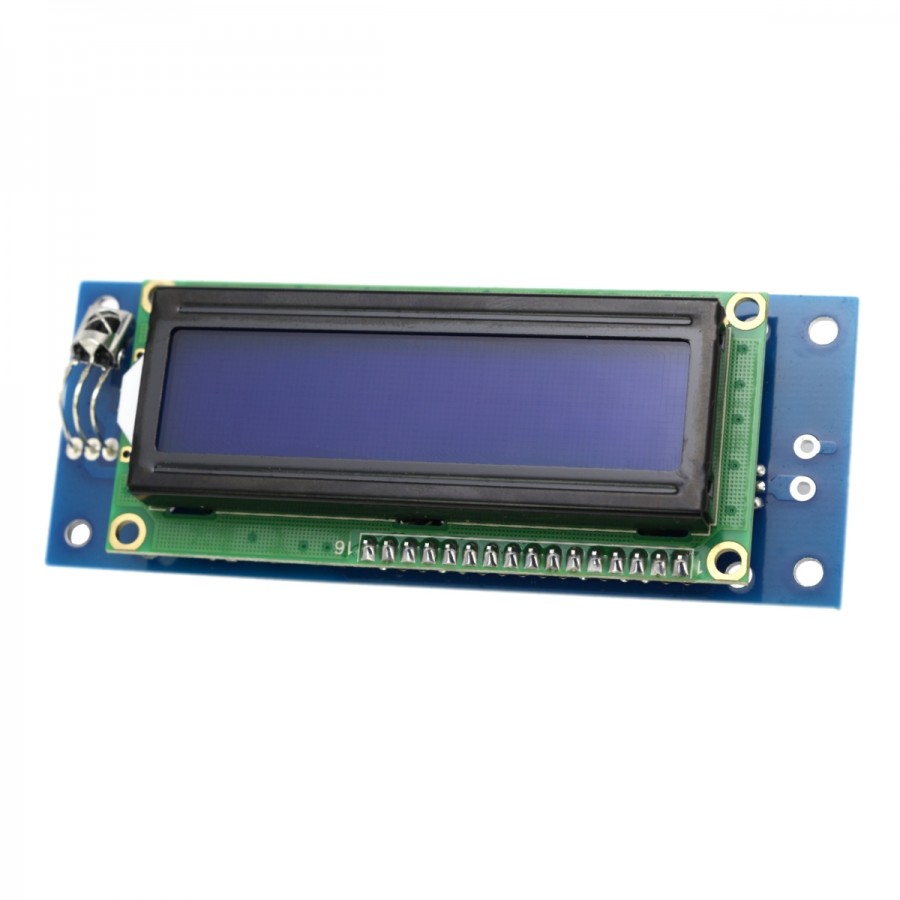

PCB dedicated to the display is also equipped with an infrared receiver. It is therefore possible to remotely control all functions of the module using a remote control (also provided).

linear regulated power supply

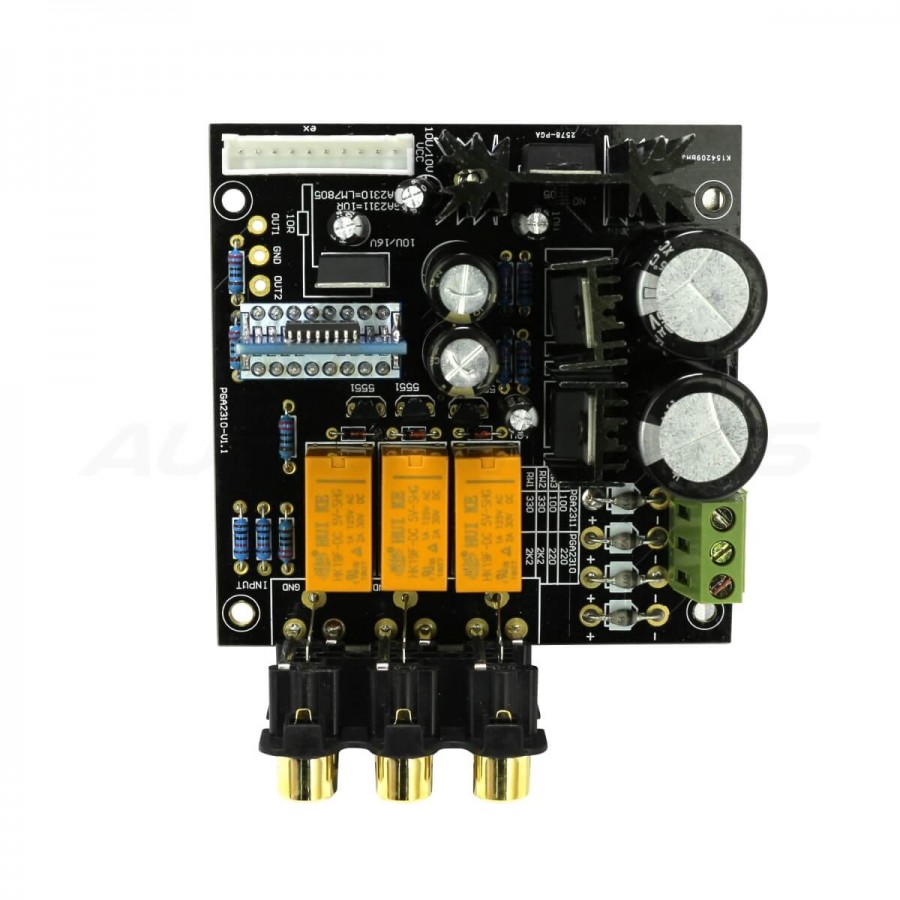

In addition to all these features, the card is equipped with its own bridge rectifier, filter capacitor and voltage regulator. It's only missing a toroidal transformer to enjoy a clean power that will allow the PGA2310 chip to operate in the best conditions.

The power range extends from 2x12VAC to 2x16VAC.
