TINYSINE TSA1110 DIY Bluetooth Volume control module Android / iOS Compatible
This TinySine TSA1110 module will allow you to control the volume of your audio system remotely directly via your smartphone via Bluetooth or by using the potentiometer on the back of the module.
By buying this product you get 2 loyalty points
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
TINYSINE TSA1110
DIY Bluetooth Volume Control Module Android / iOS Compatible
| Caution to use this item, your amplifier must have capacitors on its input. |
|---|

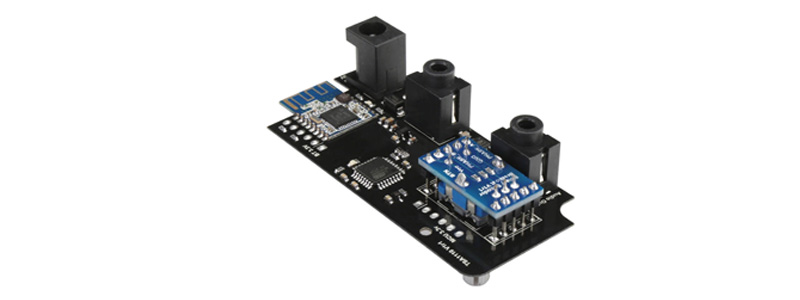

This TinySine TSA1110 module will allow you to control the volume of your audio system remotely directly via your smartphone via Bluetooth or by using the potentiometer on the back of the module. For remote control, Tinysine proposes a dedicated application allowing to act on the sound volume thanks to a digital potentiometer and this up to a distance of 30m. The internal potentiometer value will change automatically when you change the volume via the application. It is available under Android and iOS.
The TAS1110 is very simple to install. It has 3 ports at the rear: an audio input, an audio output and a 5V DC Jack power plug (not supplied).
Note : The TSA1110 is not a Bluetooth receiver. It simply allows remote volume control via this technology.
The TSA1110 also exists in a version with a box.
How to use the smartphone app ?
- Download and install the smartphone application. Android device users can download the.apk file and install it. For iOS users, the application is available in the AppStore by searching Lazybone Dimmer BLE".
- Open the application and activate Bluetooth on your phone.
- Go to the Bluetooth menu and click "Connect device". The phone will search for available Bluetooth devices. The "TSA1110" should then be displayed. Select it.
- You can now adjust the volume of your system directly from the screen of your smartphone by turning the knob displayed. The button at the top left activates the "Mute" mode.
Technical characteristics
| Specifications | |
|---|---|
| Max bluetooth distance | 30m |
| Bluetooth standard | 4.0 |
| Compatibility | Android V2.2 or more iPhone 4S or more recent |
| Power supply | 12V DC via Jack DC 5.5/2.5mm (not included) |
| Dimensions | 96 x 41 x 20mm |
