TSA1020 Volume control module Source Selector RCA

Average votes for this product
4.0 / 5
  Based on 1 customers reviews.

By buying this product you get 1 loyalty point


Reference : 12870
New product

15,90 €tax incl.

13,25 € tax excl.
Including 0,05 € for green tax

- +


Shipping date: 26-11-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

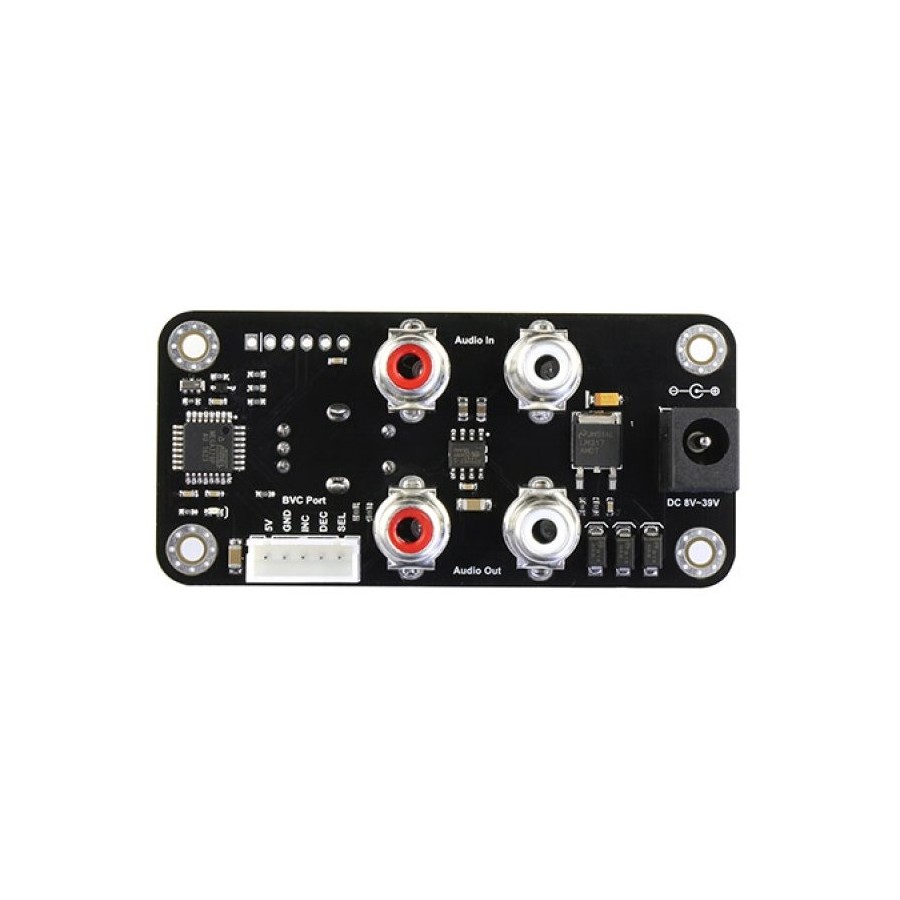

VOLUME CONTROLLER TSA1020

digital volume controller / source selector compatible with Bluetooth receiver Audio B Plus

digital volume control with digital encoder & eacute; America and bluetooth link
This unit is a volume controller with RCA input and exit. It also loads a BVC output to control the volume of a module Audio B Plus (Bluetooth receptor for power amps). With its single knob, the TSA1020 ensures the source selector functions, standalone stereo volume control and digital volume control for Audio B Plus.
entrance control volume and RCA

Can be used as a stand alone unit

In traditional volume control Mode TSA1020 connects easily to your sound system with a RCA input and an RCA stereo output. The connectors are already soldered on the board and are ready for use.

Power is working with a female jack plug 5.5 / 2.1 already installed and ready for use. We can therefore very easily use this module as a movable element of the chain (stand-alone with its own housing) as well as connect internally to other equipment in order to increase the functional field.

Control Audio B More

Bluetooth TSA1020

The BVC TSA1020 has a port for connection to a Bluetooth receiver Audio B plus. Typically, these modules are designed to be attached directly to the amplifier.

When used with a compatible amplifier Audio B Plus, it TSA1020 Module greatly facilitate navigation between different audio sources (wired or not) while keeping the centralized volume control around a single rotary knob.

PinDirectionDescription
5V-
GND-
INCDigital OutputBluetooth Volume Audio +
DECDigital OutputBluetooth Volume Audio -
SELDigital InputSélection Bluetooth/Single-ended
1-Bluetooth,
0-Single-ended

Use as stand-alone volume controller

volume control RCA plug

Use as an external volume control for Bluetooth receiver module Audio B plus

control volume for audio over Bluetooth b

Use as a volume controller and source selector

Audio source selector TinySine B plus RCA

The module does not offer source selection. The volume control is therefore only done on the Bluetooth or on the line input, but not both at the same time.

Specifications
Dimensions81x38mm
External KnobVolume Control
Power SupplyDC8V-38V
distances↔ 71.8mm
↕ 28.3 mm
inputRCA
OutputRCA
BVC (external control for Bluetooth Audio Module B More)
Parts supplied1x Module TSA1020
1x 6-pin cable for Bluetooth module control

Data sheet
InputRCA
OutputRCA
Channel2 (Stereo)

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 4/5
Date :
Bon.
Acheté avec un ampli TINYSINE TSA3118B Bluetooth aptX TWS 2x50W, le module fonctionne bien.
Connecté en Bluetooth (connecteur blanc) Il introduit quelques bruits parasites dans les HP, mais c'est très faible et disparait avec la musique.
Fonctionne aussi très bien avec les RCA connecté.
 (0)
 (0)
This review has been posted for TSA1020 Volume control module Source Selector RCA
