DAC CSR4344 / Tube Preamplifier / Headphone Amplifier Bluetooth 5.1 QCC5152 aptX HD LDAC

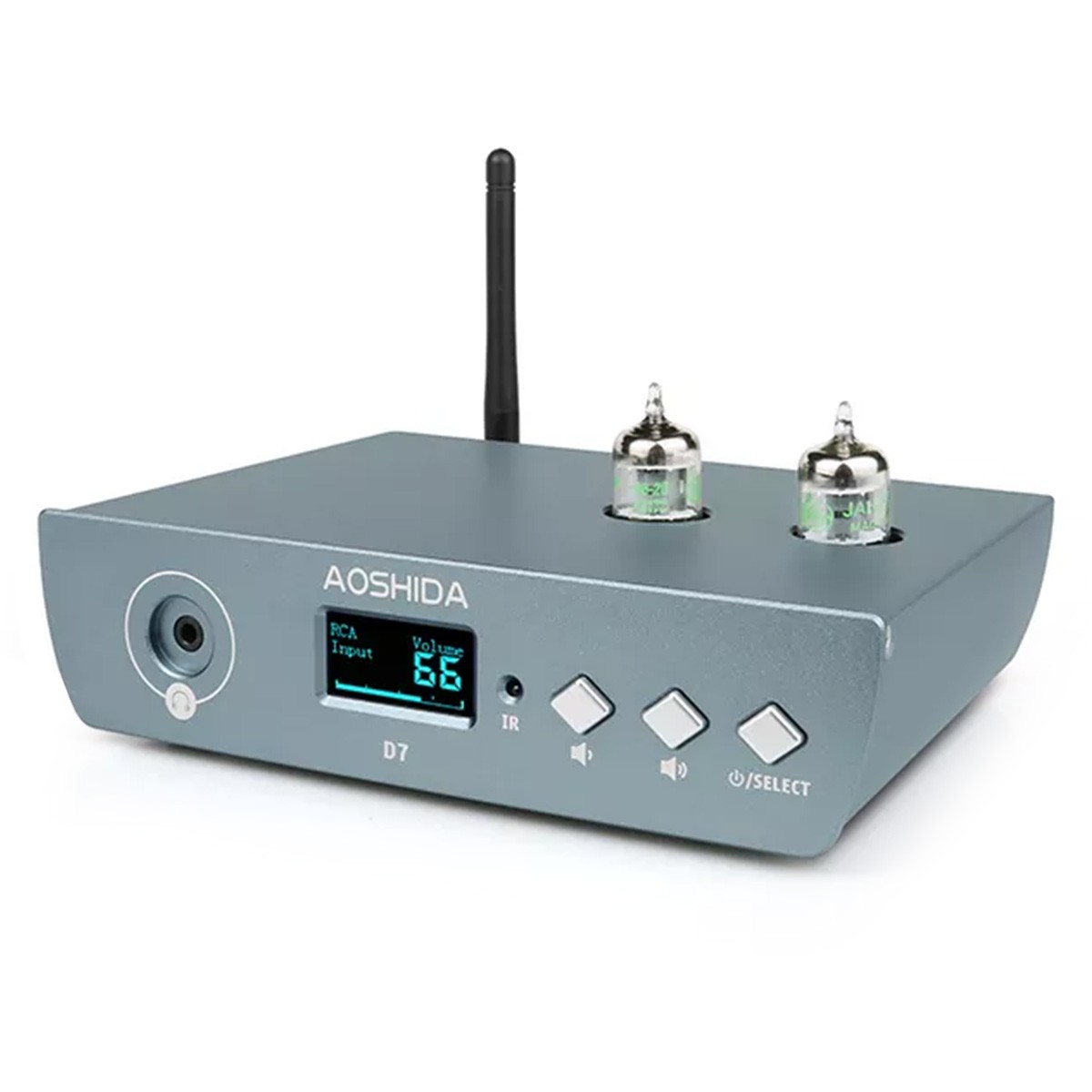

The Aoshida D7 is a hybrid concept, fulfilling the functions of a DAC, tube preamplifier and headphone amplifier at the same time, all for a contained price. Its performance is not to be outdone. Its digital/analog conversion stage is equipped with a CS4344 DAC chip offering a detailed and dynamic sound. The preamplification section is entrusted to a pair of 5725 tubes that soften the sound signature of the device.
As for its connectivity, the Aoshida D7 is equipped with a single-ended RCA and balanced XLR input and output. Connectivity completed by a headphone output in front of the 3.5mm jack, but also, thanks to its QCC2125 chip, by a Bluetooth 5.1 reception capacity that will allow you to easily and quickly broadcast your music from a smartphone or a tablet. The LDAC transmission codec is also supported for high-quality wireless sound reproduction with a sampling rate of up to 96kHz.
1 | Jack 3.5mm headphone output |
2 | IR receiver |
3 | Multifunction button |
4 | OLED screen |
5 | Volume- button |
6 | Volume+ button |
7 | Single-ended RCA input |
8 | Bluetooth antenna |
9 | Balanced XLR output |
10 | Single-ended RCA output |
11 | Balanced XLR input |
12 | 12VDC power input |
Specifications | |
---|---|
Product type | DAC Tube preamplifier Headphone amplifier |
Inputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR Bluetooth 5.1 |
Outputs | 1x Single-ended stereo RCA 1x Balanced stereo XLR 1x Jack 3.5mm headphone output |
Frequency response | 20Hz~20kHz (±1dB) |
Input sensitivity | 1Vrms |
Distortion degree | 0.05% |
SNR | ≥103dB |
Headphone impedance range | 16-300Ω |
Headphone output power | 120mW |
Max RCA output amplitude | 2V |
Max XLR output amplitude | 4V |
General | |
---|---|
Dimensions | 170*126*42mm |
Color | Gray |
Package | 1x Aoshida D7 1x Bluetooth antenna 1x Remote control 1x Power supply |
Input | RCA |
Input | Bluetooth |
Input | XLR |
Output | XLR |
Output | Jack 3.5mm |
Output | RCA |
Color | Gray |
Class | Class D / T |
Remote Control | Yes |
