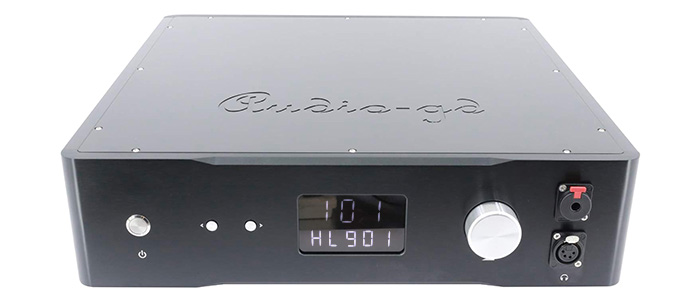

Audio-GD once again presents the quintessence of audio technology with its HE series products, here the HE-9 preamplifier and headphone amplifier, an evolution of the MASTER series. They have benefited from the longest design and testing period in the history of the famous brand. Although Audio-GD had already been studying the products since 2006, the brand's top technicians are now offering them to us in their most accomplished form, with outstanding performance. The MK3 version incorporates output buffers to improve the sound quality of the preamp, dual volume control to match the different output levels of your sources perfectly, and paired modules for the left and right channels for perfect sound coherence.
This HE-9 has no fewer than 5 analogue inputs to meet every need: 2x RCA, 2x XLR and 1x ACSS, alongside 3 analogue outputs: XLR, RCA and ACSS. Not forgetting, of course, the headphone outputs on the front panel: XLR 4-pin and Jack 6.35mm, all two stereo.
Each Audio-GD product is scrupulously tested from every angle using one of the most powerful systems in the world: the Audio Analyzers 2700 Series from Audio Precision.
This HE-9 headphone preamplifier/amplifier is designed around a purely symmetrical Class A ACSS discrete circuit, with no OPA whatsoever and a separate power supply. This avoids any electromagnetic interference on the processed signals.
It has no fewer than 3 R-Core transformers for a total power of 260W and a power consumption of just 95W. It also has 100,000µF of very high-end Nover capacitors and 8 transistors of 150W each for the output stage.
Audio-GD has its own signature technology called ACSS for Audio-GD Current System Signal. Thanks to the company's expertise and know-how, this technology offers a less coloured, more detailed sound with unrivalled neutrality. When the ACSS output is used, the XLR and RCA outputs switch to mute mode.
The HE series from Audio-GD features Regenerative Power Supply technology, which has undergone extensive testing and research to produce its current incredible performance. In particular, this technology uses a thick aluminium plate to separate the power supply circuits, a shield for the main power supply circuit and a design that limits the transmission of interference between the power supply and the audio circuits. The quality of this power supply system can be felt right from the first listen, with more detailed reproduction, greater dynamics, deeper bass and a wider soundstage. Furthermore, this technology also offers a more ‘analogue’ sound reproduction.
Technical characteristics
Specifications | |
---|---|
Product type | Headphone amplifier / Preamplifier |
Signal-to-noise ratio (SNR) | > 130dB |
Total harmonic distortion (THD) | < 0.0025% |
Total harmonic distortion more noise (THD+N) | < 0.0025% |
Frequency response (XLR) | 20Hz - 100kHz (< 4dB) |
Max output level | XLR : 19V RCA : 9.5V ACSS : 6MA |
Input impedance | XLR : 94KΩ ACSS : < 5Ω |
Output impedance | Preamp XLR : 10Ω Balanced headphone output : 2Ω |
Balanced headphone output power | 15W @ 25Ω 10W @ 40Ω 4W @ 100Ω 1350 mW @ 300Ω |
Single-ended headphone output power | 4W @ 25Ω 2500mW @ 40Ω 1000mW @ 100Ω 350mW @ 300Ω |
Crosstalk | < -130dB |
Transformer power | 260W (3 transformers) |
Gain | High gain : +20dB Low gain : +10dB |
Volume control | 100 steps Exponential curve |
General | |
---|---|
Consumption | 66W (Class A) |
Weight | 22kg |
Housing material | Aluminum |
Color | Black |
Dimensions | 430 x 445 x 123mm |
Package | 1x Audio-GD HE-9 MK3 1x Remote control 1x Power cord |
Input | XLR |
Input | RCA |
Input | ACSS |
Output | ACSS |
Output | RCA |
Output | Jack 6.35mm |
Output | XLR |
Color | Black |
Class | Class A / AB |
Remote Control | Yes |
