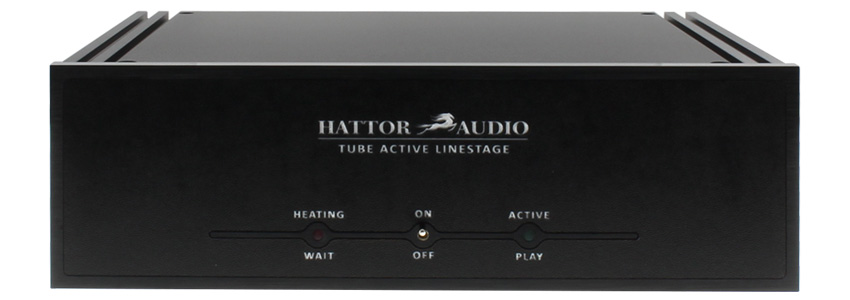

Hattor Tube Active Stage
Tube Gain / Buffer Stage ECC82 +9dB
The Hattor Audio Tube Active Stage is a very high quality gain/buffer stage. It has been thought and designed mainly to be associated with the passive preamplifiers of the brand. However, it can also be used with other passive preamplifiers.

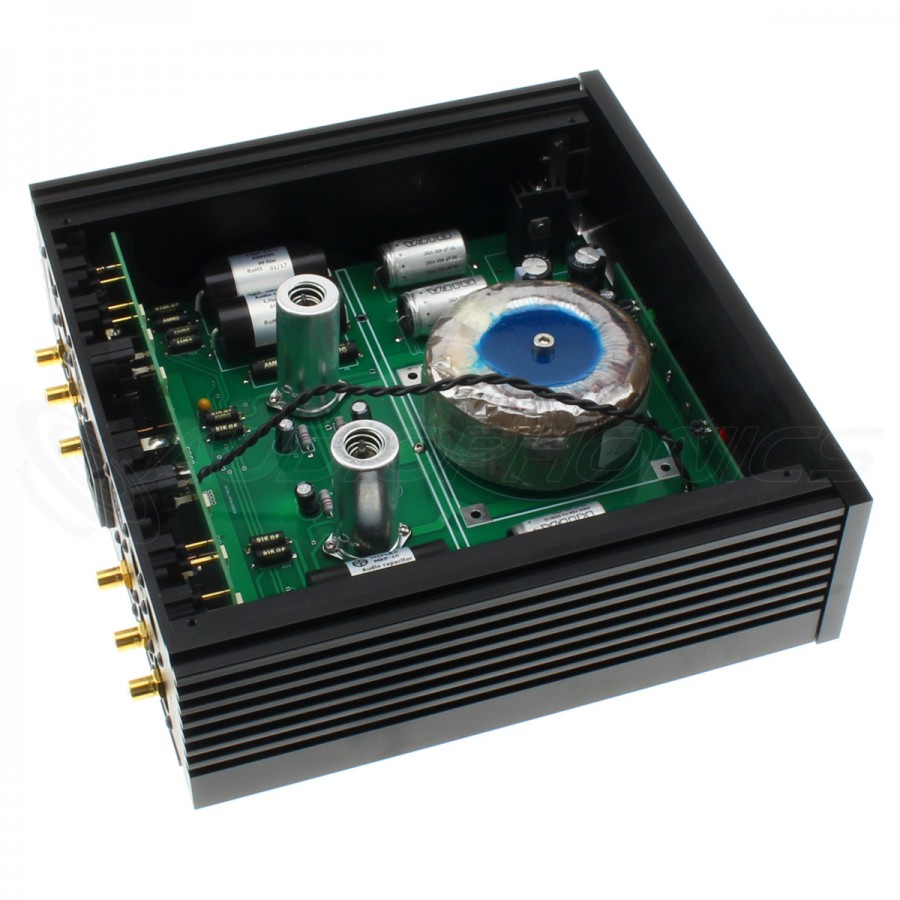

This model embeds exclusively high-performance components. We can find ECC82 (12AU7/5963) tubes from JAN Philips, MIFLEX and RIFA capacitors, a SIZEI toroidal transformer or AMRG resistors. The Hattor Audio Tube Active Stage has an output impedance low enough to power two power amplifiers.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Active gain / buffer stage |
| Inputs | 1* Balanced stereo XLR 1* Single-ended stereo RCA |
| Outputs | 2* Balanced stereo XLR 2* Single-ended stereo RCA |
| Gain | +9dB |
| SNR | 105dB |
| Distortion (THD, IMD) | 0.01% |
| Input impedance | 5kΩ |
| Output impedance | 200Ω |
| General | |
|---|---|
| Dimensions (L*P*H) | 370*290*90mm |
| Weight | ~4.8kg |
| Housing material | Aluminum |
| Color | Black |
