Pack Fosi Audio ZD3 DAC + ZA3 Amplifier + ATAudio King Wolf XLR Cables 50cm + Trigger Cable 40cm
By buying this product you get 29 loyalty points
Pack content
149,00 € 124,17 € Tax excl.In Stock
1 x Male Jack 3.5mm to Male Jack 3.5mm Mono Cable 0.5m
Available on order2,50 € 2,08 € Tax excl.In Stock
179,00 € 149,17 € Tax excl.In Stock
1 x ATAUDIO KING WOLF Interconnect Cables Male XLR to Female XLR OFC Copper Gold Plated 50cm (Pair)
In Stock19,90 € 16,58 € Tax excl.In StockPack Fosi Audio ZD3 + ZA3 + Câbles DAC + Amplificateur + Câbles XLR + Câble trigger

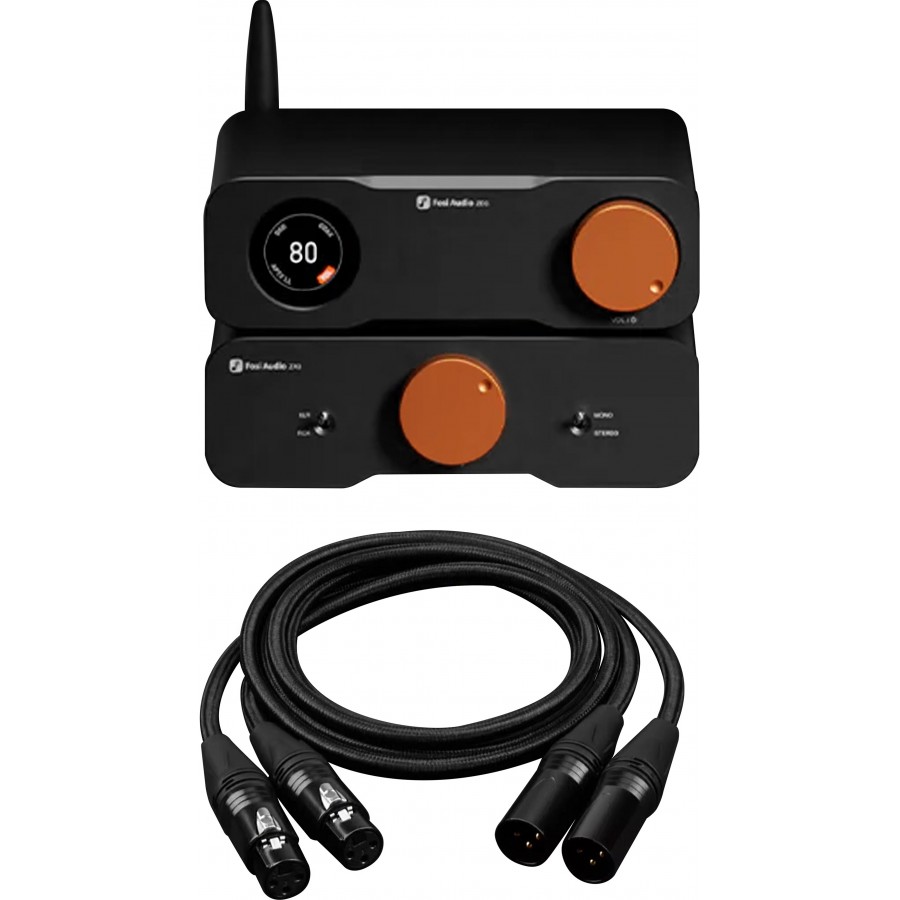

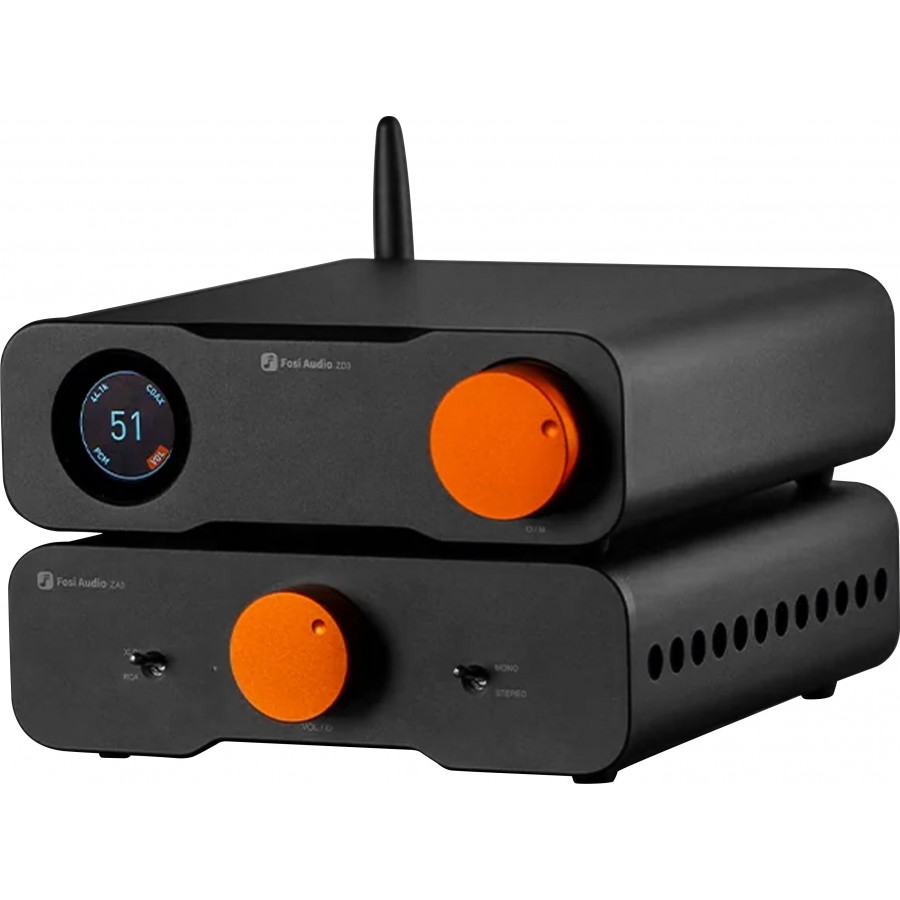

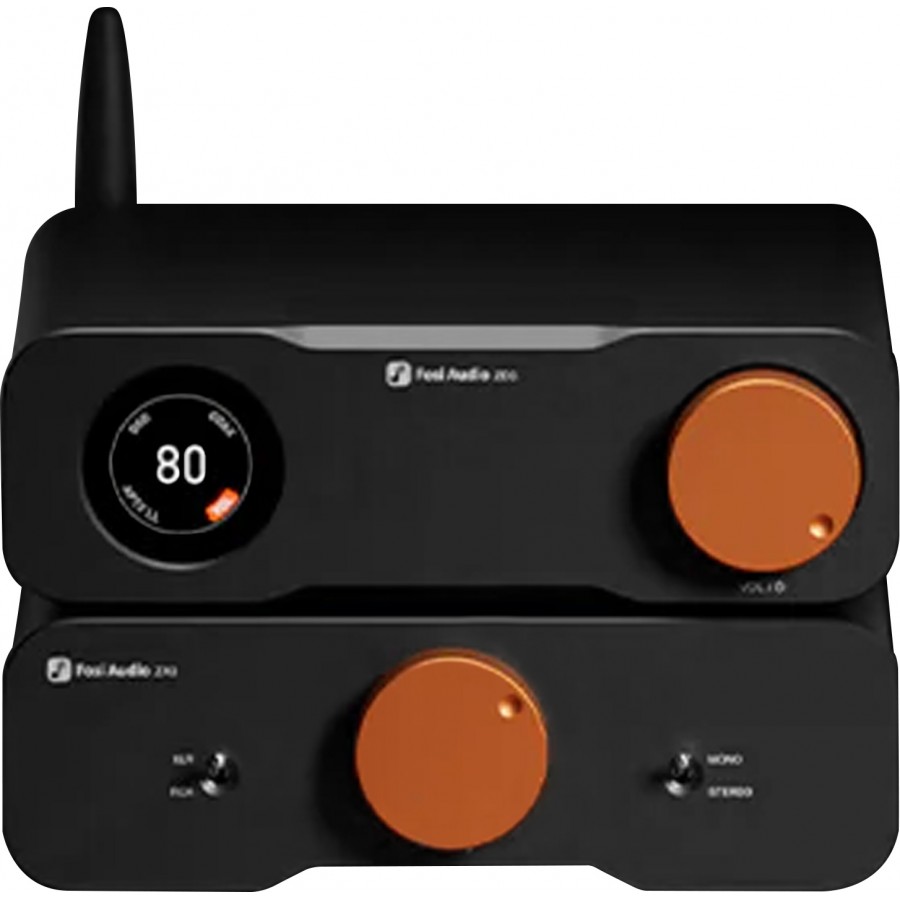

With this pack, we offer you a set comprising Fosi Audio's ZD3 DAC and ZA3 amplifier, as well as a pair of ATAudio XLR cables to connect the two devices symmetrically, and a trigger cable to automate synchronized power on. A package that's as powerful as it is affordable, incorporating a DAC and amplifier designed by Fosi Audio to work perfectly together. Both devices feature identical design and form factor for impeccable aesthetics. The result is a complete system, to which all you need to do is add speakers to enjoy your music in the best possible conditions, without breaking the bank!
Fosi Audio ZD3 DAC

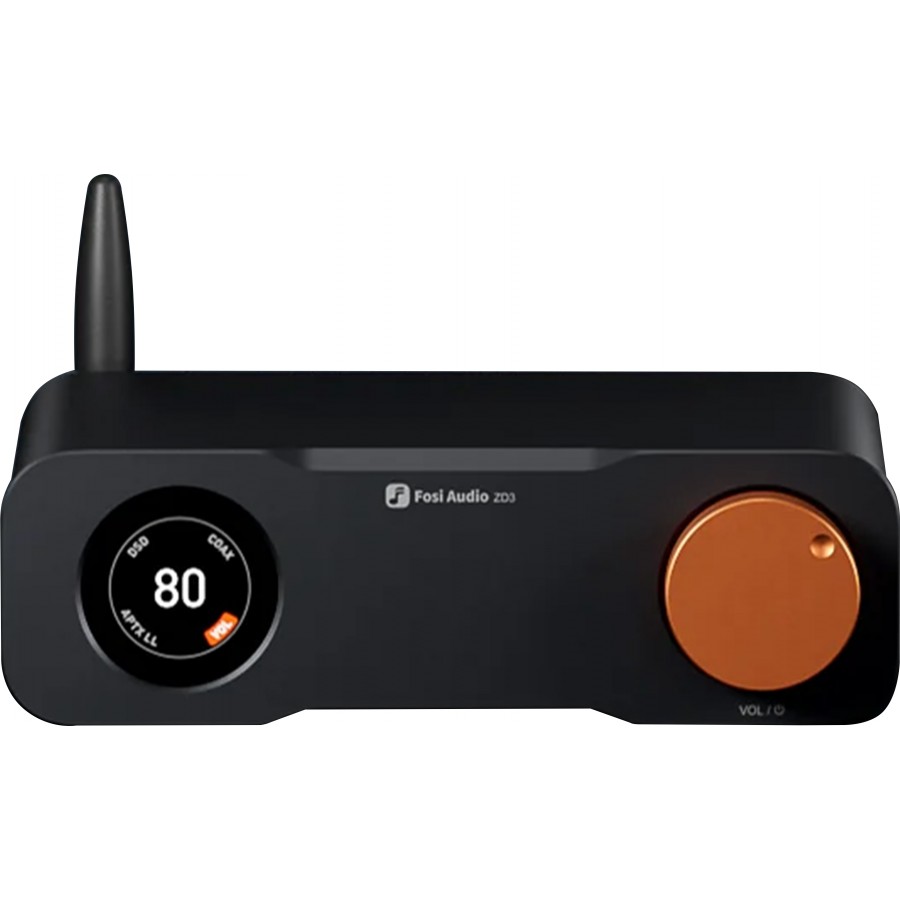

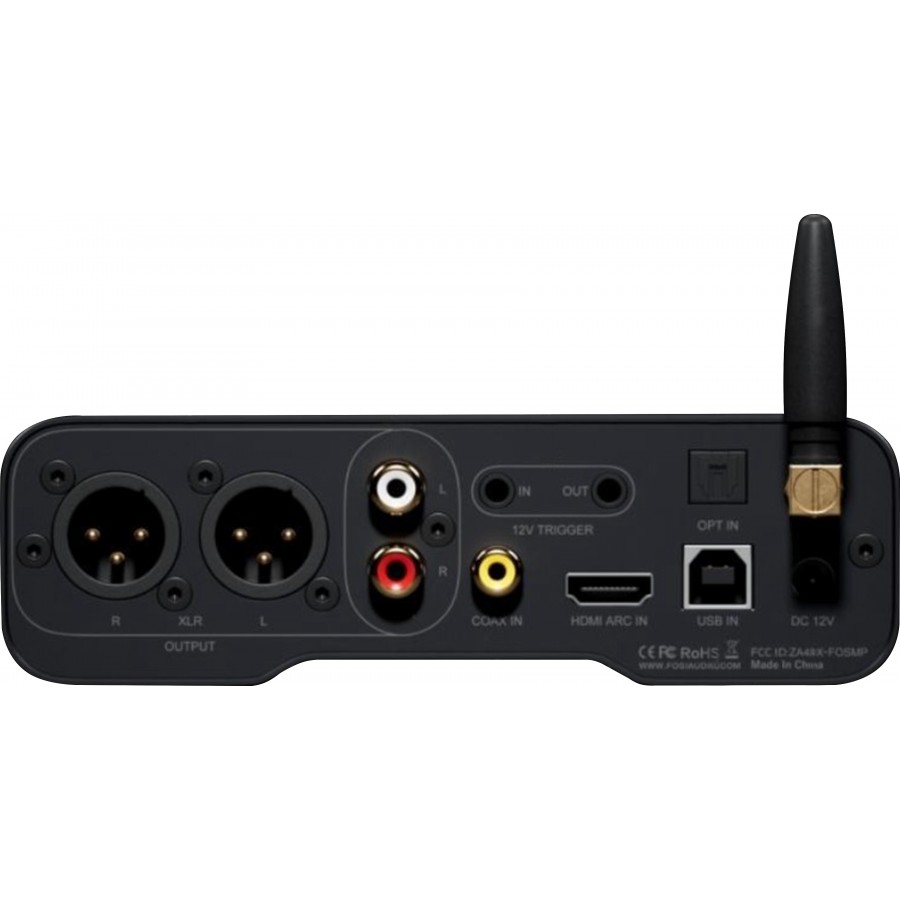

Fosi Audio's ZD3 is a balanced DAC with excellent connectivity thanks to its multiple inputs and Bluetooth 5.0 chip. The ZD3's digital/analog conversion is based on an ESS ES9039Q2M DAC chip, supporting PCM up to 32bit 768kHz and DSD up to DSD512. Three DIP8-mounted OPAs can also be replaced if you wish to enjoy a different timbre.
FIND OUT MORE ABOUT THE FOSI AUDIO ZD3Fosi Audio ZA3 amplifier

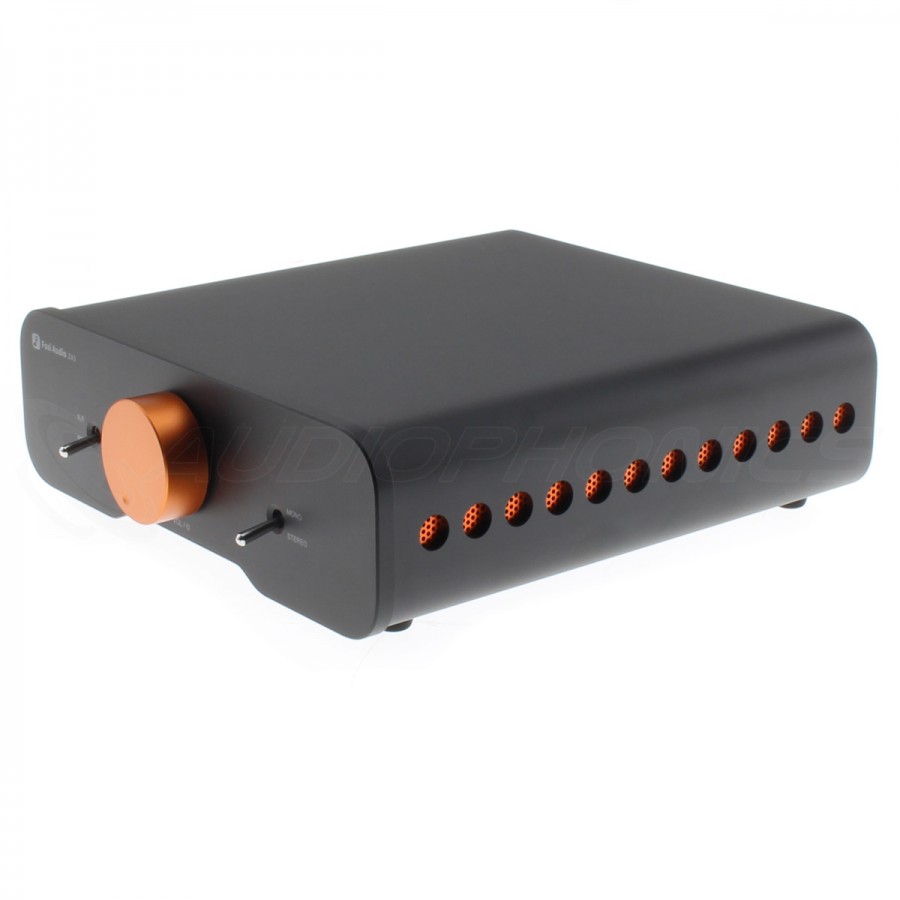

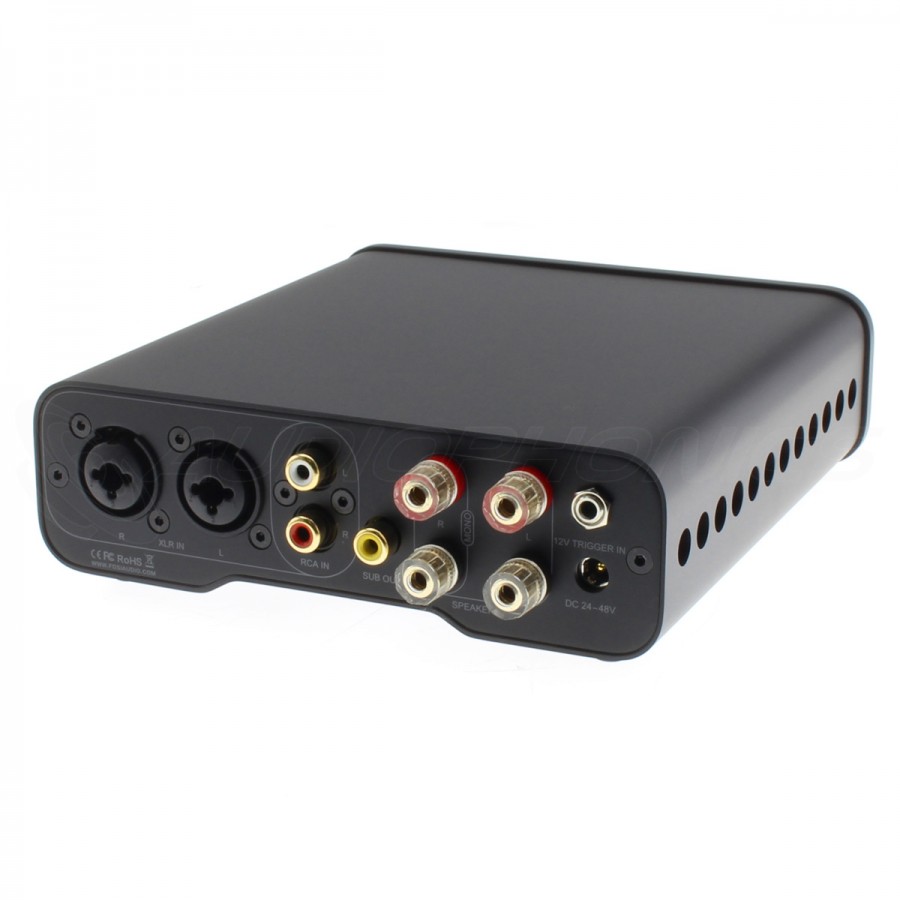

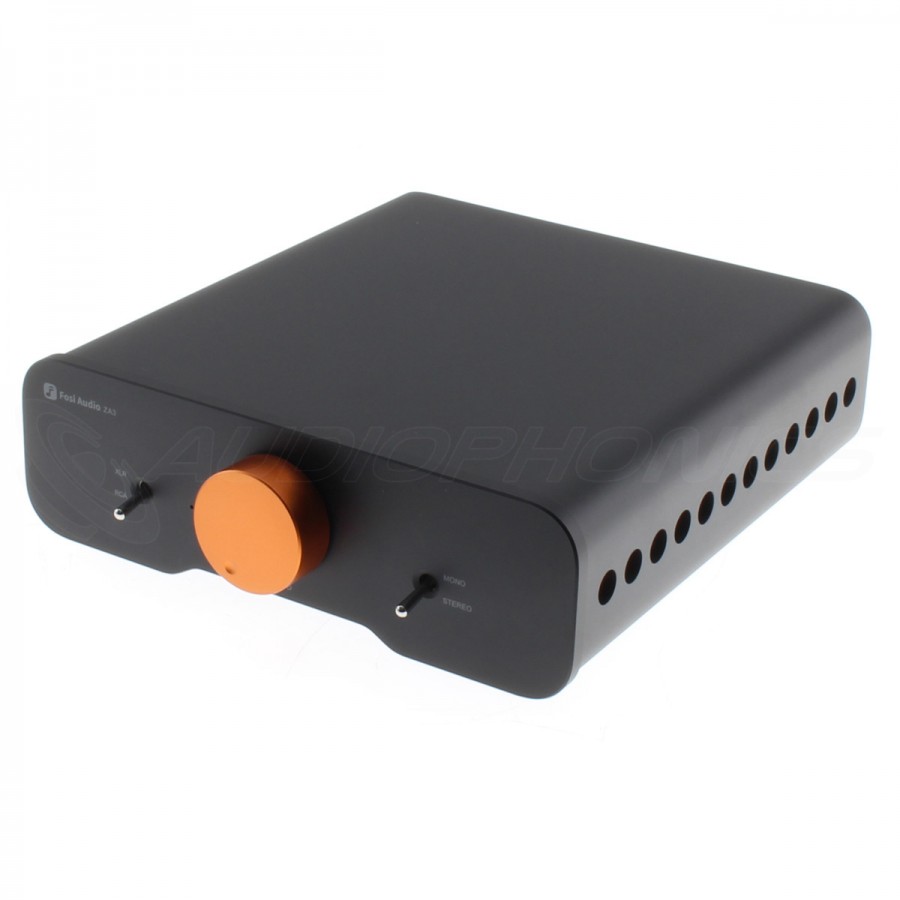

This small, compact and powerful Fosi Audio ZA3 integrated amplifier has the particularity of being able to operate in both stereo and mono mode. It integrates two TI TPA3255 amplifier chips mounted in DIP8, enabling it to deliver power up to 2x150W or 1x240W at 4Ω. It features a balanced stereo input on XLR in addition to its stereo RCA input, as well as speaker terminals and an active subwoofer output. It also features a 12V trigger. This makes it versatile, offering you the possibility of numerous types of Hi-Fi installations integrating one or more Fosi Audio ZA3 amplifiers.
Learn more about the Fosi Audio ZA3
ATAudio King Wolf 50cm XLR cable

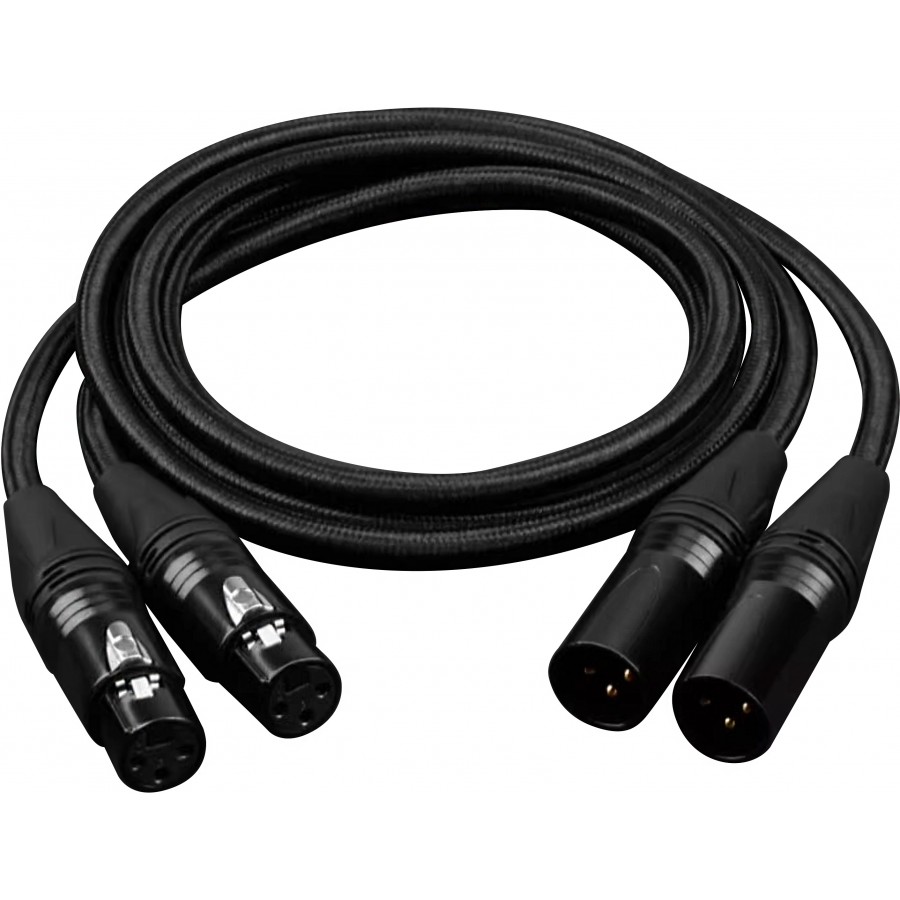

ATAudio XLR cables from the King Wolf range offer superb design quality, combined with excellent transmission performance, all at an affordable price. They feature OFC 6N copper conductors for excellent electrical conductivity, with braided copper shielding to effectively limit interference. The male and female XLR connectors feature 24k gold-plated copper contacts to maintain this excellent conductivity, while ensuring perfect resistance to oxidation. The cable is further protected by an attractive braided sheath.
Jack 3.5mm 40cm trigger cable
This 3.5mm mono jack cable is ideal for connecting mono audio devices or triggers. It is 40cm long.
Technical characteristcs
General Pack content 1x Fosi Audio ZD3 DAC
1x Fosi Audio ZA3 amplifier
1x Pair of XLR cables
1x Trigger cableFosi Audio ZD3 specifications Product type DAC DAC chip ES9039Q2M OPA LME49720 Inputs 1x USB-B
1x HDMI ARC
1x Coaxial
1x Optical Toslink
BluetoothOutputs 1x Stereo XLR
1x Stereo RCASupported sampling rates USB : PCM up to 32bit 768kHz / DSD up to DSD512
Optical, Coaxial, HDMI : PCM up to 24bit 192kHz
Bluetooth : PCM up to 24bit 48kHzOutput level XLR : 5Vrms
RCA : 2.5VmrsSNR 126dB SINAD ≥ 120dB THD+N < 0.00008% DNR ≥ 123dB Noise level ≤ 2µV Bluetooth version 5.0 Supported sampling rates aptX HD, aptX, AAC, SBC USB compatibility Windows 7, 8, 8.1, 10, 11 (driver required)
Mac OS X
LinuxFosi Audio ZA3 spécifications Product type Integrated amplifier Amplification chip TI TPA3255 Inputs 1x Single-ended stereo RCA
1x Balanced stereo XLROutputs Speaker terminals
Subwoofer outputInput sensitivity 0.775V SNR ≥ 106dB Dynamic range ≥ 106dB THD 0.006% Frequency response 20Hz-20kHz (±0.1dB) Supported speaker impedances 2-4-8Ω Output power Stereo mode: 2x150W @ 4Ω
Mono mode: 1x240W @ 4ΩATAudio King Wolf XLR cables specifications Product type XLR cables Connectors 2x Male XLR
2x Female XLRLength 50cm Cable conductors material Cuivre OFC 6N Cable shielding Cuivre tressé Connectors contacts material Copper Connectors contacts plating Gold 24k Cable diameter Ø6.5mm trigger cable specifications Product type Trigger cable Length 40cm Connectors 2x Mono male Jack 3.5mm We deliver all over France, and internationally.
