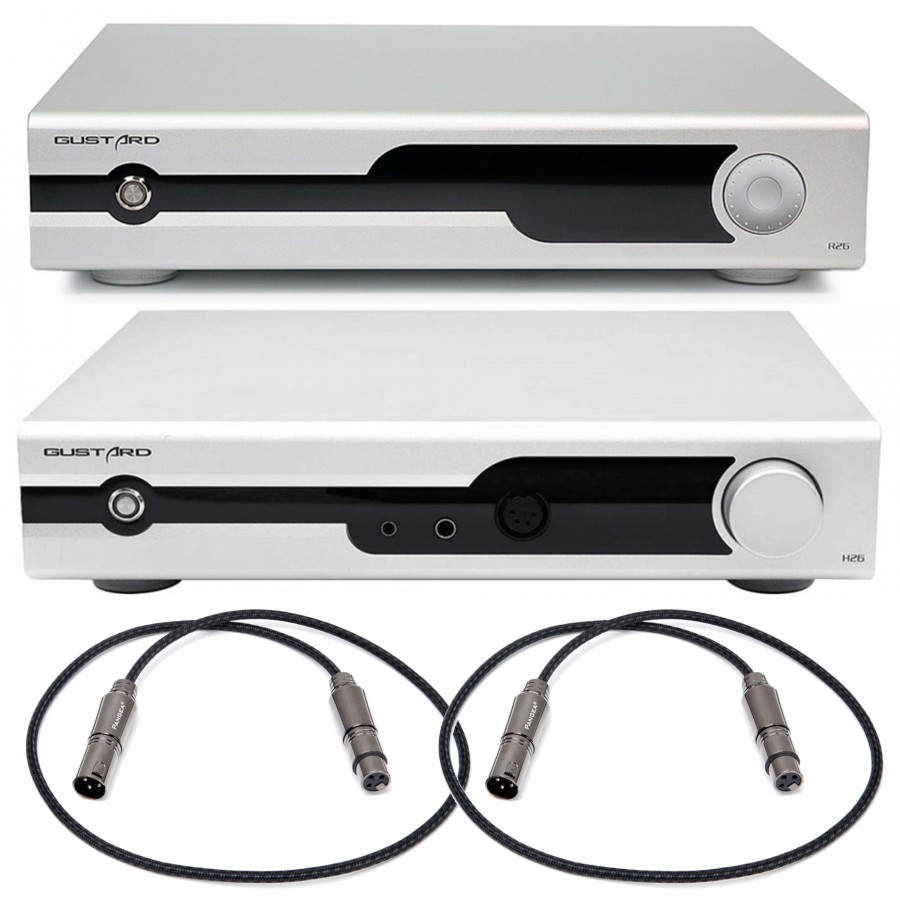

Pack Gustard R26 DAC + Gustard H26 Preamplifier + Pangea Premier SE Balanced XLR Cables 0.6m Silver

Pack Gustard R26 + Gustard H26 + Pangea Premier SE Balanced XLR Cable 0.6m Silver New
We offer you a Gustard product pack featuring top-of-the-range products. It includes the R2R R26 discrete DAC, the H26 headphone preamplifier/amplifier and a pair of Pangea Premier SE Balanced XLR modulation cables.

No customer reviews yet, login to write a review.

By buying this product you get 273 loyalty points


Yes, notify me when available !
Reference : 19389
New product

2 739,00 €tax incl.

2 282,50 € tax excl.
Instead of 2 877,01 €
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Pack content


More info

Pack Gustard Gustard R26 DAC + Gustard H26 Preamplifier + Pangea Premier SE Balanced XLR cable 0.6m Silver

Pack Gustard R26 + Gustard H26 + XLR cable Pangea Premier SE Balanced 0.6m Silver

We offer you a Gustard pack featuring top-of-the-range products. It includes the R2R R26 discrete DAC, the H26 headphone preamplifier/amplifier and a pair of Pangea Premier SE Balanced XLR modulation cables (60cm).

GUSTARD DAC-R26 Discrete R2R DAC I2S Bluetooth LAN AirPlay Roon DLNA 32bit 768kHz DSD512 MQA Silver

Gustard's DAC-R26 is an exceptional digital-to-analog converter. It uses R2R architecture and high quality discrete components, perfectly optimized to deliver exceptional sound performance. In addition to full connectivity, it features Bluetooth and network connectivity for remote control of your music playback. The whole unit is housed in a sublime, modern and luxurious chassis.

View complete product page of Gustard R26 Gustard R26 DAC

Gustard H26 Balanced Class A Headphone Amplifier Preamplifier Silver

Gustard's H26 is a balanced Class A audiophile headphone preamplifier/amplifier featuring discrete components. It features 8 pairs of power transistors, two dual LME49720 AOPs, two toroidal transformers, a relay volume control matrix and balanced architecture. Whether on its preamplified line outputs or its available headphone outputs, the H26 offers exceptional performance on all levels.

View complete page product of Gustard H26 Gustard H26 Preamplifier

PANGEA PREMIER SE BALANCED Balanced XLR-XLR Modulation Cable 0.6m (Pair)

This pair of XLR modulation cables features Grade One Cardas copper conductors (hot end) and OFC copper conductors (cold end) for enhanced conductivity. A double shield against EMI/RFI interference in silver-plated braided copper and AL Mylar aluminum foil protects this cable effectively. The overall structure is completed by PE tube insulation and PVC jackets. XLR connectors feature gold-plated contacts for corrosion and oxidation resistance, and a high-end “Black Carbon” finish.

View complete product page of PANGEA PREMIER SE BALANCED Pangea premier SE balanced

Technical characteristics

Specifications
Product typeR2R DAC + Preamplifier / Headphone amplifier + XLR modulation cables
Package contents1x Gustard R26
1x Gustard H26
1x PANGEA PREMIER SE BALANCED XLR-XLR balanced interconnect cables (Pair)


Specifications
Product typeDiscrete R2R DAC
Inputs1x USB-C
1x USB-B
1x RJ45
1x I2S (HDMI)
1x AES/EBU
1x Coaxial
1x Optical Toslink
Bluetooth 5.0
Outputs1x Single-ended stereo RCA
1x Balanced stereo XLR
Supported sampling ratesUSB / I2S / LAN : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256
AES / Optical / Coaxial : PCM up to 24bit 192kHz, DSD DoP up to DSD64
MQA
USB CompatibilitéWindows 7/8/10/11
Mac OSX
Linux
Network protocolRoon
AirPlay
UPnP
Supported Bluetooth codecsAAC, SBC, aptX, aptX LL, aptX HD, LDAC
Frequency response20Hz-20kHz ±0.2dB
Dynamic range> 115dB
SNR> 122dB
Crosstalk-134dB @ 1kHz
THD+N≤ 0.003% @ 1kHz
IMD0.008% à 0dBFS
Output levelsRCA : 2.5Vrms (fixed volume)
XLR : 5Vrms (fixed volume)
Outpu timpedanceRCA : 100Ω
XLR : 100Ω
General
Supply voltage115-230VAC 50/60Hz
Consumption< 30W
Dimensions330 x 260 x 65mm
ColorSilver
Package1x Gustard DAC-R26
1x Remote control
1x Power cable
1x Antenna
1x USB-A to USB-B cable


GUSTARD H26 PREAMPLIFIER SPECIFICATIONS
Product typePreamplifier
Headphone amplifier
OPALME49720
Inputs1x RCA stereo
2x XLR balanced
Outputs1x Stereo RCA output
1x XLR stereo balanced output
1x 6.35mm headphone output
1x Balanced headphone output 4.4mm jack
1x XLR 4-pin balanced headphone output
Input sensitivityRCA : 2-3Vrms
XLR : 4-6Vrms, max. 12Vrms
Input impedanceRCA : 4 KΩ
XLR : 8 KΩ
PREAMPLIFIER SECTION MEASUREMENTS
Output impedanceRCA : 100Ω
XLR : 100Ω
Frequency response20-80kHz / -0.1dB
SNR> 123dB
Crosstalk< -123db 1khz
THD+N< 0.0002%
IMD< 0.0003%
HEADPHONE AMPLIFIER SECTION MEASUREMENTS
Output impedance6.35mm jack: 0.05Ω
Balanced outputs (jack 4.4 and XLR 4 pins): 0.1Ω
Frequency response20-80kHz / -0.1dB
SNR20-80kHz / -0.1dB
Crosstalk< -120db 1khz
THD+N< 0.0005% @ 9700mW 32Ω load
IMD< 0.0005% @ 9700mW 32Ω load
Max. undistorted output power6000mW @32ohm load
Max. output power12000mW @32ohm load (THD=1%)
Load power (per channel)64Ω 7350mW
150Ω 3125mW
300Ω 1576mW
600Ω 788mW
General
Power supply100-240V AC (Selector on rear panel)
Power consumption< 30W
Dimensions330x 260 x 65mm
ColorSilver
Gross weight7Kg
Package1x Gustard H26 preamplifier/headphone amplifier
1x Power supply cable
1x Remote control


PANGEA PREMIER SE BALANCED XLR CABLE SPECIFICATIONS
Conductor typePur Cardas Grade One Copper (Hot point)
OFC 100% Copper (Cold point)
InsulationPE AIR TUBE
EMI / RFI shieldInsulation with Aluminium Mylar Silver plated foil
Sheath materialHigh-strength thermoplastic sheath
Contacts platingGold
Soldering typeHand made
Lenght0.6m
PackageThe pair
