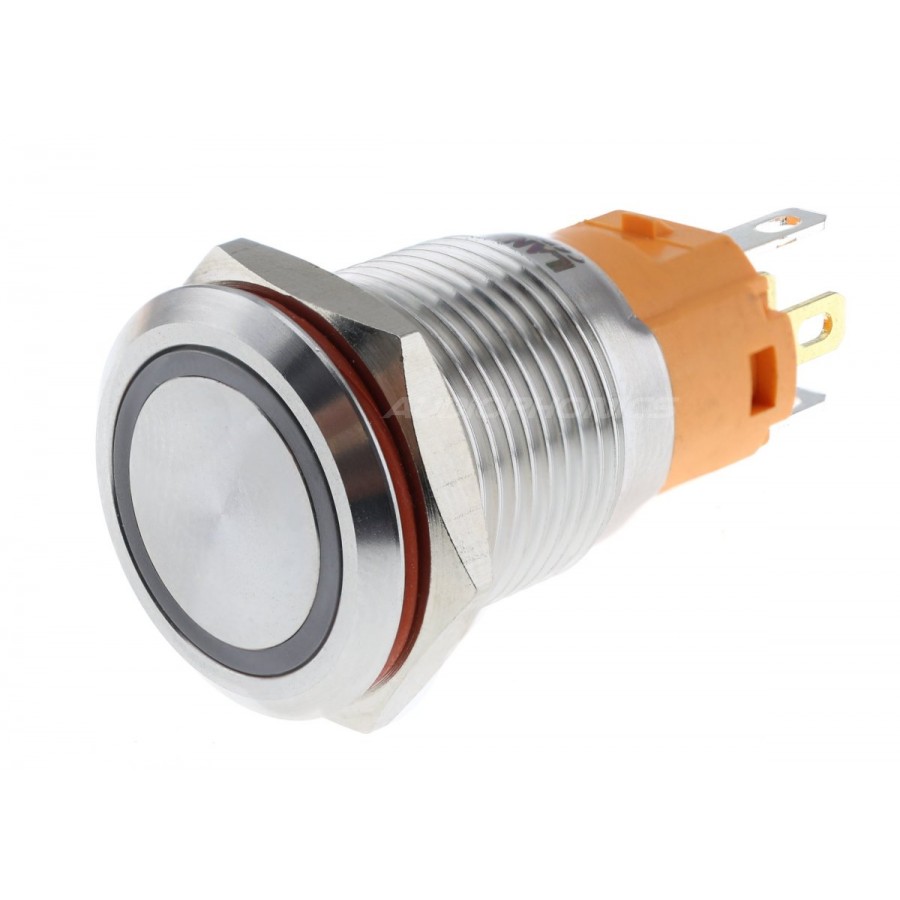

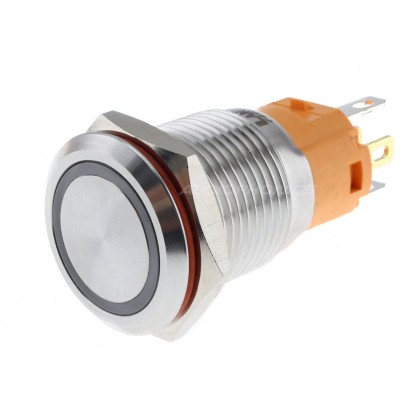

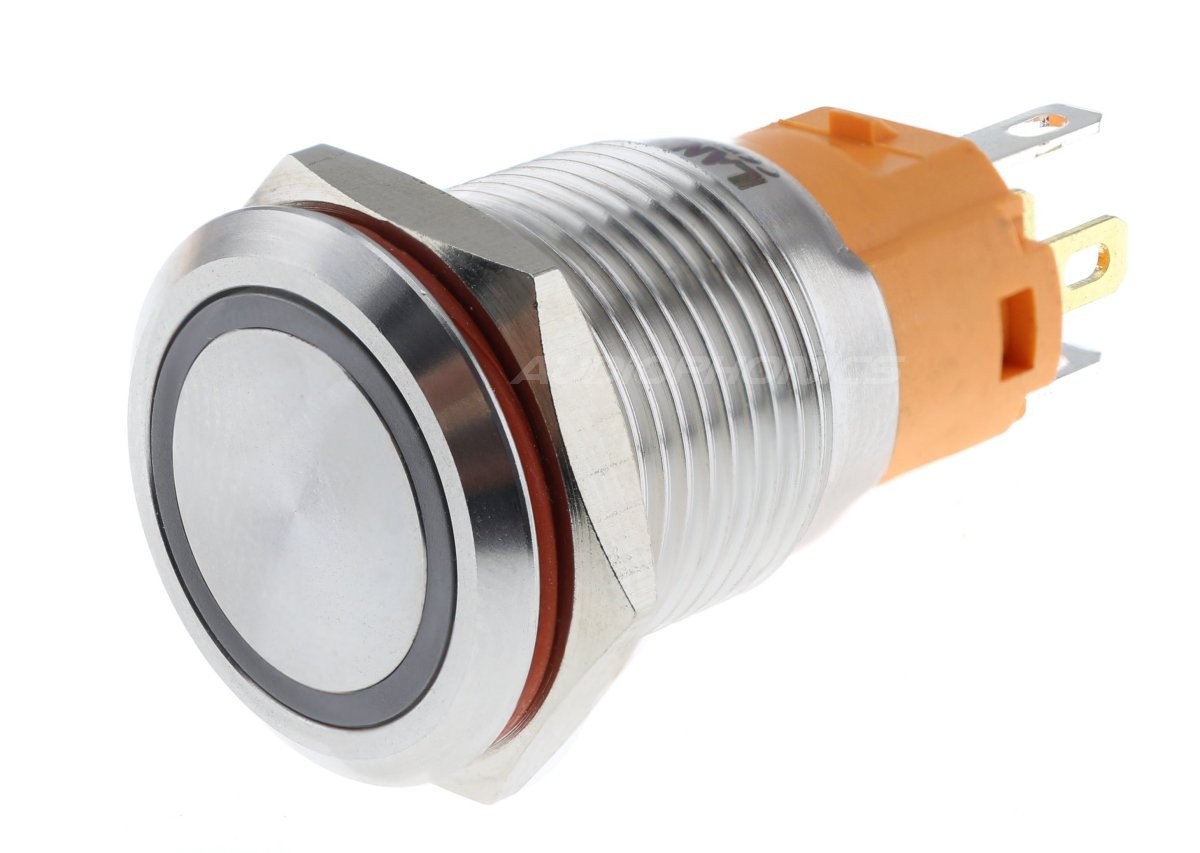

LB Aluminium Monostable switch with white light 250V Ø16mm Silver
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Push button with LED (white)
1 position NONC 250V 3A
NONC type push button with monochromatic light indicator. Operates with 1 position.
The connectors dedicated to the signal / power are gold plated and can withstand a voltage of 250V / 3A . Those dedicated to power / control the light indicator (LED) will in turn accept voltages between 9 and 24V.
A perfect piece for your projects, DIY assembly to repair / upgrade an existing device or build a control panel from scratch.
The housing and the surface of the button are chromed to protect the mechanism against the corosion, sudden changes in temperature and oxidation. The mechanical parts and have a longer life.
Compatible with 16mm quick connector
This button is compatible with quick connectors designed for 16 mm diameter button.
Please note that the quick connector is not provided with the button.
Dimensions
| Specifications | |
|---|---|
| Type of product | Push button 1 position NONC |
| Thread diamter | 16 mm |
| Max panel thickness | 11 mm |
| Overall Dimensions | 28 mm x ⌀22 mm |
| LED | White LED color Voltage up to 24V Consumption: <20mA. |

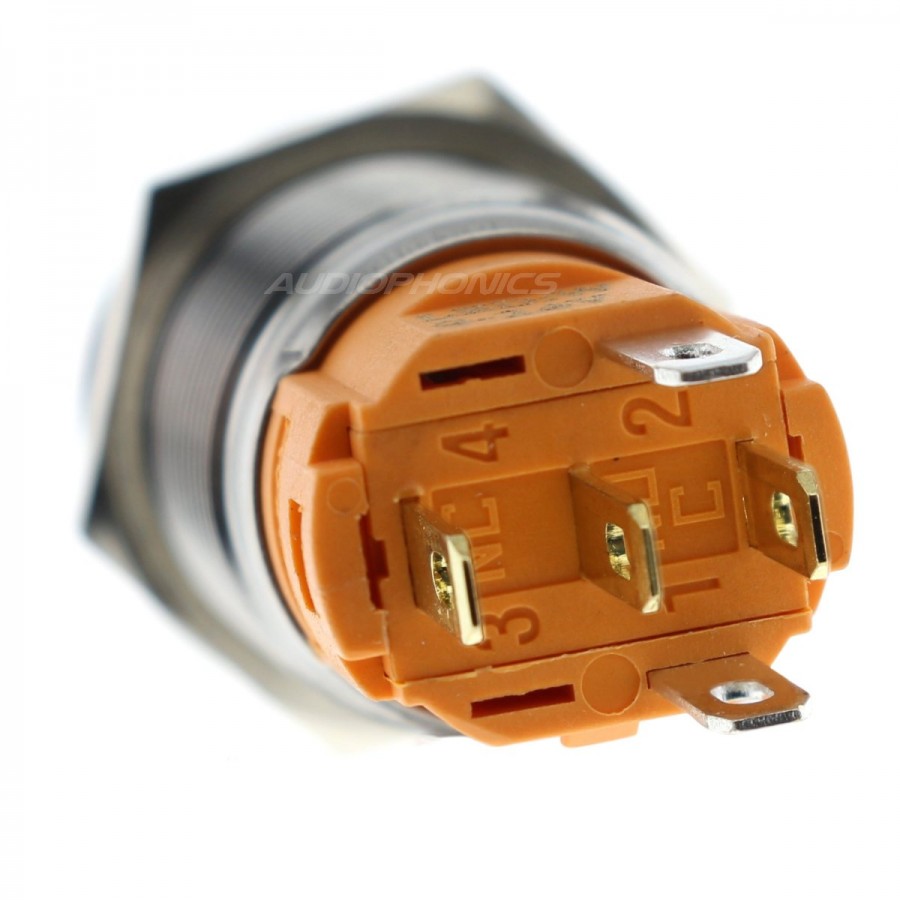

| Pins number | x5 |
| Voltage / Current | 250VAC 3A (resistive load) 0.5A (inductive load) |
| Mechanical resistance | > = 50000 cycles |
| LED lifespan | 40,000 hours |
| Operating temperature | -30 ° C, + 80 ° C |
| Button stroke length | Contact: 1.8mm Stop: 3.1 mm |
| Insulating | <1000mΩ |
| Dieletric strength | 1000VAC |
