2.9m long pre-cut cable
Refurbished product - Grade S
This product is sold in the form of 2.9m offcut pieces of cable.
UP-OCC Copper Speaker Cable 9AWG Ø23mm 2.9m
The Neotech NES-3002 joins the brand's wide range of high-end loudspeaker cables. Its unique design allows it to participate in a precise and rich sound reproduction over the entire bandwidth, notably thanks to a perfect insulation and conductors promoting an excellent conductivity.

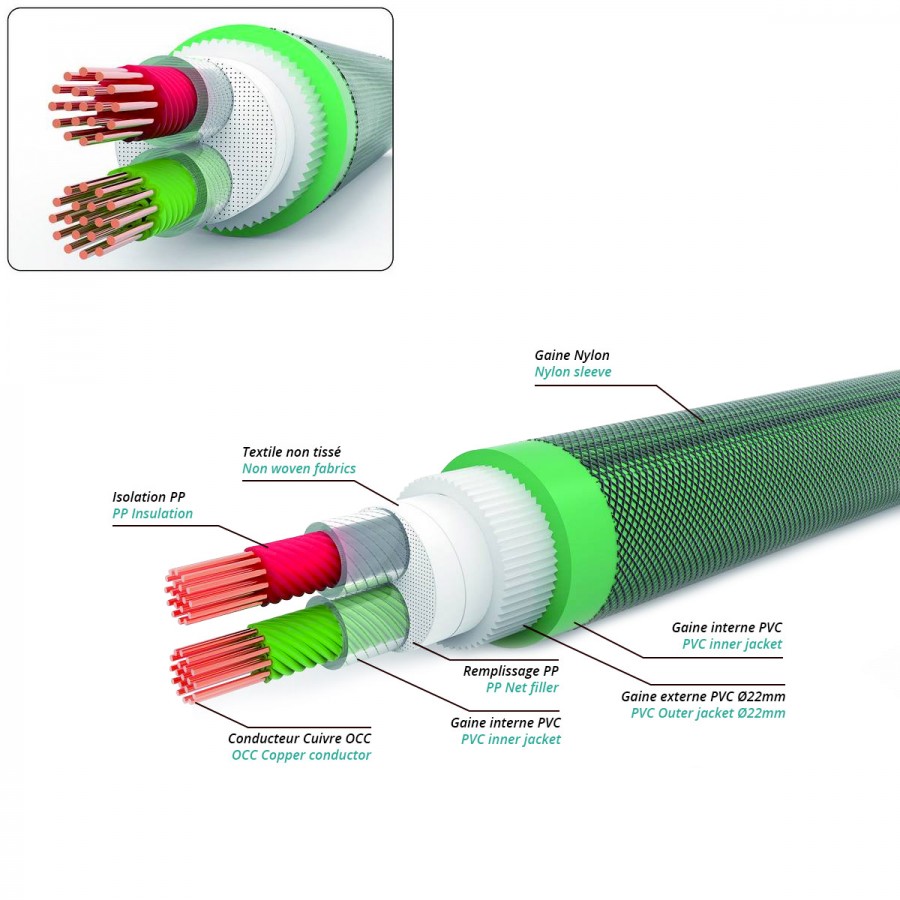

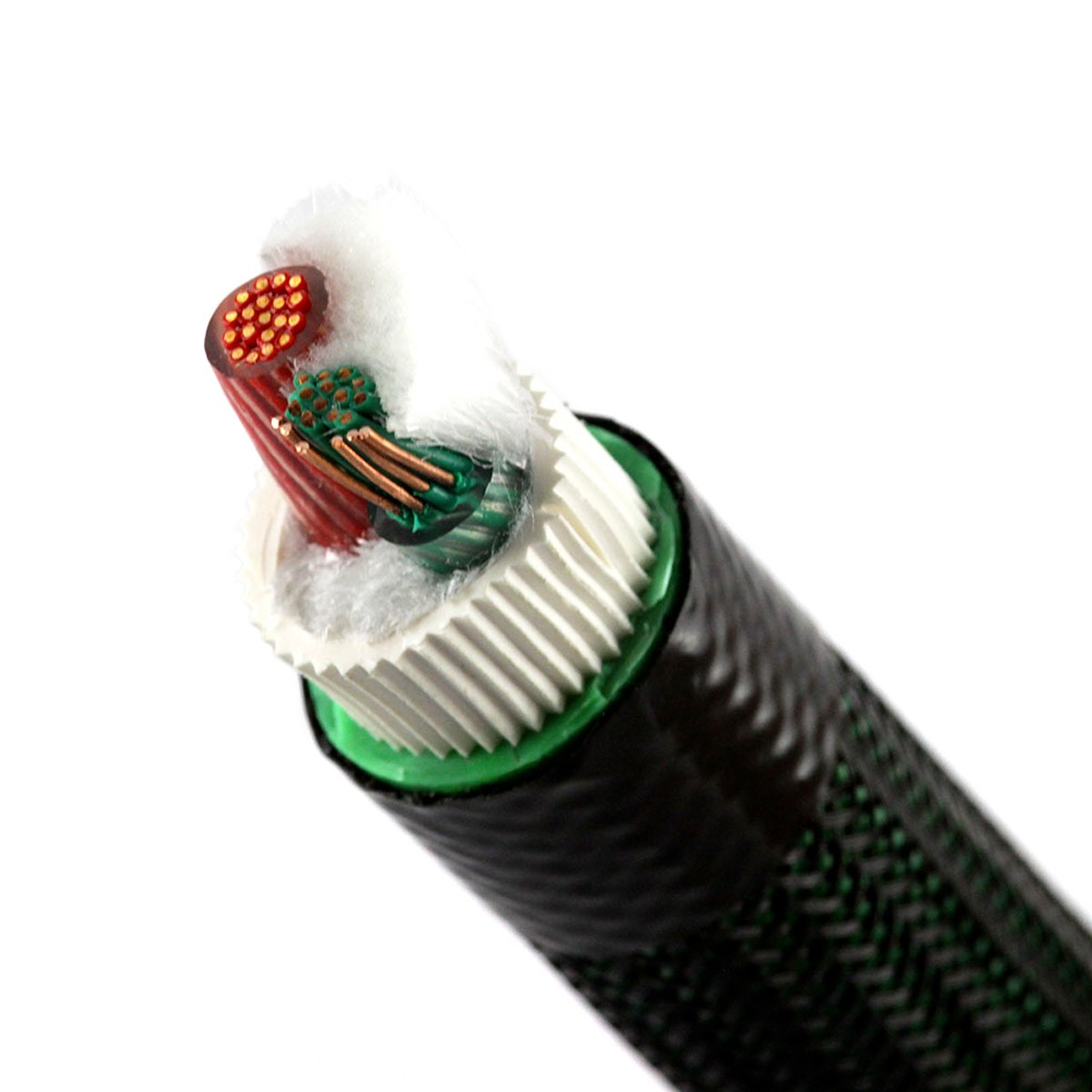

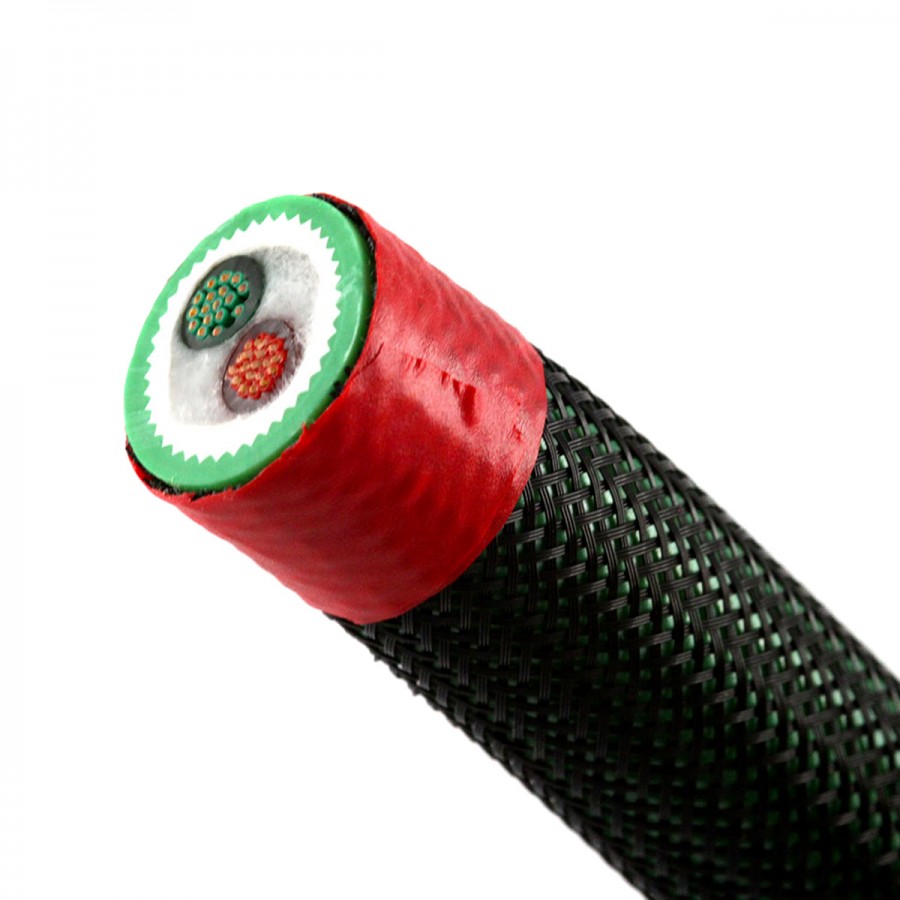

The cable has two conductors, each consisting of 19 independently insulated single crystal UP-OCC copper wires with a combined cross-section of 6.63mm² (9AWG) and a diameter of Ø2.9mm. Each conductor is insulated by a Polypropylene sheath and then by a PVC sheath. Both conductors are then surrounded by a filling composed of Polypropylene and non-woven textile. This is followed by two PVC sheaths. Finally, the cable is covered with a stretchable braided nylon sheath.
The conductors are made of monocrystalline UP-OCC Copper, specially developed by Professor Ohno. This ensures an extremely high purity of 99.99998%. It thus offers maximum signal conductivity for high-precision sound reproduction.
Specifications | |
---|---|
Product type | Speaker cable |
Number of conductors | 2 (19 single-crystalline UP-OCC copper strands insulated per conductor) |
Conductors material | UP-OCC Copper |
Conductors material | Ø2.9mm |
Total section | 9AWG (6.63mm²) |
External diameter | Ø23mm |
Internal sheath | PVC |
Conductors insulation | Polypropylene (PP) |
Filling | Polypropylene Non woven fabrics |
External sleeve | Braided Nylon |
Length | 2.9m |
Length (m) | 2.9 |
Number of conductors | 16 |
Insulation material | PTFE |
Section (mm²) | 6.63 |
Conductors material (Cable) | Copper |
Refurbished Grade | Grade S |
