[GRADE B] Crimping Pliers 0.25-35mm² with 8 Bits and Storage Bag

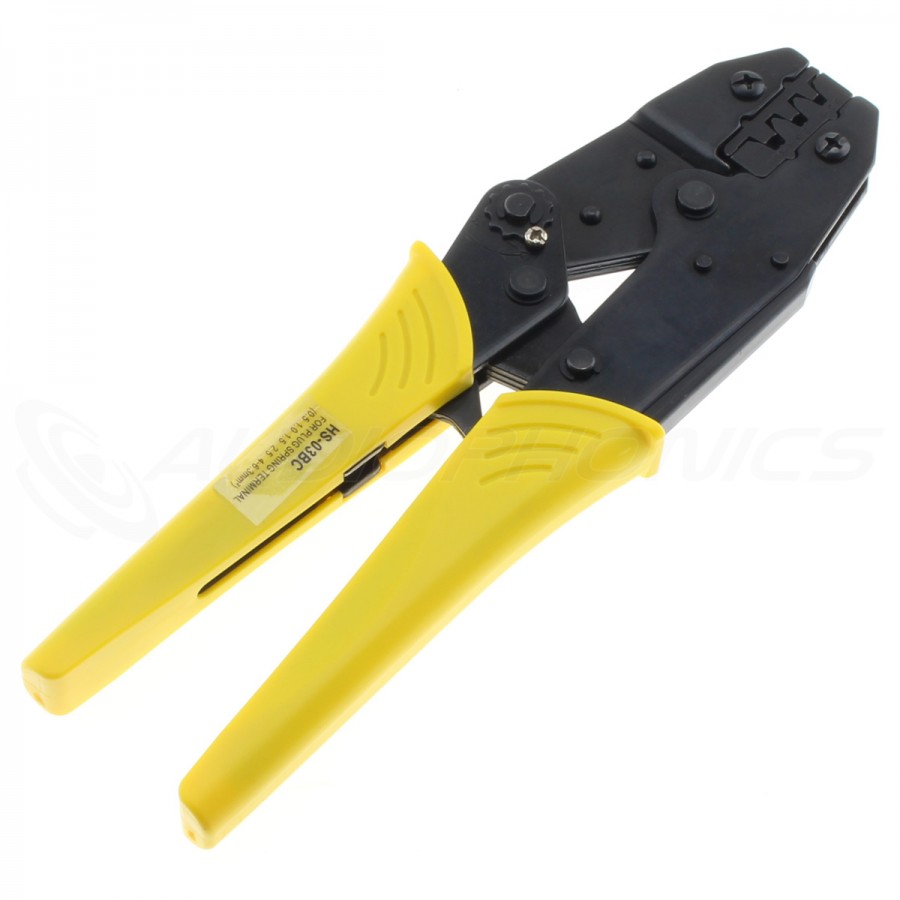

This crimping tool with ratchet will allow you to crimp your cable ends in a HiFi application for an optimal connection quality. The pliers use a ratchet system, which means that the pliers will only reopen when sufficient force is applied, to ensure an optimal crimp.
Viewed products
![[GRADE B] LHY AUDIO BATT-DC Regulated linear power supply on battery 12V 2A](https://www.audiophonics.fr/65212-thumb_default/lhy-audio-batt-dc-regulated-linear-power-supply-on-battery-12v-2a.jpg)
![[GRADE A] IFI AUDIO GND DEFENDER Main Power Supply Ground Loop Filter 90-240VAC](https://www.audiophonics.fr/65200-thumb_default/ifi-audio-gnd-defender-main-power-supply-ground-loop-filter-90-240vac.jpg)
![[GRADE B] TOPPING DX9 DAC AK4499EQ Headphone Amplifier NFCA Bluetooth 5.1 AptX LDAC 32bit 768kHz DSD512 Black](https://www.audiophonics.fr/65179-thumb_default/topping-dx9-dac-ak4499eq-headphone-amplifier-nfca-bluetooth-51-aptx-ldac-32bit-768khz-dsd512-black.jpg)
![[GRADE A] IKKO OBSIDIAN OH10 Hybrid In-Ear Monitor IEM Dynamic and Balanced Armature](https://www.audiophonics.fr/65190-thumb_default/ikko-obsidian-oh10-hybrid-in-ear-monitor-iem-dynamic-and-balanced-armature.jpg)
![[GRADE A] SHANLING Protective Cover Leatherette for Shanling H2 Marron](https://www.audiophonics.fr/65199-thumb_default/shanling-protective-cover-leatherette-for-shanling-h2-brown.jpg)
![[GRADE A] SHANLING H2 Portable DAC CS43198 Headphone Amplifier Bluetooth 5.0 XMOS 32bit 384kHz DSD256 Silver](https://www.audiophonics.fr/65194-thumb_default/shanling-h2-silver.jpg)
Refurbished product - Grade B
Screwdriver missing.
Pince à sertir
With 8 Bits and Storage Bag 0.25-35mm²
This crimping tool with ratchet will allow you to crimp your cable ends in a HiFi application for an optimal connection quality. The pliers use a ratchet system, which means that the pliers will only reopen when sufficient force is applied, to ensure an optimal crimp.

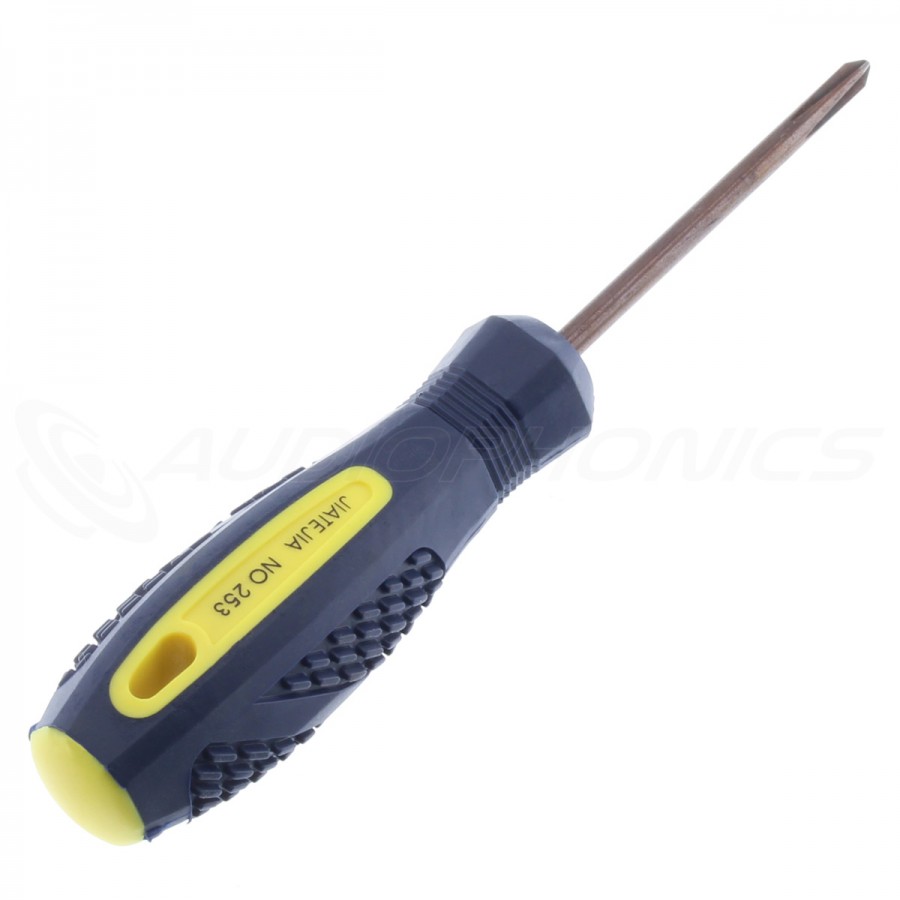

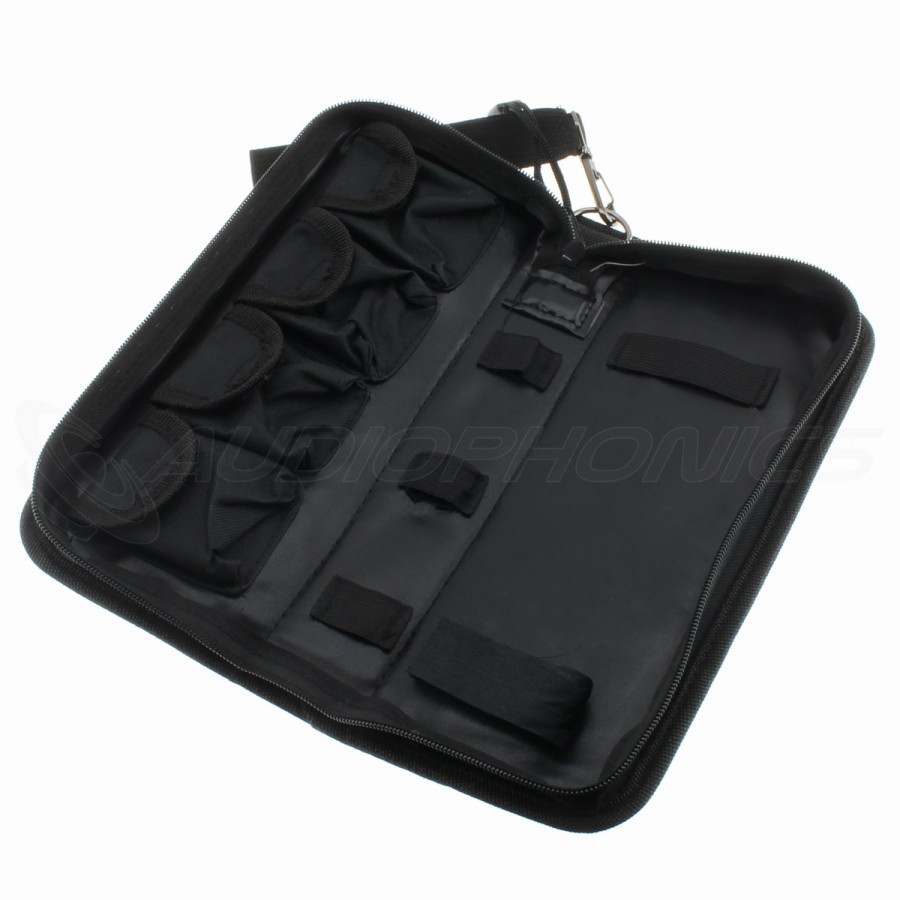

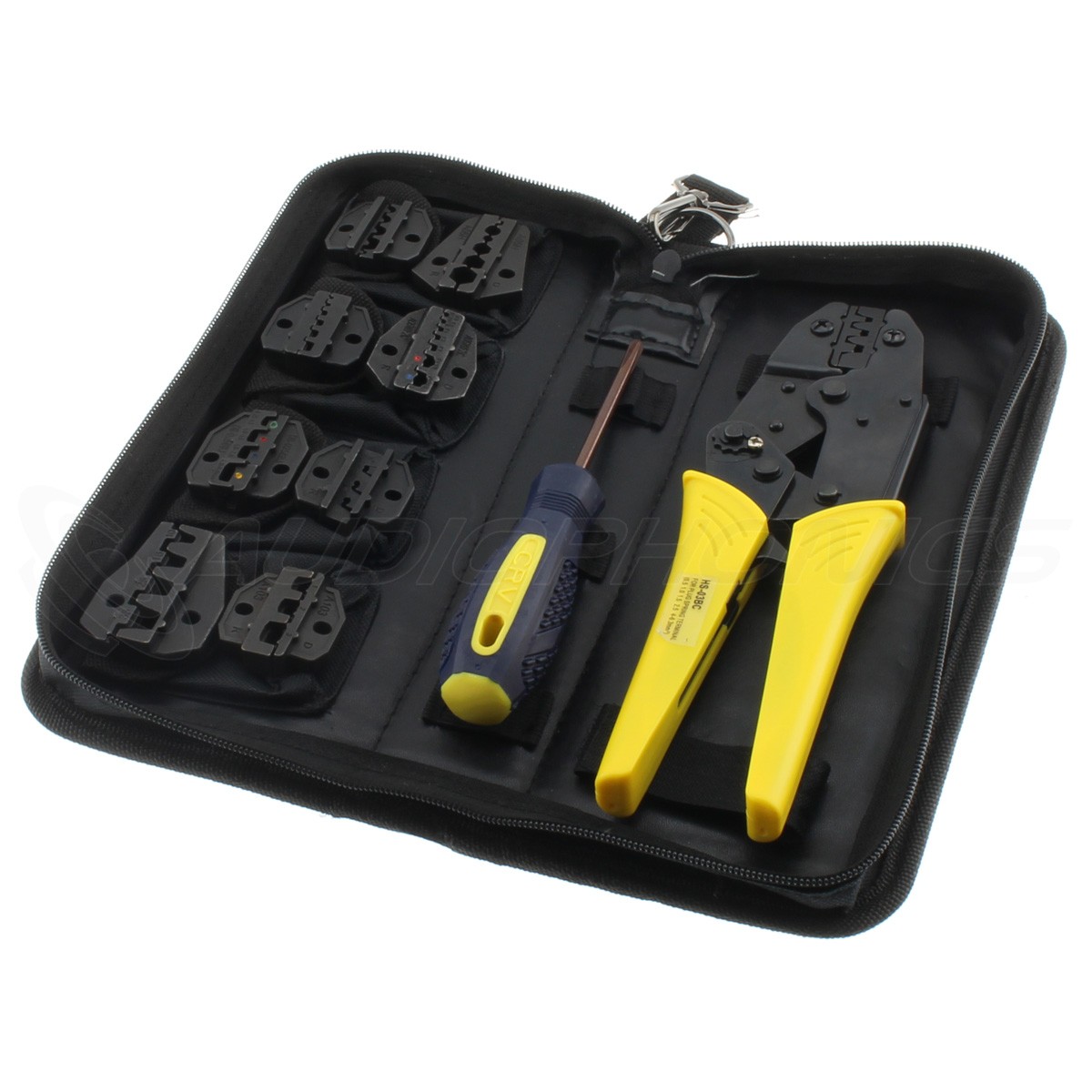

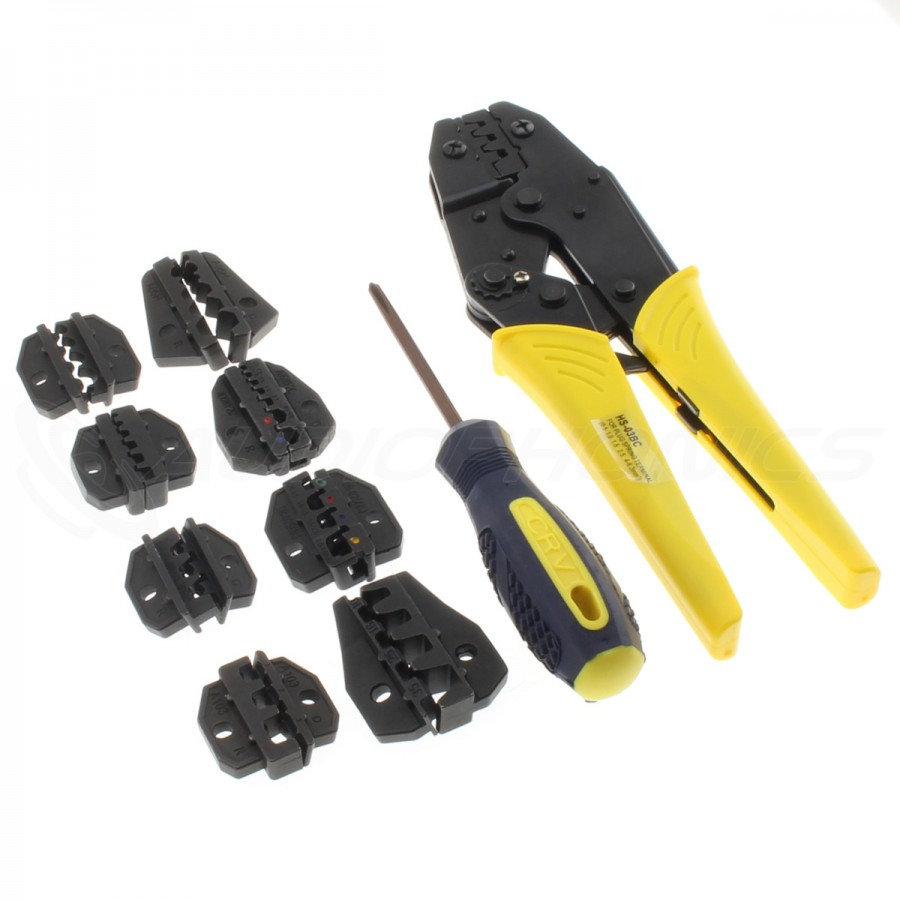

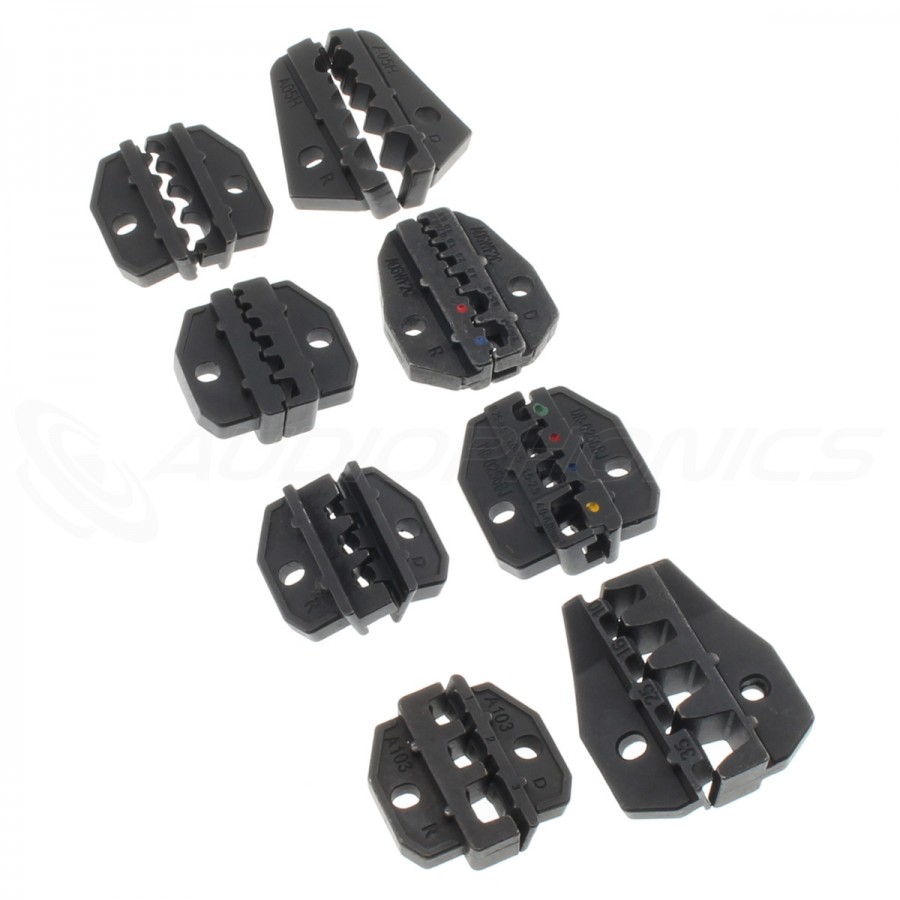

The pliers is delivered in its storage bag, with a set of 8 different jaws, allowing to make crimps from 0.25mm² to 35mm². A screwdriver is also provided to change the jaws.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Crimping pliers |
| Crimping capacity (according to the tip) | 0.25 - 35mm² |

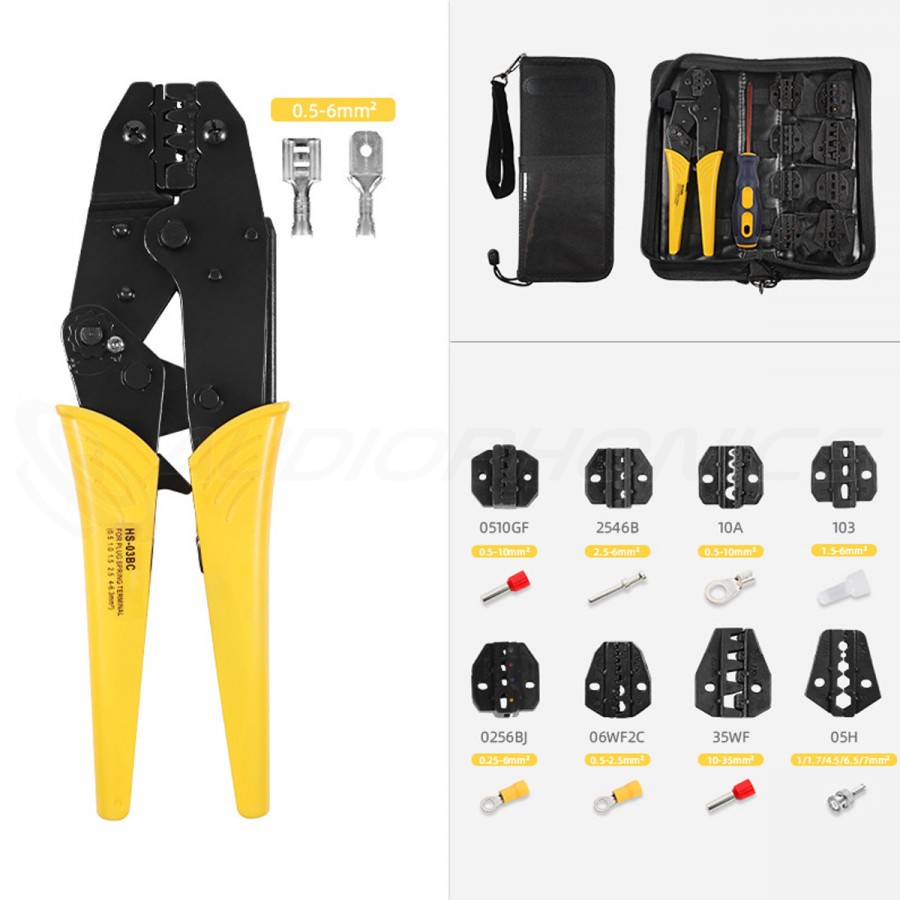

| Additional tips | 0510GF : 0.5-10mm² 2546B : 2.5-6mm² 10A : 0.5-10mm² 103 : 1.5-6mm² 0256BJ : 0.25-6mm² 06WF2C : 0.5-2.5mm² 35WF : 10-35mm² 05H : 1/1.7/4.5/6.5/7mm² |
| Sleeve | Plastic sheathing |
| Length of the clamp | 188mm |
| Weight of the clamp | 348g |
| General | |
|---|---|
| Package | 1x Crimping plier 8x Additional tips 1x Screwdriver 1x Storage bag |
