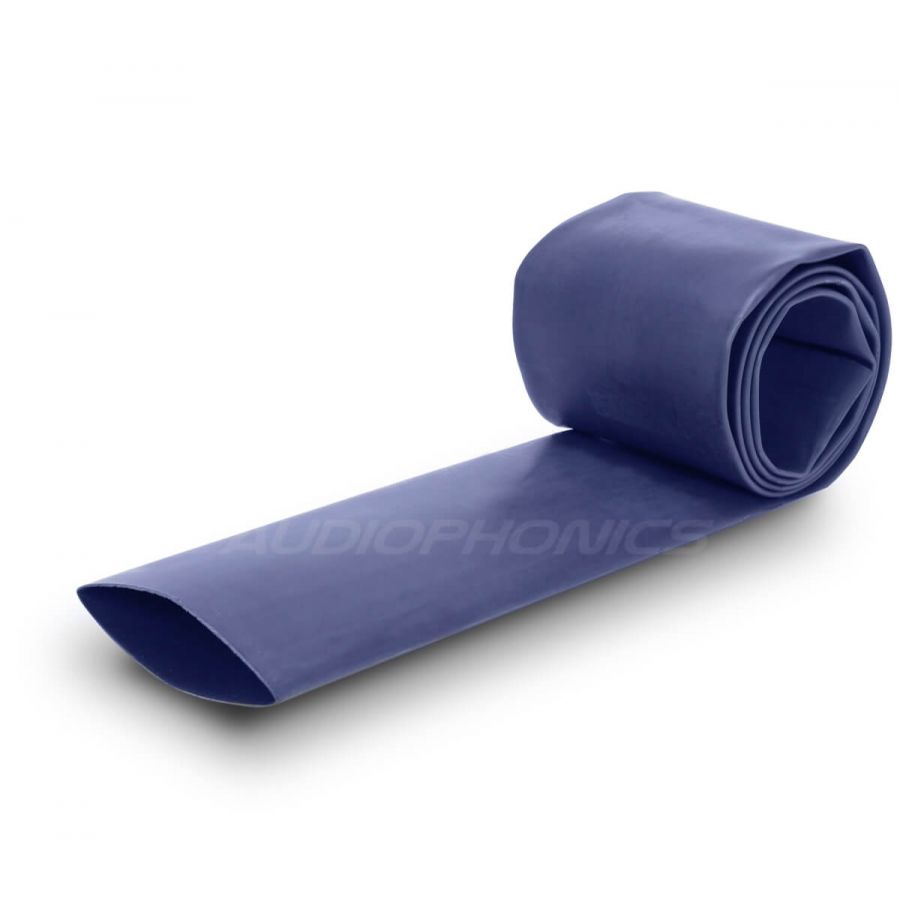

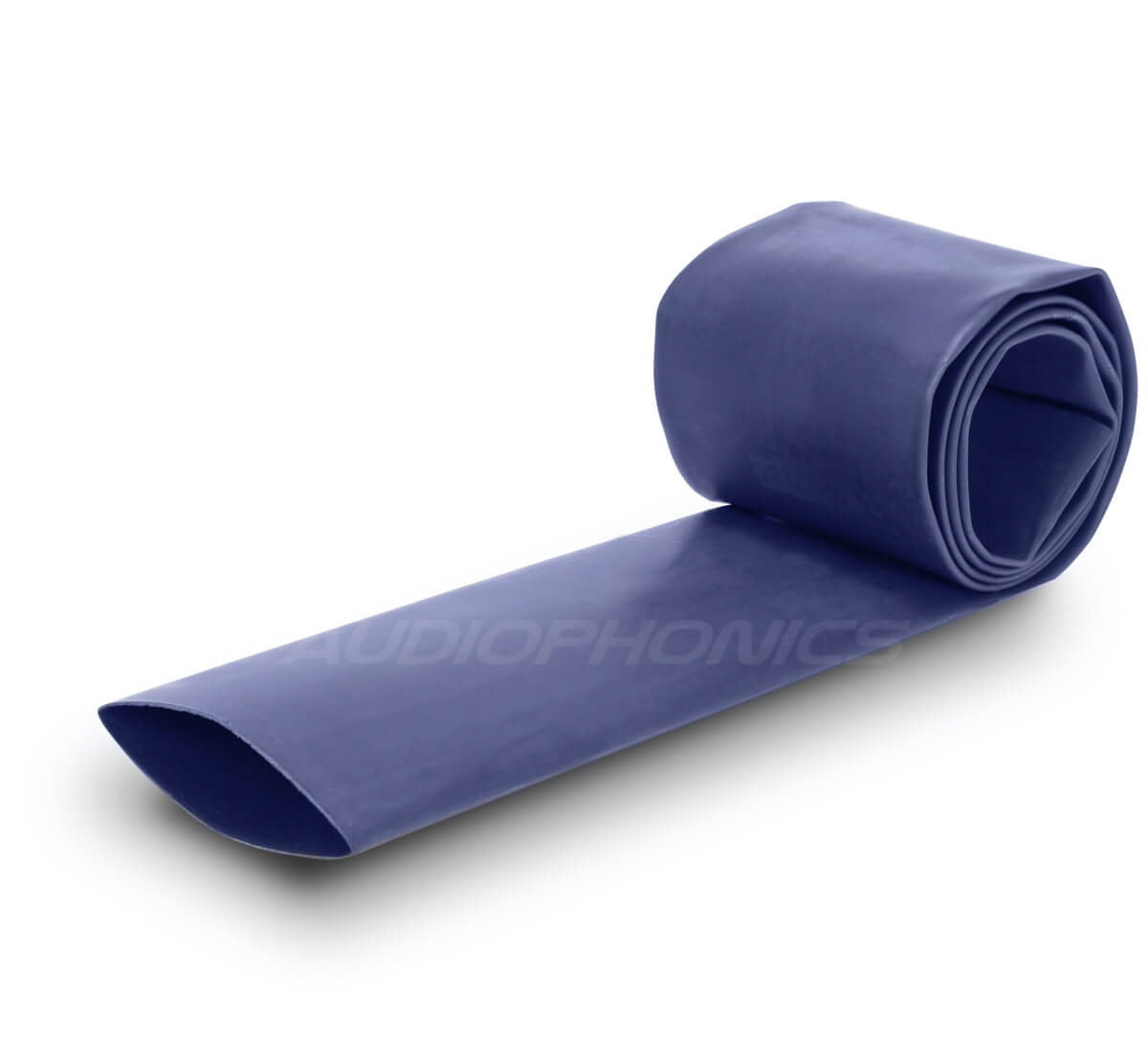

[GRADE S] Heat-shrink tubing 2:1 Ø05mm Blue 70cm

Refurbished product - Grade S

1m long pre-cut sheath

No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 18788
New product

0,63 €tax incl.

0,53 € tax excl.

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Refurbished product - Grade S

This product is sold in the form of 70cm offcut pieces of cable.

Thermo-retractable sheath with a ratio of 2: 1.

Thickness of intermediate size studied to provide excellent protection to mechanical strength, while maintaining a high degree of flexibility.

Adapts to irregular shapes and provides a high degree of insulation and waterproofing. Product is halogen-free, flame retardant, and RoHS certified.

A ratio of 2: 1 means that the diameter of the sheath once heated will be divided by 2: for example for a 12mm sheath, after being heated its diameter will be 6mm.

Diameter: 5mm => about 2.5mm after retraction

https://www.audiophonics.fr/images2/GAINES-THERMO_1.jpg

Specifications:

  • Retractable Ratio: 2: 1
  • Longitudinal Retracting Ratio: ± 8%
  • Shrink Temperature: 70 - 115 ° C
  • Sheath Thickness Retractable : +/- 0.15mm
  • Sheath Thickness After Shrinkage : +/- 0.22mm
  • Temperature Resistance: -45 to + 125 ° C
  • Rigidity Dielectric: ≥15 Kv / mm (IEC243)
  • Certifications: RoHS
  • Diameter: 5 mm
  • Length: 70cm
  • Colors Blue

Data sheet
ColorBlue
MaterialN/A
Length (m)0.7
Max cable diameter (mm)5.0
Refurbished GradeGrade S
