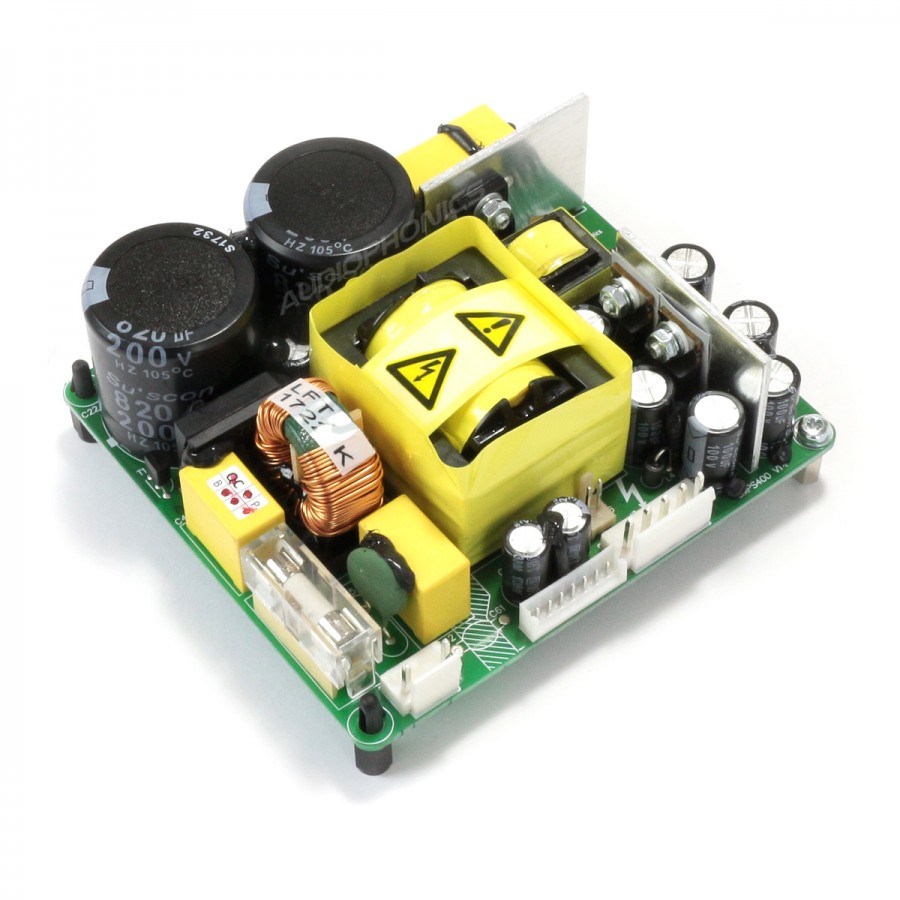

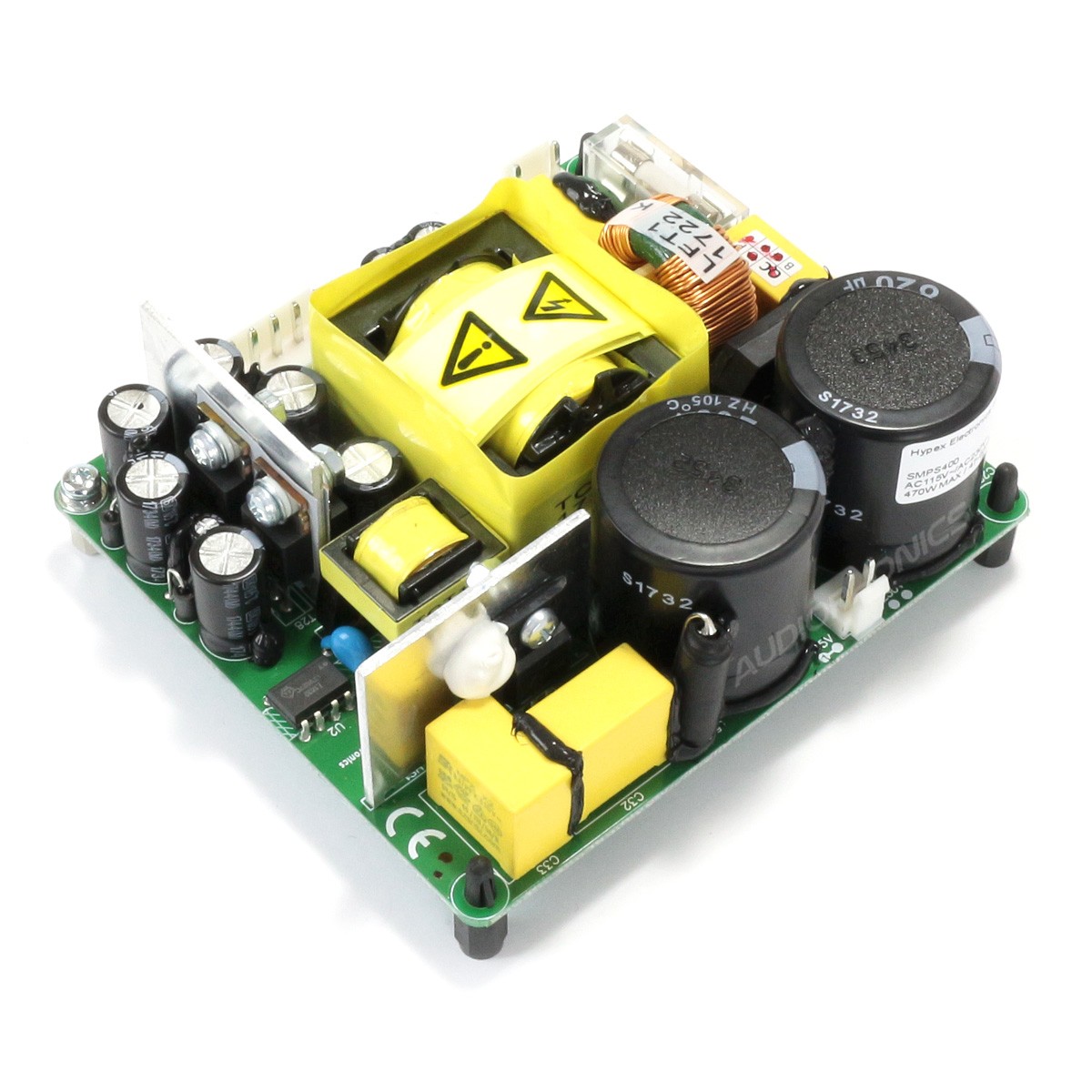

[GRADE A] HYPEX SMPS400A400 400W / 2x63V Switching Power Supply Module

The SMPS400 switching power supply is a very high efficiency model capable of developing a nominal power of 400 Watts in an extremely small footprint.

It was specifically designed and developed by HYPEX to provide the 2 x 63V voltage required for the operation of the brand's UcD400 ™ amplifier modules.

Existe also in 46V version to the modules of the UcD180 series.

You can download the Technical Brochure of HYPEX SMPS400 in attachment below.

Features:/ Strong>

• Food at very high efficiency
• Choice of input voltage
• Amazing Compactness (105x100x42mm), low weight
• Low electromagnetic radiation EMI
• Advanced Protection against surges
• Fixed Output Voltage(2 x 63V)

Specifications:

• Input Voltage Ranges: 190-250V (On Sector 220V)
  95-130V (On Sector 110V)
• Voltages of Output:2 x 63V
• Maximum power :600 Watts
• Nominal power :400 Watts
• Switching Frequency: 100Khz
• Dimensions:105 x 100 x 42 mm
• VH connectors
• Weight: 300g
