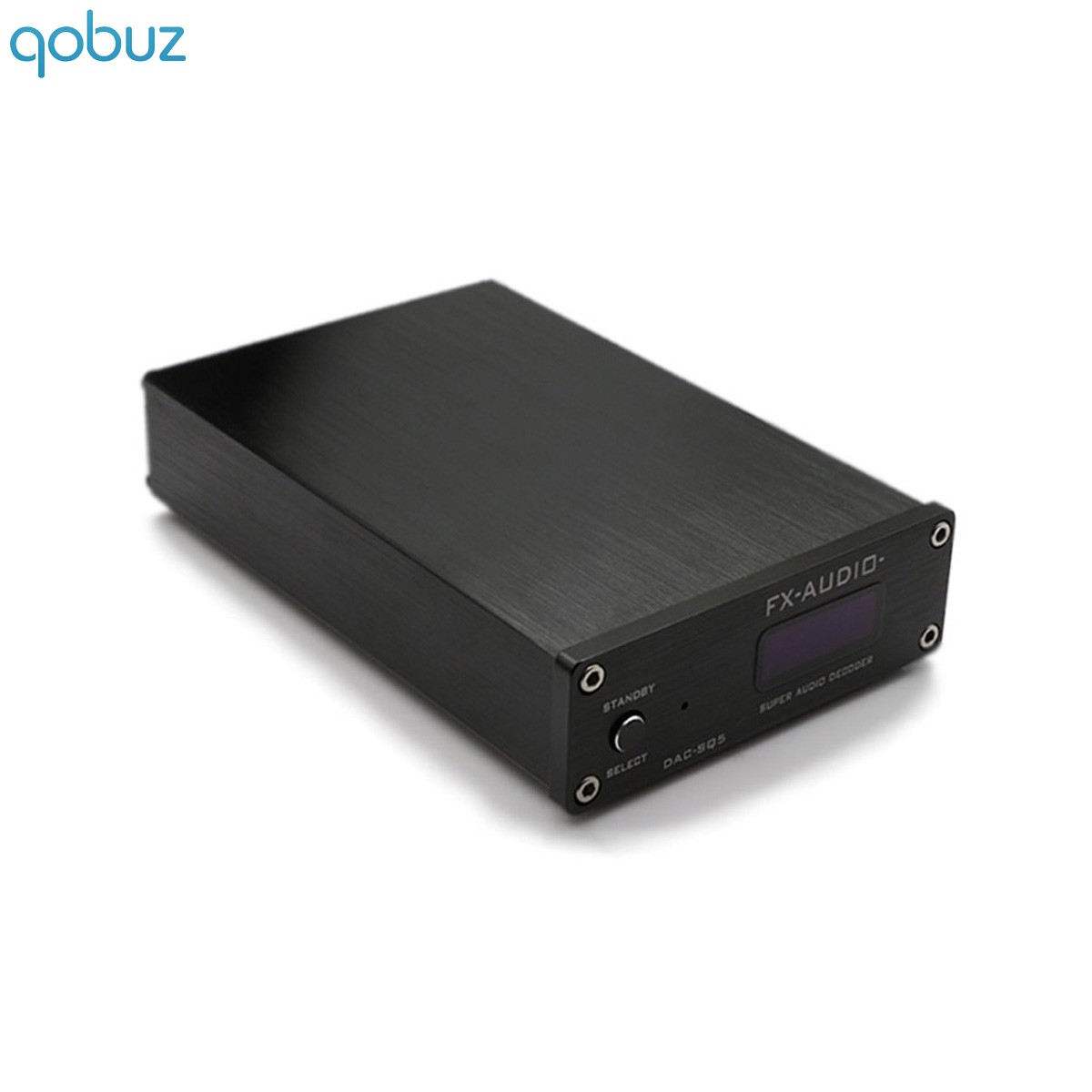

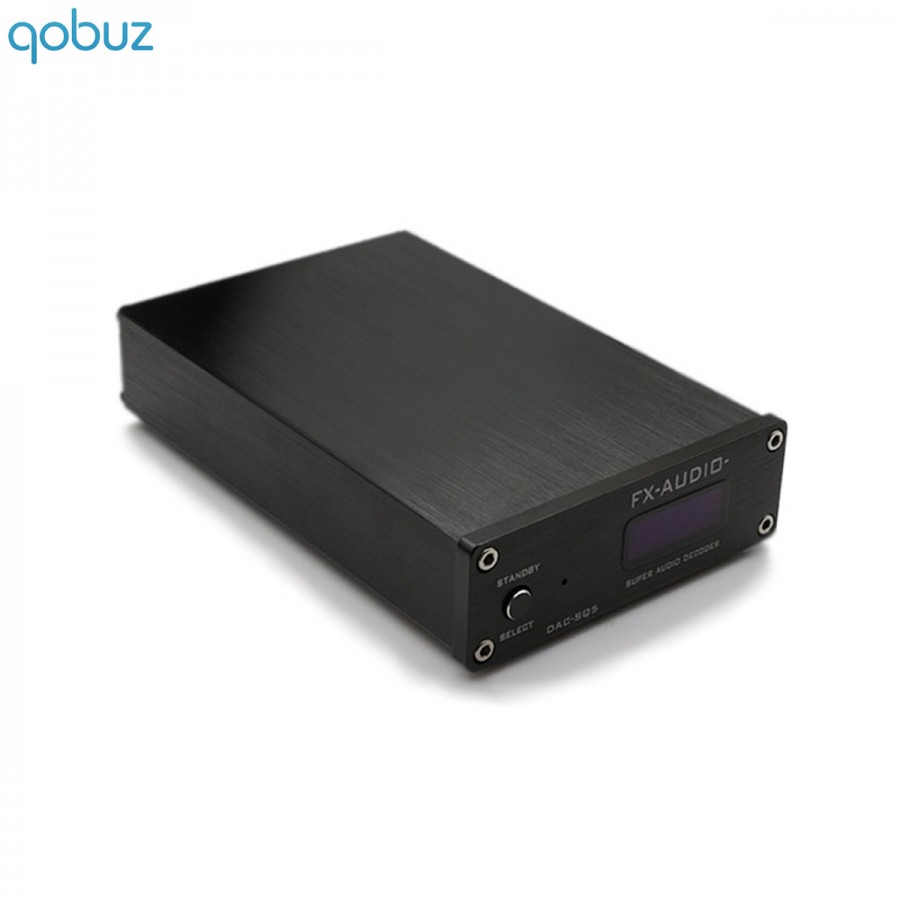

[GRADE B] FX-AUDIO DAC-SQ5 DAC PCM1794 + SA9027 24bit 192kHz Black

Refurbished product - Grade B

The DAC FX AUDIO SQ5 offers 3 digital inputs including a USB, a PCM1794 DAC and a quality analog output on an AOP OPA2604 and 2 LME 49720. This DAC for an accessible budget will greatly improve any old High Fidelity channel.

Strengths:

  •  High quality passive components
  •  DAC PCM1794
  •  PCM AK4113 Digital Receiver
  •  X1 OPA 2604 and X2 LME49720 on DIP 8 support

No customer reviews yet, login to write a review.

By buying this product you get 9 loyalty points


Reference : 16216
Refurbished

99,00 €tax incl.

82,50 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Refurbished product - Grade B

Two small snags on the edges of the case.

FX-Audio DAC-SQ5

DAC PCM1794 + SA9027 24bit 192kHz Black

FX-Audio DAC-SQ5 DAC PCM1794 + SA9027 24bit 192kHz Noir

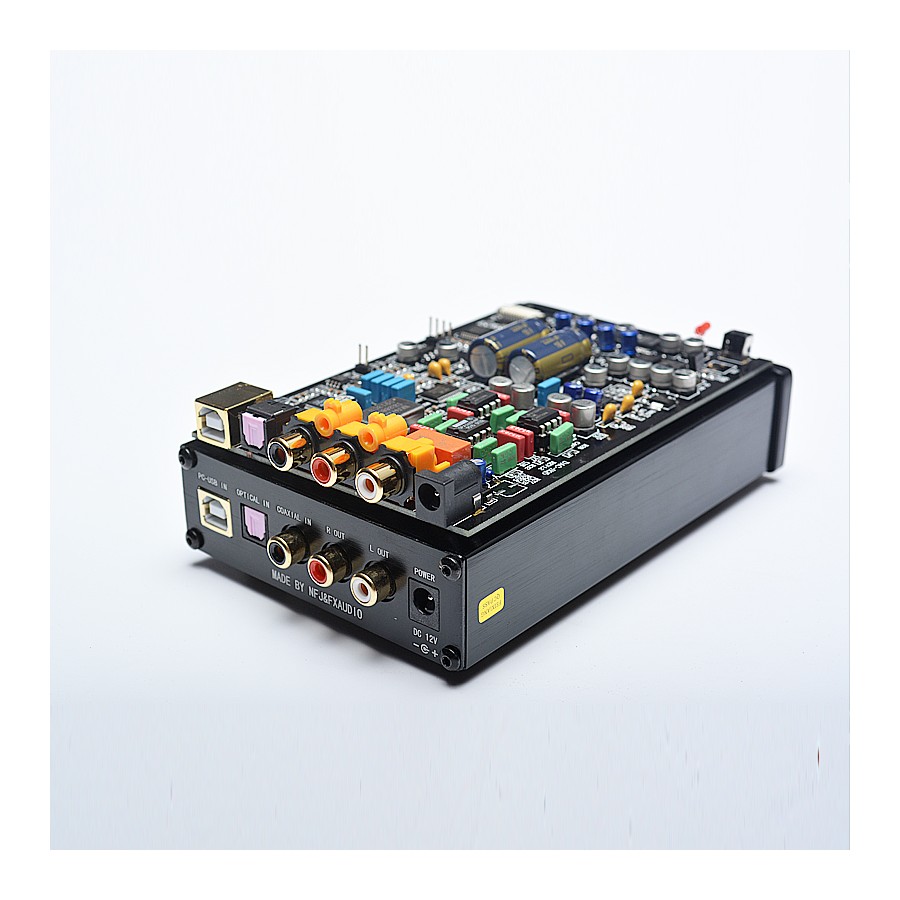

The FX-Audio DAC-SQ5 features quality components in a compact package. Offering an electronic quality rarely encountered in this range, the SQ5 provides a warm and dynamic sound, typical of PCM1794 DAC chips. Thanks to its USB SA9027 input it can decode any high definition format coming from a Windows, Linux or Mac OS PC. Its coaxial and optical digital sockets are ideal for connecting a CD player with digital outputs or a TV with a Toslink optical output. It is also possible to change the 3 AOP on DIP8 support to adapt the sound reproduction of the device. The SQ5 is equipped with an OPA2604 and two LME49720.

FX-Audio DAC-SQ5 review by Qobuz

" This DAC-SQ5 FX-Audio is a device to be recommended to all those who do not want to complicate their life to start listening to dematerialized music from a computer, and who moreover wish that this one is particularly pleasant to their ears, knowing that they will also be able to use this DAC with their old CD player. "
Test du FX-Audio DAC-SQ5 par Qobuz

Technical characteristics

Specifications
Product typeDAC
DAC ChipPCM1794

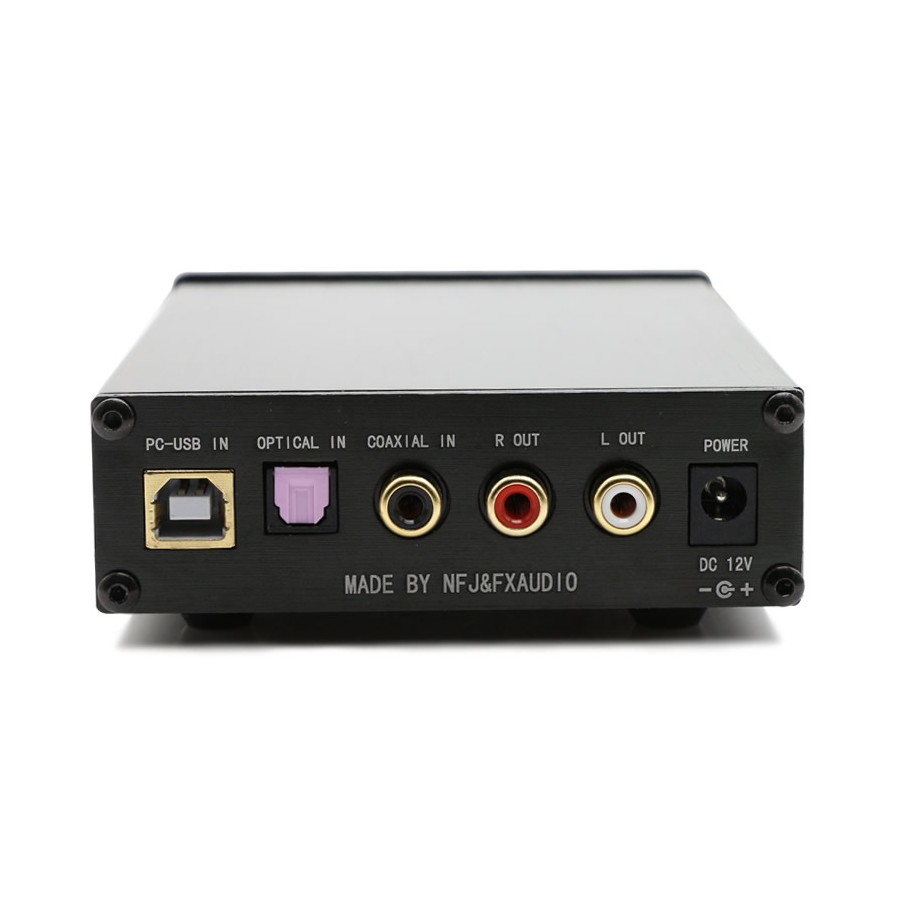

Inputs1x USB-B
1x Coaxial
1x Optical Toslink
Outputs1x Stereo RCA
Supported sampling ratesUSB : PCM up to 24bit 192kHz
Optical / Coaxial : PCM up to 24bit 96kHz
USB InterfaceSA9027
THD0.05%
SNR92dB
Frequency response20Hz - 20kHz
General
Supply voltage12V 1A
Dimensions105 x 95 x 32mm
Weight700g
ColorBlack

Data sheet
InputSPDIF
InputOptical
OutputRCA
DAC / ADC ChipPCM1794
Max sampling rate192kHz
ColorBlack
MaterialMetal
Channel2 (Stereo)
NetworkingNo
Remote ControlNo
Refurbished GradeGrade B
