Refurbished product - Grade S
Brand new product.
PC Sound Card PCIe Dolby Digital Plus DTS THX 7.1

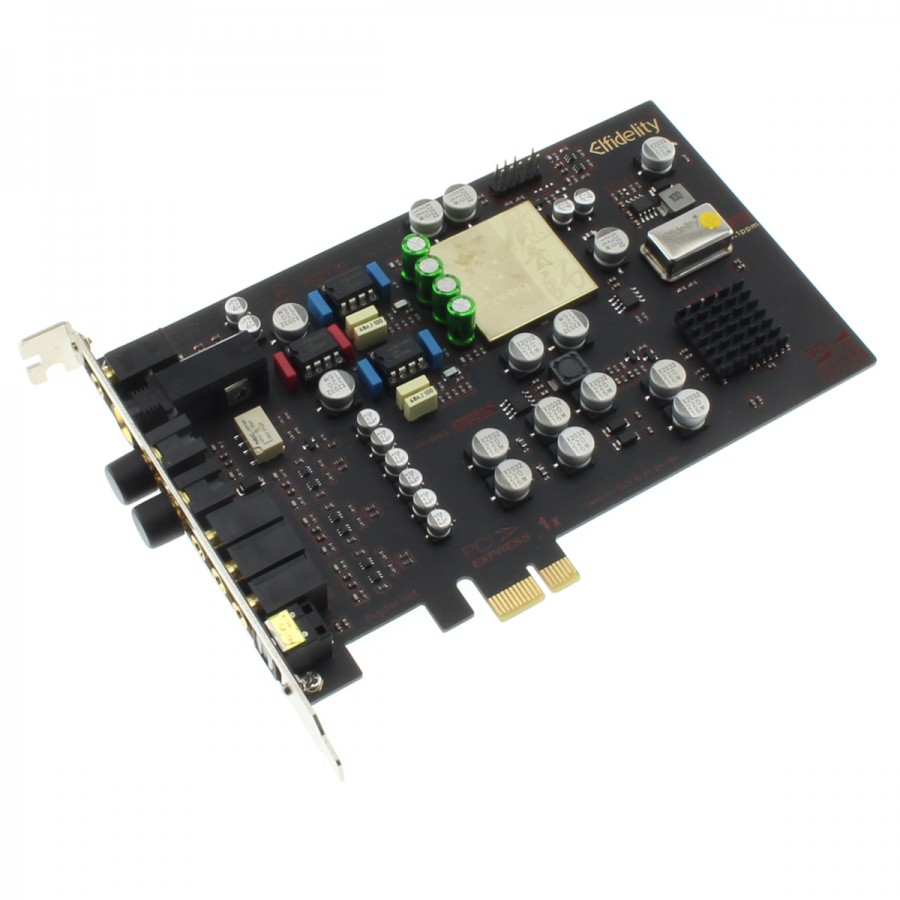

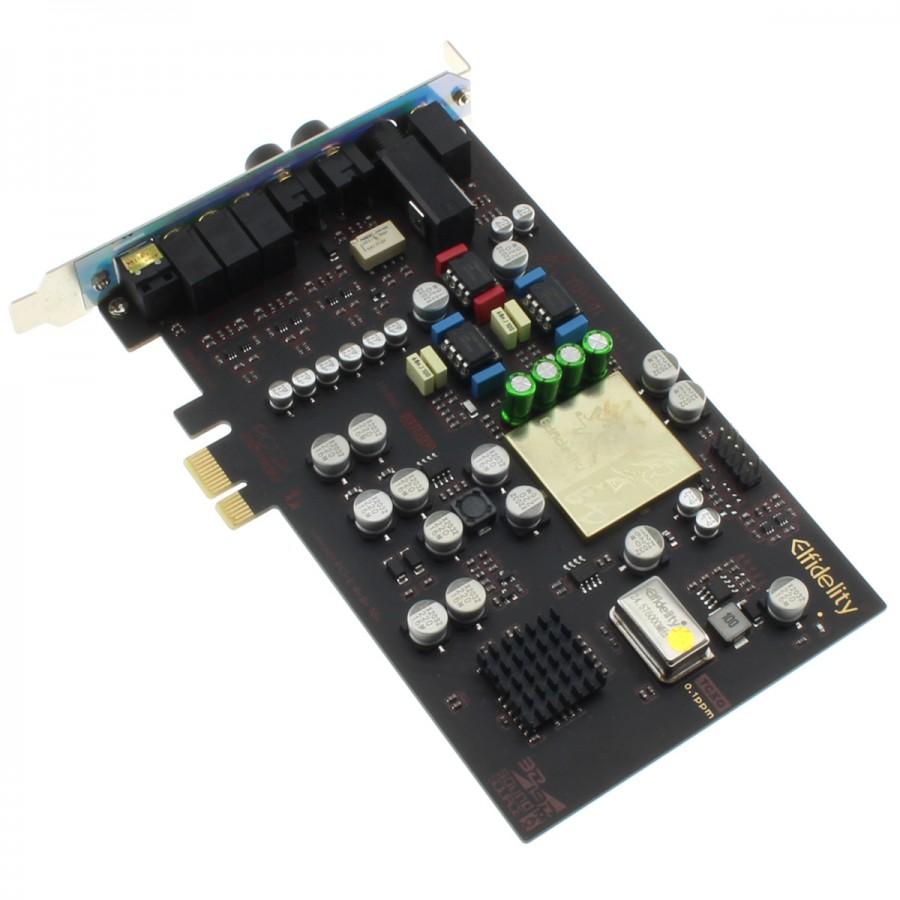

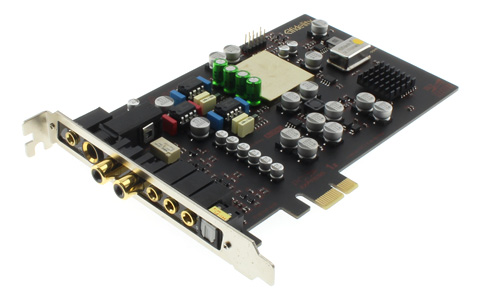

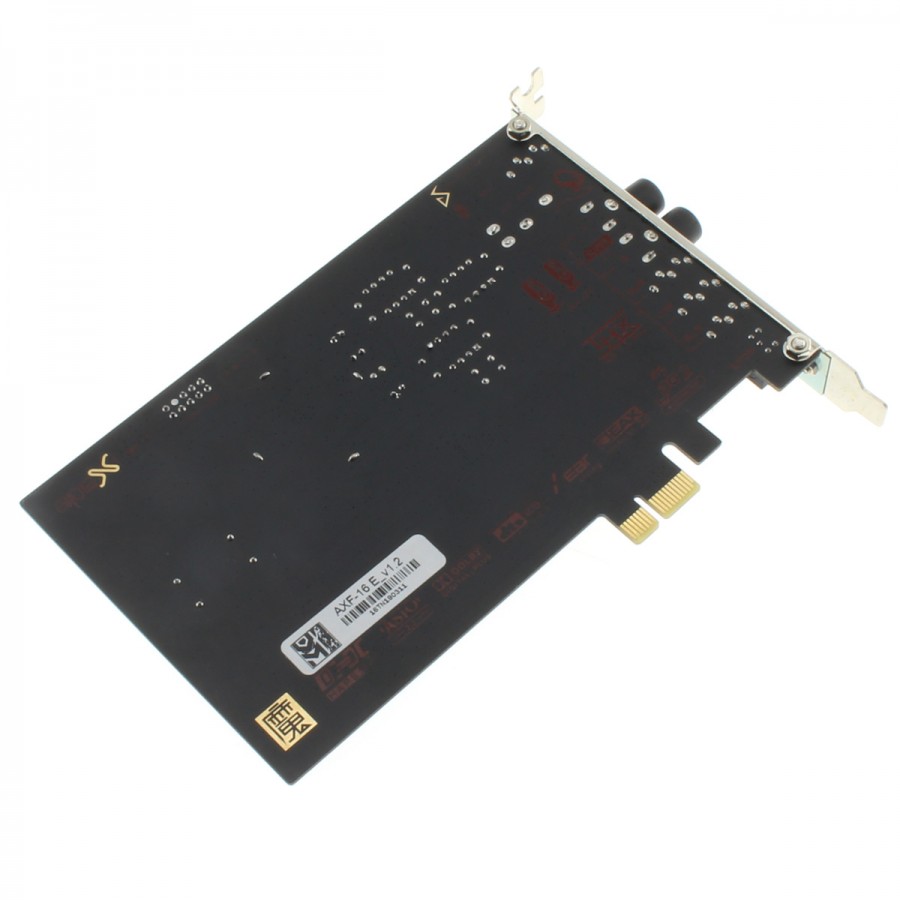

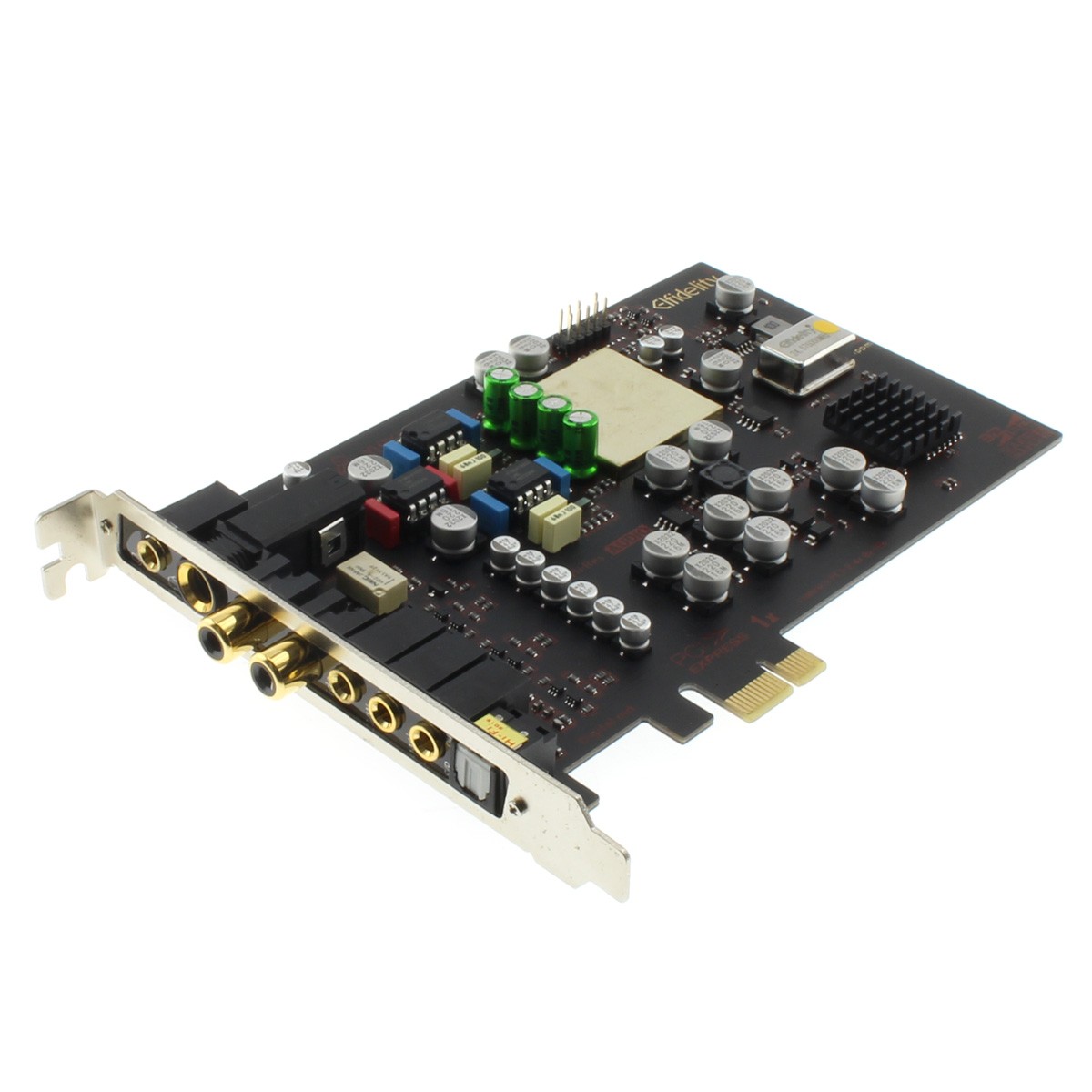

The Elfidelity AXF-16 Extreme V1.2 is a computer sound card with PCIe interface. A particularly versatile interface that can be used for HiFi 2.0 listening as well as for enjoying your movies and video games in 7.1. It supports a wide range of audio technologies such as ASIO 2.2, Dolby Digital Plus, DTS ES, xEar Living (Cmedia), EAX Advanced 2.0, 3D Surround and THX HD 7.1 Pro for maximum compatibility. The card integrates high-end components to promote precise and rich sound reproduction. It includes three LME49720 AOPs mounted on DIP8, an ADI1989B DAC/ADC, a clock to drastically limit jitter and capacitors specifically designed for audio use. The AXF-16 has a 3.5mm microphone input, a 6.35mm headphone output, a stereo RCA output, 3.5mm jacks for 7.1 connection and a Toslink optical output.
Specifications | |
---|---|
Product type | PCIe Sound card |
Inputs | 1x PCIe 1x Jack 3.5mm (microphone) |
Outputs | 1x Jack 6.35mm headphone output 1x Stereo RCA 7.1 output 1x Optical Toslink |
Compatibility | HD Audio AC97 ASIO 2.2 Dolby Digital Plus DTS ES Xear Living EAX Advanced 2.0 3D Surround THX HD 7.1 Pro |
OPA | 3x LME49720 |
DAC / ADC | ADI1989B |
Supported samplng rates | PCM up to 32bit 192kHz |
SNR | 122dB |
THD | 0.0003% |
Package | 1x Elfidelity AXF-16 Extreme V1.2 1x Male stereo RCA to female Jack 3.5mm cable 1x Male Jack 6.35mm to female Jack 3.5mm adapter |
Input | PCI Express |
Input | Jack DC 3.4/1.4mm |
Output | NC |
Color | Black |
Output voltage (V) | 5.0 |
Output current (A) | 5.0 |
Input voltage (V) | N/A |
Power Supply | Power supply filter |
Refurbished Grade | Grade S |
