[GRADE S] TOPPING PA3 TDA7498E Class D Amplifier 2x100W 4 Ohm Silver
The Topping PA3 2x100W (@ 32V / 4Ohm) is the ideal integrated amplifier for a desktop sound amplifier system. It offers great musicality and has a lot of power reserve thanks to a Texas TDA7498E chip. It is a simple and elegant solution with two stereo input and a volume knob on its front plate.
By buying this product you get 11 loyalty points
![[GRADE S] FURUTECH DAS-4.1 Balanced Interconnect Cable OCC DUCC Copper Ø10mm 1.3m](https://www.audiophonics.fr/64493-thumb_default/furutech-das-41-balanced-interconnect-cable-occ-ducc-copper-o10mm.jpg)
![[GRADE A] AUNE S9C PRO DAC 2x ES9068AS Discreet Headphone Amplifier 5W Bluetooth 32bit 768kHz DSD512 MQA Back](https://www.audiophonics.fr/64487-thumb_default/aune-s9c-pro-dac-2x-es9068as-discreet-headphone-amplifier-5w-bluetooth-32bit-768khz-dsd512-mqa-back.jpg)
![[GRADE A] Mono Power Amplifier Modules LM3886 with Heatsinks 2x120W / 8 Ohm (Pair)](https://www.audiophonics.fr/64212-thumb_default/mono-power-amplifier-modules-lm3886-2x120w-8-ohm-pair.jpg)
![[GRADE S] IAN CANADA STATIONPI SMT Raspberry Pi and HAT Boards Adapter Station](https://www.audiophonics.fr/64200-thumb_default/ian-canada-stationpi-smt-raspberry-pi-adapter.jpg)
Refurbished product - Grade S
Product reconditioned by the manufacturer, in perfect condition.

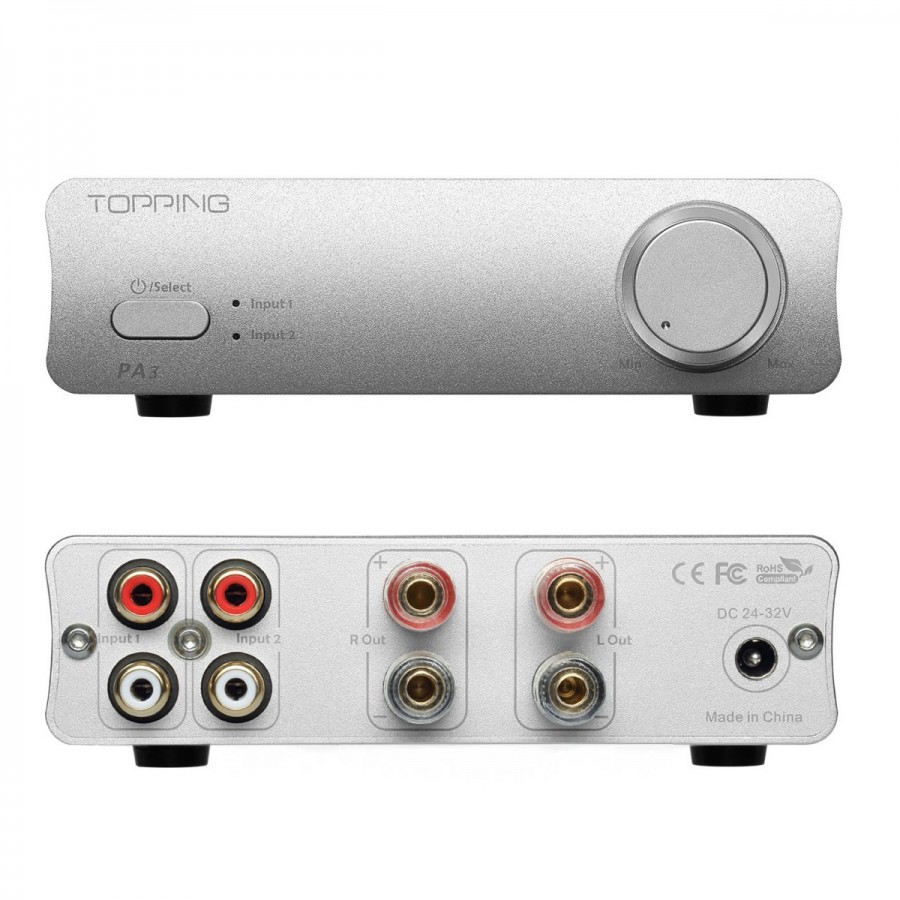

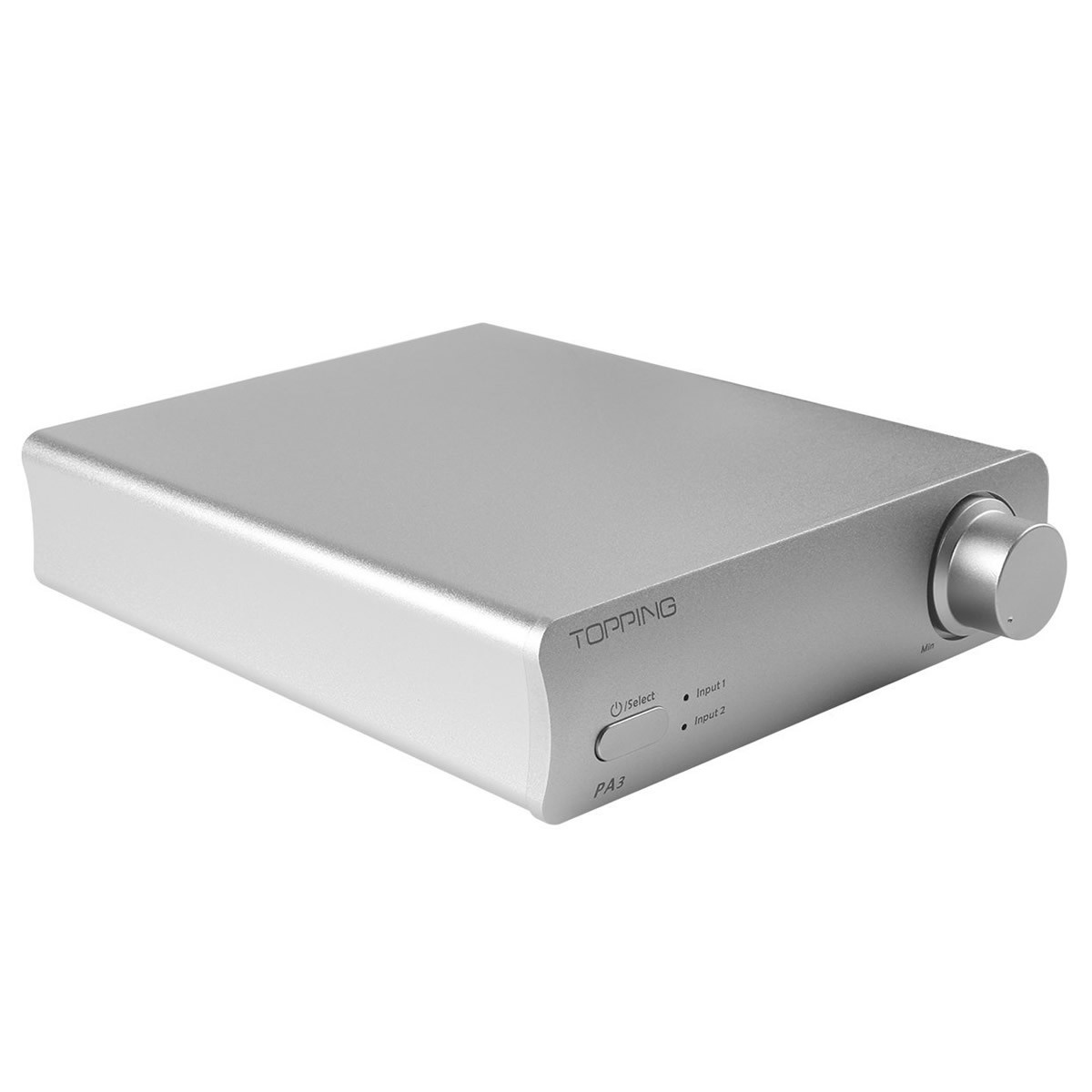

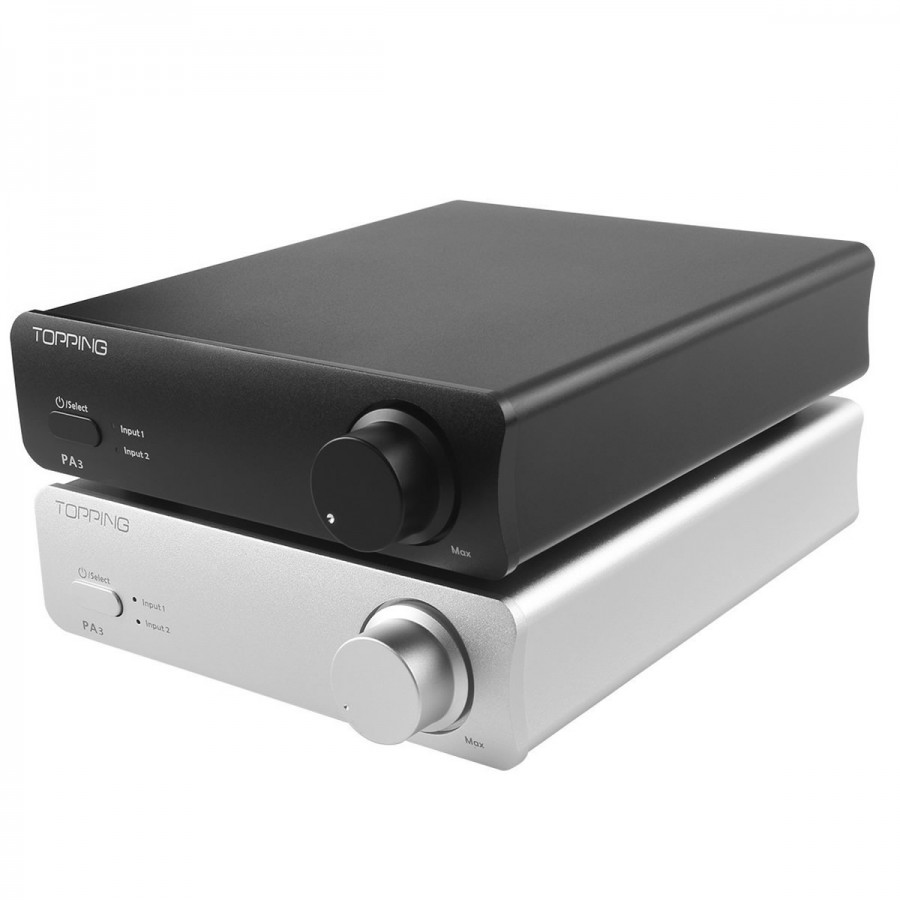

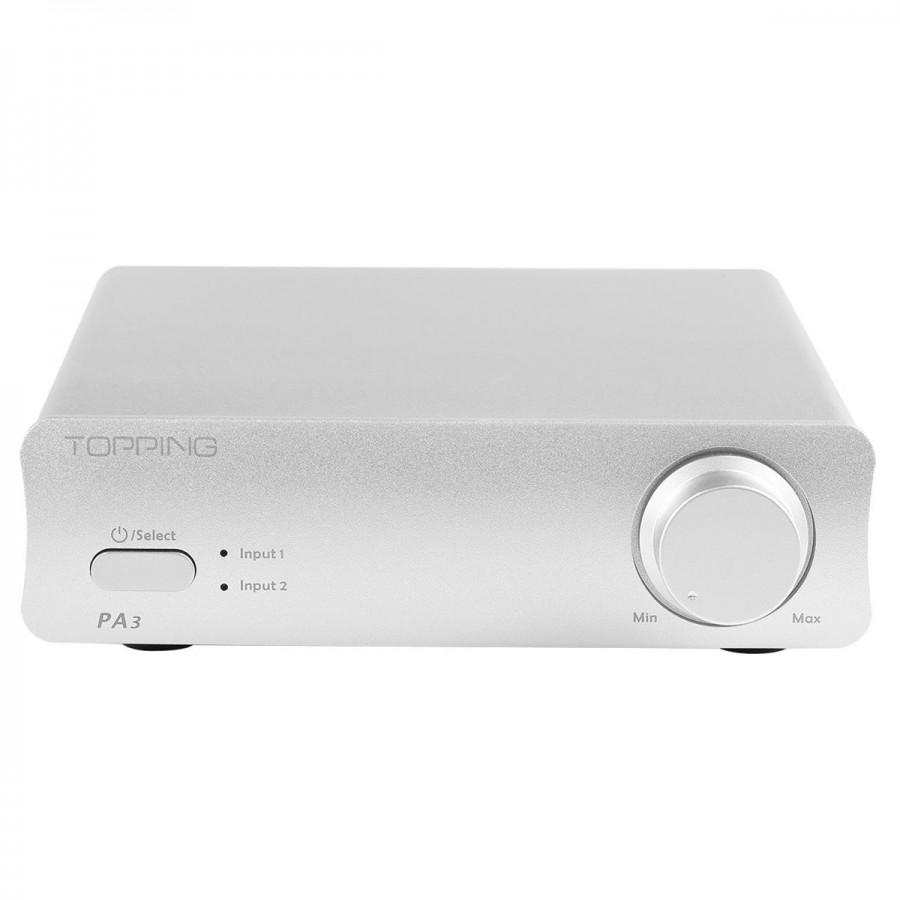

TOPPING PA3 class D 2x100W Silver
High Fidelity desktop amplifer
Compact and powerful
The Topping PA3 2x100W (@ 32V / 4Ohm) is the ideal integrated amplifier for a desktop sound amplifier system. It offers great musicality and has a lot of power reserve thanks to a Texas TDA7498E chip. It is a simple and elegant solution with two stereo input and a volume knob on its front plate.
Intelligent Control Monitoring
TDA7498E is backed by a MCU processor to avoid over / under voltage / charge to offer a real protection to the speakers connected to Topping PA3.
Audiophile grade components
The passive components of the Topping PA3 are first-class using Nichicon capacitors known for their reliability and fidelity as well as plastic film Epcos capacitors at strategic locations on the pre-amplifying part. The potentiometer is a model from ALPS Japanese brand recognized worldwide for the seriousness of its achievements.
Technical caracteristics
SPECIFICATIONS
- SNR : 90dB
- Gain : 29.3dB
- Input sensitivity : 0.6Vrms (4Ohms) 0.9Vrms (8Ohms)
- Noise level : 0.5mV ponderation A
- Maximum power : 2x50W 8 Ohms / 2x100W (4 Ohms 32V)
- THD : 0.04%
- Frequency response : 20Hz - 20kHz (-0.2dB)
Connectivity
Inputs :
- 2x RCA
Outputs :
- Gold plated speaker terminals
MISC
- Weight : 515g
- Dimensions : 168 x 120 x 37 mm
- Package content : power chord and power supply adapter
- Silver color
| Input | RCA |
| Output | Speaker terminal |
| Color | Silver |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | TDA7498E |
| Power (W) | 80.0 |
| Refurbished Grade | Grade S |
