[GRADE B] LHY AUDIO BATT-DC Regulated linear power supply on battery 12V 2A
This LHY Audio BATT-DC regulated linear power supply module uses four 21700 batteries with a capacity of 4900mAh (4.9Ah) and an ultra-low-noise LDO LT3042 linear voltage regulation chip with D45H11 PNP transistor.
![[GRADE B] Crimping Pliers 0.25-35mm² with 8 Bits and Storage Bag](https://www.audiophonics.fr/65204-thumb_default/crimping-pliers-025-35mm-with-8-bits-and-storage-bag.jpg)
![[GRADE A] IFI AUDIO GND DEFENDER Main Power Supply Ground Loop Filter 90-240VAC](https://www.audiophonics.fr/65200-thumb_default/ifi-audio-gnd-defender-main-power-supply-ground-loop-filter-90-240vac.jpg)
![[GRADE B] TOPPING DX9 DAC AK4499EQ Headphone Amplifier NFCA Bluetooth 5.1 AptX LDAC 32bit 768kHz DSD512 Black](https://www.audiophonics.fr/65179-thumb_default/topping-dx9-dac-ak4499eq-headphone-amplifier-nfca-bluetooth-51-aptx-ldac-32bit-768khz-dsd512-black.jpg)
![[GRADE A] IKKO OBSIDIAN OH10 Hybrid In-Ear Monitor IEM Dynamic and Balanced Armature](https://www.audiophonics.fr/65190-thumb_default/ikko-obsidian-oh10-hybrid-in-ear-monitor-iem-dynamic-and-balanced-armature.jpg)
![[GRADE A] SHANLING Protective Cover Leatherette for Shanling H2 Marron](https://www.audiophonics.fr/65199-thumb_default/shanling-protective-cover-leatherette-for-shanling-h2-brown.jpg)
![[GRADE A] SHANLING H2 Portable DAC CS43198 Headphone Amplifier Bluetooth 5.0 XMOS 32bit 384kHz DSD256 Silver](https://www.audiophonics.fr/65194-thumb_default/shanling-h2-silver.jpg)
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.
Refurbished product - Grade B
US power supply with US to Europe adapter.

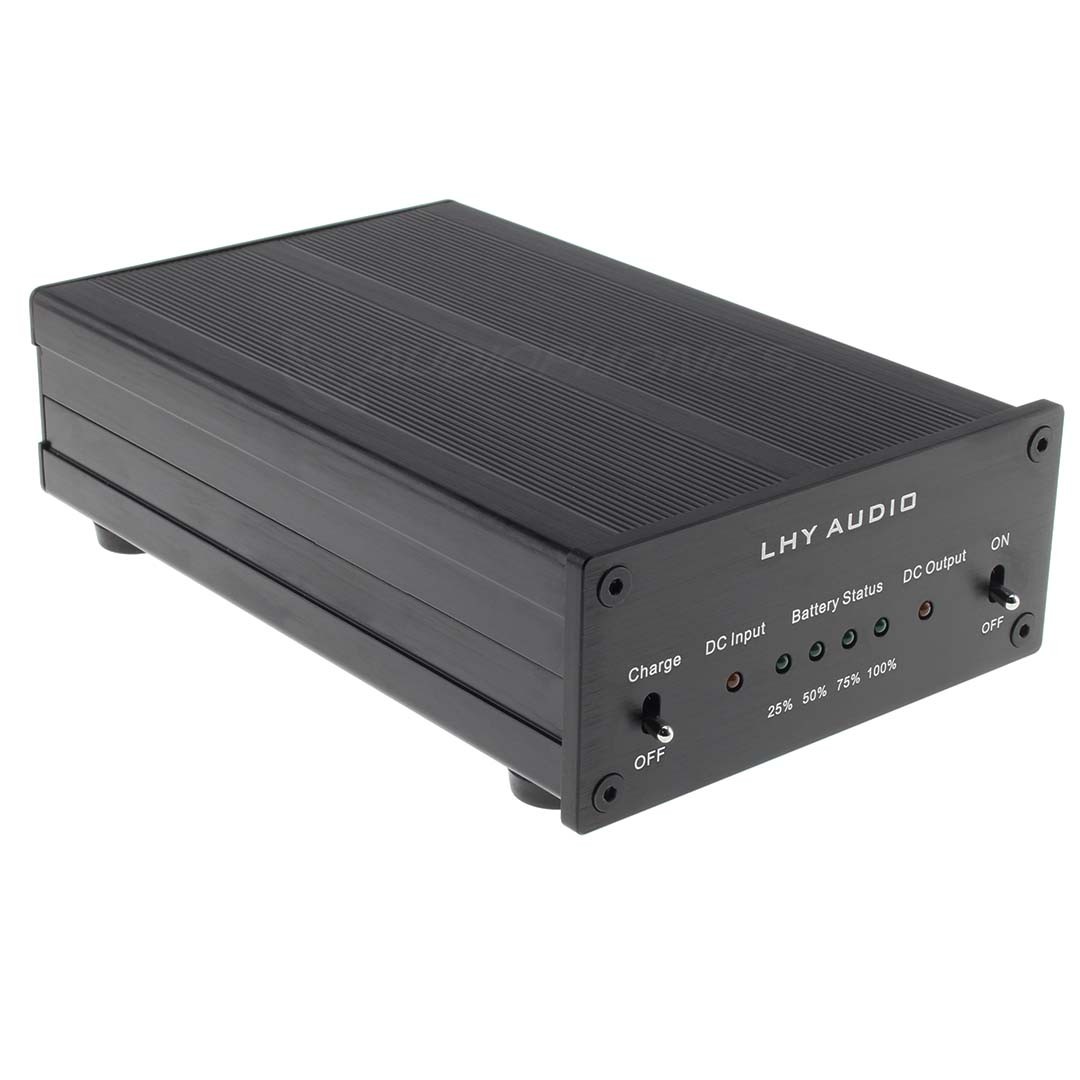

LHY AUDIO BATT-DC
Regulated linear power supply on battery 12V 2A

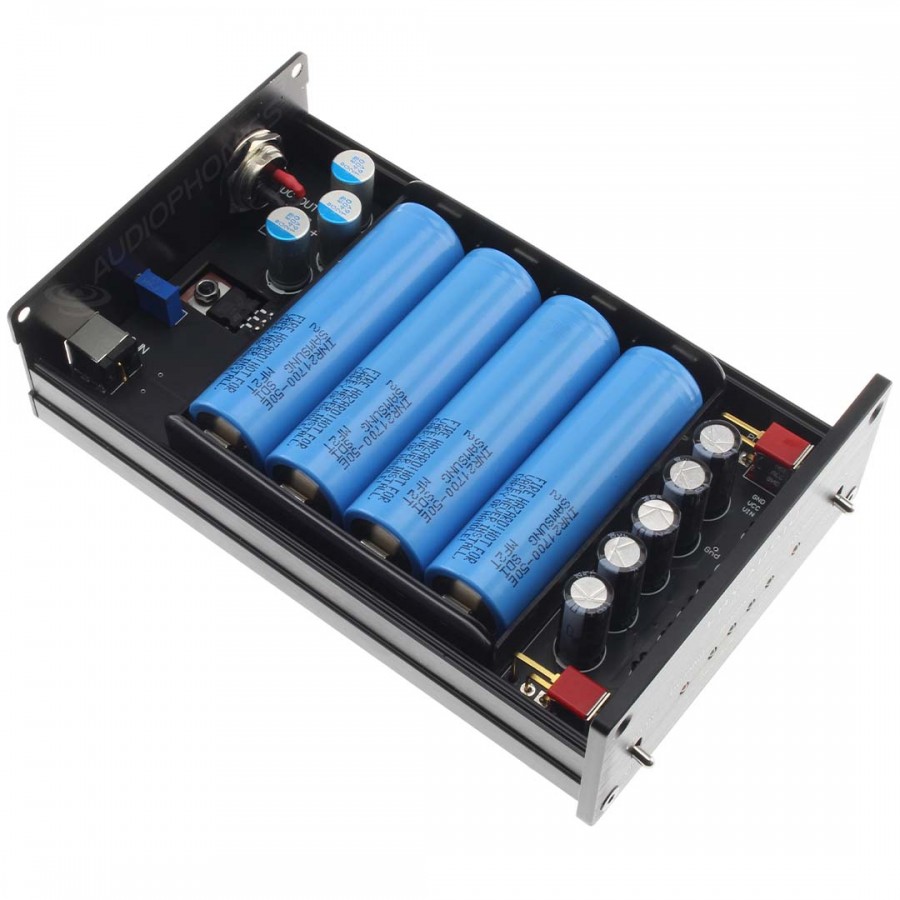

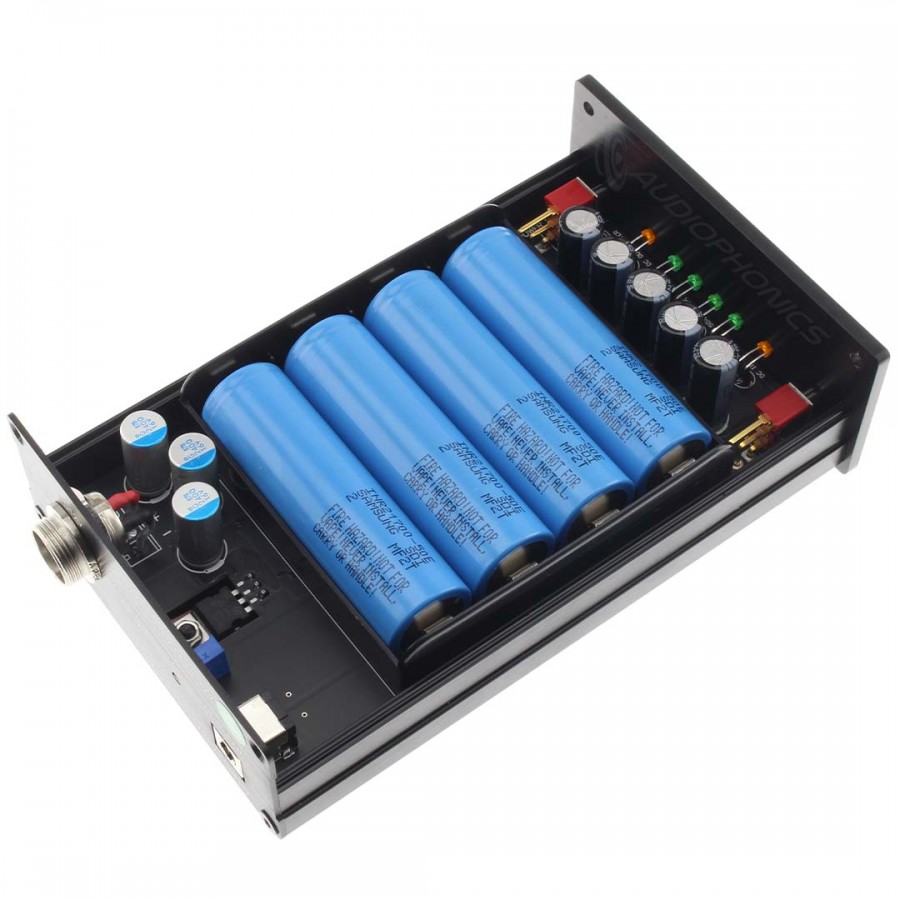

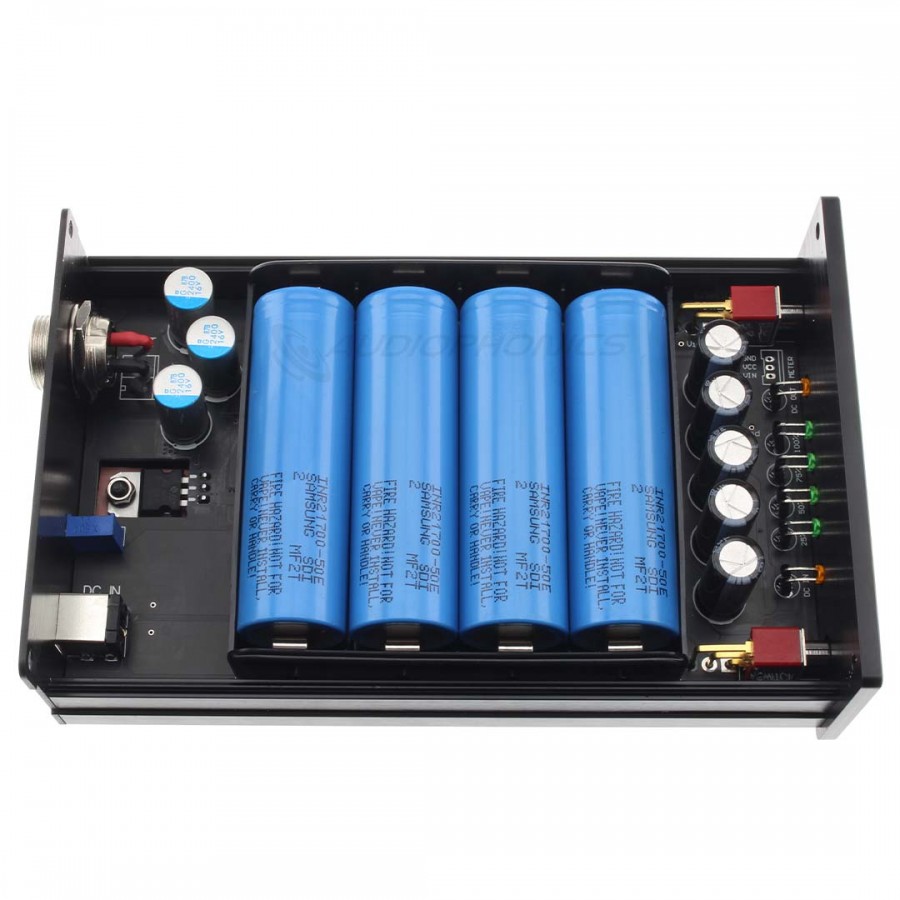

This LHY Audio BATT-DC regulated linear power supply module uses four 21700 batteries with a capacity of 4900mAh (4.9Ah) and an ultra-low-noise LDO LT3042 linear voltage regulation chip with D45H11 PNP transistor. This linear power supply has a 2-pin GX16 connector output delivering 12V 2A. So you can power your Hi-Fi equipment with an ultra-low-noise signal. The module itself is powered by 16.8V DC on a 5.5/2.1mm DC jack connector. A load protection module completes this input.

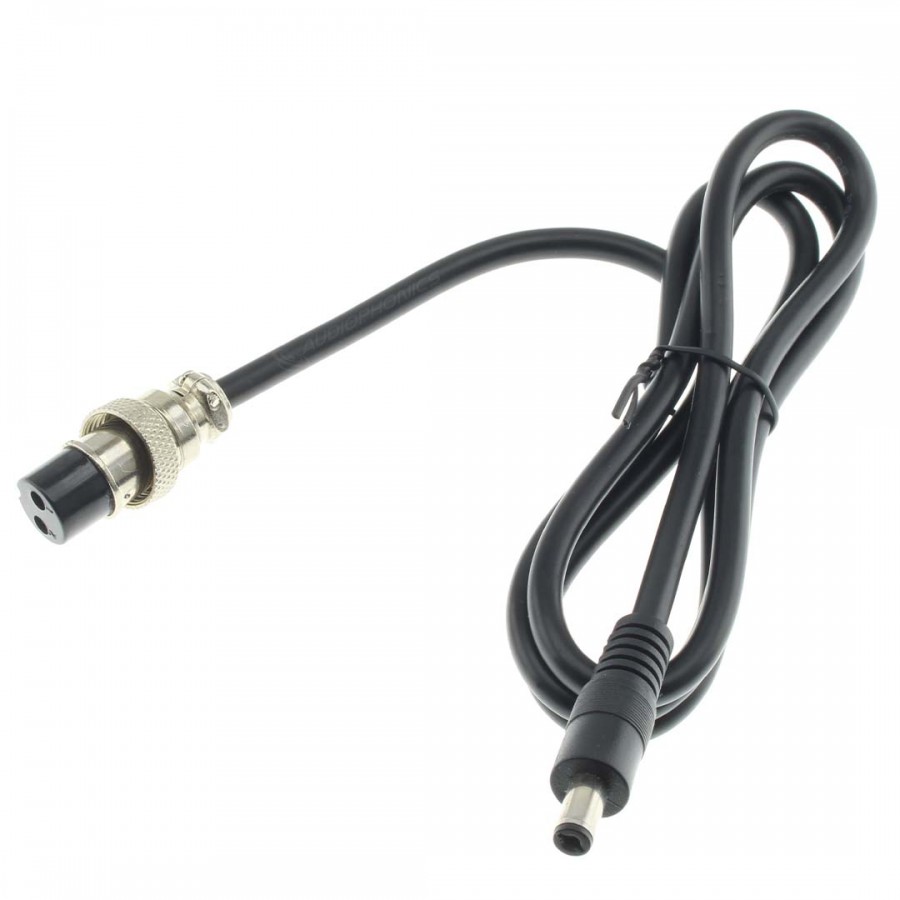

Please use the GX16 cable supplied or the Audiophonics references GXDC-21 and GXDC-25 specially designed for LHY Audio power supplies.

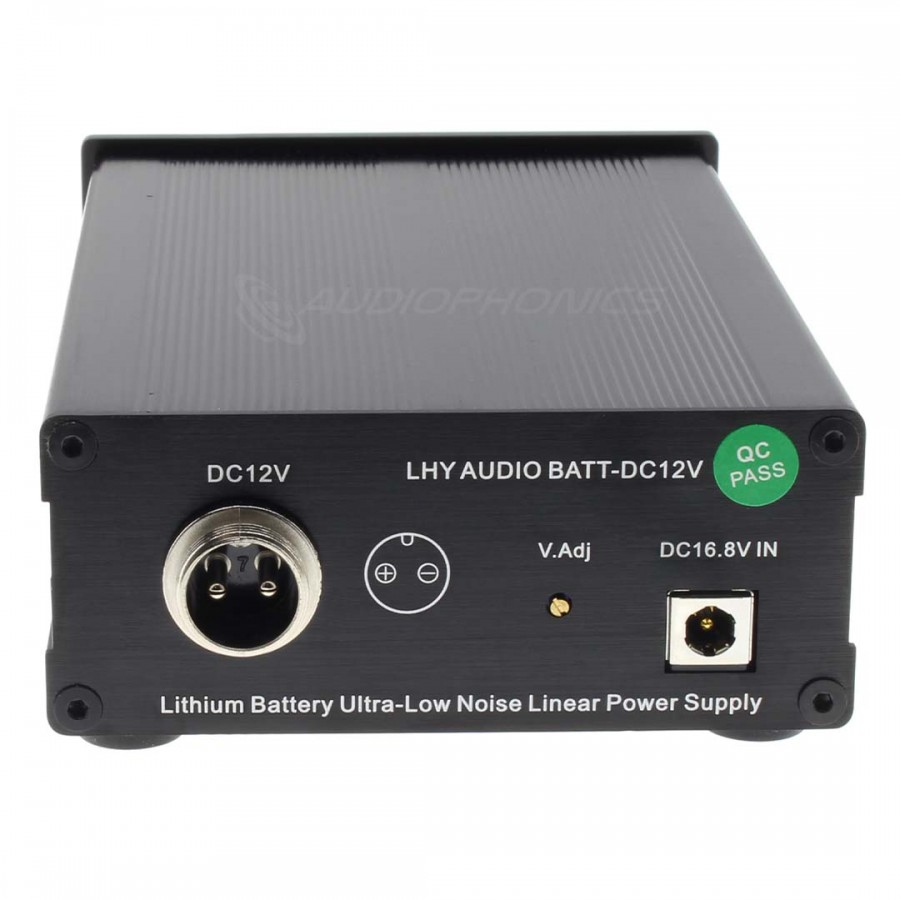

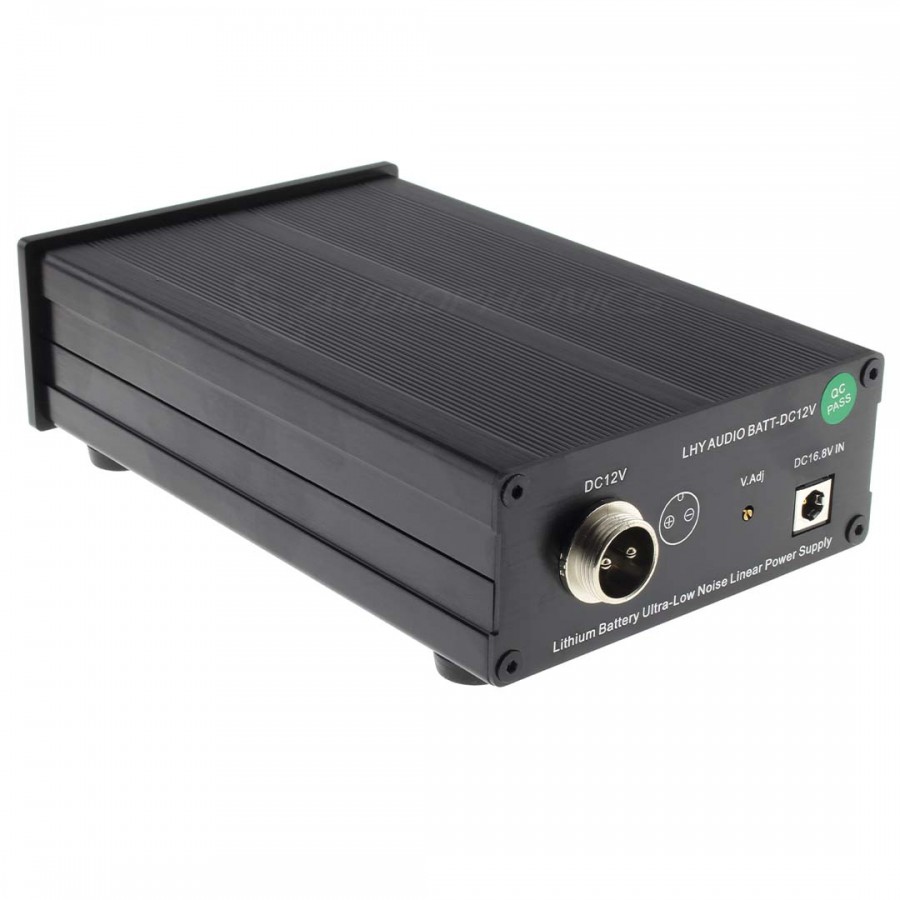

LHY AUDIO BATT-DC regulated linear power supply connectivity
| 1 | GX16 2-pin 12V DC 2A output |
| 2 | Voltage adjustment +/5%. |
| 3 | DC 16.8V power supply input on 5.5/2.1mm jack connector |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Battery-regulated linear power supply |
| Input voltage | 16.8V DC |
| Voltage and output connectors | 2-pin GX16 connector: 12V DC 2A |
| Total output current | 2A |
| Battery | 4x 21700 (4900mAh) |
| General | |
|---|---|
| Dimensions | 155 x 100 x 47mm |
| Weight | 0.72kg |
| Color | Black |

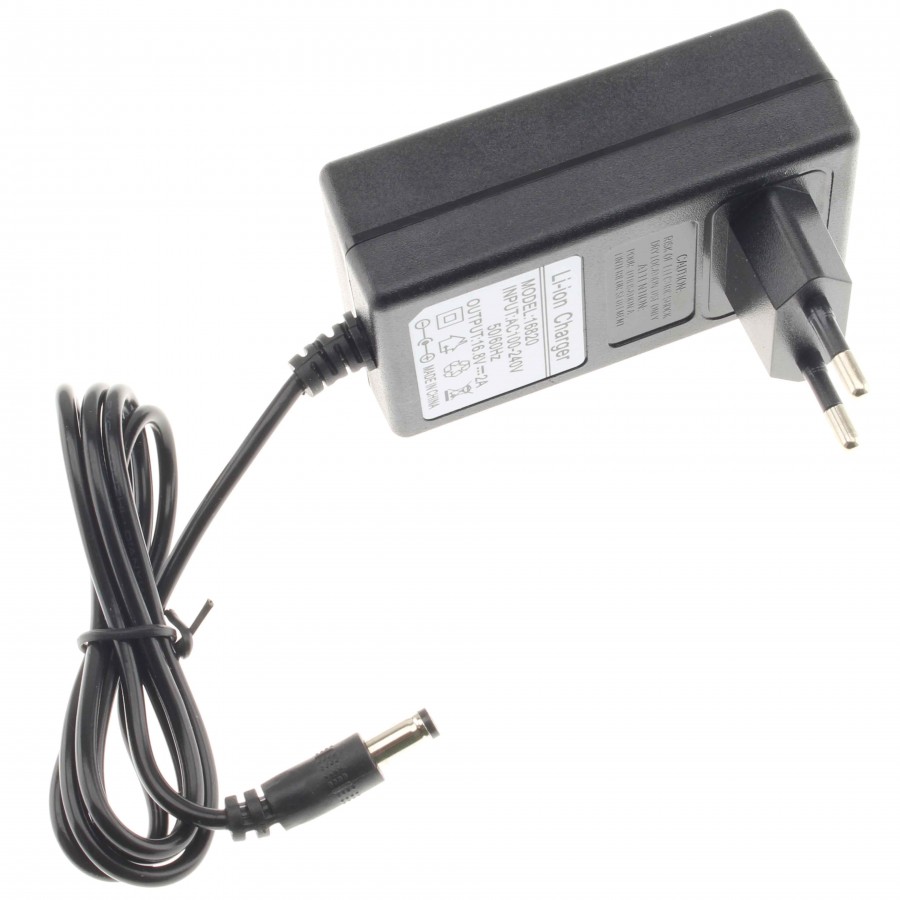

| Package | 1x Linear regulated battery power supply LHY AUDIO BATT-DC 1x 2-pin GX16 connector cable to DC jack 5.5/2.1mm 1x EU power adapter 100-240V to 16.8V 2A |
| Input | Jack DC 5.5/2.1mm |
| Output | GX16 |
| Color | Black |
| Output voltage (V) | 12.0 |
| Output current (A) | 2.0 |
| Input voltage (V) | 16.8 |
| Power Supply | Regulated Linear Power Supply |
| Refurbished Grade | Grade B |
