[GRADE B] MATRIX ELEMENT P2 Power Amplifier Class D Stereo 2x230W / Mono 1x850W 4 Ohm
Continuing the Element line's identity, the Matrix Audio Element P2 power amplifier inherits a sleek, modern design that integrates seamlessly with the other models in this family. Thanks to its highly efficient Class D architecture, it can easily be integrated into a system, providing significant power to your speakers.
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
Refurbished product - Grade B

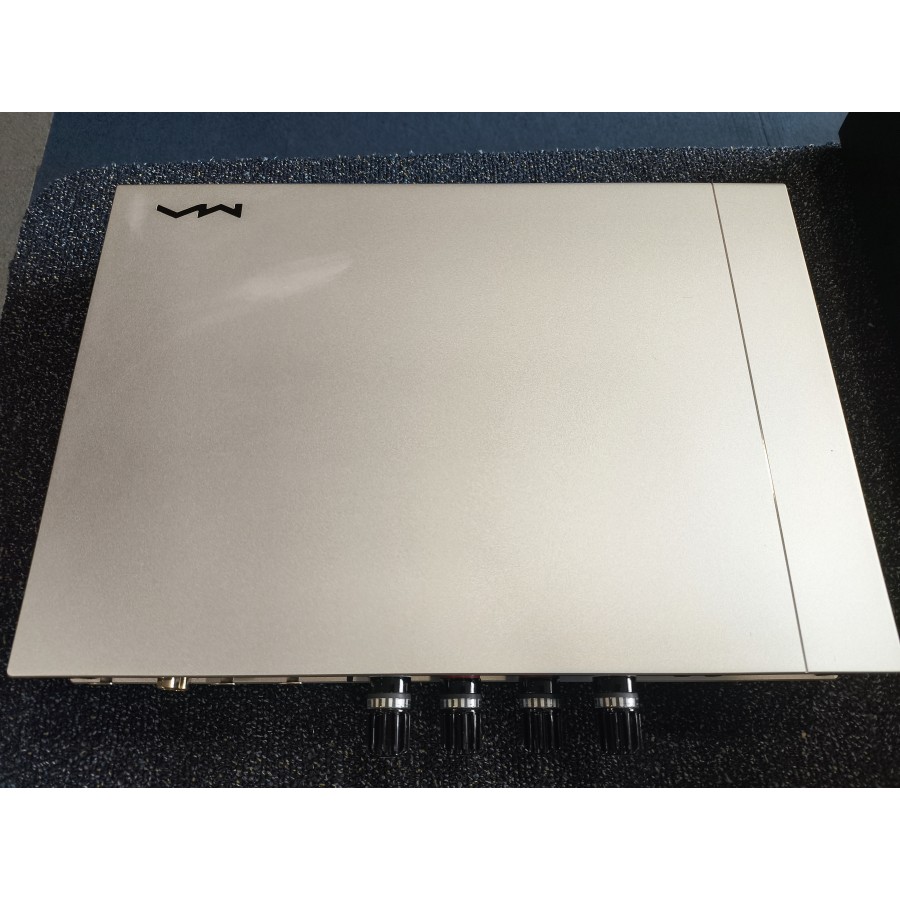

Marks and small scratches on unit cover
MATRIX Element P2
Power Amplifier Class D Stereo 2x230W / Mono 1x850W 4Ω
Continuing the Element line's identity, the Matrix Audio Element P2 power amplifier inherits a sleek, modern design that integrates seamlessly with the other models in this family. Thanks to its highly efficient Class D architecture, it can easily be integrated into a system, providing significant power to your speakers.
Multiple input modes
The Element P2 is equipped with both XLR and RCA inputs. So whether your source device is single-ended or balanced, it can be easily combined with the P2, reproducing the original audio message faithfully and dynamically.
Stereo mode and ICEpower 250ASX2 amplifier module
In stereo mode, the Element P2 provides a power of 230W per channel under 4Ω thanks to its ICEpower 250ASX2 module, allowing it as well and difficulty to accompany bookshelf speakers as columns. It then reveals a beautiful sound image and interprets with great accuracy every detail of the audio signal.
Double the power in mono
Need more power? Two Matrix Audio Elements P2 can be configured and combined in mono mode. In this configuration, each amplifier powers one speaker, delivering no less than 850W on each channel. This is enough to bring out the full potential of your HiFi system in the best possible conditions.
12V Trigger
With a 12V trigger input and output, the Element P2 can be connected to the devices before and after it. This makes it possible to automate the switching on and off of your entire system as soon as a signal is received from one element of the chain.
High quality WBT connectors
The Element P2 is finished to an exemplary standard with WBT-0703 Cu terminals for connecting your speakers. These have copper contacts with gold plating, ensuring excellent conductivity and durability. They also offer optimal contact with your cables.
Anti-vibration feet with ceramic balls
The Matrix Audio Element P2 is also equipped with CBVB feet. The inside of these feet integrates a silicone pad and 6 ceramic balls. They reduce the noise caused by mechanical vibrations. The sound transparency is improved, creating a wide and clear sound image.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Power amplifier |
| Inputs | 1* Balanced stereo XLR 1* Single-ended stereo RCA 1* Mono XLR |
| Outputs | Speaker terminals |
| 12V trigger | In / Out |
| Output power | Stereo: 2*230W @ THD+N 1%, 20Hz-20kHz, 4Ω / 2*110W @ THD+N 1%, 20Hz-20kHz, 8Ω Mono: 1*500W @ THD+N 1%, 20Hz-20kHz, 8Ω / 1*850W @ THD+N 1%, 20Hz-20kHz, 4Ω |
| Dynamic range | Stereo: 112dB (A-weighting) Mono: 121dB (A-weighting) |
| Frequency response | 20Hz-20kHz ±0.3dB |
| THD+N | Stereo: 0.008% @ 1W Mono: 0.004% @ 1W |
| Output impedance | Stereo: < 25mΩ Mono: < 30mΩ |
| Input impedance | 47kΩ |
| Gain | Stereo RCA: 28dB @ 1kHz Stereo/Mono XLR: 34dB @ 1kHz |
| General | |
|---|---|
| Supply voltage | 100-120VAC 50/60Hz 220-240VAC 50/60Hz |
| Standby consumption | < 5W |
| Max consumption | < 1250W |
| Dimensions (L*P*H) | 340*259*58mmmm |
| Weight | 3.7kg |
| Color | Silver |
| Package | 1* Matrix Element P2 1* Power cable |
| Input | XLR |
| Input | RCA |
| Output | Speaker terminal |
| Color | Silver |
| Channel | 1 (Mono) |
| Channel | 2 (Stereo) |
| Class | Class D / T |
| Amplifier chip | ICEpower 250ASX2 |
| Power (W) | 230.0 |
| Power (W) | 850.0 |
| Remote Control | No |
| Refurbished Grade | Grade B |
