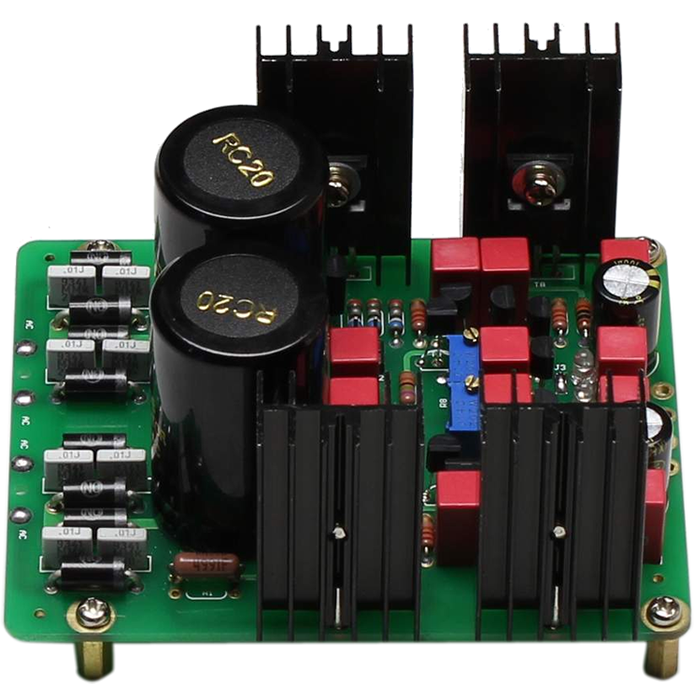

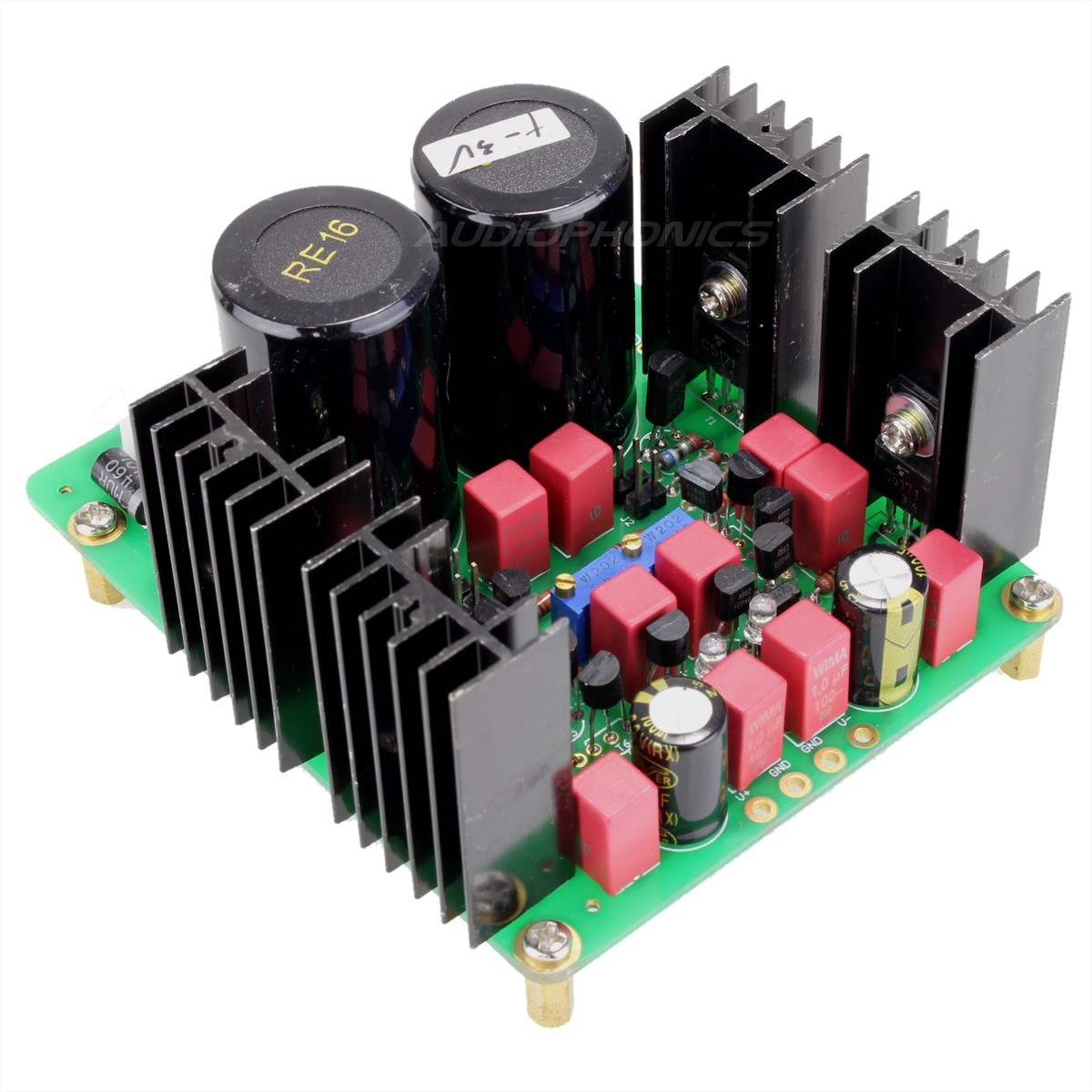

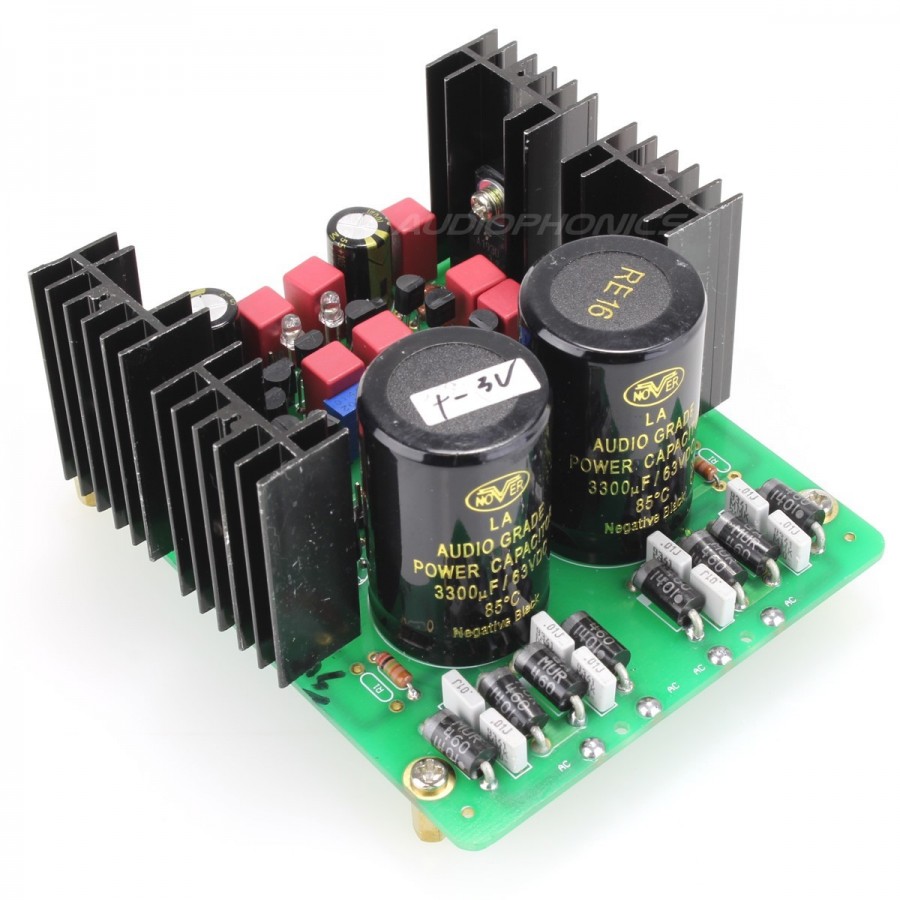

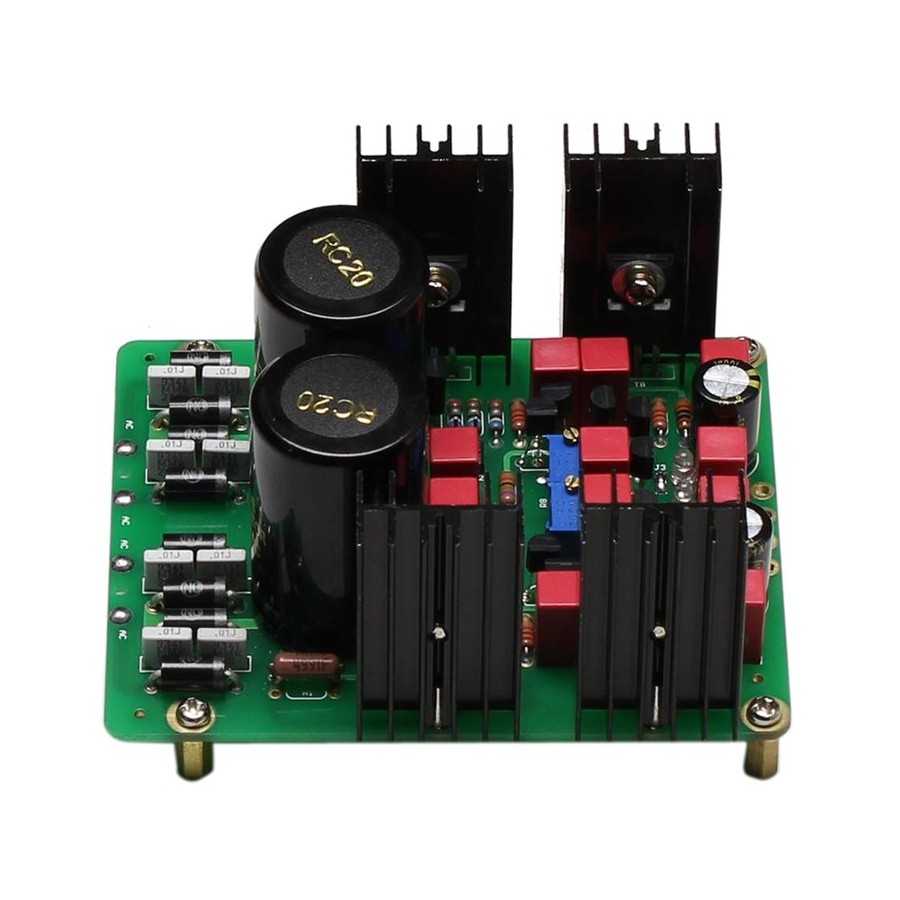

AUDIO-GD PSU-2013 Power supply Class A regulated +/- 15V 80 / 240mA

This Class A power module allows you to obtain 2 regulated voltages + V / -V with an output current ranging from 80 to 240mA.

The quiescent current is 80, 160 or 240mA (adjustable, 80mA by default).

Its Class A design allows it to provide a clean, neutral and dynamic voltage.

• Applications: Perfect replacement in DAC gain stages, Preamplifier and amplifiers
• Dimensions: 95 x 85 x 45 mm (including radiators)
• Designed for a resting current of 80 mA it can be easily adjusted up to 240 mA (J 1 + J2)
• Maximum output current of 240mA

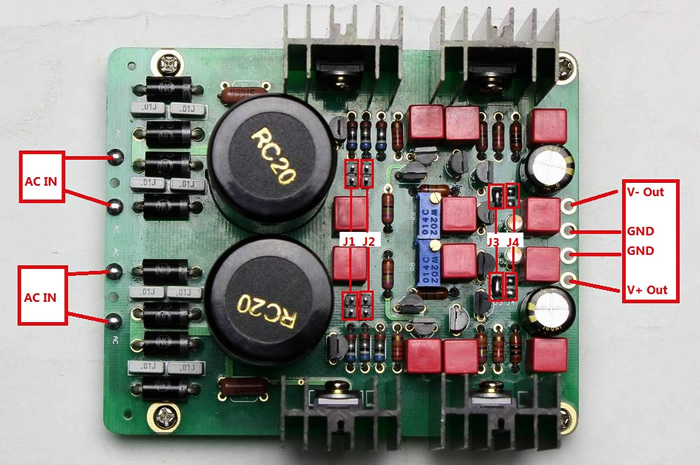

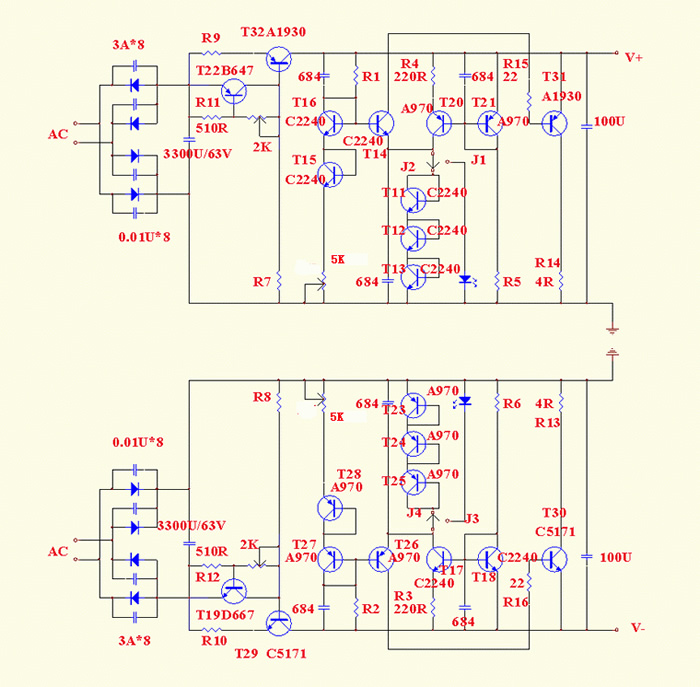

AC in: transformer connection
V-OUT: Negative output
GND: The mass is separated on the 2 parts of the power supply, if you use both sides on the same circuit, connect the 2 mass together.
V + OUT: Positive output

J1: Connect J1 to switch from 80 to 160mA
J2: Connect J2 to switch between 160 and 240mA
J3: Connected by default, Vref of the transistors
J4: Possibility of replacing Vref with LED (advanced function)

ClassA power supplies must not remain uncharged when it is operating
Attention radiators connected to the GND
A bad connection will immediately crack the module
Voltage adjustable only within a range of +/- 20% max

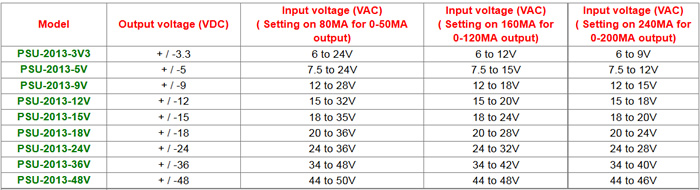

Features:
