LDOVR TPS7A4700/3301
Dual Ultra Low Noise Regulated Linear Power Supply -3V to -18V / +1.4V to +20.5V 1A

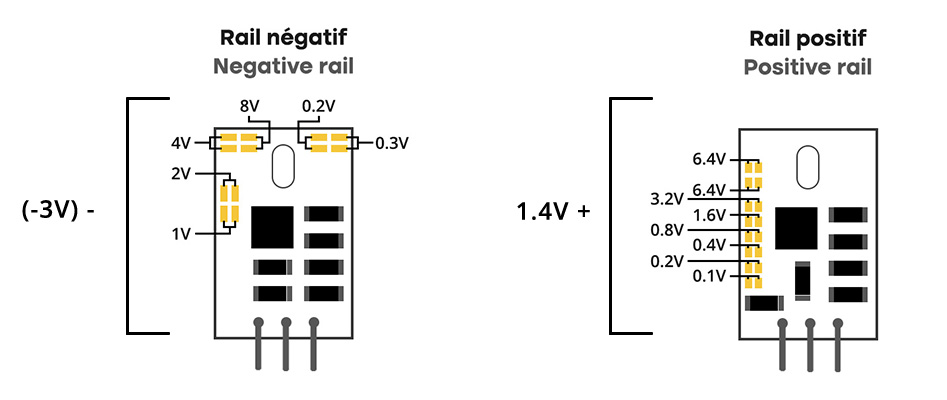

This TPS7A4700/3301 dual LDOVR regulated linear power supply module provides extremely low noise levels measured at only 4µvrms for the positive rail and 16µVrms for the negative rail. Its input voltage range is from 3 to 25VDC or 3 to 18VAC. Its outputs are adjustable from 1.4V to 20.5V 1A in 0.1V steps for the positive rail and from -3V to -18V in 1V steps for the negative rail, using solder pads on the PCB :
Please set the desired voltage before soldering the two rails to the PCB.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Dual regulated linear power supply module |
| Input voltage range | 3VDC to 25VDC 3VAC to 18VAC |
| Any-Out™ voltage modes | User programmable output via solder pads on the PCB Positive output voltage range : +1.4V to +20.5V (0.1V step) Negative output voltage range : -3V to -18V (1V step) |
| Output current | 1A |
| Output noise | Positive rail : 4µVrms (10Hz, 100kHz) Negative rail : 16µVrms (10Hz, 100kHz) |
| Ripple rejection | 82dB (100Hz) / 72dB (10kHz) ≥55dB (10Hz, 10MHz) |
| Dropout voltage | 307mV @ 1A |
| Protections | Fixed current limit Thermal protection |
| Operating temperature range | -40°C / +125°C |
| External feedback option | |
| General | |
|---|---|
| PCB Dimensions | 60 x 60mm |
| Input | Screw terminals |
| Output | Screw terminals |
| Output voltage (V) | -18.0 |
| Output voltage (V) | 1.4 |
| Output voltage (V) | -3.0 |
| Output voltage (V) | 20.5 |
| Output current (A) | 1.0 |
| Input voltage (V) | 3.0 |
| Input voltage (V) | 25.0 |
| Power Supply | Regulated Linear Power Supply |
