To help you choose the right power supply for your projects, we invite you to visit this page.
LT1963A 5V / +/-5V

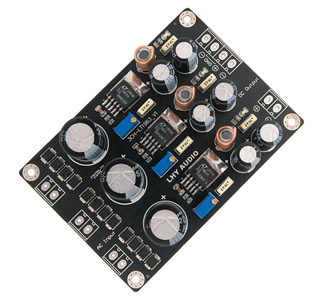

This LHY Audio triple linear power supply module offers a very nice design quality, using three LDO voltage regulators LT1963A to provide a clean and stable electrical signal. The module can be AC or DC powered and is capable of delivering 5V and/or +/-5V (adjustable over a range of 1.2V to 20V). It can be used to provide three positive outputs or one positive and one +/- output.
| Specifications | |
|---|---|
| Product type | Linear power supply module |
| Input voltage | 6-20VDC 6-15VAC |
| Output voltage | 3x5V OR 1x5V + 1x +/-5V Adjustable voltage from 1.2V to 20V |
| Output current | 1.5A |
| Voltage regulators | 3* LT1963A |
| General | |
|---|---|
| Dimensions (L*P*H) | 100*70*29mm |
| Mounting holes spacing | 92*62mm |
| Input | Solder pad |
| Output | Solder pad |
| Output voltage (V) | 5.0 |
| Output current (A) | 1.5 |
| Input voltage (V) | 15.0 |
| Input voltage (V) | 6.0 |
| Input voltage (V) | 20.0 |
| Power Supply | Regulated Linear Power Supply |
