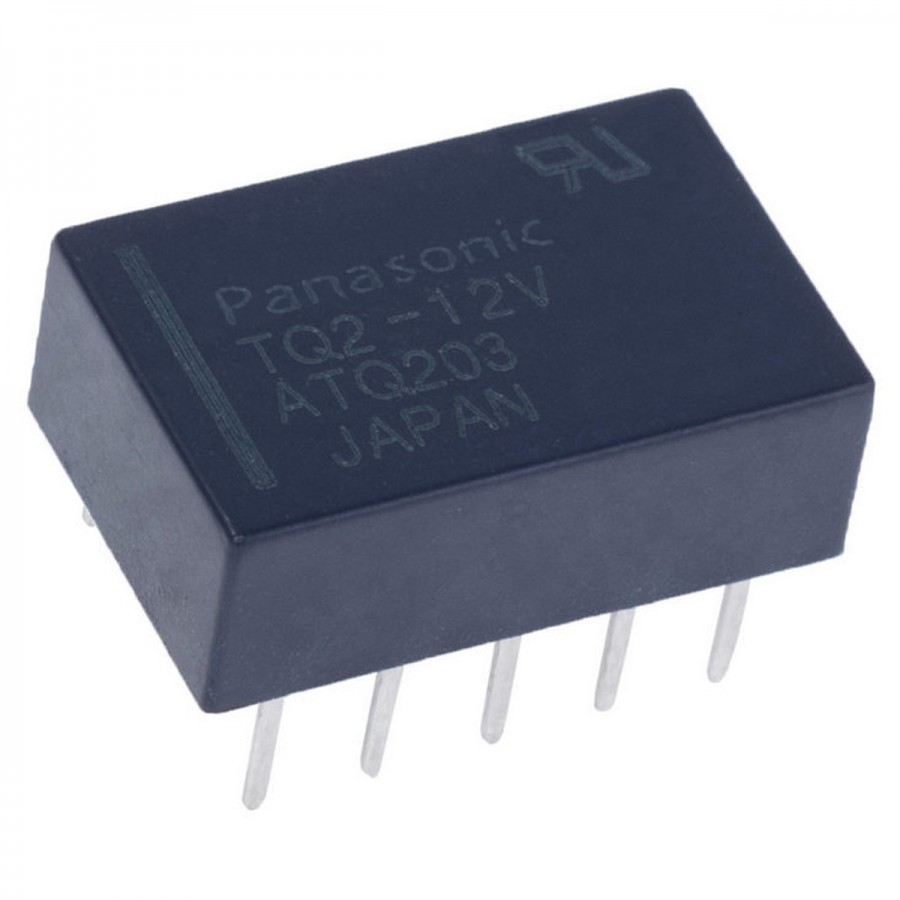

PANASONIC TQ2-12V Relay for PCB 12V DC

The Panasonic TQ2-12V electromagnetic relay has a nominal voltage of 12V DC. In 2 Form C (DPDT) format, it can be mounted on PCBs, and its low-profile design means it takes up very little space.
No customer reviews yet, login to write a review.

No loyalty points for this product.


Reference : 17963
New product

4,90 €tax incl.

4,08 € tax excl.

- +


Shipping date: 25-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Panasonic TQ2-12V

Relay for PCB 12V DC

Panasonic TQ2-12V Relais pour PCB 12V DC

The Panasonic TQ2-12V electromagnetic relay has a nominal voltage of 12V DC. In 2 Form C (DPDT) format, it can be mounted on PCBs, and its low-profile design means it takes up very little space.

Panasonic TQ2-12V Relais pour PCB 12V DC

Technical characteristics

Specifications
Product typeRelay
Contact configuration2 Form C (DPDT)
Nominal coil voltage12V DC
Max. contact current2A
Max. switching voltage110V DC
125V AC
Max. switching current1A (DC)
1A (AC)
Min. switching load10µA 10mV DC
Coil resistance1028Ω
Min. coil voltage6.75V DC
Coil current11.7mA
Operating temperature range-40°C / +70°C
Contact materialAlliage d'argent
General
Dimensions14*9*5mm

Data sheet
Rated voltage (V)12.0
Rated current (A)1.0
