TELEGARTNER MFP8 CAT.8.1 T568B High-End Ethernet RJ45 Cat 8.1 Metal
This connector Ethernet in the format RJ45 takes advantage of the brand new standard Cat 8.1. This last one will allow you to design high quality cables, allowing you to reach very high transmission rates: up to 40Gbit/s.
By buying this product you get 2 loyalty points
Reference : 13720
New product
Accessories for this product
Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.

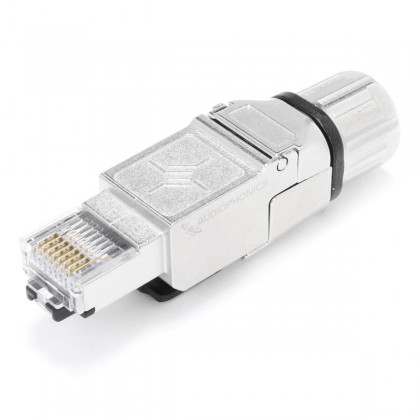

Telegärtner MFP8 Cat.8.1 T568B
High-End Ethernet RJ45 Cat 8.1 Metal
This connector Ethernet in the format RJ45 takes advantage of the brand new standard Cat 8.1. This last one will allow you to design high quality cables, allowing you to reach very high transmission rates: up to 40Gbit/s. The connector has a molded Zinc shielded body, allowing both to limit interference while ensuring perfect cable retention in the connector. The connector can be combined with Cat 8.1 or Cat 8.2 cables with an external diameter from 5.5mm to 10mm.
Here is a link concerning the T568A and T568B standards which will allow you to make the right choices for your network installation: T568A vs T568B
Technical characteristics
| Specifications | |
|---|---|
| Product type | Male Ethernet RJ45 connector |
| Ethernet category | Cat 8.1 |
| Connectors contacts plating | Or |
| Min / Max cable diameter | 5.5mm - 10mm |
| Min / Max conductors section | Braided conductor: 27AWG (0.102mm²) - 22AWG (0.326mm²) Colid conductor : 24AWG (0.205mm²) - 22AWG (0.326mm²) |
| Min / Max conductors diameter | 1mm - 1.6mm |
| Poles number | 8P8C |
| Color code | T568B |
| Min / Max operating temperature | -40°C / +85°C |
| Power Over Ethernet Plus (PoE+) | Yes |
| Protection rating | IP20 |
| General | |
|---|---|
| Connector body material | Zinc |
| Total dimensions | 56 x 16.2 x 14mm |
| Color | Silver |
| Max cable diameter (mm) | 10.0 |
| Mounting type | To connect |
| Connectic | Male |
| Connector | RJ45 |
| Contacts Material (Connector) | Copper Alloy |
| Contacts Plating (Connector) | Gold |
