LED Barmeter Dual Column for Input Voltage Display

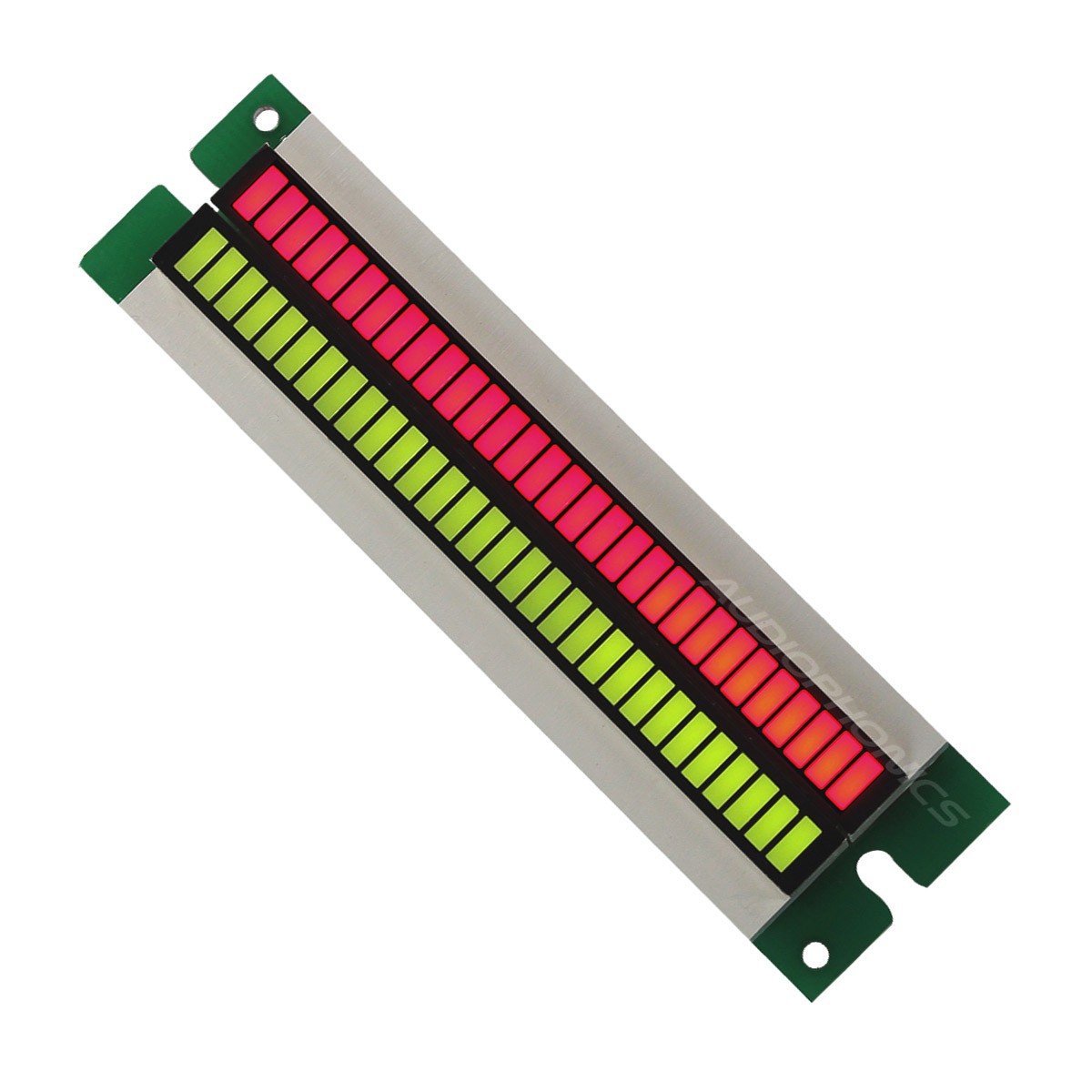

This two-column LED barmeter indicates the input voltage of the left channel in green and the right channel in red. The measured signal is therefore indicated as a light signal on 30-segment columns.
No customer reviews yet, login to write a review.
By buying this product you get 2 loyalty points
Reference : 10980
New product
Viewed products
![[GRADE B] IFI AUDIO IDEFENDER+ Anti Ground Loop Filter Male USB-A to Female USB-A](https://www.audiophonics.fr/65620-thumb_default/ifi-audio-idefender-anti-ground-loop-filter-male-usb-a-to-female-usb-a.jpg)
![[GRADE A] FIIO K11 DAC CS43198 Headphone Amplifier 32bit 384kHz DSD256 Black](https://www.audiophonics.fr/65622-thumb_default/fiio-k11-black.jpg)
![[GRADE A] MATRIX ELEMENT M Streamer DAC ES9028Pro WiFi AirPlay DLNA MQA 32bit 768khz DSD512](https://www.audiophonics.fr/65635-thumb_default/matrix-element-m-streamer-dac-es9028pro-wifi-airplay-dlna-mqa-32bit-768khz-dsd512.jpg)
![[GRADE A] MOONDROP COSMO Planar Magnetic Open-Back Circumaural Headphone Ø100mm 100dB 15 Ohm 13Hz-58kHz](https://www.audiophonics.fr/65641-thumb_default/moondrop-cosmo.jpg)
![[GRADE A] AUDIOPHONICS Power cable shielded OLFLEX 110CY 3x2.5mm² 1.15m](https://www.audiophonics.fr/65644-thumb_default/audiophonics-power-cable-shielded-olflex-110cy-3x25mm-115m.jpg)
LED Barmeter
Dual Column for Input Voltage Display
This two-column LED barmeter indicates the input voltage of the left channel in green and the right channel in red. The measured signal is therefore indicated as a light signal on 30-segment columns. The bar graph provides a measured accuracy of ±0.5% F.S. per segment. The module can be powered by 12V DC.
Technical characteristics
| Specifications | |
|---|---|
| Product type | LED Barmeter |
| Input mode | Voltage |
| Measure accuracy | ±0.5% F.S. ±1 segment |
| Number of segments | 2x30 |
| Display density | 5 segments per centimeter |
| Ratio | Adjustable sensitivity of 10-20% |
| Consumption | 600mW |
| Input resistance via Voltmeter | > 500KΩ |
| General | |
|---|---|
| Voltage supply | 12V DC |

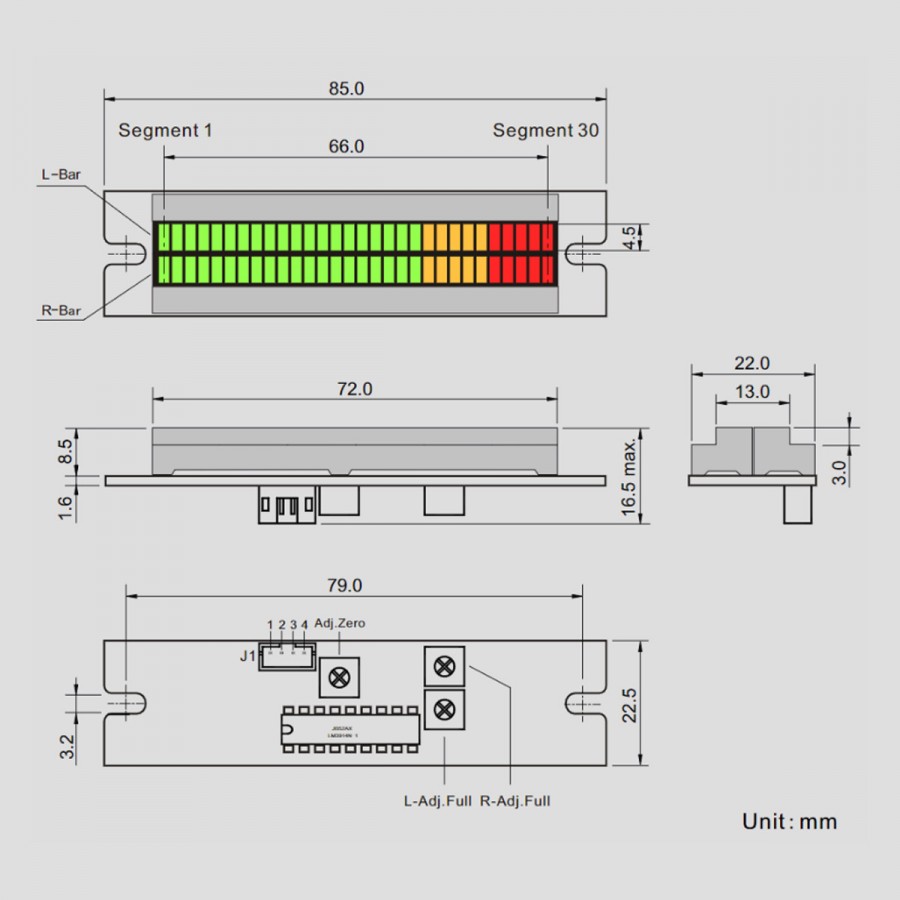

| Dimensions / barmeter column | 66 x 4.5mm |
| Total dimensions | 85 x 22.5 x 16.5mm |
| Weight | 24g |
