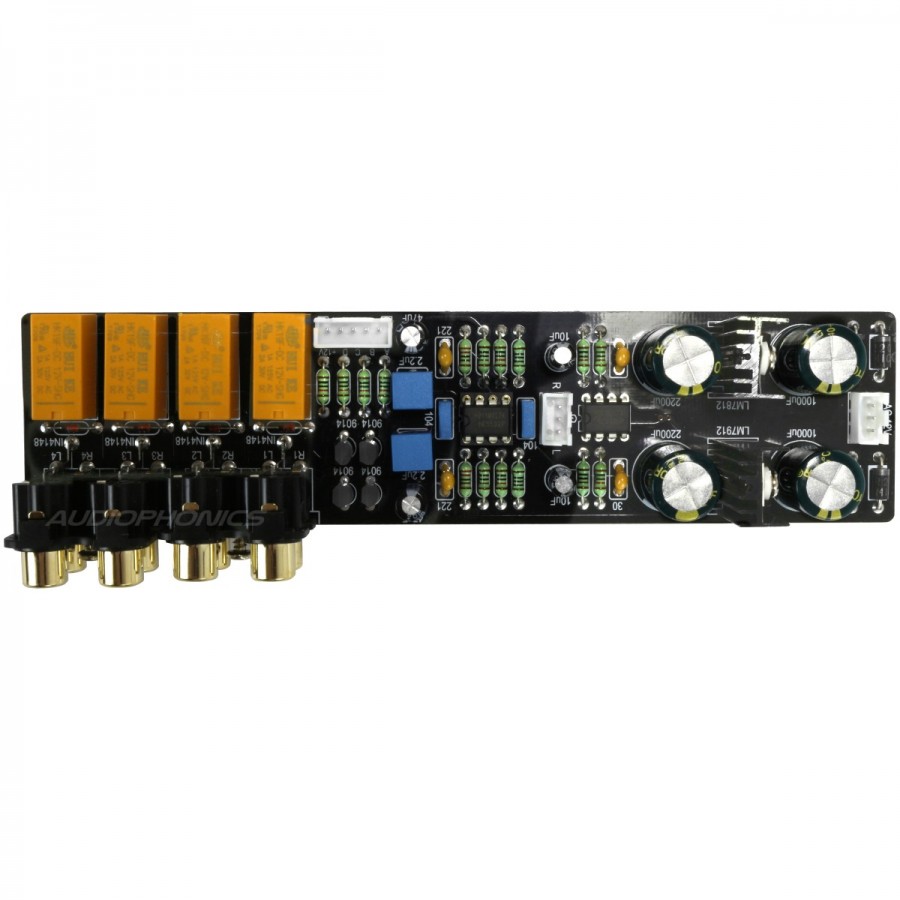

Module buffer source selection 2x NE5532 4 input RCA

Average votes for this product
3.5 / 5
  Based on 2 customers reviews.

By buying this product you get 2 loyalty points


Reference : 13243
New product

27,90 €tax incl.

23,25 € tax excl.

- +


Shipping date: 25-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Source selection module with buffer

NE5532P 2x, 4x stereo RCA, rotary selector


Buffer module


This very versatile module offers a buffer working with two NE5532P PDO (one of which is mounted on DIP8 support). It also has a source selector function with 4x Stereo RCA inputs. The selector switch and the active source indicator are mounted on a separate PCB (included).

The set offers very good performance thanks to its regulated integrated linear power supply. The module can thus be connected directly to a compatible torique transformer.

The form-factor is thin and long which contributes to the originality of this module while opening opportunities for integration.

Buffer stage with source selector / NE5532P

Double OPA NE5532P


Two operational amplifiers NE5532P are at the heart of the buffer floor.

One of the two OPA is mounted on a DIP8 support and can be replaced in order to change the device's restitution according to one's preferences or to the specificities of an audio installation.

6 pairs of resistors with 1% tolerance allow the buffer stage to work under stable conditions to provide a stable and accurate sound reproduction.

Source selector


This module has 4 inputs stereo RCA ports. It is accompanied by a mechanical rotary switch to allow input source selection.

This switch is already mounted on a separate PCB. The PCB also includes 4 slots already arranged to receive LEDs (supplied) thus providing a visual indicator of the active source.

To preserve the sound, no audio signal flows into the source selector. The rotary selector merely supplies pairs of S9014 transistors with HK19F relay to enable / disable each output port.

Each relay is associated with 1N4148 switching diode with low leakage current.

PCB source select.

Installation diagram

installation diagram buffer selector source
Specifications
TypeModule
Buffer
Source selection
InputRCA stereo x4
Output2 analog channels (XH)
Connectors Right - Left - GND
Source selector installationXH cable (soldering)
Power supplyAC (12V + 12V + 0)
Gainx10
Buffer PCB dimensions173 x 42 x 30mm
Selector PCB dimensions61 x 42 x 17 mm
Weight116g
Parts supplied
buffer modulex1
PCB source selection switchx1
LEDsx4
Interconnect Cablex1

Data sheet
InputRCA
OutputPCB Connector
Mounting typeTo weld
Channel2 (Stereo)

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
3.5 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 2/5
Date :
Pas convainquant
Le son subit une nette dégradation en passant par ce montage, et cela sur les 4 entrées. Un son saturé comme une station radio FM pas tout à fait sur la bonne fréquence. Un léger mieux après avoir changé le circuit intégré amovible par un équivalent sous la main, mais sans plus.
 (0)
 (0)
This review has been posted for Module buffer source selection 2x NE5532 4 input RCA
Note :
 5/5
Date :
Que dire ..
Il est très dur de trouver un sélectionneur à faible "bruit"..
Quand la tension du transformateur est trop élevée ... plus de 19V
Les diodes n'aiment pas !!!
Dans le texte de l'article:
Chaque relais s'accompagne d'une diode de commutation 1N4148 à faible fuite de courant.
Reymond Eric
 (1)
 (0)
This review has been posted for Module buffer source selection 2x NE5532 4 input RCA
