JUSTBOOM Digital player Raspberry Pi W Zero Hat Amp Zero FDA TAS5756 with Volumio

A full digital amplifier (FDA) and network reader based on raspberry Pi zero. Hyper compact and modular format according to your desires.

Average votes for this product
5.0 / 5

By buying this product you get 13 loyalty points


Reference : 12766
New product

139,00 €tax incl.

115,83 € tax excl.
Including 0,01 € for green tax

This product is discontinued
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

Accessories for this product

Find here a selection of useful and/or essential accessories for this product. These are specially selected by the Audiophonics team according to the characteristics of the product.


More info

Justboom Amp Zero & Zero Raspberry Pi

A digital reader and full digital amplifier in the palm of the hand

digital justboom raspbery ft zero drive
Raspberry Pi Zero

Ultra-compact network drive

Based on SBC (miniature computer) Zero Raspberry Pi, this player has a mini-HDMI, micro-USB port and wifi connectivity. It thus provides a surprisingly compact audio source that can play digital files from a hard drive, a media center or a streaming platform.

Despite its small size (31mm x 65 mm and weighs less than 10g) Raspberry Pi Zero card boasts performance well suited for audio use. There is a ARM11 processor Broadcom BCM2835 single-core 1GHz, 512MB RAM

Full Digital Amplifier (FDA) Amp Zero

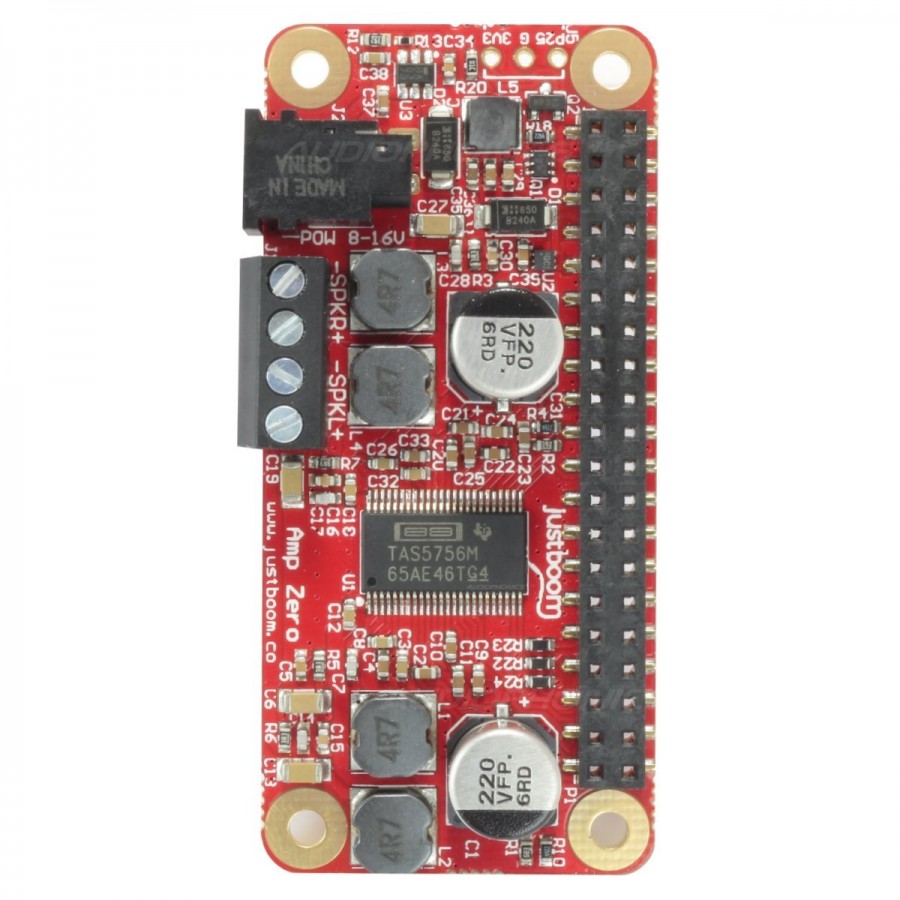

Hat Amp Zero JustBoom

Amplifier Full Digital JUSTBOOM AmpZero 2x40W amplifier is a complete class D.

It has a capacity of digital / analog conversion quality up to 192kHz / 32bit and will stream high definition audio through a local network, a hard drive or directly to the cloud. In addition, it provides a signal to noise ratio (112dB) and distortion (-93cB) very interesting because of its small size.

Its construction is based on a class D amplifier TAS5756 able to climb up to 30W RMS / 55W Peak.

The hardware volume ALSA is compatible and can be operated externally (by software installed on the Raspberry Pi Zero also)

simplified installation

The installation of the FDA amplifier drive can be hand

The assembly and installation of the components is very simple. No welding is required and all components have been adjusted to be assembled by hand. You will find a build manual here.

It will be first to ride the map Amp Zero (red) on the Raspberry Pi using the Zero GPIO expansion. Once assembled cards, it only remains to install the supplied case and follow.

The housing leaves free access to the location Micro SD card, micro-USB inputs, the mini-HDMI input, food Amp Zero (main power supply) and the speaker output.

Justboom preinstalled software solution

Micro SD card Justboom

The software solution JustBoom Player is already installed on the micro-SD card included. It is not necessary to be knowledgeable in installing software SBC. It is enough to insert the micro SD card and connect the player to the network to initialize startup. The device will automatically create a wireless access point to which you can connect to connect to your network sustainably. The first launch process is easy and fast. All details are available here.

The software is open source, that is to say, it is possible to change at any time without limitation according to your projects. Besides Justboom (single and complete), this player is precisely compatible with plethora of sofwares  like PicorePlayer (player / media center) or DietPi (very modular).


Specifications Zero Raspberry
TypeDigital music player and digital amplifier (FDA)
AmplifierTAS5756 Class D Digital Audio Amplifier
SNR112dB
THD-93dB
Power2.1mm jack - 12-15V with power supplied (recommended)Via micro USB - 5V (power limited)
Power (Power Jack)RMS: 20WPeak: 40W
Power (Micro-USB)RMS: 20WPeak: 40W
volume controlCompatible Hardware Alsa
ProcessorBroadcom BCM2835 Single Core
RAM512MB
InputsMicro-USB, HDMI, WIFI
OutputsSpeaker
Dimensions35 x 37 x 67 m
Total weight62g



Pack content

plastic housing amp Zero

plastic housing

Raspberry Pi Zero

SBC Raspberry Pi Zero

Module raspberry FDA

Map Amp Zero Amplifier Module FDA

GPIO raspberry pi zero

GPIO extension

Micro SD Card

Micro SD card with software preinstalled Justboom

Adapter Card micro SD / SD

drive adapter micro SD

Handy if need to change software

cable industry

cable industry

Food

Power / variable converter (12/15/16/18/19/20 / 20V)

Make sure to select a voltage compatible with Amp Zero: 12 or 15V (12 recommended for heat management)

jack connectors

Jack tips formats

Ø External6.5 mm6.3 mm5.5 mm5.5 mm5.5 mm4.6 mm4 mm3.5 mm
Ø Internal4.4 mm3.1 mm2.5 mm2.1 mm1.7 mm1.7 mm1.7 mm1.2 mm

Data sheet
InputHDMI
OutputSpeaker terminal

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Le top de la transparence à ce prix
Excellent kit DIY de mon point de vue. Côté transparence du FDA, surclasse mon précédent équipement iEast M30+Alientec D8 (je stream en Airplay).
Pour les cables, il faut par contre du 1,5mm2 max et des petits doigts !-)
Donne une grosse envie de multiroom sur le concept en tout cas.
Pour info, permet de sonoriser sans problème une pièce de 20m2, avec 1.5W de consommation seulement. Peut même être alimenter par une batterie de recharge smartphone pour les puristes ou les nomades
