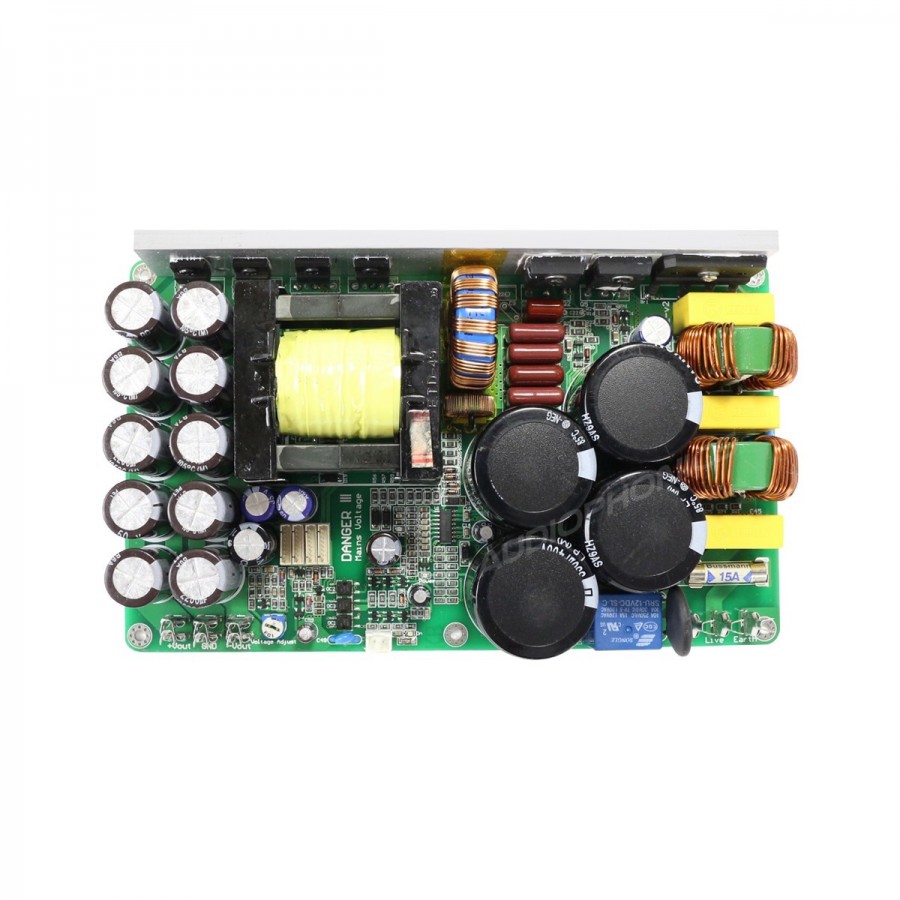

CONNEX SMPS2000RxE Switched mode Power supply module 2000W / +/-40V

The switching power supply SMPS2000RXE V2 is a very high performance model capable of developing a nominal power of 2000 Watts in an extremely small footprint.

This power supply is capable of delivering 2000W of continuous power and up to 2600W peak.

This is the version with a double output voltage of +/- 40V.

The main feature of this power supply is the lack of radiators for both power switches and rectifier diodes.
The amount of EMI is less than any conventional power supply and could be compared to a regulated linear power supply.

Its small size and considerably reduced weight allow the SMPS2000RxE to be installed almost anywhere.

The SMPS2000RxE incorporates overcurrent protection that limits the output current to approximately 130% of maximum peak power, or about 2600W.

This power supply is suitable for both class AB and class D / T amplifiers.

Data sheet / Datasheet

Meaning of terms R, RE, RS and RXE on SMPS power supplies:

QR, R:SINGLE or DUAL power supplies with conventional LLC resonance filter for class A / B or D amplifiers, SMPS Rare characterized by their price quality ratio.

RE:SMPS power supplies with differential and multiple voltage outputs with resonant filter including an LLC filter with low noise EMI filter (with low-ripple CLC filter) for class A / B or D / T class Amplifiers. Conveniently replaces conventional linear power supplies. (Generally suitable for TA2022, TDA8920, TDA8950, IRS2092 amplifiers)

RS:SMPS power supplies close to the RE but with a single resonant filter "Single Rail Output" featuring an LLC filter with low noise EMI filter (with low ripple CLC filter) for class A / B or D / T amplifiers. Advantageously replaces conventional linear power supplies.

RXE:The high-end SMPS 600, 800W and 2000W featuring filters resonating LLC latest generations (with CLC filter in low output ripple) with high-end FET transistors. Especially recommended for Class D high-end amplifiers (IRS2092, HYPEX, CXD). Can also be used for class A / B amplifiers.

TECHNICAL CHARACTERISTICS

• High efficiency feed
• Stunning Compactness
• Low electromagnetic radiation (EMI)
• Advanced Protection
• Output voltage (+/- 40V)
• Auxiliary output +/- 12V
• Dimensions: 120x200x40mm
• Weight: 888g

SPECIFICATIONS

• Input Voltage Ranges: 190-250V (on 220V mains supply)/ Li>
• Output Voltage: +/- 40V
• Max Power: 2600 Watts
• Rated Power: 2000 Watts
• 2 JST XHP cords 7 poles supplied
