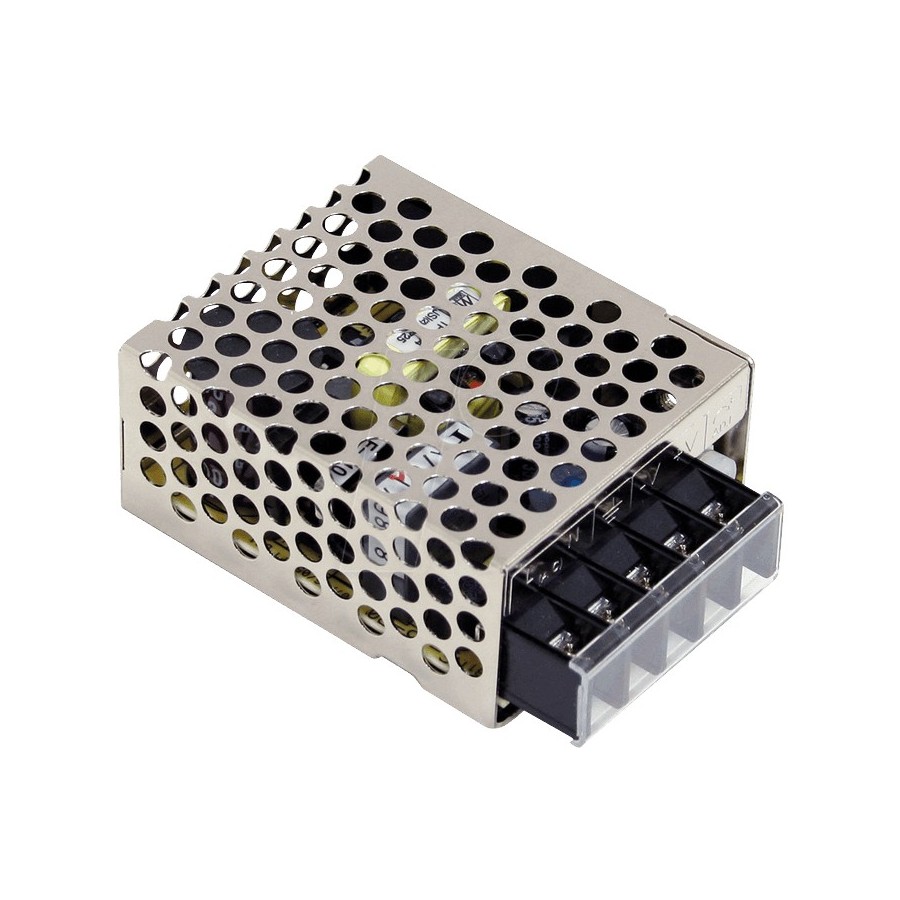

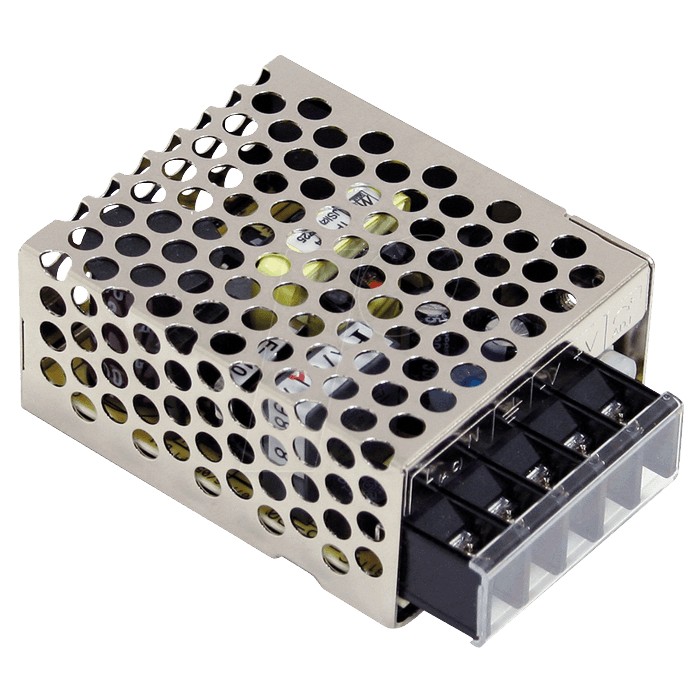

MEAN WELL RS-15-12 Switching Power Supply SMPS 15W 12V

Meanwell RS-15-12 Module d'Alimentation à Découpage SMPS 15W 12V
Average votes for this product
5.0 / 5

By buying this product you get 1 loyalty point


Yes, notify me when available !
Reference : 8300
New product

10,50 €tax incl.

8,75 € tax excl.
Including 0,05 € for green tax

- +


Available on order
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Meanwell RS-15-12 Switching Power Supply SMPS 15.6W 12V 1.3A

Characteristics:

  • Power: 15.6 W
  • Tension : 12V DC
  • Current : 1.3A
  • Tension adj. range: 10.8 ... 13.2 V
  • Efficiency: 81%
  • Ripple and Noise: 120 mV
  • AC input range 115V / 230V selectable by switch
  • Protections: Short circuit / over load / overvoltage
  • Input voltage: 88 ... 132/176 ... 264 V AC (47 .. .63 Hz), 248 ... 373 V DC
  • Input Current Max: 65 A
  • Max Leakage Current: 2 mA
  • Output voltage adjustment: +10 / -5%
  • More load protection:> 105%
  • Operating Temperature Range: -25 ... +70 ° C
  • Input Voltage 88 to 264 VAC
  • Input voltage 248 to 373 VDC
  • Efficiency: 81%
  • Short Circuit Protection: Yes
  • Overload protection: Yes
  • Weight: 130 g
  • Dimensions: 62.5 mm x 51 mm x 28 mm

Download Datasheet RS-15 as PDF

https://www.audiophonics.fr/images/8300_alimentations_RS-15-12_thumbs.png


Data sheet
InputScrew terminals
OutputScrew terminals
Output voltage (V)12.0
Output current (A)1.3
Input voltage (V)230.0
Input voltage (V)220.0
Input voltage (V)120.0
Input voltage (V)115.0
Power SupplySMPS

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Only registered users can post a review. Log in or create an account .
Average votes
5.0 / 5
1 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 5/5
Date :
Alim compacte de qualité
Très compacte et légère, tension de sortie réglable. Dommage que les vis courtes ne soient pas fournies avec.
 (0)
 (0)
This review has been posted for MEAN WELL RS-15-12 Switching Power Supply SMPS 15W 12V
