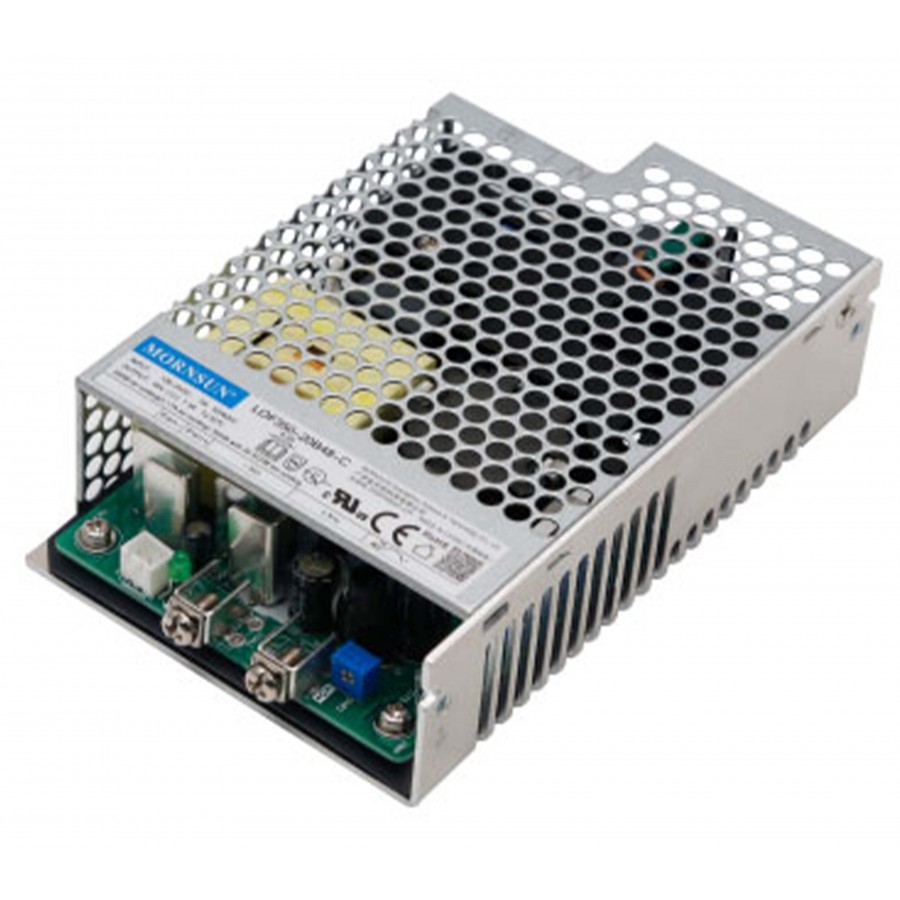

MORNSUN LOF350-20B24-C SMPS Switching Mode Power Supply 350W 24V 14A PFC
This LOF350-20B24-C SMPS switching power supply module delivers 24V and 14A for a total power of 350W. The LOF350-20B24-C accepts a wide supply voltage range from 90V to 260V AC or 127V to 370V DC via a 3-pin JST B5P-VH connector. It features high-quality components and PFC (Power Factor Correction), enabling it to achieve 93% efficiency. If required, a variable resistor can be used to adjust the output voltage from 22.8V to 25.2V.
Connectors include two screw terminals and a 2.5mm 2A XHS connector for powering an external fan for optimum heat dissipation.
Finally, all necessary protections, such as overtemperature, overcurrent and overvoltage protection, are built into the module, and the whole unit is protected by a robust metal cage. The LOF350-20B24-C power supply is an ideal choice for any DIY audiophile project requiring a powerful, high-quality power supply.
Integrated PFC module
The LOF350-20B24-C switching power supply features an active PFC (Power Factor Correction) with Mosfet transistor. The PFC enables a pre-splitting step to obtain a continuous, non-out-of-phase current at the power supply input. This has two advantages: firstly, the power supply's efficiency becomes optimum, with a rate of over 90%, and secondly, the advertised power values will remain as they are, whatever the input voltage to the PFC. For example, this power supply will deliver 350W whether the input voltage is 110V or 220V.

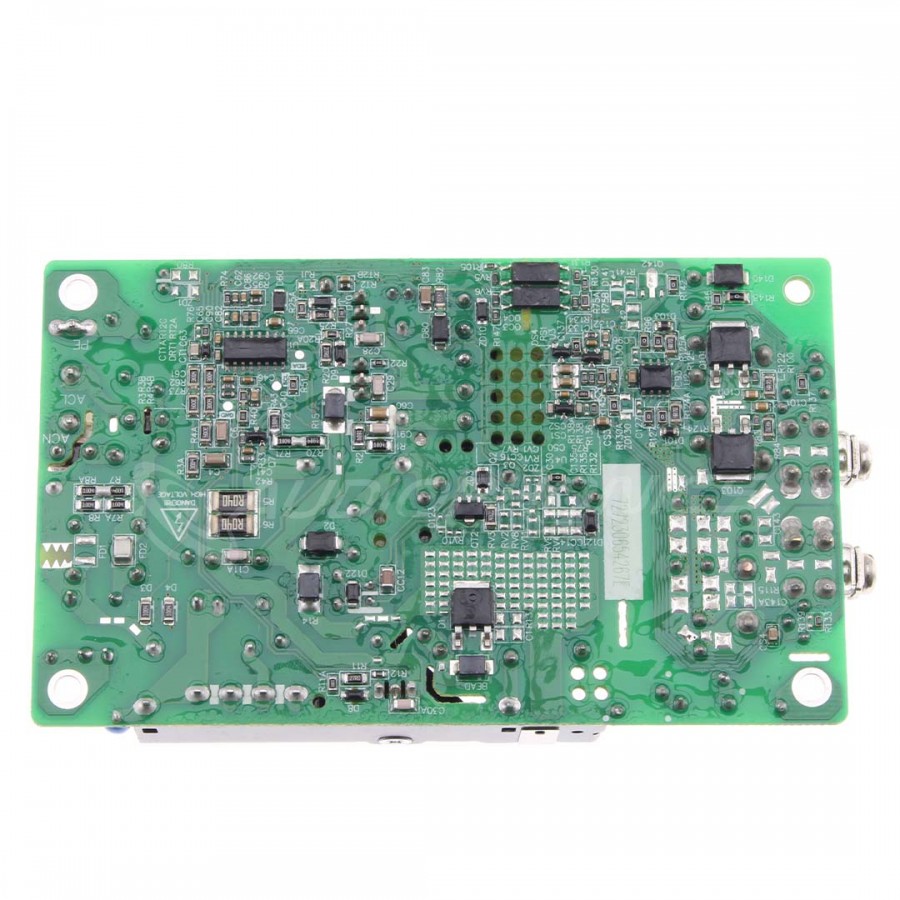

LOF350-20B24-C SMPS power supply overview
| A | Power supply input 1: AC (N) / 2 : AC (L) / 3 : GND |
| B | Output 24V : Vo- / Vo+ |
| C | FAN- / FAN+ |
Technical characteristics
| Specifications | |
|---|---|
| Product type | Switching mode power supply module |
| Input voltage | 90V - 260V AC ou 127V - 370V DC |
| Operating frequency range | 47-63Hz |
| Output power | 350W |
| Voltage and current output | 24V 14A (25CFM) 24V 8A (natural air cooling) |
| Output voltage adjustment | 22.8V - 25.2V |
| Efficiency | 93% |
| Linear adjustment rate | ±0.5% |
| Load regulation rate | ±1% |
| Standby power consumption | 0.5W |
| Operating temperature | -40°/+70° |
| General | |
|---|---|
| Dimensions | 130 x 86 x 35mm |
| Weight | 430g |
| Package | 1x SMPS LOF350-20B24-C switching power supply module |
| Input | PCB Connector |
| Output | PCB Connector |
| Output | Screw terminals |
| Output voltage (V) | 24.0 |
| Output current (A) | 14.0 |
| Input voltage (V) | 90.0 |
| Input voltage (V) | 260.0 |
| Power Supply | SMPS |
