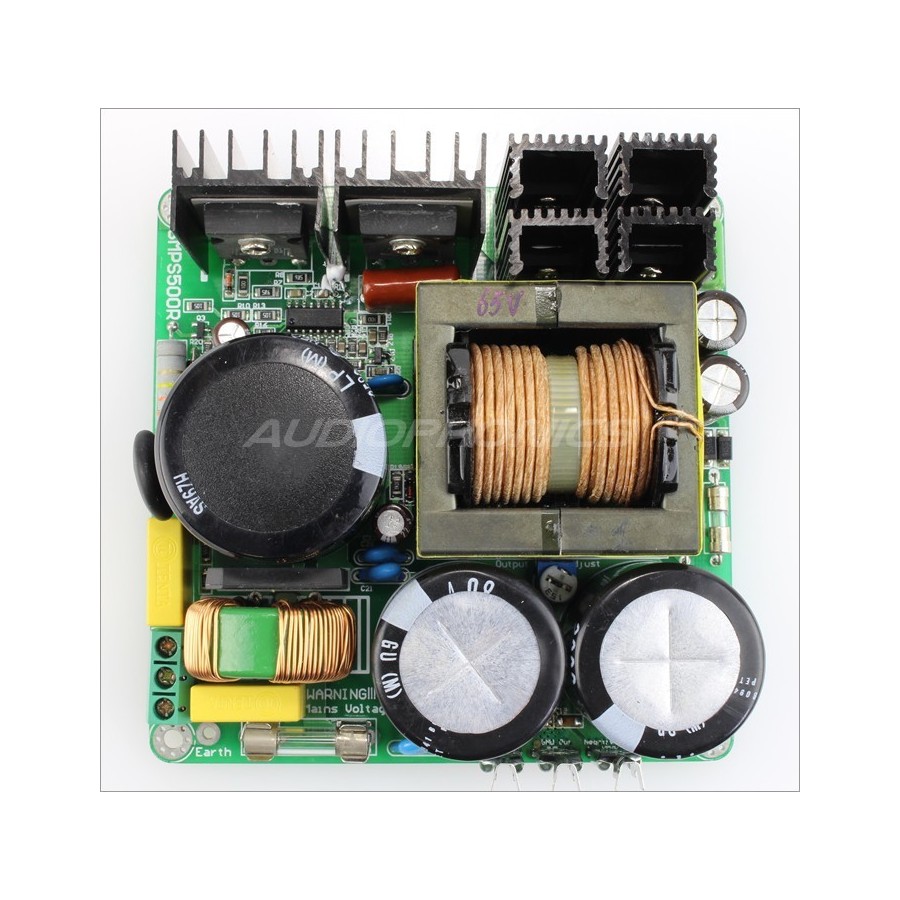

SMPS500R Switching Power Supply Module 500W +/- 60V

The SMPS500R switched mode power supply is a very high performance model capable of developing a nominal power of 500 Watts in an extremely small footprint.

This power supply is capable of delivering 500W of continuous power and up to 650W peak.

The delivered version is a +/- 60 V.

The main feature of this power supply is the lack of radiators for both power switches and rectifier diodes.
The amount of EMI is less than any conventional power supply, and could be compared to a linear regulated power supply.

Its small size considerably reduced weight, allow to install the SMPS500R everywhere.

The SMPS500R incorporates overcurrent protection that limits the output current to approximately 130% of the maximum peak power, or about 650W.

This power supply is suitable for both class AB and class D / T amplifiers.

Meaning of terms R, RE, RS and RXE on SMPS power supplies:

QR, R: SINGLE or DUAL power supplies with classic LLC resonance filter for class A / B amplifiersor D, the SMPS R are characterized by their price quality ratio.

RE: SMPS power supplies with differential and multiple voltage outputs with resonant filter including an LLC filter with low noise EMI filter (with low ripple CLC filter) for class A / B or D / T class Amplifiers. Conveniently replaces conventional linear power supplies. (Generally suitable for TA2022, TDA8920, TDA8950, IRS2092 amplifiers)

RS: SMPS power supplies close to the RE but with a single rail output with a resonant filter including an LLC filter with low noise EMI filter (with low ripple CLC filter) for class A / B or D / T amplifiers . Advantageously replaces conventional linear power supplies.

RXE: The high-end SMPS 600, 800W and 2000W featuring the latest generation LLC resonant filters (with low-ripple CLC filter) with high-end FET transistors. Especially recommended for Class D high-end amplifiers (IRS2092, HYPEX, CXD). Can also be used for class A / B amplifiers.

Features:/ Strong>

• Food at very high efficiency
• Amazing Compactness
• Low electromagnetic radiation EMI
• Advanced Protection
• Output voltage +/- 60V
• Auxiliary Output +/- 19V

Specifications:

• Input Voltage Ranges: 190-250V (On Sector 220V)
• Maximum Power Rating: 650watts
• Nominal Power: 500watts
• Dimensions: 100x100x40
• Weight: 230 g

Datasheet PDF
