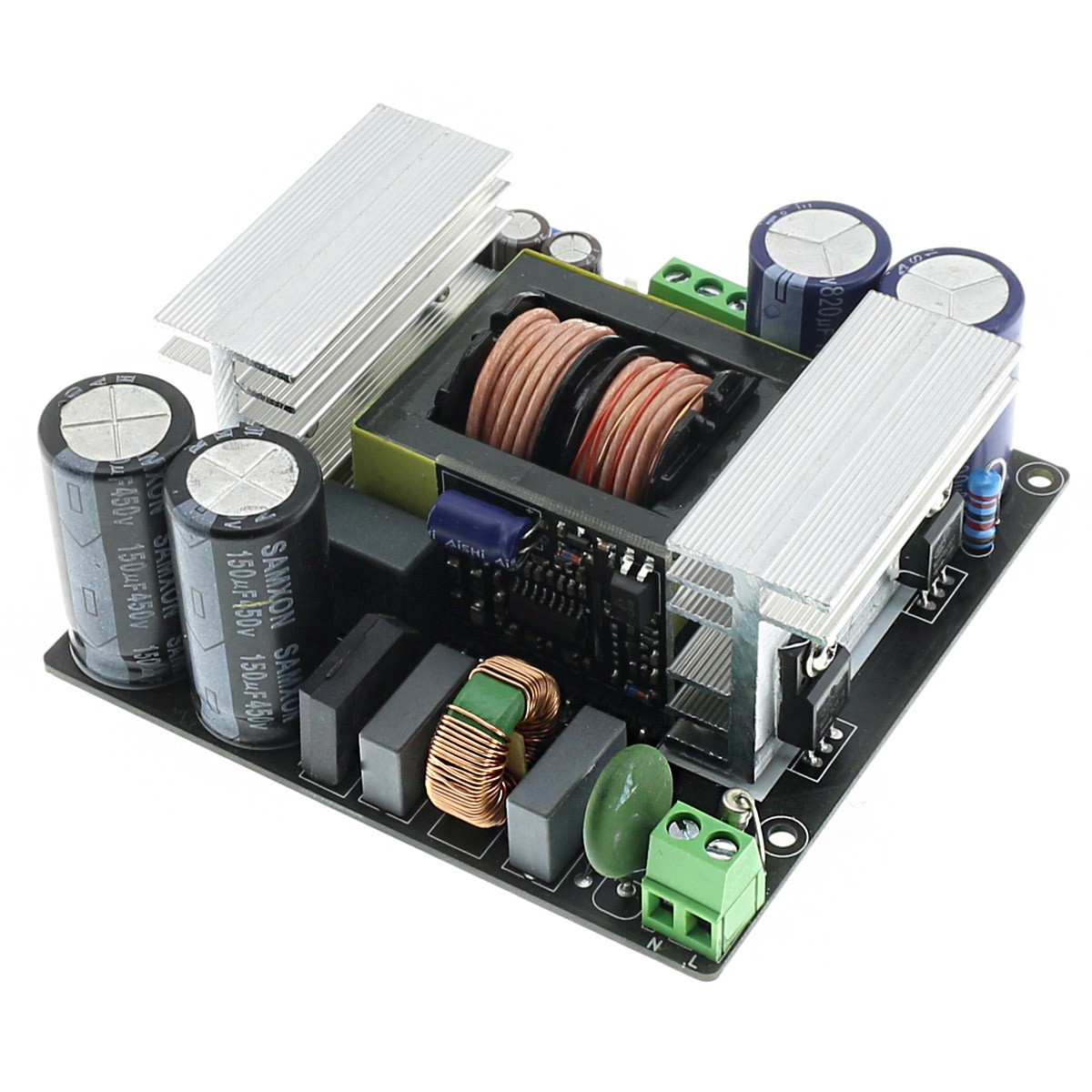

Switching Power Supply Module 700W +/-60V

This LLC switch mode power supply module has a main output delivering ±60V. The resonant circuitry uses a high frequency sine wave, ensuring excellent stability and a clean power supply. The power supply is also equipped with an independent output of 12V 0.5A and an auxiliary output of ±12V 0.5A.

Average votes for this product
4.0 / 5
  Based on 2 customers reviews.

By buying this product you get 4 loyalty points


Reference : 15595
New product

49,90 €tax incl.

41,58 € tax excl.

- +


Shipping date: 24-12-2024.

Orders placed before 12h (GMT+1) will generally be shipped the same day (working day).

Add to wishlist
Livraions depuis la france

Livraison depuis la france Livraison depuis la france Livraison depuis la france

Livraison depuis la France
Facturation France
SAV France

2 Years warranty

More info

Module d'alimentation

Alimentation à découpage 700W ±60V

Module d'alimentation à découpage 700W ±30V

This LLC switch mode power supply module has a main output delivering ±60V. The resonant circuitry uses a high frequency sine wave, ensuring excellent stability and a clean power supply.
The power supply is also equipped with an independent output of 12V 0.5A and an auxiliary output of ±12V 0.5A. The latter allow the supply of less demanding devices, such as a fan. The module accepts an input voltage of 200-240V AC.

The module also benefits from a protection system against overheating, overcurrent and short circuits.

If a protection system is activated, the module locks up. It is then necessary to disconnect the AC power supply and wait for the filter capacitor voltage to drop to 0V before restarting.

The current of the independent and auxiliary outputs cannot exceed the current delivered by the main output.


Module d'alimentation à découpage

Technical characteristics

Specifications
Product typeSwitching power supply
Input200-240VAC on screw terminals
Output voltagesMain output : ±60V 6.5A
Independant output: 12V 0.5A
Auxiliary output : ±12V 0.5A
Accuracy of voltage stabilization±3% @ 220VAC
Continuous power350W
Rated power700W
Peak power900W
EfficiencyMax. 98%
General
Dimensions96 x 96 x 38mm
Weight310g

Data sheet
InputScrew terminals
OutputScrew terminals
OutputPCB Connector
Output voltage (V)12.0
Output voltage (V)60.0
Output current (A)0.5
Output current (A)6.5
Input voltage (V)220.0
Input voltage (V)230.0
Input voltage (V)240.0
Power SupplySMPS

Delivery

We deliver all over France, and internationally.
To find out the amount of shipping costs, simply go to your cart once you have added the desired products.
To discover our different services and delivery options, click on the following logos :

Livraison par Colissimo Livraison par UPS Express Saver Livraison par DPD
Only registered users can post a review. Log in or create an account .
Average votes
4.0 / 5
2 reviews
Why write products reviews ?
You can share your feelings about products and help other people by sharing your experience

Note :
 3/5
Date :
Auxiliaire, pas terrible
Autant la sortie principale est bonne, stable, on peut taper dedans. Autant la sortie auxiliaire, bof.
Ne permet même pas d'alimenter un module softstart. (2 relais 12v). Pas de protection, une diode a cramé.
 (0)
 (0)
This review has been posted for Switching Power Supply Module 700W +/-60V
Note :
 5/5
Date :
SMPS
Excellent rapport Q/P, tensions vérifiées : très propres . Encombrement réduit . parfait pour modules UCD 400.
J'aurais préféré des sorties principales sur faston plutôt que sur borniers à vis, à voir sur la durée.
 (0)
 (0)
This review has been posted for Switching Power Supply Module 700W +/-60V
