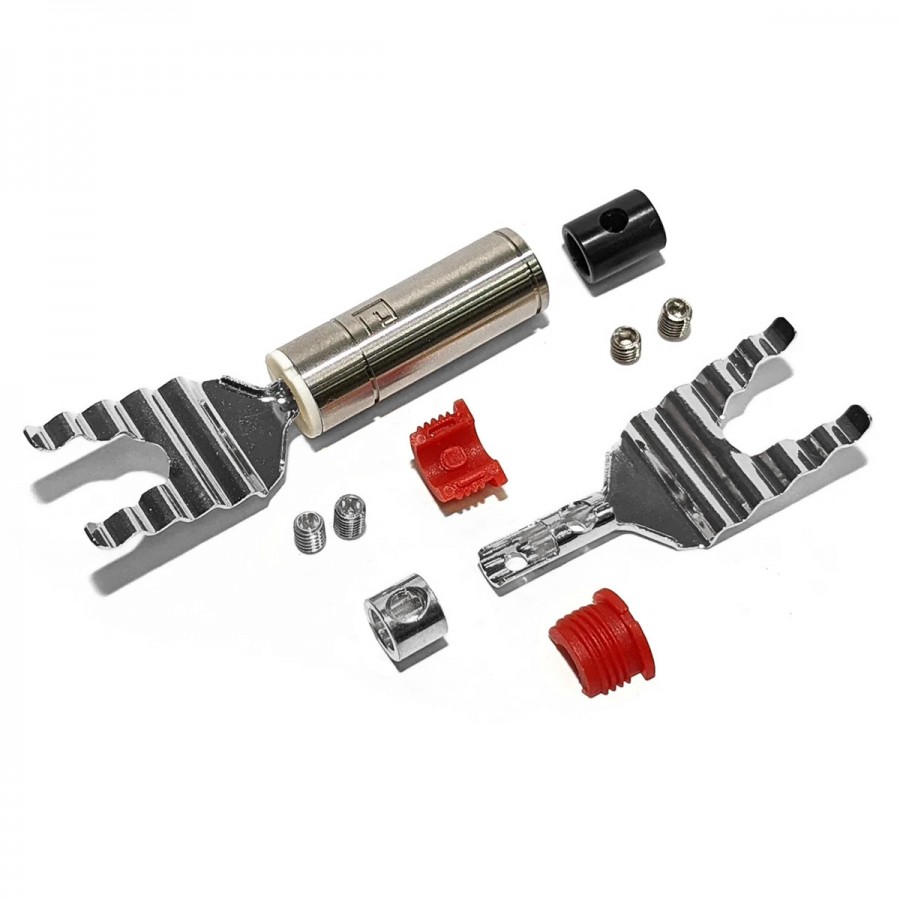

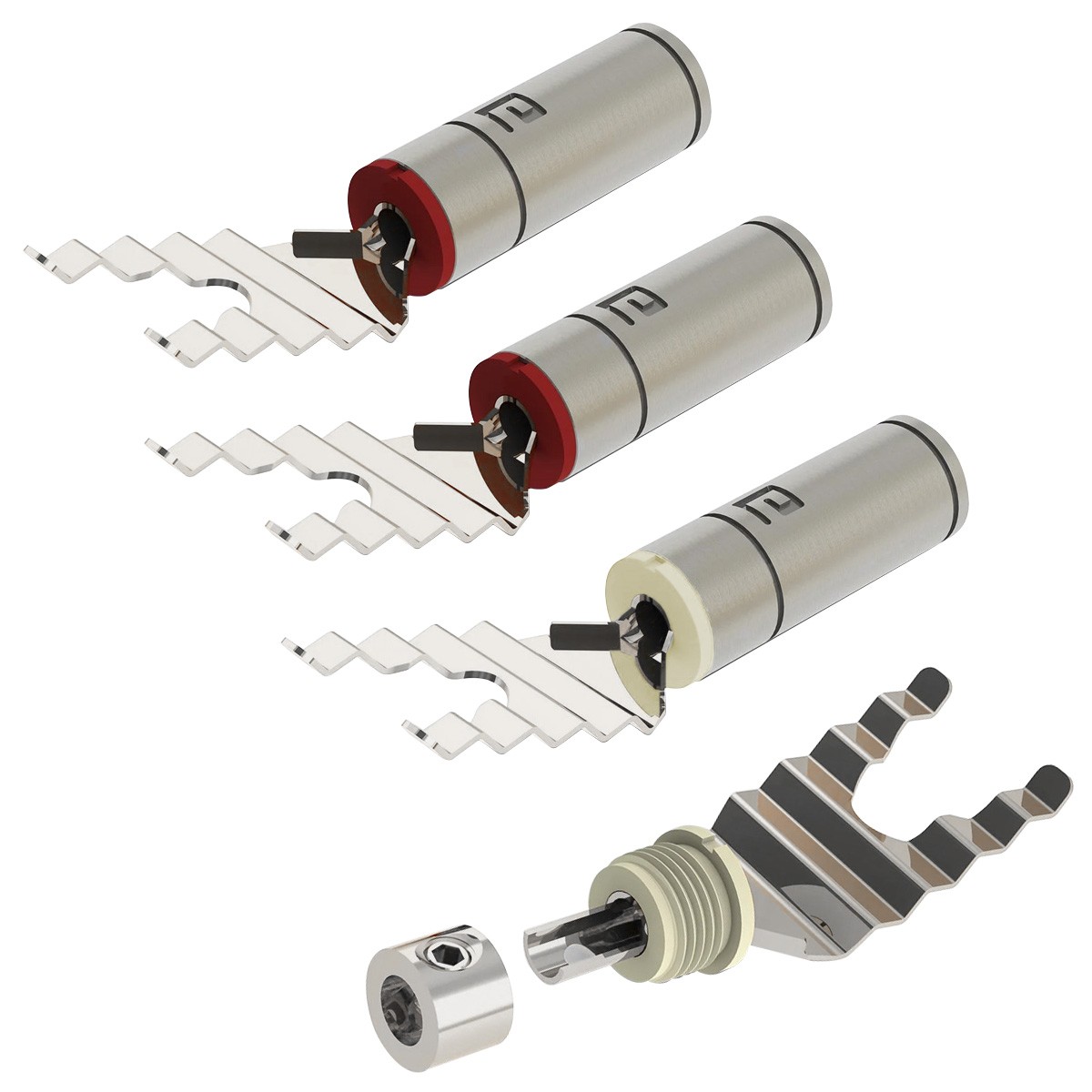

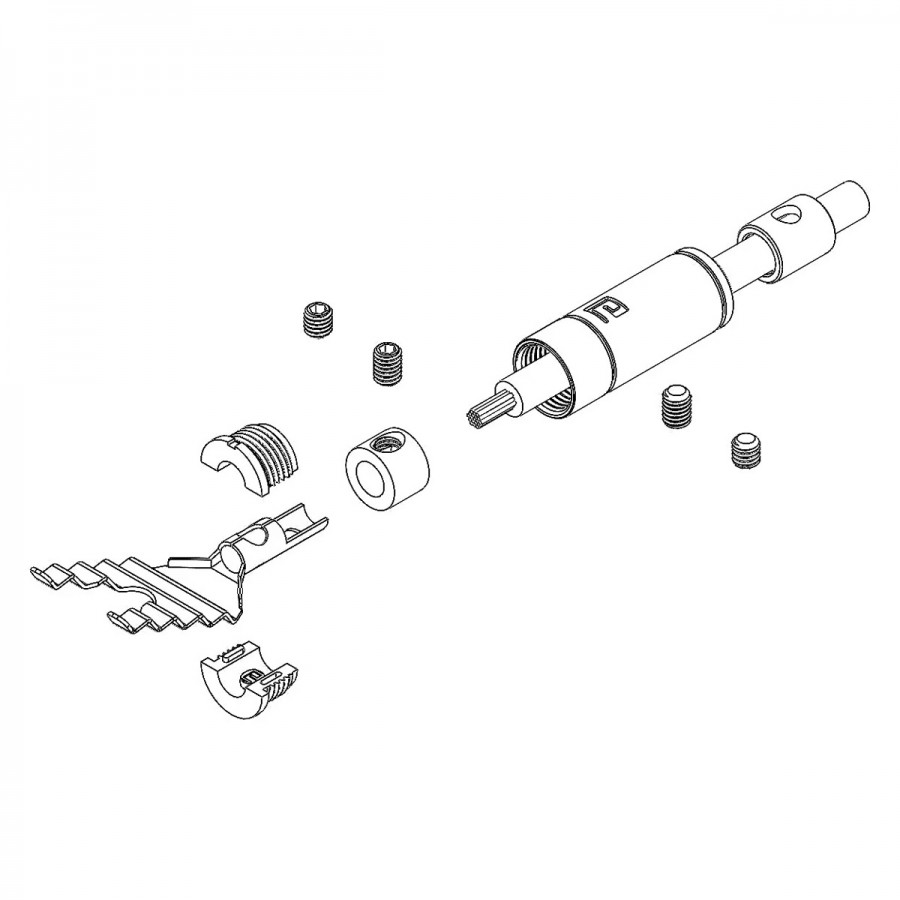

These high-quality aeco ASP-1931R spade plugs, sold in packs of 4, benefit from a rigorous design using top-of-the-range materials. The contacts, waved for better connection, are made of 99.9% pure copper with rhodium plating, ensuring both excellent conductivity and perfect resistance to oxidation. The insulation is made of fibreglass-reinforced nylon, and the outer shell is made of stainless steel for durability. The forks have a structure that allows them to be completely dismantled for easy welding. They can also be assembled using a practical screw system. The forks also accept cables up to Ø6.5mm in diameter, which are held in place by two screws.
Technical characteristics
Specifications | |
---|---|
Product type | Spades |
Contacts material | Copper (purity: min. 99.9%) |
Contacts plating | Rhodium |
Contacts resistance | < 0.4mΩ |
Insulation materrials | Fibreglass-reinforced nylon POM |
Connectors body material | Stainless steel |
Max cable diameter | With reducer: Ø4.5mm Without reducer: Ø6.5mm |
General | |
---|---|
Total dimensions | Ø13.8*48.5mm |
Color | Silver |
Quantity | 4 spades (2 with red ring, 2 with white ring) |
Max cable diameter (mm) | 6.5 |
Mounting type | To screw |
Mounting type | To weld |
Connectic | N/A |
Connector | Spade |
Contacts Material (Connector) | Tellurium Copper |
Contacts Plating (Connector) | Rhodium |
