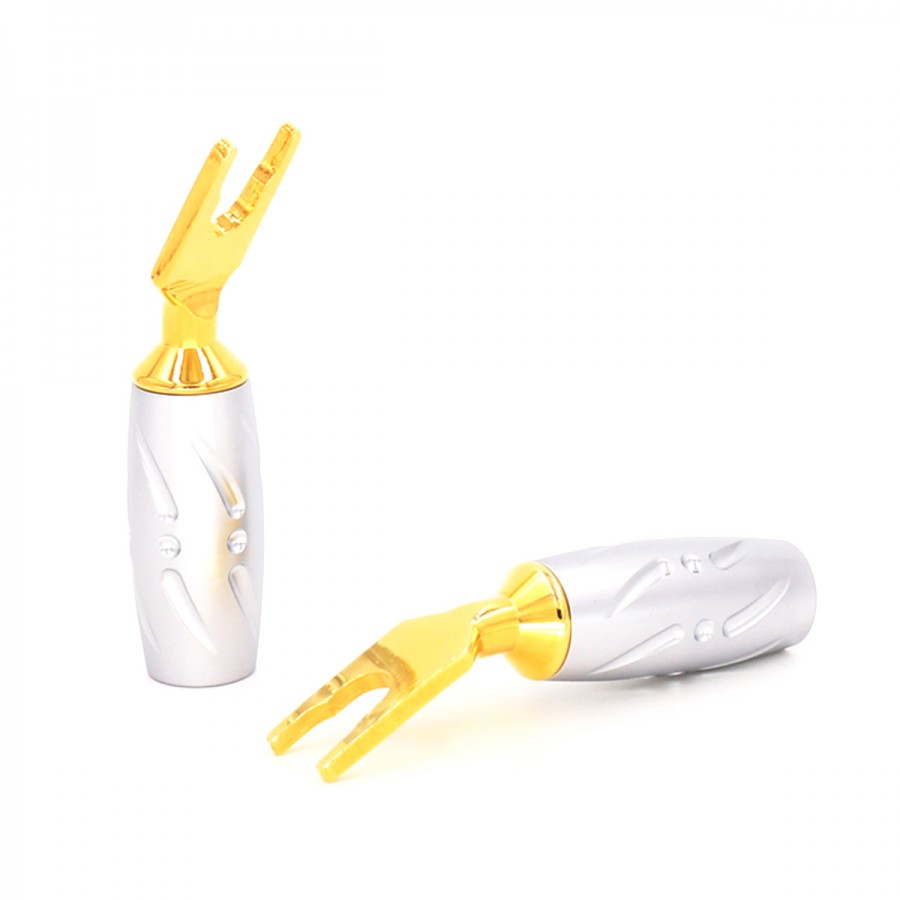

Silver & Gold plated Copper Spades Ø7.5mm
Viborg offers exceptional spades with its VS-701 (G), thanks to a design using particularly top-of-the-range materials.
Thus, the contact material of the spade is Pure Copper. A first point that attracts attention, copper being an excellent conductor. But Viborg goes further by offering a 5µ 24K gold plating, more important than the usual 3µ gold plating. Gold therefore contributes to the conductivity of the signal but above all protects the connector against oxidation, ensuring a longer service life. Viborg also incorporates a silver sub plating in its connectors. This, always in the same perspective, allows to maximize the conductivity of the connector, Silver being the best conductor. Finally, the connector body is made of an Aluminium alloy, ensuring good durability.
In short, these spades are fully adapted to fit into a high-end HiFi audio system.
Specifications | |
---|---|
Conductor | Pure Copper |
Housing material | Aluminium alloy |
Connections | To screw (hexagonal socket screw 2mm) - Screwdriver supplied |
Max cable diameter | 7.5mm |
Housing dimensions | 15 x 33mm |
Overall length | 63mm |
Spades size (U) | 8mm & 6mm |
3 Layer plating | OFC Copper Silver Gold 24K 5µ |
Max cable diameter (mm) | 7.5 |
Mounting type | To screw |
Connectic | Male |
Connector | Spade |
Contacts Material (Connector) | Copper |
Contacts Plating (Connector) | Gold |
Contacts Plating (Connector) | Silver |
