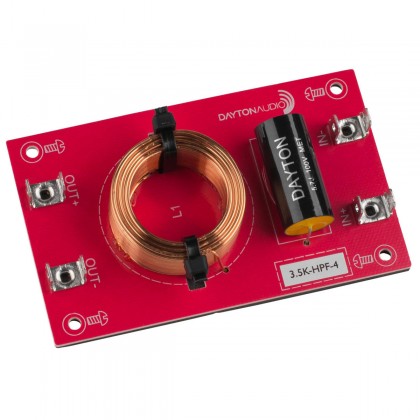

Dayton Audio 3.5K-HPF-4
Speaker High Pass Filter 3500Hz 12dB/Octave 4 Ohm
Dayton Audio filters make it easy to limit the frequency response of a speaker to a desired frequency band. By using a combination of different Dayton Audio filters you can create complete 2 or 3-way crossovers.
This 12dB/Octave 3500Hz high-pass filter can be combined with a Dayton Audio 3500Hz low-pass filter to create a Linkwitz-Riley crossover. It is also possible to shift or overlap filter frequencies to compensate for peaks and valleys in the frequency response of each speaker.
Technical characteristics
| Specifications | |
|---|---|
| Product type | High Pass filter |
| Frequency | 3500Hz |
| Impedance | 4Ω |
| Power handling | 250W |
| Capacitor value | 5.7µF |
| Inductor value | 0.36mH |
| Dimensions | 100 x 60mm |
